Johnson Controls CKM-MR51E Instructions de montage

24-10707-58 Revision E

December 2017

P2000

Security Management System

CKM-MR51E

authentic Mercury™ PoE module

hardware

installation

Johnson Controls

No part of this document may be reproduced without the prior permission of Johnson Controls.

If this document is translated from the original English version by Johnson Controls, all reasonable

endeavors will be used to ensure the accuracy of translation. Johnson Controls shall not be liable

for any translation errors contained herein or for incidental or consequential damages in connection

with the furnishing or use of this translated material.

Due to continuous development of our products, the information in this document is subject to

change without notice. Johnson Controls shall not be liable for errors contained herein or for

incidental or consequential damages in connection with furnishing or use of this material. Contents

of this publication may be preliminary and/or may be changed at any time without any obligation to

notify anyone of such revision or change, and shall not be regarded as a warranty.

Other Manufacturers’ Documentation

Johnson Controls does not duplicate documentation of other equipment manufacturers. When

necessary, Johnson Controls provides documentation that supplements that of other manufacturers.

When unpacking your equipment, keep all original manufacturer documentation for reference.

Technical Support

For factory technical support, Johnson Controls authorized field technicians or authorized dealer

representatives can contact Global Security Solutions Technical Support by phone at

(866) 893-0423 or (414) 524-1214, or by email at [email protected]. They

can also call the Field Support Center at (800) 524-1330 or (414) 524-5000 and use options 6, 1, 7.

End users and customers should contact their local Johnson Controls branch or authorized dealer

for any of their support needs (technical support, maintenance contracts, on-site field support,

P2000 Software Service Agreements, Service Partnerships, and so on). Visit

http://www.johnsoncontrols.com/location-finder to find your local Johnson Controls office.

For material returns contact the branch if the material was purchased through a Johnson Controls

branch or through the Product Sales Operations Team, if ordered through the Advanced Order

Management System (AOMS) and follow the RMA process; or contact the authorized dealer

representative where the material was purchased directly.

Single Point of Contact by Region

Acknowledgment

Metasys® and Johnson Controls® are trademarks of Johnson Controls. All other company and

product names are trademarks or registered trademarks of their respective owners.

European Single Point of Contact

JOHNSON CONTROLS

WESTENDHOF 3

45143 ESSEN

GERMANY

NA/SA Single Point of Contact

JOHNSON CONTROLS

507 E MICHIGAN ST

MILWAUKEE WI 53202

USA

APAC Single Point of Contact

JOHNSON CONTROLS

C/O CONTROLS PRODUCT

MANAGEMENT

NO. 22 BLOCK D NEW DISTRICT

WUXI JIANGSU PROVINCE 214142

CHINA

Declarations of Conformity

United States: This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

Canada: CAN ICES-3 (A)/NMB-3(A)

European Union: This product complies with the requirements of the EMC Directive.

This equipment must not be modified for any reason and it must be installed as stated in the

Manufacturer’s instruction. If this shipment (or any part thereof) is supplied as second-hand

equipment, equipment for sale outside the European Economic Area or as spare parts for either a

single unit or system, it is not covered by the Directives.

UNDERWRITERS LABORATORIES COMPLIANCE VERIFICATION SHEET

The following model number is listed under Underwriters Laboratories® (UL) 1076 for Proprietary

Burglar Alarm Units and Systems, UL 294 for Access Control Systems Units and Underwriters

Laboratories of Canada ULC/ORD-C1076-86.

CKM-MR51E

When installed at the site the following requirements must be met to comply with these standards.

1. The CKM-MR51E shall be mounted in Listed Enclosures CKM-CE75-E1M, CKM-CE75-

E2M, CKM-CE150-E4M, and Listed Burglar Alarm and Access Control System Units

SPE10000-1H00, SPH10000-1H00, SPF10000-1I00, SPF1I100-1I00 or SPF1I300-1J00.

2. A CKM-MR51E mounted in Listed Enclosures CKM-CE75-E1M, CKM-CE75-E2M, CKM-

CE150-E4M, and Listed Burglar Alarm and Access Control System Units SPE10000-

1H00,SPH10000-1H00, SPF10000-1I00, SPF1I100-1I00 or SPF1I300-1J00 shall be powered

through the CKM-F8P power distribution module.

3. Transient protection devices that are installed must not be removed or defeated.

4. Do not connect equipment to an AC power source that is controlled by a switch.

5. Mounting on a three-gang steel blank cover has not been investigated by Underwriters

Laboratories.

6. A 1.5Kohm/750ohm custom end-of-line resistance supervised circuit was investigated by

Underwriter Laboratories.

7. Power for devices connected through relay/control output wiring must be provided by a UL

Listed power limited power source.

8. RS485-type readers have not been investigated by Underwriters Laboratories.

9. Encrypted communication has not investigated by Underwriters Laboratories.

10. For a UL 294 Listed system the following Listed readers may be used.

Manufacturer Models

HID Global Corp. 30387, 31503, 31815, 31880, 32005, 32788, 32985, 5355, 5365,

5395, 5405, 5455, 6005, 6100, 3110-6445, R10T, R10N, R15N,

R15T, RP15N, RP15T, R40N, R40T, RK40N, RK40T, RP40N,

RP40T, RPK40N, RPK40T

All models may be followed by additional suffixes

OSDP Readers: R10Exxx, RP10Exxx, R15Exxx, RP15Exxx,

R30Exxx, RP30Exxx, R40Exxx, RP40Exxx, RK40Exxx,

RPK40Exxx.

All models may be followed by additional suffixes. The last “X” in

the model number maybe an “R” or “N”

Mercury Security Corp. MR-5, MR-20

11. The maximum Wiegand line impedance is 8 ohms, representing 22 AWG @ 500 feet.

12. The HID 3110-6445 shall be powered by a separate power source that is UL 294 or UL 603

power limited power source.

13. Suitable for use with the model P2K-nnn-UL-x Security Management System, where n can be

any number 0 through 9 and where x can be any three letters A through Z.

14. UL 294 Performance Levels

Destructive Attack Level I

Endurance Level IV

Line Security Level I

Standby Power Level I

CKM-MR51E Hardware Installation Manual

24-10707-58 Rev. E

CKM-MR51E READER TERMINAL MODULE

This document provides hardware installation and setup instructions for

CKM-MR51E, the authentic Mercury™ single reader, power over ethernet

(PoE) module. This document is divided into the following sections:

•General Information on page 1

•Mounting Information on page 2

•Wiring Information on page 4

•Setup Information on page 7

•IP Address Configuration on page 9

•Status LEDs on page 12

•Specifications on page 13

•Maintenance on page 14

GENERAL INFORMATION

The CKM-MR51E reader interface provides a network connected, single door

with paired reader, PoE based solution to the OEM integrator for interfacing

TTL, Wiegand, or RS-485 type readers to door hardware. The onboard twisted

pair Ethernet jack with PoE support enables easy installation.

NOTE: For UL installations, PoE powered devices shall not be used; power for

these devices must be provided by a UL 294 listed, power limited source

(12 VDC).

One physical barrier can be controlled with the CKM-MR51E, using single or

paired readers. The first reader port can accommodate a read head that utilizes

Wiegand, magnetic stripe, or two-wire RS-485 electrical signaling standards;

one- or two-wire LED controls; and buzzer control (one-wire LED mode only).

The second reader port can accommodate a read head that utilizes Wiegand or

magnetic stripe signaling; one- or two-wire LED controls; and buzzer control

(one-wire LED mode only). Two Form-C relay outputs may be used for door

strike control or alarm signaling. The relay contacts are rated at 5 A at

30 VAC/DC, dry contact configuration. Four inputs are provided for

monitoring the door contacts, exit push buttons, and alarm contacts. The

CKM-MR51E requires power from PoE or local 12 VDC. The CKM-MR51E

may be mounted in a three-gang switch box.

CKM-MR51E Hardware Installation Manual

24-10707-58 Rev. E

A mounting plate is supplied with the unit. The CKM-MR51E may be mounted

in an enclosure; the supplied mounting plate has mounting holes that match the

CKM-MR50 mounting footprint.

MOUNTING INFORMATION

Figure 1: CKM-MR51E Hardware

Figure 2: CKM-MR51E Hardware (Solder Side)

Additional Mounting Information

Optional mounting items are shown in Figure 3.

• Three-gang stainless steel blank cover: Leviton part number 84033-40.

Available from Graybar, part number 88158404

• Magnetic switch set: G.R.I. part number: 505

123456

J3J7

12V

PoE

TB1 TB2 TB3 TB4 TB5 TB6

111111

IN1 IN2 IN3 IN4 VO LED BZR CLK DAT GND VO GNDDATCLKBZRLED GNDVIN NO NC2-CNONC1-C

0.2 [5.08] 2.35 [59.69]

0.15 [3.81]

2.55 [64.77] 2.55 [64.77]

5.4 [137.16]

STATUS LEDs

2.75 [69.85]

DIP SWITCH

RESET SWITCH

PoE/12Vdc

POWER SELECTOR

JUMPER

ETHERNET RJ45

CONNECTOR

ACTIVITY

(YELLOW)

LINK

(GRREN)

123456

VO IN2 IN1IN3IN4

LED

BZR

CLK

DAT

GND

LED

BZR

CLK

DAT

NC GNDGND

VIN

RLY 1

RLY 2

NC CC

TB6

TB5

TB4

TB3

TB2

TB1

3.3V

LNK

ACT

(K1)

(K2)

D24

D19

ETHERNET

STATUS

LEDs

RELAY K1

LED

RELAY K2

LED

STATUS LEDs

SOLDER SIDE

CKM-MR51E Hardware Installation Manual

24-10707-58 Rev. E

Figure 3: CKM-MR51E Mounting Side View

Figure 4 shows mounting plate dimensions.

Figure 4: CKM-MR51E Mounting Plate Dimensions

FIELD WIRING

MR51e WITH INCLUDED

MOUNTING PLATE

TO ETHERNET

NETWORK

OPTIONAL 3-GANG

JUNCTION BOX

OPTIONAL BLANK

COVER W/SCREWS

OPTIONAL MAGNETIC

TAMPER SWITCH

3.85 [97.8]

2.35 [59.7]

5.50 [139.7]

3.63 [92.1]

3.30 [83.8]

3.63 [92.1]

Ø0.16 [Ø4.0]

MR50 MGT HOLES

4PL

Ø0.16 [Ø4.0]

3-GANG MGT HOLES

4PL

CKM-MR51E Hardware Installation Manual

24-10707-58 Rev. E

WIRING INFORMATION

This sections covers the following:

•Cable Routing

•Input Power

•Communication Wiring

•Reader Wiring

•Input Circuit Wiring

•Relay Circuit Wiring

Cable Routing

The cables should run in grounded conduit or at least two feet from AC

power, fluorescent lights, or other high energy sources.

IMPORTANT: All data cables should be physically separated from power lines. If

conduit is used, do not run data cables in the same conduit as power cables or

certain door strike cables, e.g. strike voltage greater that 42V or Magnetic door

locks without EMI suppression.

All cables must conform with the following regulations:

• National Electrical Code

•NFPA 70

• Local electrical codes

• Canadian Electric Code C22.1 (installations in Canada)

• BSI Standard BS7671, latest edition (installations in Great Britain)

Cabling should be made using good wiring practices and should be long

enough to allow service loops at their terminations in the enclosure.

Input Power

The CKM-MR51E is powered by one of two ways (jumper selected):

• Power is supplied via the Ethernet connection using PoE, fully

compliant to IEEE 802.3af, or

• Local 12 VDC power supply, TB5-3 (VIN), TB5-4 (GND).

CKM-MR51E Hardware Installation Manual

24-10707-58 Rev. E

Communication Wiring

Communication between the EP controller and the CKM-MR51E is

Ethernet. (10Base-T/100Base-TX).

Reader Wiring

The first reader port supports Wiegand, magnetic stripe, and two-wire

RS-485 electrical interfaces. The second reader port supports Wiegand

and magnetic stripe electrical interfaces. Power to the first reader is

12 VDC and is current limited to 150 mA. The second reader may be

powered from the auxiliary power output on TB5-1 and TB5-2. Readers

that require different voltage or have high current requirements should be

powered separately. Refer to the reader manufacture specifications for

cabling requirements. In the two-wire LED mode, the Buzzer output is

used to drive the second LED. Reader port configuration is set via the

host software.

Figure 5: CKM-MR51E First Reader Wiring

Figure 6: CKM-MR51E Second Reader Wiring

IMPORTANT: When powering any remote device(s) by the CKM-MR51E, care

must be taken not to exceed the maximum current available. Cable gauge must

also be evaluated. See Specifications for details.

CKM-MR51E Hardware Installation Manual

24-10707-58 Rev. E

Input Circuit Wiring

Typically, these inputs are used to monitor door position, request to exit,

or alarm contacts. Input circuits can be configured as unsupervised or

supervised. When unsupervised, reporting consists of only the open or

closed states.

When request to exit (REX) input is supervised, the strike remains locked

when a transition to open state or short state occurs. Such transitions do

not generate notifications. The strike relay unlocks only when the REX

input changes to the active state, that is, when the REX switch contact

opens or closes depending on the configuration.

When configured as supervised, the input circuit reports not only open

and closed, but also open circuit, shorted, grounded, and foreign voltage.

A supervised input circuit requires two resistors be added to the circuit to

facilitate proper reporting. The standard supervised circuit requires 1K

Ohm, 1% resistors and should be located as close to the sensor as

possible. Custom end of line (EOL) resistances may be configured via the

host software.

NOTE: Grounded and foreign voltage states are not a requirement of UL 294

and therefore not verified by UL.

The input circuit wiring configurations shown in Figure 7 are supported,

but may not be typical.

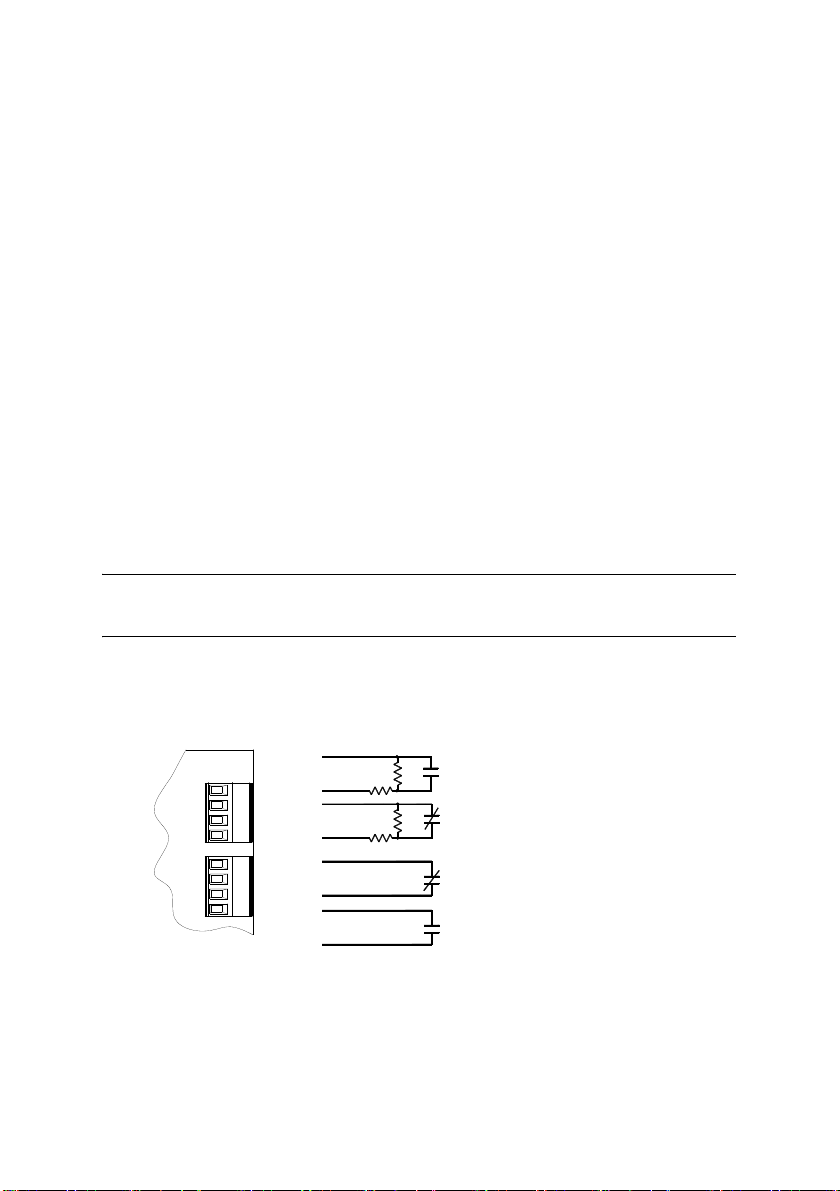

Figure 7: CKM-MR51E Input Circuit Wiring

1K,1%

Standard Supervised Circuit,

Normally Closed Contact

Standard Supervised Circuit,

Normally Open Contact

Unsupervised Circuit,

Normally Open Contact

Unsupervised Circuit,

Normally Closed Contact

TB2

IN4

IN2

IN3

IN1

TB1

}

Table des matières

Autres manuels Johnson Controls Unité de contrôle

Johnson Controls

Johnson Controls IOM3723 Manuel utilisateur

Johnson Controls

Johnson Controls Mercury 3 Series Manuel

Johnson Controls

Johnson Controls Tyco 8200-1466-01 Manuel utilisateur

Johnson Controls

Johnson Controls EM-3000 Series Manuel utilisateur

Johnson Controls

Johnson Controls VG7000 Series Manuel utilisateur

Johnson Controls

Johnson Controls Tyco DV-5a Series Manuel utilisateur

Johnson Controls

Johnson Controls S1-TTSCC Manuel utilisateur

Johnson Controls

Johnson Controls M300CJ-R Manuel utilisateur

Johnson Controls

Johnson Controls V46SA Series Manuel utilisateur

Johnson Controls

Johnson Controls CKM-F8P Manuel

Johnson Controls

Johnson Controls Tyco DV-5a Series Manuel utilisateur

Johnson Controls

Johnson Controls TYCO DPV-1 Manuel d'instructions

Johnson Controls

Johnson Controls M4-XPM Manuel utilisateur

Johnson Controls

Johnson Controls LP-FXGPRSU-0 Manuel utilisateur

Johnson Controls

Johnson Controls GS Series Manuel utilisateur

Johnson Controls

Johnson Controls H Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN P470 Manuel

Johnson Controls

Johnson Controls P352PN-2 Manuel utilisateur

Johnson Controls

Johnson Controls METASYS TC-9102 Series Manuel de service

Johnson Controls

Johnson Controls MS-IOM3723 Manuel utilisateur

Johnson Controls

Johnson Controls System 350 Y350R Manuel de service

Johnson Controls

Johnson Controls System 450 Series Manuel d'exploitation et d'entretien

Johnson Controls

Johnson Controls VG1000 Series Manuel utilisateur

Johnson Controls

Johnson Controls Penn P28 Series Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
