CD-1BC/2BC/9BC

SOLDERING STATION

CD-1BC/2BC/9BC - SOLDERING STATION

It is imperative to follow safety guidelines to protect health and prevent electric shock,

injury, fire or explosions.

SAFETY

- The mains cable must be plugged into approved bases.

- The tool should be placed in the stand when not in use. This way the sleep mode will be activated.

- The soldering tip and the metal part of the tool may still be hot even when the station is turned off.

Handle with care.

- The stand can also be hot. To adjust its position, turn the station off and wait until the cartridge

cools down.

- Be careful with the remains of liquid tin. In contact with skin, it can cause burns.

- Use a “non residue” classified flux and avoid contact with skin or eyes to prevent irritation.

- Do not work on electrically live parts. Antistatic handle of soldering irons is electrically conductive.

- Be careful with the smoke produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working

to avoid any damage.

- This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made

by children without supervision.

CAUTION

- Incorrect use of tool may cause fire.

- Be careful when using the tool in areas where inflamable products are stored.

- Heat can cause inflamable products to ignite even when not at sight.

T245-A

Handpiece

C245903

C245741

Cartridges

MANUAL

Power Cord

www .j bc to ols .com

CD-1BC/2BC/9BC

SOLDERING STATION

S0354 Sponge

CL6210 Brass Wool

CD-1C / CD-2C / CD-9C

Control Unit

CD-1BC/2BC/9BC - SOLDERING STATION

Power Cord Socket

Main switch

Fuse

Cable collector

Quick Tip Changer

Tip Cleaning System

Process Control

Intelligent Heat Management

Equipotential connection

CONTROL UNIT

T245-A

Handpiece

USB-B connector to PC:

- Update station software

- Create graphs of the soldering process

- Manage and monitor parameters via PC

INSTALLATION

PART NAMES

Loosen the tightening knob to adjust the

position of the cable collector.

ADJUSTABLE STAND

CABLE COLLECTOR

The tool stand is easily adjustable. Loosen the tightening knob to adjust the position.

Slide the green piece down to place the wire.

CD-1BC/2BC/9BC - SOLDERING STATION

Tap smoothly the cartridge on the wiper profile to

remove the excess of solder.

Provides a deeper cleaning on the tip.

CL6205 Inox Wool

TAPPING WIPING

Full set of clean option: sponge, metal wool and brush

S0331 Sponge S0354 Sponge

Use the slots to wipe any posible particle sticked

on the tip.

More agressive on the tip than the wool.

CL6220 Brushes

The smoothest cleaning method. The sponge has to be kept wet (not soaked) using distilled water.

CLEANING OPTIONS

ø 1

ø 1,5

ø 3,5

Round Chisel Round

bent

Bevel Special

Cartridges

Alignment

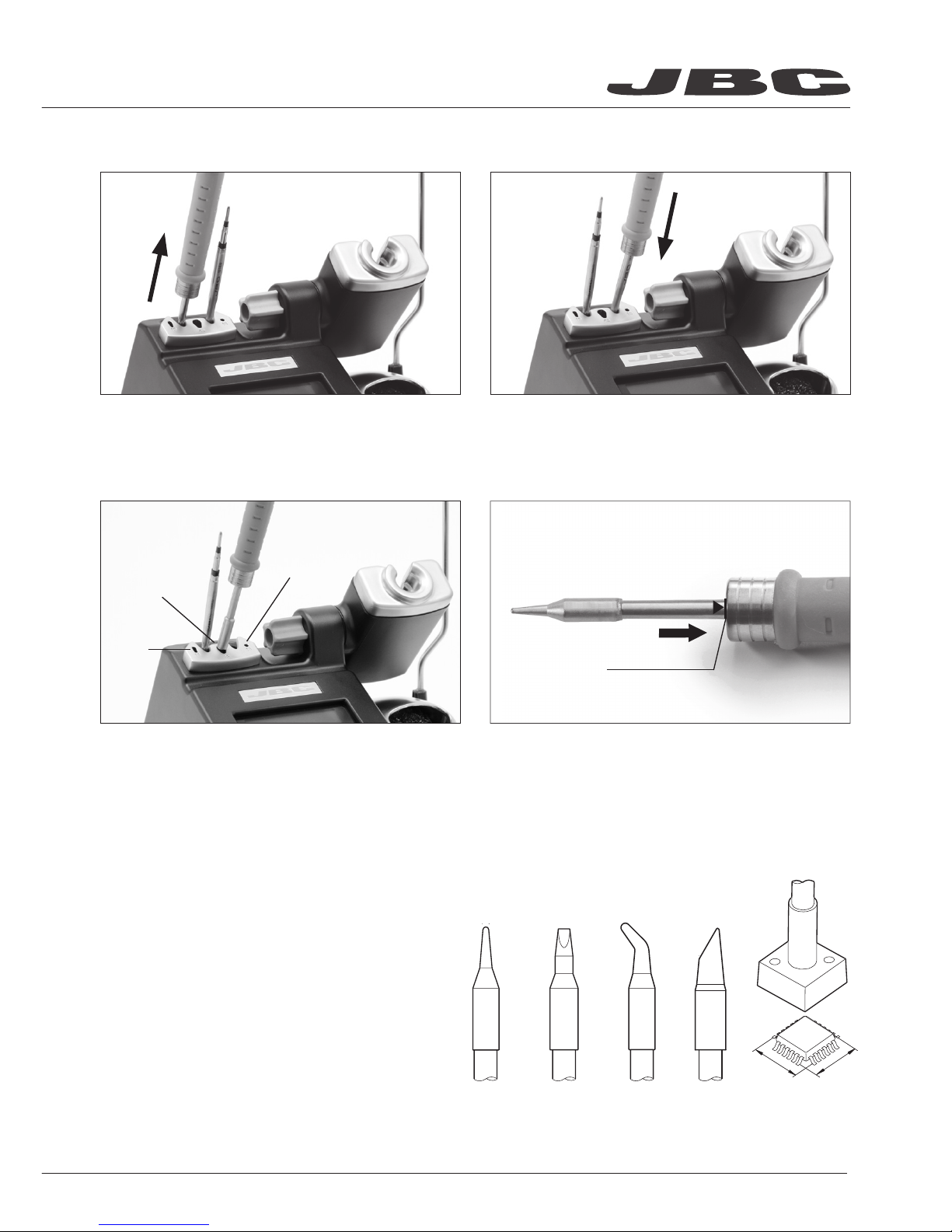

Place the handpiece on top of the new

cartridge, press it slightly down and remove

the handpiece from the extractor.

Place the handpiece in the extractor and

remove the cartridge.

C245 cartridge range is the widest one of JBC

with many shapes, sizes and special models.

They are appropriate for general soldering

purposes and they are perfect for both

SMD components or for applications

with high power requirements such

as ground plane soldering.

Please visit our website to see the full range

www.jbctools.com

Press the cartridge into the opening A, B or C:

A. For straight C210 cartridges.

B. For curved C210 cartridges.

C. For C245 cartridges.

QUICK TIP CHANGER

CARTRIDGE RANGE

Important

It is essential to insert the cartridge till the

end for a good connection. Use the mark as

reference.

CD-1BC/2BC/9BC - SOLDERING STATION

T245-A Handpiece

These handpieces are perfect for both SMD components and for jobs with high power requirements.

Use C245 cartridge range

HANDPIECE

CONNECTABLE HANDPIECES

T210-A Precision Handpiece

For precision applications with medium power requirements.

T210-PA Precision Blue Handpiece

Used for leaded jobs.

Use C210 cartridge range.

T470-A* Handpiece with screw

It incorporates a screw for securing the cartridges.

T470-SA* Handpiece with screw + long cable (3m)

T470-A* Tri-lobed Handpiece with screw

3-sided handle for easy grip.

T470-FA* Comfort Handpiece with screw

It incorporates a foamed grip of insulating material which

makes you feel more comfortable when working

T470-MA* Comfort Handpiece

with screw + long cable (3m)

T245-PA Blue Handpiece

The blue grip allows the user to differentiate the tool

for leaded jobs from the lead-free ones.

T245-B Soft touch Handpiece

The striated appearance helps you hold the handpiece

for a long time. Use C245 cartridge range

*These handpieces only work with C245 cartridge range for this station.

F3449 Fume Extractor (not included)

Easily clips onto the handpiece and can be quickly removed

for easy maintenance.

ACCESSORIES

Selected temp.

350

Power 10%

350

Main menu

Counters

Tool settings

Exit

1 Reset settings

Station settings

Tool settings

Plugged hours 0

Working hours 0

Sleep hours 0

Fix one temp -----

Temp levels set OFF

Sleep delay 0 min

4 Counters

Program version

Hibernation hours 0

No tool hours 0

6 Sleep cycles

Sleep temp 180

Hibernation delay

0 min

Temp adjust + O

Tool 245

BackBack

Station settings

1 Temp unit

Celsius

Maximum temp 400

Minimum temp 200

Help text OFF

5 Beep ON

Change PIN

Back

CONTROL SCREEN

SETTINGS MENU

Tip temperature

Decrease &

move down

Increase &

move up

Access Menu &

Confirm Selection

% Instant power supplied

to the tool

Original PIN: 0105

Expected life

(hours)*

Sleep

Temp

Working

Temp

Temp (ºC)

700

600

500

400

300

200

200 225 250 275 300 325 350 375 400 425 450

100

CD-1BC/2BC/9BC - SOLDERING STATION

JBC stations intelligently manage the tool temperature and it helps to extend the tip life:

Heat management increase tip life which reduces cost of ownership.

HEAT MANAGEMENT

Work mode: Lift tool from the stand and the tool tip heats up to the selected temperature.

Sleep mode: When the tool is in the stand, the temperature reduces (preset sleep temperature is

180ºC / 360ºF).

Hibernation mode: After longer periods of inactivity (pre-set to 30 minutes), the power is cut off and

the tool cools down to room temperature.
