www.jbctools.com

AL

SOLDER FEED STATION

2

AL / SOLDER FEED STATION

AL-2A /1A /9A

CONTROL UNIT

AL250-B

SOLDERING FEED IRON

AL-SD

STAND

0002401 GUIDE SET

(Ø0,9-Ø1mm solder wire)

OPTIONAL GUIDE SETS

(NOT SUPPLIED):

0002399 Ø0,4-Ø0,5mm

0002402 Ø0,6-Ø0,8mm

0002843 Ø1,1-Ø1,5mm

C250403

CARTRIDGE

0008745

SOLDER REEL STAND

POWER CORD

CL9885

TIPS CLEANING STAND

CL6217

BRUSH

PRE ASSEMBLED:

ww w.j bcto ol s.co m

ww w.j bcto ol s.co m

TIP CLEANING

RANGE

AL250

SOLDERING IRON

ww w.j bcto ol s.co m

AL

SOLDER FEED STATION

S0354

SPONGE

MANUAL MANUAL MANUAL

3

Power Cord

Socket

Main switch

Equipotential

connector

INSTALLATION

0964551Pedal

(Not supplied)

HEAT MANAGEMENT

Work mode: Lift tool from the stand and the

tool tip heats up to the selected temperature.

Sleep mode: When the tool is in the stand, the

temperature reduces (preset sleep temperature

is 180ºC / 360ºF).

Hibernation mode: After longer periods of

inactivity (pre-set to 30 minutes), the power

is cut off and the tool cools down to room

temperature.

Heat management increases tip life which reduces cost of ownership.

JBC stations intelligently manage the tool tip temperature:

4

4

4

3

2

1

1. Open dragging mechanism

2. Place the guide set and

tighten the screws

GUIDE SET

1

2

2

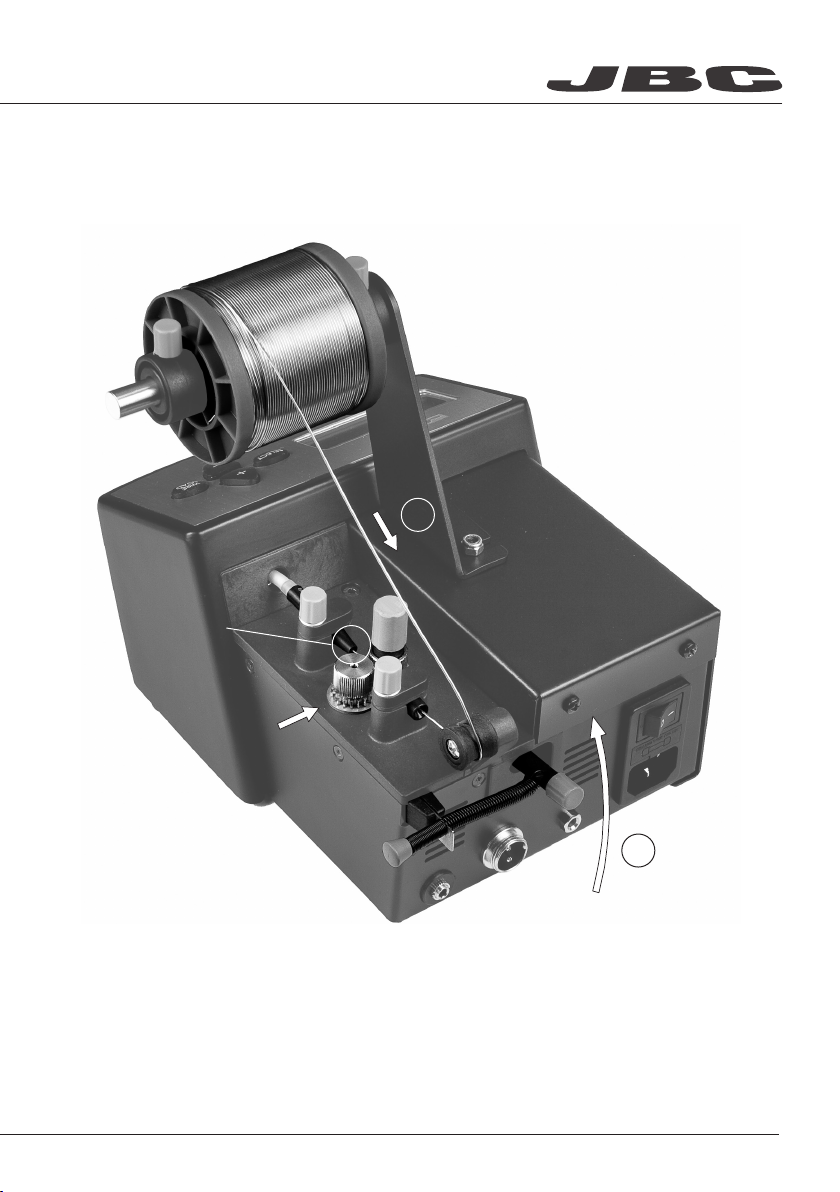

REEL STAND ASSEMBLY

GUIDE SET ASSEMBLY

AL / SOLDER FEED STATION

5

4

3. Take the solder wire from the reel until the guide tube start.

4. Close the dragging mechanism

GUIDE TUBE

START

3

-

+

LOADING

SOLDER WIRE

+

-

6

A

B

5. Connect the handpiece to the station and switch it on. With the handpiece out of the stand, press the

WIRE LOAD key till the solder leaves by the end of the guide tube.

Fast wire

dragging

Solder wire dragging button

A. Adjust the dragging strength

to allow the forwarding of the

solder wire and to avoid stall

and or clogging situations when

any cause arises

B. Tighten the dragging

mechanism

CLUTCH REGULATION

AL / SOLDER FEED STATION

7

CONTROL SCREEN

There are 4 tool status:

USE (Use). The tool is ready to work.

STD (Stand). The tool is placed in the stand but still not in the sleep mode.

SLP (Sleep). The tool is in the sleep mode in the stand, its temperature has dropped till the sleep temperature.

OL. The power circuit is overheated. The power is temporarily not supplied.

TEMP. 230ºC USE

disc. L 10 S 11

Tool temperature Tool status

Length of

wire

Speed

Working method

8

CONTINUE ON NEXT PAGE

PARAMETERS MODIFICATION OF THE TOOL AND THE STATION

To enter into this mode, you must hold the SELECT key for 3 seconds

9

10
