IWILL Dca200 Manuel utilisateur

DCA200-N Series Rev 1.3A FB2A518201300

Contents

Chapter 1 Quick Installation ................... 3

1.1 Layout ...................................................................................... 3

1.2 CPU setting ..............................................................................4

1.3 Jumpers .................................................................................... 5

1.4 Expansion Slots / Sockets .......................................................7

1.5 Connectors ...............................................................................9

1.6FormFactor............................................................................19

Chapter 2 Overview................................ 21

Chapter 3 Features ................................. 24

3.1 Motherboard Components Placement .................................. 24

3.2 Back Panel ............................................................................. 26

3.3 Block Diagram.......................................................................27

3.4 Specifications .........................................................................28

Chapter 4 Hardware Setup.................... 31

4.1 Before Installation.................................................................31

4.3 Install the Processor..............................................................35

4.4 Install Memory Modules ......................................................35

4.5 Install PCI Expansion Cards .................................................37

4.6 Usage of the AGP Pro slot .................................................... 38

4.7 Connect Devices and Power Supply ..................................... 39

Chapter 1 Quick Installation

DCA200 Series

Chapter 5 BIOS Setup............................ 53

5.1Introduction ............................................................................53

5.2 Main Menu ............................................................................ 54

5.3 Standard CMOS Features .................................................... 55

5.4 Advanced BIOS Features ..................................................... 58

5.5 Advanced Chipset Features .................................................. 62

5.6 Integrated Peripherals...........................................................64

5.7 Power Management Setup .................................................... 70

5.8PnP/PCIConfigurations........................................................ 74

5.9 PC Health Status ................................................................... 75

5.10 IWILL Smart Setting...........................................................76

5.11 Load Fail-Safe Defaults.......................................................77

5.12 Load Optimized Defaults.....................................................77

5.13 Set Supervisor / User Password Setting ............................. 78

5.14 Save & Exit Setup ...............................................................78

5.15 Exit Without Saving ............................................................. 78

Chapter 6 Power Installer CD............... 79

6.1 Software Installation..............................................................79

6.2 How to use the Power installer CD ....................................... 79

6.3 Installing Operating Systems ................................................ 81

Chapter 1 Quick Installation

DCA200 Series

Chapter 1

Quick Installation

Several easy installation steps will be described in this chapter to help the experienced users with

quick installation. If you are a beginner, or need to know more about this product, please refer

to Hardware Setup.

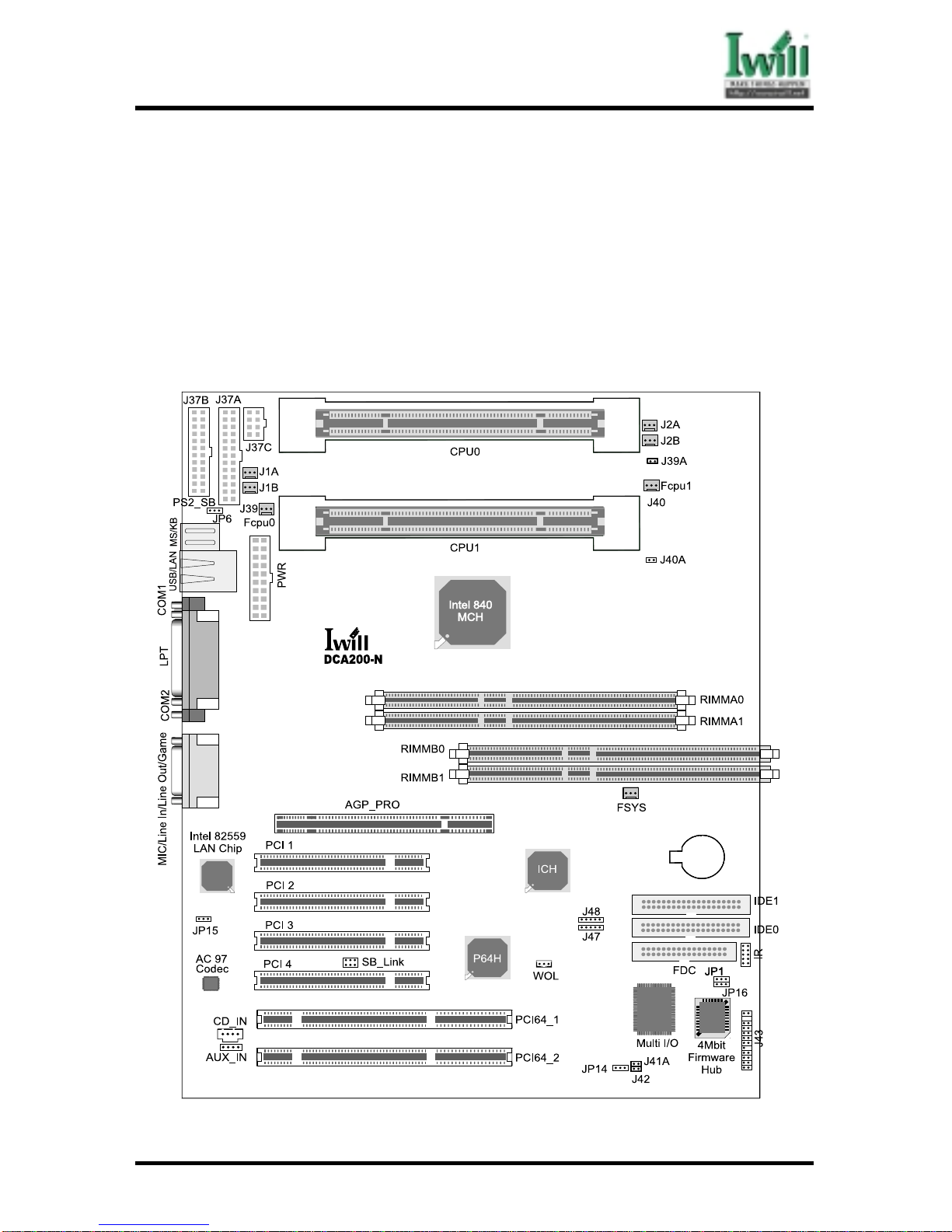

1.1 Layout

Chapter 1 Quick Installation

DCA200 Series

1.2 CPU setting

This motherboard is designed for Intel® Pentium® III Xeon™ processors

through a SC330 connector (330-pin slot connector) .

CPU Model L2 Vcore & Package “CPU Speed” in BIOS

Pentium II Xeon 400 512K CSRAM 2.0V, SECC 400Mhz(100x4)

Pentium II Xeon 400 1M CSRAM 2.0V, SECC 400Mhz(100x4)

Pentium II Xeon 450 512K CSRAM 2.0V, SECC 450Mhz(100x4.5)

Pentium II Xeon 450 1M CSRAM 2.0V, SECC 450Mhz(100x4.5)

Pentium II Xeon 450 2M CSRAM 2.0V, SECC 450Mhz(100x4.5)

Pentium II Xeon 500 512K CSRAM 2.0V, SECC 500Mhz(100x5)

Pentium II Xeon 500 1M CSRAM 2.0V, SECC 500Mhz(100x5)

Pentium II Xeon 500 2M CSRAM 2.0V, SECC 500Mhz(100x5)

Pentium II Xeon 550 512K CSRAM 2.0V, SECC 550Mhz(100x5.5)

Pentium II Xeon 550 1M CSRAM 2.0V, SECC 550Mhz(100x5.5)

Pentium II Xeon 550 2M CSRAM 2.0V, SECC 550Mhz(100x5.5)

Pentium III Xeon 500 512K CSRAM 2.0V, SECC 500Mhz(100x5)

Pentium III Xeon 500 1M CSRAM 2.0V, SECC 550Mhz(100x5)

Pentium III Xeon 500 2M CSRAM 2.0V, SECC 500Mhz(100x5)

Pentium III Xeon 550 512K CSRAM 2.0V, SECC 550Mhz(100x5.5)

Pentium III Xeon 550 1M CSRAM 2.0V, SECC 550Mhz(100x5.5)

Pentium III Xeon 550 2M CSRAM 2.0V, SECC 550Mhz(100x5.5)

Pentium III Xeon 600 256K-on-die 2.8V, SECC 600Mhz(133x4.5)

Pentium III Xeon 600 256K-on-die 5V, SECC 600Mhz(133x4.5)

Pentium III Xeon 600 256K-on-die 12V, SECC 600Mhz(133x4.5)

Pentium III Xeon 667 256K-on-die 2.8V, SECC 667Mhz(133x5)

Pentium III Xeon 667 256K-on-die 5V, SECC 667Mhz(133x5)

Pentium III Xeon 667 256K-on-die 12V, SECC 600Mhz(133x5)

Pentium III Xeon 733 256K-on-die 2.8V, SECC 733Mhz(133x5.5)

Pentium III Xeon 733 256K-on-die 5V, SECC 733Mhz(133x5.5)

Pentium III Xeon 733 256K-on-die 12V, SECC 733Mhz(133x5.5)

Chapter 1 Quick Installation

DCA200 Series

1.3 Jumpers

JP1 (CMOS) Clear CMOS jumper

JP6 (PS2_SB) PS/2 power standby jumper

This jumper is used to select the power well of PS/2 ports. The feature “power on by

keyboard / mouse” can be enabled or disabled by this jumper.

Chapter 1 Quick Installation

DCA200 Series

JP14 (S_spkr) Speaker source select jumper

This jumper is used to select Speaker source jumper.

JP15 (LAN) LAN Enabled / Disabled jumper (DCA200-N only)

This jumper is used to enable / disable the onboard LAN chip.

JP16 (FLASH) FLASH protect jumper

This jumper is used to select the Flash ROM protected mode.

.pacynatuohtiw61PJevaeltonoD

Chapter 1 Quick Installation

DCA200 Series

1.4 Expansion Slots / Sockets

J1—J2 (CPU0—CPU1) (Slot2) Processor connectors

J3—J4 (RIMM_A0—RIMM_A1) 184-Pin RIMM Sockets

If you install two DRDRAMs and two C-RIMM, you can refer to above figure.

Chapter 1 Quick Installation

DCA200 Series

J5—J6 (RIMM_B0—RIMM_B1) 184-Pin RIMM Sockets

If you install four DRDRAMs, you can refer to figure.

Install memory in any combination as follows:

oteriuqertI.MARDsubmaRtceriDslennahclaudtropuusotdengisedsidraob048isihtoteuD owtsihtdna)MARDRDsruofmumixam(MARDRDfoseceip)riapa(owtmuinimllatsni evahslennahchcaE(slennahceludomyromemsubmaRhcaenillatsnidluohsMARDRDfoseceip lennahcemasotMARDRDhtobllatsniottcerroctonsitI.erugifevobaotrefer,)MMIRowt draob048isihtotnorewoponesuaclliwsihT.lennahcrehtoehtnidetalupopMMIR-ChtiwMMIR .ezisyromememashtiwdnaemitariapaebdluohsMARDRDllatsniyllufsseccusoT.

J12—J15 (PCI 1—PCI 4) PCI expansion slots (32bit / 33MHz)

Chapter 1 Quick Installation

DCA200 Series

J16—J17 (PCI 64_1—PCI 64_2) PCI expansion slots (64bit / 66MHz)

J27 (AGP PRO) 4xAGP AGP Pro Slot

1.5 Connectors

J28 (IDE0) Primary ATA/66 IDE channels

J29 (IDE1) Secondary ATA/66 IDE channels

Chapter 1 Quick Installation

DCA200 Series

J30 (FDC) Floppy connector

J37 ATX power connector
