IWILL P55XU Manuel utilisateur

EC Declaration of Conformity

Iwill Corp.

No. 9-1, Kong 6th RD.,

Lin Kou 2nd Industrial

Park, Taipei, Taiwan R.O.C.

declare under sole responsibility that the

P55XU/XUW motherboard

meets the intent of Directive 89/336/ECC for Electromagnetic Compatibility.

Compliance was demonstrated to the following specifications as listed in the

official Journal of the European Communities:

EN 50081-1 Emissions:

EN 55022 Radiated, Class B

EN 55022 Conducted, Class B

EN 60555-2 Power Harmonics

EN 50082-1 Immunity:

IEC 801-2 Electrostatic Discharge

IEC 801-3 RF Radiat

IEC 801-4 Fast Transient

About This Manual

This manual will guide the user how this SCSI motherboard was consisted. All

useful information will be described in later chapters. Keep this manual for your

futureupgradeor system configuration changed.

The chapter Quick Installation ---

This cha pter’s description is suitable for most user, Just follow step by step in

installing the system.

The chapter Overview ---

Describe the feature and specificaton of this SCSI motherboard.

The chapter Manufacture Default ---

This SCSI motherboard haspre-setting before ship out and this pre-setting default

is suitable for most user.

The Hardware Installation ---

Describes the hardware detailspecification and connection.

The ATX Form-Factor Overview ---

The ATX is the new generation form-factor.

The Award BIOS Setup ---

Detail description of this SCSI motherboard, no need to change the manufacture

default unless you have conflict in yoursystem.

The SCSI BIOS Setup ---

The AdaptecSCSI BIOS setup.

This manual is subject to change without notice.

This manual contains information protected by copyright law. All rights are

reserved. No any part of this document may be used or reproduced in any forms

or by any means, or stored in a database or retrieval system, without prior written

permission.

Trademark

Intel

/ Pentium is trade markof Intel

Corporation andall other product namesare trademarks and

registered trademarksof their respective owners.

Warning

This motherboardis carefully designedwith Intelspec.to fullysupport P54Cprocessor upto 200Mhz

and the new P55C. Since Intel is notshipingthe new P55C CPU with 200Mhz at the point that we

deliver this motherboardsowe hold the responsibilityon if Intel change anyspec.that causethe new

processor notfunctionproperlyin thismotherboard.

Contents

Chapter 0- Quick Installation P4

Chapter 1- Overview P14

1.1 Features P14

1.2 Specifications P16

Chapter 2- Quick Installation P17

Chapter 3- Hardware Installation P18

3.1 Preparation and Inspection P18

3.2 Placement P19

3.3 CPU group P21

3.4 Cache Memory P24

3.5 D-RAM Configuration P24

3.6 SCSI Interface P27

3.7 RAIDBUS P31

3.8 IDE Interface P31

3.9 USB P32

3.10 Enhanced Multi-IO P33

3.11 Other P34

Chapter 4- ATX Form-Factor Overview P37

Chapter 5- Award BIOS Setup P40

5.1 Entering Setup P43

5.2 Standard CMOS Setup P46

5.3 BIOS Features Setup P50

5.4 Chipset Feature Setup P55

5.5 Power Management Setup P62

5.6 PNP/PCI Configuration P66

5.7 Integrated Peripherals P69

5.8 Load Setup Defaults P71

5.9 Supervisor/User Password P72

5.10 IDE HDD Auto Detection P73

5.11 HDD Low Level Format P73

5.12 Save & Exit Setup P73

5.13 ExitWithout Saving P73

Chapter 6- SCSI BIOS Setup P74

6.1 When to Use the SCSI Select Utility P74

6.2 SCSI Select Utility option P75

6.3 Configure / View Host AdapterSettings Menu P76

6.4 SCSI Disk Utilities P81

CHAPTER0

Quick Installation

Several easy installation steps will be described in this chapter to help the

experienced users for quick installation. If you are new user and need to know

more about this motherboard, please start from Chapter 1.

Socket 7

U. SCSI

ISA

PS2

LPT

PCI

JP11

CPU

FDD

P. IDE

ATX P.

JP25

P.Control

S. IDE

USB

J10

J15

J17

BIOS

Figure 1:Connectors for P55XU

Socket 7

RAID

W. SCSI

Figure 2 : Connectors for P55XUW only

Socket 7

JP25

3.52

3.38

3.2

3.1

2.9

AUTO

J21

JP9

JP26

JP23

JP10

120

133

166

200

C200+

233

RSV

266

300

T75

150

J19

JP6

2.83

Figure 3 : Jumpers location

Connector Function Description

ATX P. 20 pin Standard ATX power input connector

BIOS BIOS (Basic Input Output System)

CPU 321 pin Socket 7 CPU socket

M1 DIMM1 (Dual In-line Memory Module ) Bank 2

M2 DIMM2 (Dual In-line Memory Module ) Bank 1

M3 DIMM3 (Dual In-line Memory Module ) Bank 0

FDD 34 pin Floppy Disk Drive with key protect connector

LPT 25 pin Parallel D-Sub connector

IR 6 pin pin-header connector

ISA 4 x ISA(Industrial Standard Architecture) 98 pin expansion slot

JP11 Fan Power connector

J5 SIMM Socket (Single In-line Memory Module ) Bank 1

J10 SIMM Socket (Single In-line Memory Module ) Bank 1

J15 SIMM Socket (Single In-line Memory Module ) Bank 0

J17 SIMM Socket (Single In-line Memory Module ) Bank 0

JP25 2 pin power switch connector for ATX power supply

KB 6 pin PS2 keyboard Mini-DIN connector

P. IDE40 pin Primary IDE with key protect connector

PCI 4 x PCI version 2.1 compliance 120 pin PCI (Peripheral

Component Interface)expansion slot

RAID 60 pin extension slot for working with Adaptec RAIDBUS 1130

adapter

P. Control Front panel signal control connector

RST—Reset Switch

SCSI—SCSI detect LED

IDE—IDE detect LED

SMI—System Management Interface switch

Speaker—Speaker connector

Keylock—Keylock switch connector

PS2 6 pin PS2 mouse Mini-DIN connector

S. IDE 40 pin Secondary IDE with key protect connector

S1 9 pin Serial 1 D-Sub connector

S2 9 pin Serial 2 D-Sub connector

U. SCSI 50 pin Ultra SCSI with key protect connector

USB 20 pin Universal Serial Bus connector

W. SCSI 68 pin Wide SCSI with key protect connector (P55XUW only)

Jumper Setting

J19/J21 BIOS Mode select

JP6 Reserved for manufacture use

JP9 SCSI port Enabled/ Disabled select

JP10 CPU clock select

JP23 CPU working voltage select

JP25 Remote power switch

JP26 CMOS clear select

Quick Installation

Step 1. Install CPU

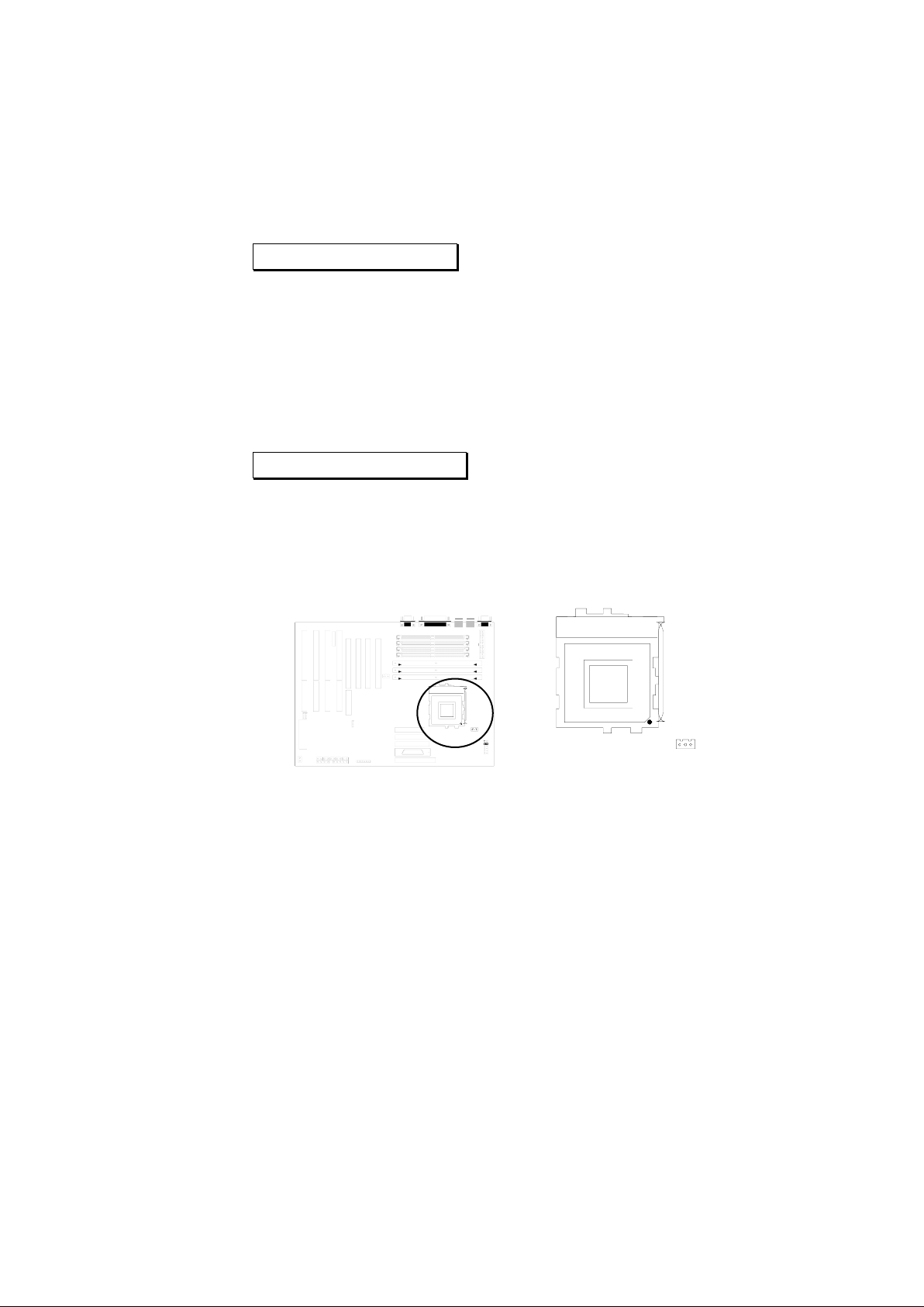

Pull up theCPU handlebar, place the CPU into thesocket in

gentle/ horizontalway then pull down the handle barback to

its original place. Care must taken for the CPU’s direction

when was inserted.

Socket 7

J11

Socket 7

J11

CPU

Step 2. Install CPU Cooler

Hook the CPU Cooler’s metal la tch one side to the CPU

socket’s peg, then press the meta l latch again to fit into

anotherside.

Warning: Care mustbe taken when the CPU Cooler was installed, if not

a suitable force might scrach this motherboard.

To Cabinet's speaker

To Motherboard's speaker

To JP11

Metal Latch

Peg

JP11

+12V

GND

Control

Step 3. Adjust the CPU voltage (default is “3.52V”)

This motherboard is shipped with CPU voltuage default at

“3.52V”, is for most Intel Pentium P54C processor, with this

manufacturedefault voltuagewill working with all of IntelPentium or

compatibleprocessor. Or reference to the Appendix A—CPU for more

information

Socket 7

3.52V

3.38V

2.83V

2.70V

2.50V

AUTO

120

133

150

166

100

110

180

200

Cyrix

JP23

3.52

3.38

3.2

3.1

2.9

AUTO

2.83

Step 4. Adjust the CPU frequency

With the special design on this motherboard.Once thejumper

cap was inserted, it will automatically caculate the Internal/

External Clock and CLKMUL (Clock Multiplier). Just insert

the jumpercap to the CPU real frequency.The manufacture

defa ult is based on “Intel Pentium 166 MHz” There are moredetail

description on Chapter3.3.3 CPU Clock Select and Appendix A—CPU

for more information.
