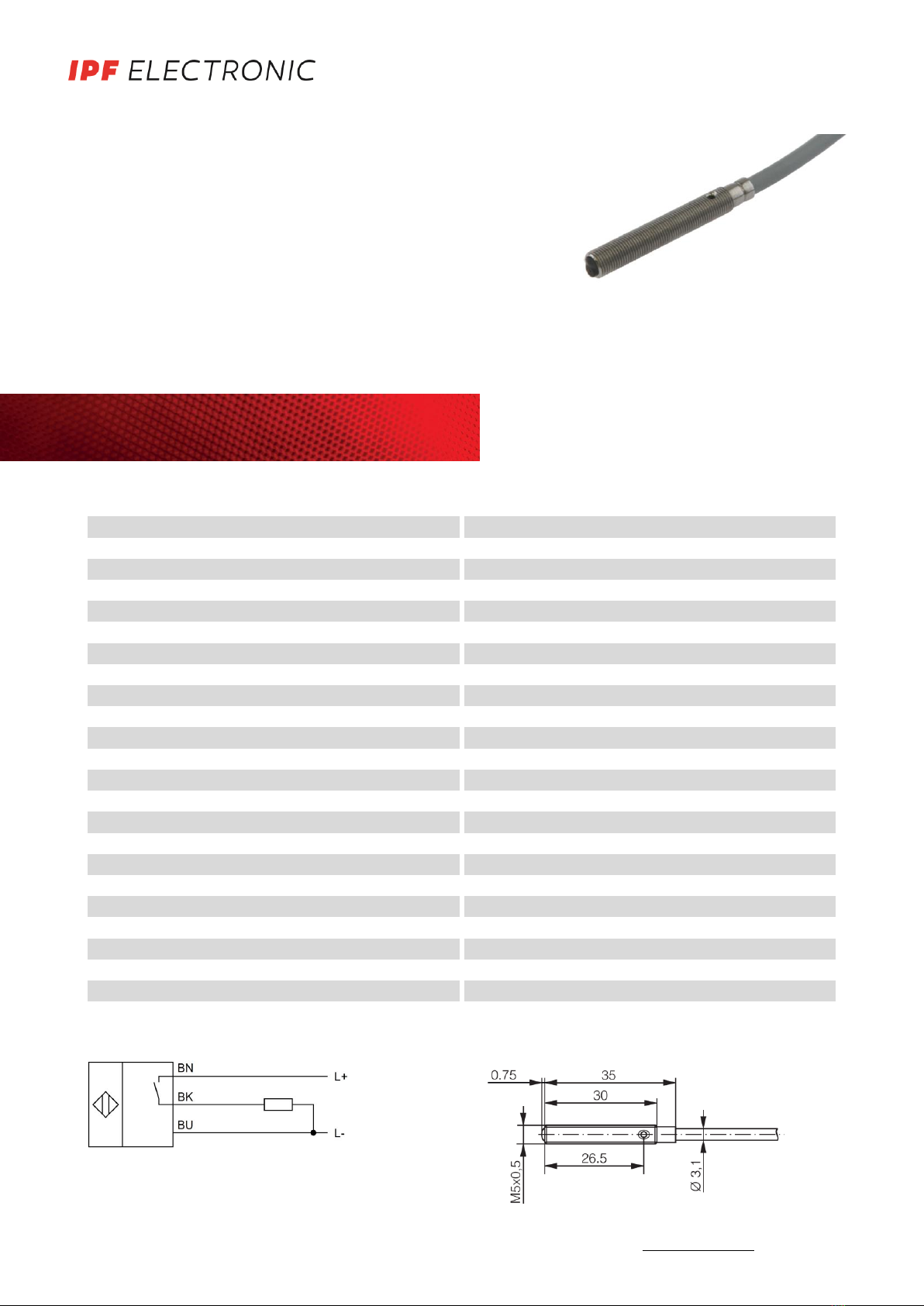

Ipf electronic OT05E244 Manuel utilisateur

MANUAL •Subject to alteration! Version: July 2019

ipf electronic gmbh

•Rosmarter Allee 14 •58762 Altena

│

Tel +49 2351 9365-0 •Fax +49 2351 9365-19

│

[email protected] •www.ipf-electronic.com 1

OT05E244

optical sensors

energetic diffuse reflection sensors (intensity differentiation)

Istainless steel housing

Ihigh degree of protection IP67

Istatus LED for switching output and functional reserve

Iconnection via M8-connector

TECHNICAL DATA

sensing range max.

35mm (object with 90% reflectivity)

operating range

0 … 30mm (object with 90% reflectivity)

transmitting element

LED, IR light

wave length

880nm

operating voltage UB

10 … 30V DC

residual ripple

≤ 10%

power consumption (w/o load)

≤ 12mA

output signal

pnp, no

output current (max. load)

≤ 100mA

voltage drop (max. load)

≤ 2V DC

sampling frequency

≤ 1kHz

status LED (functional reserve)

LED green

status LED (switching state)

LED yellow

short-circuit protection

reverse polarity protection

housing material

stainless steel 1.4301

optics material

PBT / PMMA

degree of protection (EN 60529)

IP 67

dimensions

M5 x 0.5

length (thread / complete)

30mm / 35.75mm

operating temperature

-20 … +65°C

connection

2m PUR-cable

mounting accessories

AY000115

connection dimensional drawing

colors: BN (brown), BU (blue), BK (black)

functions: BN = L+, BU = L-, BK = PNP NO

subminiature devices

infrared light

MANUAL •Subject to alteration! Version: July 2019

ipf electronic gmbh

•Rosmarter Allee 14 •58762 Altena

│

Tel +49 2351 9365-0 •Fax +49 2351 9365-19

│

[email protected] •www.ipf-electronic.com 2

Installation and environment

Two nuts are included to attach the device.

The maximum tightening torque of 1Nm must not be exceeded!

Coverings on the optics impair the function. Please install the device in such a way that dust cannot be deposited or

liquids can get on the optics. The device should be accessible for cleaning.

From time to time, the optics should be cleaned with a soft cloth moistened with soapy water.

Cable

The connecting cable between sensor and M8-connector should be laid as fixed as possible or strain-relieved.

Adjustment

Mount the device by taking into account the sensing range, so that the object is reliably detected. In case of reliable

detection, the LED lights up green.

If the LED lights up yellow, the device is in an insecure area. The cause may be an object that is too far away or even

soiling.

There should be no other objects than the one to be detected within the detection area or its border.

Note

The devices respond to the intensity of the light that is reflected of any object. The nominal switching distances are

based on white paper with an area of 100 x 100mm. The possible detection ranges for less reflective materials can be

found in the table "sensing range". The switching distance increases with more reflective materials (e.g. polished

aluminum).

Sensing range Light spot size

Target (Reflectivity)

Operating range

Sensing range max.

White (90%)

0 … 30mm

0 … 35mm

Gray (18%)

0.2 … 11mm

0.2 … 13mm

Black (6%)

0.3 … 6mm

0.2 … 7mm

SAFETY WARNINGS:

Before initial operation, please make sure to follow all safety instructions that may be provided in the product

information!

Never use these articles in applications where the safety of a person depends on their functionality.
