Ipf electronic PT230020 Manuel utilisateur

MANUAL • Subject to alteration! Version: 18th August 2020

068-14986

ipf electronic gmbh

│

Rosmarter Allee 14 • 58762 Altena • Germany

│

Tel +49 2351 9365-0 • info@ipf-electronic.com •www.ipf-electronic.com 1

PT230020

Laser sensors

Diffuse-reflection sensor with analog and switching output

IPlastic housing

IProtection class IP67

IAnalog output 4 … 20mA

IM12 connection, 270° rotatable

TECHNICAL DATA

Function

Time of Flight

Measuring range

0. 1 … 5m

Resolution

< 5mm (12bit)

Linearity

± 30mm

epeatability 1.2mm

Operating voltage

18 … 30V DC

Ripple

≤10%

Readiness delay

≤ 5s

Power consumption (without load)

≤ 60mA

Output signal

PNP / NPN, no/nc

Output current (max. load)

100mA

Voltage drop (max. load)

2.4V

Switching frequency

≤ 250Hz

Hysteresis

20mm

Analog output

4 … 20mA

Update rate

2ms

Burden

≤ 500Ω

Temperature drift

< 2mm / K

Warm-up time

20min

Transmitting element

Laser diode, red light, pulsed

Wavelength

655nm

Laser protection class

Reverse polarity protection

Short-circuit protection

Display (operation)

LED green

Display (analog output)

LED yellow

Display (switching output)

LED yellow

Material (housing)

ABS

Material (front screen)

PMMA

Temperature (operation)

-20 … +60°C

Protection class (EN 60529)

IP67 & IP69k

Connection

M12-connector 5-pin, rotatable

Connection accessories

e.g. VK205625

Mounting accessories (universal holder)

AY000119

Laser protection class 1

Setting via teach-in

MANUAL • Subject to alteration! Version: 18th August 2020

068-14986

ipf electronic gmbh

│

Rosmarter Allee 14 • 58762 Altena • Germany

│

Tel +49 2351 9365-0 • info@ipf-electronic.com •www.ipf-electronic.com

Laser protection class 1 according to IEC 60825-1

Conforms to 21 CFR 1040.10 and 1040.11 except for the deviations according to Laser Notice No. 50 of 24 June 2007.

Connection Light spot size

Colors: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black), 5 = GY (grey)

Function: A: 1 = L+, 2 = 4 …20mA , 3 = L-, 4 = PNP NO/NC, 5 = Control

B: 1 = L+, 2 = 4 …20mA , 3 = L-, 4 = NPN NO/NC, 5 = Control

Dimensional drawing Operating elements

Measuring range Avoid further light spots in the hatched area!

Cover material

Measuring range

white (90%)

0.1 …5m

grey (18%)

0.1 …5m

black (6%)

0.1 …3m

Factory setting: measuring range 0.3 … 3m

1 = LED yellow (display switching output)

2 = LED yellow (display analog output)

LED green (display operating voltage)

3 = Buttons: Q = Teach switching output

QA= Teach analog output

4 = Transmitter axis (A = 8.6mm)

5 = Receiver axis (B = 28.4mm)

MANUAL • Subject to alteration! Version: 18th August 2020

068-14986

ipf electronic gmbh

│

Rosmarter Allee 14 • 58762 Altena • Germany

│

Tel +49 2351 9365-0 • info@ipf-electronic.com •www.ipf-electronic.com 3

Safety instructions

Read the instruction manual carefully before commissioning!

Connection, assembly, adjustment, and commissioning may only be carried out by qualified personnel.

The device is not a safety component according to the EU Machinery Directive. If there is a direct impact on personal safety,

the use of this product is prohibited!

Use in outdoor areas is not permitted.

Attention: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous

radiation exposure.

Laser protection class 1 according to IEC 60825-1

Wavelength 655nm, frequency 62.5kHz, pulse width 4ns, limit value pulse <1.56W

Conforms to 21 CFR 1040.10 and 1040.11 except for the deviations according to Laser Notice No. 50 of 24 June

2007.

Intended use

The sensor is used for optical contactless detection of objects.

Mounting

Attach the sensor with a suitable mounting bracket.

Connection

Plug on the cable socket in a de-energised condition and screw it tight. Connect the cable according to the connection diagram

on page 2.

The sensor automatically detects whether the load at the switching output is PNP or NPN. Load voltage and supply voltage

must come from one voltage source, a parallel connection of two sensors is not permitted!

Setting

The laser scanner has an analog and a switching output that can be set independently of each other.

Analog output: The two teach points mark the beginning and end of the measuring range and scale the analog output.

Teach 1 = 4mA, Teach 2 = 20mA.

Switching output:Die beiden Teachpunkte kennzeichnen Anfang und Ende des Schaltfensters.

Setting modes: Teach sequence and object distance determine the characteristic curve of the analog output and the window

width of the switching output.

Control input

The sensor has a control input on PIN 5 (gray wire of the cable socket) with the following functions:

open: Teach buttons active

connection to L-: Teach-buttons locked

connection to L+: Teach-input active

Maintenance

The laser scanner is maintenance-free. It is recommended to clean the optical surfaces and to check screw connections and

plug connections at regular intervals.

MANUAL • Subject to alteration! Version: 18th August 2020

068-14986

ipf electronic gmbh

│

Rosmarter Allee 14 • 58762 Altena • Germany

│

Tel +49 2351 9365-0 • info@ipf-electronic.com •www.ipf-electronic.com

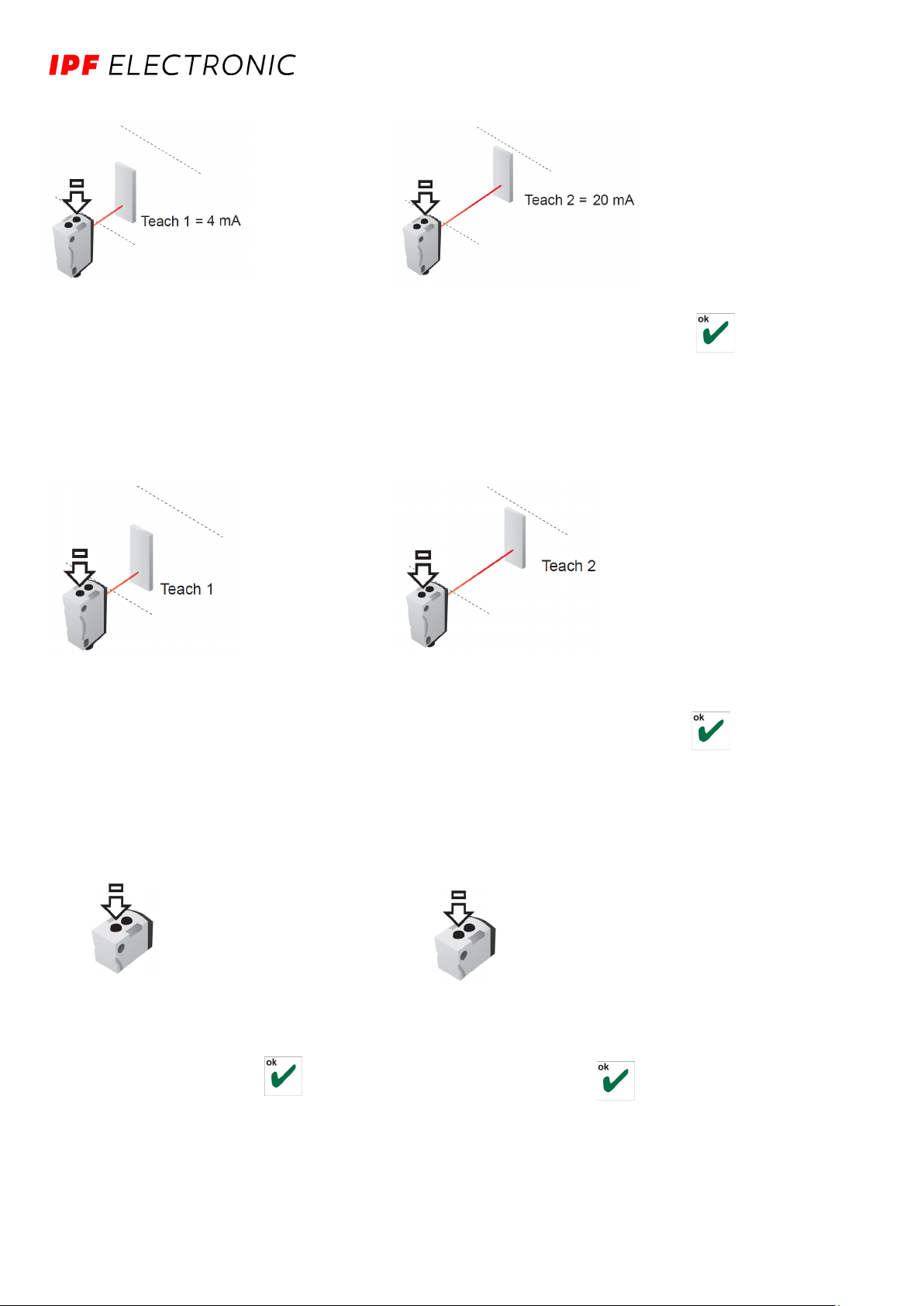

Teach-in analog output

→

Teach-in switching output

→

Switching N.O. / N.C.

→N.O. →→N.C. → …

Button Q > press

10s, or connect

Control with

L+ > 10s until the

green and the

yellow LED are

blinking alternately

green LED is blinking

yellow LED is on

↓

wait 10s

↓

Press Q key quickly

or connect control

with L+

green LED is blinking

yellow LED is off

↓

wait 10s

↓

Button Q

> press 3s, or

connect Control with

L+ > 3s until the green

and the yellow LED are

blinking simultaneously.

Button Q

> press 1s, or

connect Control with

L+ > 1s.

Button Q > press 3s or

connect Control with

L+ > 6s until the green

and the yellow LED are

blinking simultaneously.

Button Q > press 1s or

connect Control with

L+ > 1s.

MANUAL • Subject to alteration! Version: 18th August 2020

068-14986

ipf electronic gmbh

│

Rosmarter Allee 14 • 58762 Altena • Germany

│

Tel +49 2351 9365-0 • info@ipf-electronic.com •www.ipf-electronic.com 5

Switching the analog characteristic curve

→Characteristic curve (as teached) →→Characteristic curve inverted→ …

Switching Auto-Detect / NPN / PNP

→Auto-Detect →→NPN →→ PNP → …

Switching the analog output

→Analog output voltage →→ Analog output current → …

Button Q

> press

10s, until the green

and yellow LEDs are

blinking alternately

green LED is blinking

yellow LED is on

↓

wait 10s

↓

Button QApress quickly

green LED in blinking

yellow LED is off

↓

wait 10s

↓

Button Q > press

13s, or connect

Control with

L+ > 13s until the

green and the

yellow LED are

blinking

simultaneously

Green and

yellow

LED are blinking

simultaneously

↓

wait 10s

Button Q press

quickly or

connect control

with L+

green LED is

blinking

↓

wait 10s

↓

Button Q press

quickly or

connect control

with L+

yellow LED

is blinking

↓

wait 10s

↓

Button Q

> press

13s, until the green

and the yellow LED

are blinking

simultaneously

green LED is

blinking

↓

wait 10s

↓

Button QApress quickly

yellow LED

is blinking

↓

wait 10s

↓

MANUAL • Subject to alteration! Version: 18th August 2020

068-14986

ipf electronic gmbh

│

Rosmarter Allee 14 • 58762 Altena • Germany

│

Tel +49 2351 9365-0 • info@ipf-electronic.com •www.ipf-electronic.com

Setting modes

1) Forced reflector operation: all non-transparent objects in zone A are reliably detected.

Reset to factory setting

1. Disconnect the device from the supply voltage.

2. Press one of the keys QA or Q.

3. Switch the supply voltage back on while keeping the keys pressed. The green LED is blinking.

4. Press and hold the buttons for more than 10s until both LEDs are blinking 3x simultaneously.

5. The factory setting is restored.
