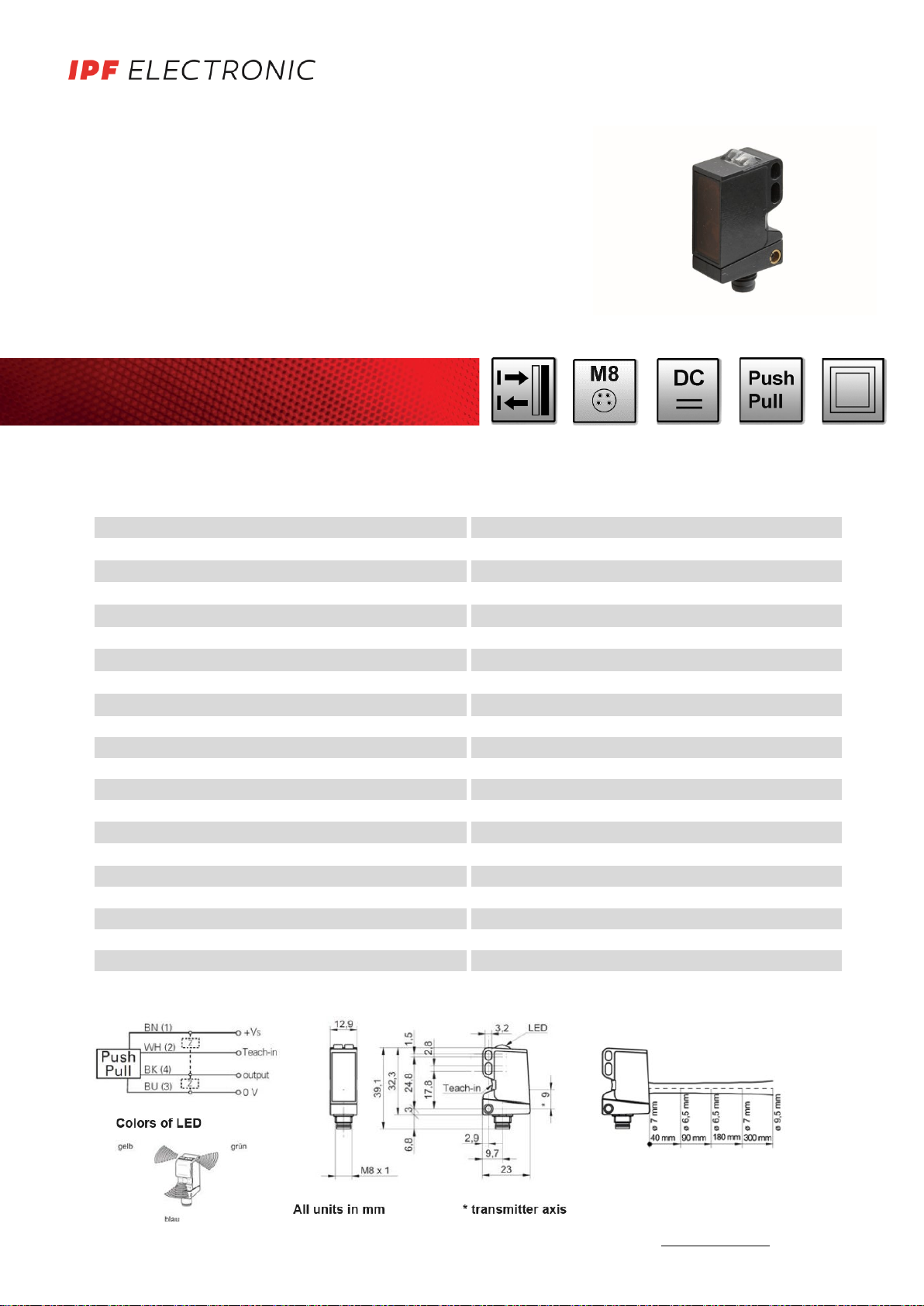

Ipf electronic ON330571 Manuel utilisateur

ON330571

Auto-reflective sensors

Iplastic housing, compact design

Iadjustment via tech-in

Iadjustment aid with status LED

Ismall light spot due to PinPoint LED

IM8-connector, 4-pin

TECHNICAL DATA

dimensions 39 x 13 x 23mm

operating range 30 … 300mm

alignment optical axis < 2°

operating voltage 10 … 30V DC

current consumption (w/o load) ≤45mA

output current (max. load) ≤100mA

output signal push-pull, no/nc

voltage drop ≤3V DC

response / decay time ≤0.5ms

switching frequency 1kHz

transmitting element (pulsed) LED, red light, spot

wave length 630nm

short-circuit protection +

reverse polarity protection +

display (operating) LED green

display (signal / adjustment aid) LED yellow

display (teach-in) LED blue

material (front screen) PMMA

material (housing) plastic (ASA, MABS)

degree of protection (EN 60529) IP67

temperature (operating) -25 … +60°C

connection M8-connector, 4-pin

Connection Dimensional drawing Radiation path

works like a retro-reflective sensor

– without reflector

MANUAL •Subject to alteration! Version: October 2019

ipf electronic gmbh

•Rosmarter Allee 14 •58762 Altena

│

Tel +49 2351 9365-0 •Fax +49 2351 9365-19

│

[email protected] •www.ipf-electronic.com 1

Teach-in procedure

1. Aim the sensor to a reference surface e.g. a reflecting machine part and make sure

that the blue Teach-LED lights.

2. Touch the blue Teach-LED which is placed at the rear side of the housing with a ferromagnetic tool for

longer than 2 sec. but max. 4 sec., until all 3 LED start blinking with a frequency of 1Hz.

3. Touch the blue Teach-LED again for a short time with a ferromagnetic tool in order to confirm

the reference surface.

4. The standard configuration of the output is NO (normally open). It can be changed to NC

(normally closed) by touching the blue LED again for a short time within 4 sec. During this time

all 3 LEDs are blinking slowly (1Hz).

5. As soon as only the blue LED lights, the Teach-in procedure is finished successfully.

If all LEDs blink fast (8Hz), the Teach-in procedure failed and has to be repeated.

Adjustment control:

The ON330571 has an adjustment control which tests the reflecting capacity of the reference surface. Touch the

Teach-LED with a ferromagnetic tool for 6 sec. until all 3 LEDs blink with 4Hz and remove the tool. The yellow LED now

indicates the reflecting capacity of the reference surface. The higher the blinking frequency, the better the reflecting

capacity (1Hz = bad, 8Hz optimal). Then go back to operation mode by touching the blue Teach-LED again shortly with

a ferromagnetic tool.

Note:

The Teach-in function is active for only 5min. after switching on power. The yellow LED indicates the detection of an

object, but does not compulsary correspond to the switching output.

The Teach-in procedure works by using a ferromagnetic tool and as well by using pin 2 (white wire) of the M8-con-

nector. Pin 2 (white wire) has to be connected to +Ub.

Compatible cable socket: e.g. VK200375

Mounting kit: AY000118

Safety warnings:

Before initial operation, please make sure to follow all safety instructions that may be provided in the product infor-

mation!

Never use these devices in applications where the safety of a person depends on their functionality.

MANUAL •Subject to alteration! Version: October 2019

ipf electronic gmbh

•Rosmarter Allee 14 •58762 Altena

│

Tel +49 2351 9365-0 •Fax +49 2351 9365-19

│

[email protected] •www.ipf-electronic.com 2
