IOGear GCS634U Manuel utilisateur
User Manual (GCS634U)
3
Welcome
Thank you for purchasing one of the most feature-rich keyboard, video, and mouse switches on the
market. IOGEAR®’s 4-Port USB KVM switches are first-rate connectivity accessories designed to
help reduce the frustration of managing multiple computer systems. With the 4-Port USB KVM by
IOGEAR®, you can access up to four USB computers from a single USB console (USB keyboard,
USB mouse and monitor). The 4-Port USB KVM allows you to change ports easily by entering Hot Key
combinations from the keyboard. Setup is fast and easy – simply plug the cables into their appropriate
ports with no drivers needed.
We hope you enjoy using your 4-Port USB KVM, yet another first rate connectivity solution from
IOGEAR®.
©2006 IOGEAR. All Rights Reserved. PKG-M0320
IOGEAR, the IOGEAR logo, MiniView, VSE are trademarks or registered trademarks of IOGEAR, Inc. Microsoft and
Windows are registered trademarks of Microsoft Corporation. IBM is a registered trademark of International Business
Machines, Inc. Macintosh, G3/G4 and iMac are registered trademarks of Apple Computer, Inc. IOGEAR makes no
warranty of any kind with regards to the information presented in this document. All information furnished here is for
informational purposes only and is subject to change without notice. IOGEAR, Inc. assumes no responsibility for any
inaccuracies or errors that may appear in this document.
4
Package Contents 05
Features 07
System Requirements 08
Introduction 09
Installation 11
Operation 12
Specification 19
Technical Support 20
Limited Warranty 21
Table of Contents
5
Package Contents
This package contains:
• 1 4-Port KVM Switch (two cables built-in)
• 2 Detachable custom KVM cables
• 1 User Manual
• 1 Quick Start Guide
• 1 Warranty Registration Card
If any items are damaged or missing, please contact your dealer.
6
Introducing the four port 4-Port USB KVM switch from IOGEAR® – A simple solution for those with more
PCs than hands. Use one USB keyboard, one monitor and one USB mouse to control up to four USB
computers. This self-powered KVM switch features the unique USB sniffing technology for USB mouse
& keyboard emulation to ensure smooth operation, as well as support for Plug-n-Play monitors and most
wheel mice. Our patented VSE Video Signal Enhancement® technology provides rich, 32-bit color at
resolutions up to 2048 x 1536.
Another big plus of this switch is the capability to provide audio support, it allows you to share your multi-
media speakers among the two connected computers. This switch also offers multi-platform support, it is
compatible with Macs and Sun Solaris workstations. IOGEAR® made a huge breakthrough in supporting
Mac and Sun, by allowing Mac and Sun special keys to be functional, either with the Mac or Sun
keyboard as the console keyboard, or with a standard PC keyboard. When using a PC keyboard, a
special set of hot keys are designated to emulate the Mac and Sun special keys.
With all KVM cables included with the unit, all you need to do is to plug in your computers, and you’ve
got a complete KVM solution from IOGEAR®.
Overview
7
• Use one USB keyboard, monitor and USB mouse to control up to four USB computers.
• Two 6’ long molded-in cables to simplify setup, with two additional detachable cables to reduce clutter.
• Share your multimedia speakers among the connected computers.
• Full support for Mac and Sun systems.
• Supports special keys on Mac and Sun keyboards.
• Port selection through convenient Hot Keys.
• USB sniffing technology allows complete USB mouse and keyboard emulation for error-free boot-up.
• Plug-n-Play monitor support.
• Support video resolutions up to 2048 x 1536
• No software required.
• Built in AutoScan mode.
• LEDs allow for easy status monitoring.
• 3 Year Limited Warranty.
Features
8
Console
• A VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any
computer in the installation
• A USB Keyboard
• A USB Mouse
Computers
The following equipment must be installed on each computer that is to be connected to the system:
• A VGA, SVGA or Multisync card
• A USB type A port
• A multimedia sound card for audio sharing
Speakers
• Only 2-channel, powered speakers are supported
System requirement
9
Introduction

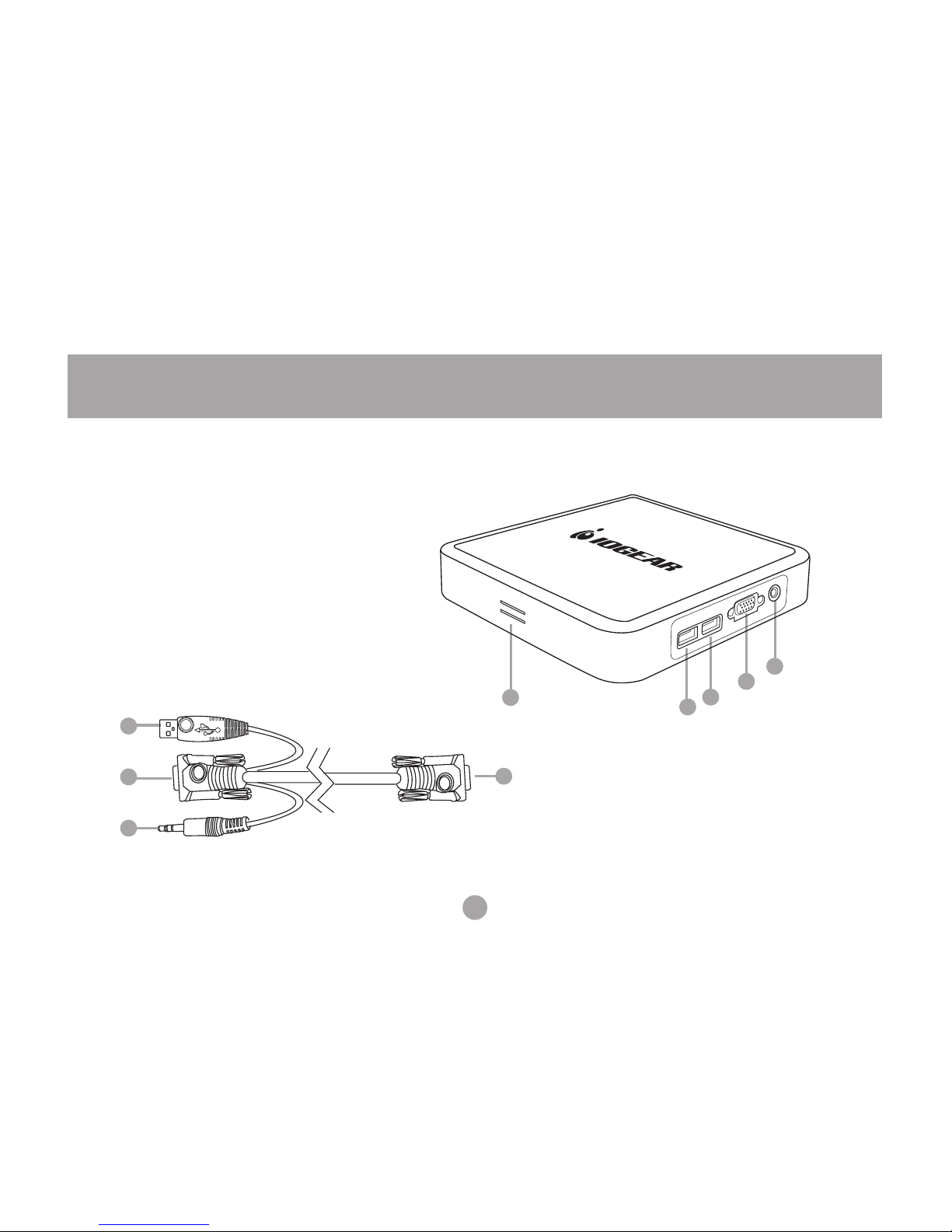

1) Port LEDs
2) USB Keyboard Port
3) USB Mouse Port
4) VGA Monitor Port
5) Stereo Speaker Port
6) USB Plug (black)
7) VGA Plug (blue)
8) Audio Plug (light green)
9) Custom KVM Plug (dark green)
123
4
5
6
7
8
9
10
10) Custom KVM Ports (dark green)
6
7
8
10
6
7
8
Introduction
