IOGear GCL1908 Manuel utilisateur

GCL1908 / GCL1916

PART NO. Q1323 / Q1324

8/16-19” LCD KVM Switch

Quick Start Guide

www.iogear.com

1 x GCL1908 / GCL1916 19” LCD KVM with Rock Mount Kit

1 x USB KVM Cable; 1 x PS2 KVM Cable

1 x Power Cord

1 x Firmware Upgrade Cable

1 x Quick Start Guide

1 x Warranty Card

1 x Standard Long Rack Mount Kit

Package Contents

Front View:

1. Handle

2. Slide Release

3. LCD Display

4. LCD Controls

5. Port LEDs

6. Keyboard

7. Touchpad

8. Port Switches

9. Power LED

10. Rack Mounting Brackets

11. Lock LEDs

12. Reset Switch

13. Firmware Upgrade Section

Overview

Rear View:

1. Power Socket

2. Power Switch

3. KVM Port Section

4. Grounding Terminal

Note: The GCL1916 is pictured above. The GCL1908 rear panel is the same as the

GCL1916, except that it has 8 KVM ports instead of 16.

1 2

910

Side Mountng

Brackets

L Brackets

Hardware Installation

Step 1

While one person positions the switch in the rack and holds it in place, the second person

loosely screws the front brackets to the rack.

Standard Rack Mounting:

Astandard rack mounting kit is provided with your GCL1908 / GCL1916 and can be mounted

in 1U of rack space. The following diagram shows the required components to mount the LCD

KVM to the rack.

Note: It takes two people to mount the switch: one to hold it in place; the other to screw it in.

Grounding

Use a grounding wire to ground the GCL1908 / GCL1916 by connecting one end of the wire

to the grounding terminal, and the other end of the wire to a suitable grounded object.

Final Step

After the L brackets have been secured, tighten the front bracket screws.

Step 2

While the first person still holds the switch in place, the second person slides the L brackets

into the switch’s side mounting brackets from the rear until the bracket flanges contact the

rack, then screw the L brackets to the rack.

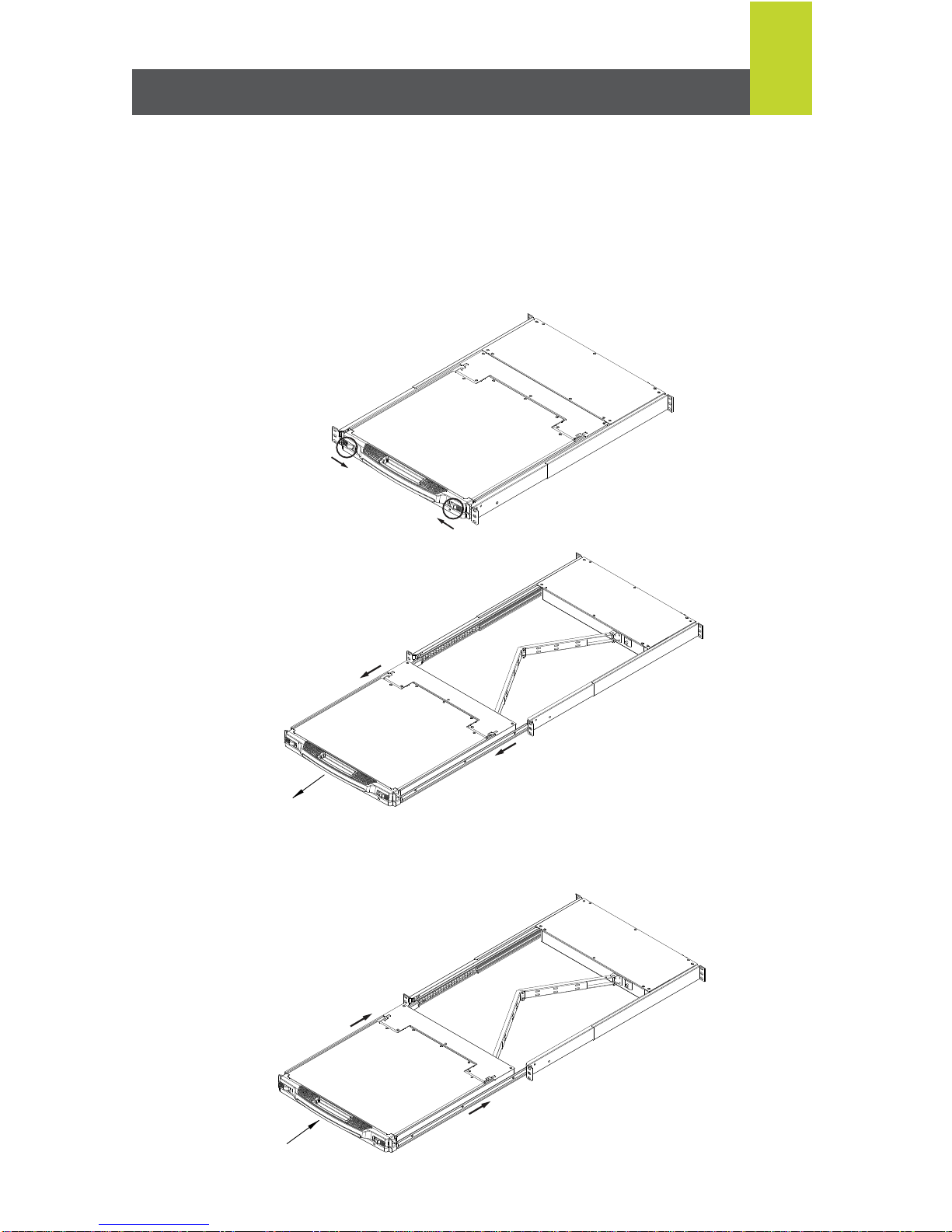

Open/Close Console

Opening the Console

The GCL1908 / GCL1916's console is located under the top cover. To access the console,

slide the console module out and raise the cover.

Note: As a safety precaution, to keep the console from accidentally sliding out, the console is

locked into the In position. Before you can pull the console module out, you must release it by

pushing the catches on the unit's front panel toward the center of the switch.

To slide the console module out, do the following:

1. Push the catches inward

2. Slide the module all the way out.

3. Open the cover.

Closing the Console

To slide the console module back in, do the following:

1. Close the cover.

2. Push the module all the way in until it automatically

locks in place.

Please make sure the computers are powered off before you start.

Step 1

Connect the power cord to the power outlet and the power socket of the LCD KVM.

Step 3

Turn on LCD KVM by using the power switch that’s located in the back of the LCD KVM.

Final Step

Turn on your computers.

Step2

Connect a USB KVM Cable (with a green connector) or PS/2 KVM Cable (with a yellow

connector) from the KVM switch to each of your computers.

Single Level Installation

2345

10111213

1516

PS/2-USB CPU

CONSOLE

2345

10111213

1516

PS/2-USB CPU

USB KVM Cable

Connection PS/2 KVM Cable

Connection

2345

10111213

1516

PS/2-USB CPU

Two Level Installation

Trigger OSD

Simply press [Scroll Lock] [Scroll Lock] rapidly.

Note: This hotkey sequence can be changed to [Ctrl] [Ctrl]. Please refer to Hotkey Setting

Press the [KVM OSD] Button that is located on the left bottom corner of the built-in keyboard.

OSD Login

By default, the Login and Password are blanks, so simply press [Enter] [Enter] to login. If you

have set a user name and password on the KVM, simply enter them and press enter to login.

OSD Main Screen

When you invoke the OSD, a screen similar to the one below appears:

To control even more computers, up to 8/16 additional switches can be cascaded from

the first GCL1908/GCL1916.As many as 128 (Cascaded with GCS1808) or 256

(Cascaded with GCS1716) computers can be controlled from a single console in a

complete cascade installation.

On-screen Display (OSD) Operation

OSD Functions

OSD functions are used to configure and control the OSD. For example, you can rapidly switch

to any port, scan selected ports, limit the list you wish to view, designate a port as a quick view

port, create or edit a port name, or make OSD setting adjustments.

On-Screen Display (OSD) Operation 7

Notes:

1. The diagram depicts the administrator’s main screen. The users’main screen does not show

the F4 and F6 functions, since these are reserved for the administrator and can’t be

accessed by users.

2. The OSD always starts in LIST view, with the highlighted bar at the same position when

OSD was closed last time.

3. Only the ports that have been set accessible by the administrator for the user currently

logged in are visible.

4. The icon next to the monitor icon, indicates that another KVM is attached to the LCD KVM

(Cascading). Click on a switch number, or move the highlight bar to it then press the right

arrow key to expand the list. Similarly, to collapse a switch’s port list, click on the switch

number, or move the highlight bar to it then press the left arrow key to collapse the list.

Hotkey Summary Table 8

[Num Lock] + [ - ]

[Ctrl] + [F12]

[A] [Enter] or

[Q][Enter] Invokes Auto Scan mode. When Auto Scan

mode is in effect, [P] or left-click pauses

auto-scanning. When auto-scanning is

paused, pressing any key or another left-

click resumes autoscanning.

[B] Toggles the Beeper On / Off

[Esc] or

[Spacebar] Exits hotkey mode

[F1] Set Operating System to Windows®

[F2] Set Operating System to Mac

[F3] Set Operating System to Sun

[F5] Performs a keyboard / mouse reset on the

target computer.

[H] Toggles the Quick Hotkey invocation keys

between [Ctrl]+[F12] and [Num Lock]+[-]

[R] [Enter] This administrator only hotkey restores the

switch’s default values

[PN] [Enter] Switches access to the computer that

corresponds to that port ID

[T] Toggles the OSD Hotkey between [Ctrl] [Ctrl]

and [Scroll Lock] [Scroll Lock]

[←] Invokes Skip Mode and skips from the cur-

to it.

[→] Invokes Skip Mode and skips from the cur-

rent port to the next accessible port

Note:

For completed operation setting method, please download the user

manual from IOGEAR support website.

FCC Statement

This product has been tested and found to comply with the limits for a ClassAdigital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This product generates, uses, and can radiate radio frequency energy. If this

product is not installed and used as directed it may cause harmful interference to radio

communications. Operating this product in a residential area will likely cause harmful

interference which will require correction by the user at his/her personal expense.

CE Compliance

This device has been tested and found to comply with the following European Union

directives: Electromagnetic Capability (2004/108/EC), Low Voltage (2006/95/EC) and

R&TTED (1999/5/EC).

Compliance Information

WE’RE HERE TO HELP YOU!

NEED ASSISTANCE SETTING UP THIS PRODUCT?

Make sure you:

1. Visit www.iogear.com for more product information

2. Visit www.iogear.com/support for live help and product support

Warranty Information

This product carries a 3 Year Limited Warranty. For the terms and conditions of this warranty,

please go to http://www.iogear.com/support/warranty

Important Product Information

Product Model

Serial Number

Limited Warranty

iogear.custhelp.com

support@iogear.com

www.iogear.com

19641 Da Vinci, Foothill Ranch, CA92610

Contact

Autres manuels pour GCL1908

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels IOGear Changer

IOGear

IOGear GCS182 Manuel utilisateur

IOGear

IOGear MiniView SE GCS82B Manuel utilisateur

IOGear

IOGear GCS1932M Manuel utilisateur

IOGear

IOGear GCS1942H Manuel utilisateur

IOGear

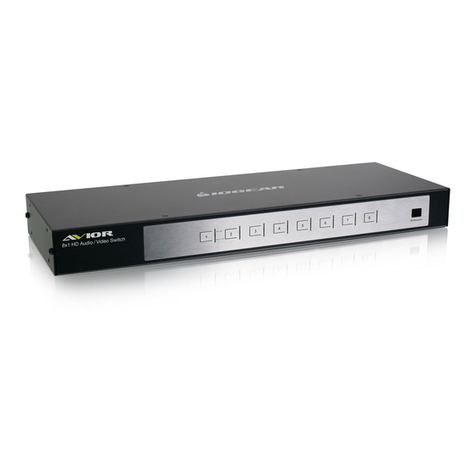

IOGear Avior Manuel utilisateur
