Interlogix UM-ZW Manuel utilisateur

UM-ZW Installer Manual RevC.docx Page 1

UM-ZW xGen Z-Wave Module

Installation Manual

Product Summary

The UM-ZW allows you to add and control Z-

Wave certified devices on an xGen series

control panel.

The maximum recommended data bus length

is 800 m. The wireless receiver can be

powered from the xGen control panel data bus.

Installation Guidelines

When installing the receiver:

• Leave 10cm clear around all sides of the

module for better signal reception.

• Avoid installing on or near metal surfaces

such as filing cabinets and metal roller

shutters.

• Avoid installing on or near electrical

devices such as fridges, vacuum cleaners,

air conditioners, computers, washing

machines, and motors.

• Avoid areas that are damp and wet such as

inside bathrooms and cool rooms.

Installing the Module

1. Turn the receiver face down, loosen the

bottom screw, and lift the base upwards.

This will ensure the internal tamper switch

remains in place.

2. Carefully remove the circuit board from

the plastic housing by squeezing on the

side tabs.

3. Feed the buss cable through one of the

cable holes.

4. Screw the rear plastic housing to a fixed

surface. Higher positions generally provide

better signal reception.

PLEASE READ THE ULTRASYNC MODULAR HUB REFERENCE GUIDE BEFORE USING THIS

PRODUCT WHICH INCLUDES IMPORTANT SAFETY AND LEGAL INFORMATION

INCLUDING WARNINGS, WARRANTY DISCLAIMERS, AND LIMITATIONS OF LIABILITY,

AND COMPLETE INSTRUCTIONS ON HOW TO ENROLL AND CONFIGURE EXPANSION

MODULES. THE REFERENCE GUIDE IS AVAILABLE AT:

http://www.interlogix.com/intrusion/product/ultrasync-modular-hub

S'IL VOUS PLAÎT LIRE LE GUIDE DE REFERENCE POUR LE HUB UltraSync MODULAIRE

AVANT D'UTILISER CE PRODUIT QUI COMPREND LA SÉCURITÉ IMPORTANT ET

JURIDIQUES INFORMATIONS, Y COMPRIS LES AVERTISSEMENTS, GARANTIE

EXCLUSIONS, ET LIMITATIONS DE RESPONSABILITÉ ET INSTRUCTIONS COMPLETES SUR

COMMENT ENROLLER ET CONFIGURER LES MODULES D’EXPANSION. LE GUIDE DE

RÉFÉRENCE

EST DISPONIBLE AU: http://www.interlogix.com/intrusion/product/ultrasync-modular-hub

UM-ZW Installer Manual RevC.docx Page 2

5. Re-install the circuit board in to the plastic

housing.

6. Connect the buss cable to J4 terminal

header on the UM-ZW. Refer to control

panel installation manual for cable

requirements.

7. Install J3 TERM link if required. Refer to

xGen Installation & Programming Guide.

8. Turn on the power to the control panel and

wait for panel to complete initialisation.

9. The LED next to the ENROLL switch will

blink three times each second to indicate it

is not learnt in. Push and hold the

ENROLL switch on the xGen panel for 3

seconds to perform enrollment.

10. The LED next to the ENROLL switch will

blink once per second to indicate it is

learnt in.

UM-ZW Device Programming

Programming is performed via the xGen

control panel.

1. Log in to the xGen control panel.

2. Click Advanced – Devices – System

Devices – Relay Expanders.

3. Select the UM-ZW device number from

the drop down box:

4. Click Expander Name to set the module

name. The default is “Z-Wave Expander”.

5. Click Save to save changes.

6. Click Back.

7. Click Expander Options.

8. If tamper is required, tick Tamper Enable.

9. Click Save to save changes.

10. Re-install the front plastic housing taking

care with the internal tamper switch, then

tighten the bottom screw.

Adding Z-Wave Devices

1. Log in to the xGen control panel.

2. Click Settings.

UM-ZW Installer Manual RevC.docx Page 3

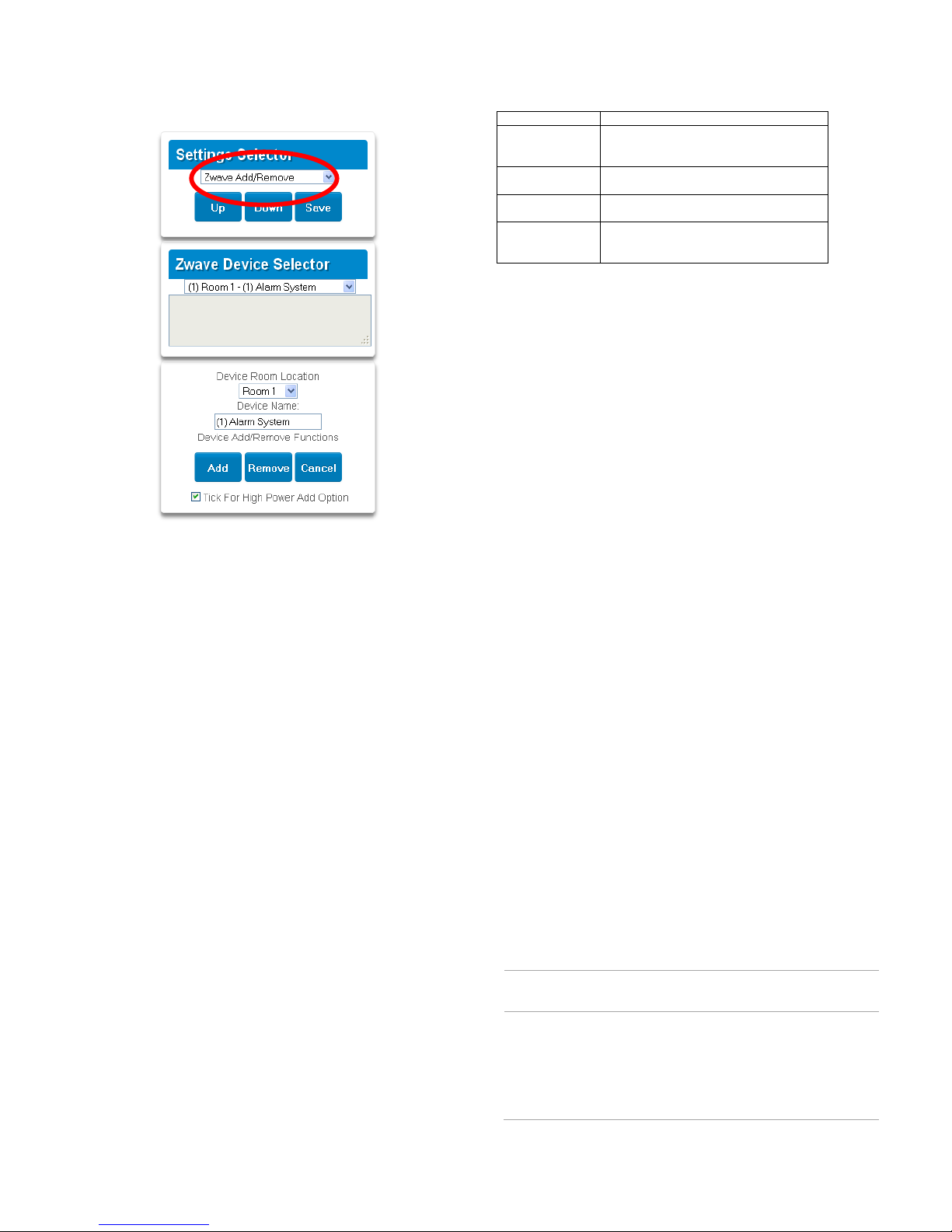

3. Select Z-Wave Add\Remove in the drop

down menu.

4. Click Add.

5. Initiate LINK or ADD mode on Z-Wave

device. See your Z-Wave device’s manual

for instructions.

6. Note: If a Z-Wave device has been added

before or to another system, you must first

remove it before adding it to this system.

To do this, click Remove, then activate

LINK or REMOVE mode on the device.

7. Click Rooms.

8. Check you can see the device you just

added. Click a button such as ON or OFF

to verify you can control the device.

Automation Scenes

Once Z-Wave devices have been added, they

can be switched on and off in response to

system events. Refer to the xGen Installation

& Programming Guide for instructions on

creating automation scenes.

Supported Z-Wave Devices

Type

Description

Binary On/Off

Switch

Non-secure mode, for controlling appliances

such as lamps, TV, garage door opener, and

other devices that connect to a power point.

Dimmer

Non-secure mode, for controlling brightness

level of dimmable lights.

Door Locks

Secure mode only, supports locking,

unlocking, PIN code share, and status.

Thermostat

Non-secure mode, control temperature set

points, on, off, fan, mode, and temperature

reading.

Note on Range

Z-Wave devices form a wireless mesh network

where each device acts as a short-range

repeater.

Battery powered devices are not recommended

for use as repeaters due to limited battery life.

To extend the range of your Z-Wave network,

install mains powered Z-Wave devices such as

an On/Off power point.

For example, when adding a door lock, ensure

there is at least one mains powered Z-Wave

device between the lock and the UM-ZW Z-

Wave Module to provide more reliable

wireless coverage.

Specifications

• Compatibility: xGen control panels

• Frequency: 908.42 MHz in US, 868.42

MHz in EMEA, 921.42 MHz in ANZ

• Required Power: 12.0 VDC (provided by

panel)

• Current Draw: 80 mA maximum

• Operating Temperature Range 0° to 49°C

(32° to 120°F)

• Storage Temperature: -34° to 60°C (-30° to

120°F)

• Maximum Humidity: 90% relative

humidity non-condensing

• Dimensions: 155 mm H x 95 mm W x 68

mm D

Manufacturer

Placed on the market by:

UTC Fire & Security Americas Corporation, Inc.

3211 Progress Drive, Lincolnton, NC, 28092, USA

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

UM-ZW Installer Manual RevC.docx Page 4

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This class B digital apparatus complies with Canadian ICES-3B.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du

Canada.

Caution: Any changes or modifications not expressly approved by the party

responsible for compliance to this equipment would void the user’s

authority to operate this device.

This Device complies with FCC & ISED radiation exposure limits.

This device complies with Industry Canada’s licence-exempt RSSs.

Operation is subject to the following two conditions:

(1) This device may not cause interference; and

(2) This device must accept any interference, including interference that

may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables

aux appareils radio exempts de licence. L’exploitation est autorisée aux

deux conditions suivantes :

1) l’appareil ne doit pas produire de brouillage;

2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le

fonctionnement.

Fire Statement

This product may be sold in the state of California for

security and residential fire purposes only. It may not be

sold or used in conjunction with commercial fire alarm

systems per California Code of Regulations. For

installations elsewhere, consult with local authorities.

If prohibited for use with a commercial fire system, such as

in the state of California, the Manual Fire SOS button on

the keypad must be disabled in the panel (Settings –

Areas).

Contact Information

For contact information, visit us online at www.interlogix.com.

For technical support, see www.interlogix.com/support

Customer Support

For technical support, see www.interlogix.com/support
