Intellinet 524063 Manuel utilisateur

GIGABIT

WEB-SMART

SWITCH

QUICK

INSTALL

GUIDE

MODELS 524063

& 524087

INT-524063/524087-QIG-1009-01

Shown: Model 524087, 16-Port

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS™

Gigabit Web-Smart Switch, Model 524063 (24-port) or 524087 (16-port).

This handy device lets you increase the speed of your network with

10/100/1000 Mbps auto-sensing ports that automatically detect optimal

network speeds, and it lets you increase the speed of your own work

through user-friendly Web-based management for uncomplicated

administration.

This quick install guide presents the basic steps required to set up and

operate this device. For detailed instructions and specications, refer to

the user manual on the CD enclosed with this product or on the Web

site listed below. Contact your INTELLINET NETWORK SOLUTIONS

dealer with comments or questions, or visit www.intellinet-network.com

for information on related products and additional contact information.

Easy-to-follow instructions in this guide and the user manual help make

installation of the switch quick and simple, so you’ll soon be enjoying the

benets of these additional features:

• All RJ45 ports with Auto-MDIX (auto uplink) support

• Supports NWay auto-negotiation

• Broadcast storm control with multicast packet rate settings

• Store and forward switching architecture

• Packet ltering/forwarding rates: 1,488,000 pps (1000 Mbps),

148,800 pps (100 Mbps), 14,880 pps (10 Mbps)

• Supports port controls (speed, ow control and maximum frame size)

• Supports VLAN (tag-based and port-based)

• Supports link aggregation (trunking)

• Provides IEEE 802.1x port-based security

• Supports port mirroring

• 19” rackmount

• LEDs for power, link/activity, connection speed

• Supports IEEE802.1D Spanning Tree Protocol

• Supports static priority, ToS, 802.1p Class of Service with 4-level

priority queuing

• Lifetime Warranty

FCC Statement

This equipment has been tested and found to comply with the limits for

a Class A digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause

harmful interference, in which case the user will be required to correct

the interference at his own expense.

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: 1) This device may not cause harmful

interference and 2) This device must accept any interference received,

including interference that may cause undesired operation.

CE Statement

This equipment complies with the requirements relating to electromagnetic

compatibility, EN 55022 class A for ITE, the essential protection

requirement of Council Directive 89/336/EEC on the approximation of

the laws of the member states relating to electromagnetic compatibility.

FRONT PANEL

LEDs

REAR PANEL

Power

Power to the switch is supplied by

plugging the included power cable

into the socket on the rear panel

and connecting it to an available

AC outlet.

LED Status Operation

Power On Unit is receiving power.

Off Unit is not receiving power.

1000M Link/ACT On A valid network connection has been established

to the corresponding port in the 1000M mode.

Flashing Corresponding port is transmitting/receiving data.

Off Corresponding port is not connected or a valid

network connection has been established in

either the 100M or 10M mode.

100M Link/ACT On A valid network connection has been established

to the corresponding port in the 100M mode.

Flashing Corresponding port is transmitting/receiving data.

Off Corresponding port is not connected or a valid

network connection has been established in the

10M mode.

Shown: Model 524063, 24-Port. LED panel

for Model 524087, 16-Port is similar.

INSTALLATION

Prior to use, it is recommended that the switch be placed/positioned:

• with a minimum of 25 mm of clearance on the top and sides for

adequate ventilation;

• away from sources of electrical noise, such as radios, transmitters and

broadband ampliers; and

• where it cannot be affected by excessive moisture.

• Place the device on a level surface that can support the weight of the

switch (and any other items that need to be considered).

• The switch provides automatic crossover detection for all ports, so

it’s ready for connection without the need for crossover cable.

WEB-BASED BROWSER MANAGEMENT

The switch switch provides an Administration Authority that lets you

congure and manage the switch remotely using a standard Internet

browser. To access the Web-based management interface, congure

the management station with an IP address and subnet mask that are

compatible with your switch. NOTE: Refer to the CD manual for details.

The factory defaults are 192.168.1.254 for the IP address; 255.255.255.0

for the subnet mask.

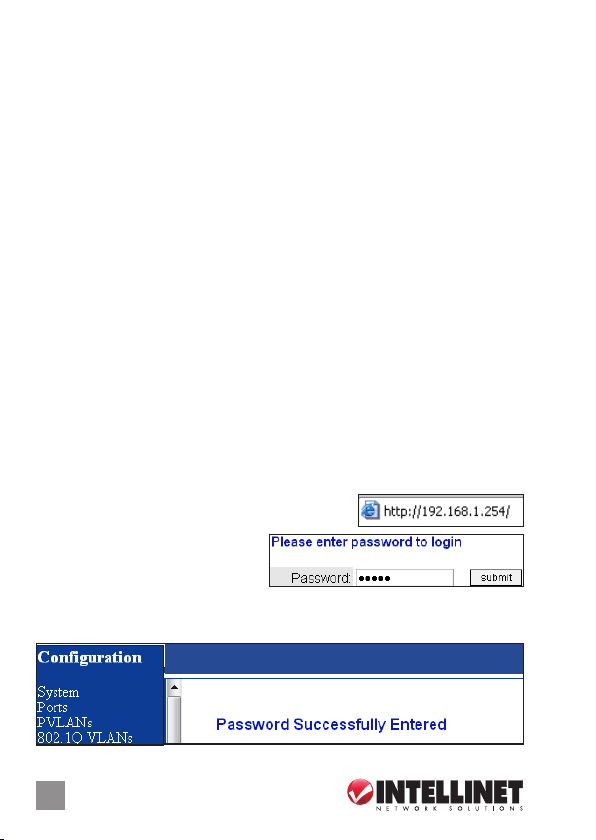

1. Activate your Web browser and enter the IP

address (192.168.1.254) in the address eld.

2. Select the Admin Authority

and key in the password. The

factory default is “admin.”

After login, the initial menu screen displays. Click on the links on the

left side of each screen to access the various management functions.

Gigabit Web-Smart Switch

INTELLINET NETWORK SOLUTIONS™offers a complete line

of active and passive networking products.

Ask your local computer dealer for more information or visit

www.intellinet-network.com.

SOLUTIONS

All products mentioned are trademarks or registered trademarks of their respective owners.
