Intellinet 561143 Manuel utilisateur

24-Port Gigabit Ethernet PoE+ Switch

with 10 GbE Uplink

User Manual

Model 561143

intellinet-network.com

24-Port 10/100/1000Mbps + 2-Port 1000/10000Mbps SFP+ Ethernet Switch

Contents

Chapter 1 Product Introduction .................................................................... 3

1.1 Product Overview............................................................................................3

1.2 Features..........................................................................................................3

1.3 Package Contents ..........................................................................................4

Chapter 2 External Component Description................................................5

2.1 Front Panel .....................................................................................................5

2.2 Rear Panel......................................................................................................7

Chapter 3 Installing and Connecting to the Switch .................................... 8

3.1 Installation.......................................................................................................8

3.1.1 Desktop Installation ..............................................................................8

3.1.2 Rack-mountable Installation in a 19-inch Cabinet ................................9

3.1.3 Power On the Switch ............................................................................9

3.2 Connect Computer to the Switch ..................................................................10

3.3 Switch connection to the PD.........................................................................10

Appendix:......................................................................................................11

Technical Specifications .....................................................................................11

Warranty .............................................................................................................12

Notes ..................................................................................................................13

Federal Communication Commission Interference Statement ...........................15

24-Port 10/100/1000Mbps + 2-Port 1000/10000Mbps SFP+ Ethernet Switch |

Chapter 1 Product Introduction

Thank you for purchasing the Intellinet 24-Port Gigabit Ethernet PoE Switch with 10

GbE Uplink. Before you install and use this product, please read this manual carefully

to fully understand the functions of this product.

1.1 Product Overview

This 24-port 10/100/1000Mbps + 2 1000/10000Mbps SFP+ Slots PoE Ethernet

Switch provides seamless network connection. The high performance of this switch

upgrades your old network to a 1000Mbps Gigabit network. Based on Gigabit

Ethernet Technology, the switch alleviates network bottlenecks that frequently

develop as more advanced computer users and newer applications place greater

demands on network resources. SFP+ supports trunking for high-bandwidth data

links.

The switch's RJ45 PoE ports can automatically detect and supply power to

IEEE802.3at-compliant Powered Devices (PD). Electrical power is transmitted along

with data in a single cable, allowing you to expand your network where there are no

power lines or outlets or where you wish to install devices like IP Cameras or IP

Phones, etc.

The switch is easy to install and use. It requires no configuration and installation. It's a

great selection for expanding your office network.

1.2 Features

This switch complies with IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x,

IEEE802.3az, IEEE802.3ae standards. Other features of the switch are as follows:

•Power and data connection for up to 24 PoE network devices

•Delivers data and power over existing network cables, which saves on

electrical installation costs

•Includes two small form-factor pluggable 10 GbE SFP/SFP+ module slots

•10/100/1000 auto-sensing ports automatically detect optimal network speeds

•Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless

access points, VoIP phones, IP cameras)

•Trunking for SFP1 and SFP2 can be activated via switch on front panel

•88 Gbps switch fabric

•PoE power budget of 400 watts

•Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification

•Two high-volume cooling fans ensure perfect ventilation

•Includes 19" rackmount brackets

24-Port 10/100/1000Mbps + 2-Port 1000/10000Mbps SFP+ Ethernet Switch |

1.3 Package Contents

• 24-Port Gigabit Ethernet PoE+ Switch with 2 x 10 GbE SFP+ Uplinks

• Power cable

• User manual

• 19" rackmount brackets

24-Port 10/100/1000Mbps + 2-Port 1000/10000Mbps SFP+ Ethernet Switch |

Chapter 2 External Component Description

2.1 Front Panel

The front panel of the switch consists of a series of LED indicators, 24 x

10/100/1000Mbps RJ-45 ports, 2 x 1000/10000Mbps SFP+ ports, one Flow Control

switch and one Trunking switch, as shown below:

Figure 1 - Front Panel

10/100/1000Mbps RJ-45 ports (1-24):

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding Link/Act LED.

SFP+ ports (25, 26):

Designed to install the SFP+ module and connect to the device with a bandwidth of

1000Mbps or 10000Mbps. Each has a corresponding Link/Act LED.

Flow Control switch:

Turns Flow Control ON or OFF.

Port Trunking switch:

Turns SFP+ port Trunking ON or OFF.

LED indicators:

The LED indicators allow you to monitor, diagnose and troubleshoot any potential

problem with the switch, connection or its attached devices.

Figure 2 - LED Indicators

The following chart shows the LED indicators of the switch along with explanation of

each indicator.

24-Port 10/100/1000Mbps + 2-Port 1000/10000Mbps SFP+ Ethernet Switch |

LED

COLOR

STATUS

STATUS DESCRIPTION

PWR

Green

Power On

Off

Power Off

1-24

（Link/Act）

Orange

(10/100Mbps)

A device is connected to the port.

Off

A device is disconnected from the

port.

Green

(1000Mbps)

Flashing

Sending or receiving data

1-24

（POE）

Green

There is a PoE PD connected to

the port, which is successfully

being supplied power.

Off

No Powered Device is connected to

the port, or no power is supplied

according to the power limits of the

port.

25-26

（Link/Act）

Orange

(1000Mbps)

A device is connected to the port.

Off

A device is disconnected from the

port.

Green

（10G）

Flashing

Sending or receiving data

24-Port 10/100/1000Mbps + 2-Port 1000/10000Mbps SFP+ Ethernet Switch |

2.2 Rear Panel

The rear panel of the switch contains an AC power connector, as shown below.

Figure 3 - Rear Panel

AC Power Connector:

Power is supplied through an external AC power adapter. It

supports AC 100~240V,

50/60Hz.

Grounding Terminal:

Located on the left side of the power supply connector; use a grounded connection to

prevent electric shock.

24-Port 10/100/1000Mbps + 2-Port 1000/10000Mbps SFP+ Ethernet Switch |

Chapter 3 Installing and Connecting to the Switch

This chapter describes how to install your Ethernet switch and make connections to it.

Read the following sections and perform the procedures in the order presented to

avoid incorrect installation, which will cause damage to the device and will threaten its

security.

3.1 Installation

Place the switch in a stable location or on a desktop.

Make sure the switch works in the proper AC-input range and matches the voltage

labeled on the switch. Do not ever open the switchʼs shell,even in a power failure.

Ensure that there is adequate space around the switch for proper ventilation and heat

dissipation. When installing the switch in a cabinet, make sure the cabinet will

adequately support the weight of the switch and its accessories.

3.1.1 Desktop Installation

If installing the switch on a desktop, attach the provided cushioning rubber feet on the

bottom of each corner of the switch to prevent external vibration. Allow adequate

space for ventilation and heat dissipation between the device and the objects around

it.

Figure 4 - Desktop installation

24-Port 10/100/1000Mbps + 2-Port 1000/10000Mbps SFP+ Ethernet Switch |

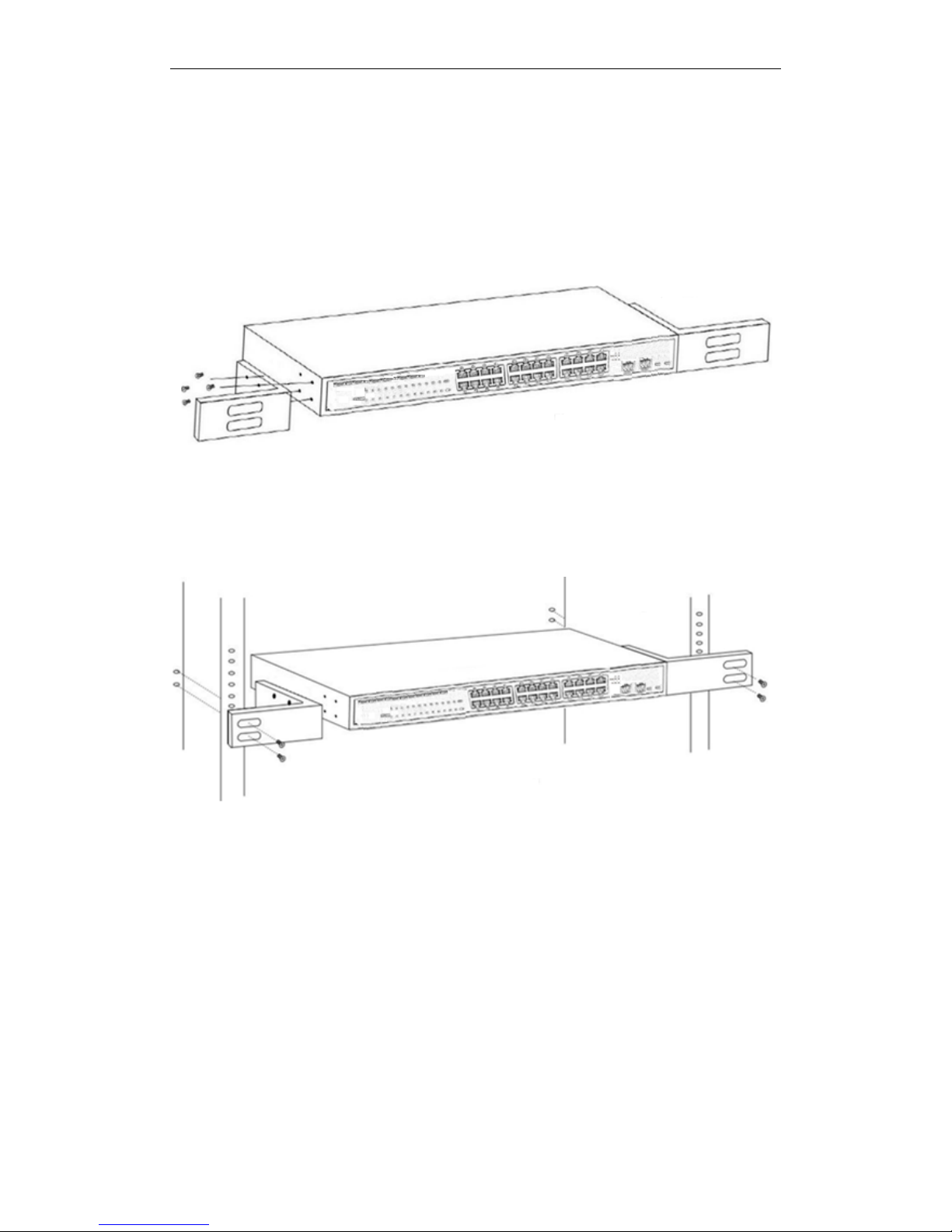

3.1.2 Rack-mountable Installation in a 19-inch Cabinet

The switch can be mounted with an EIA standard-sized, 19-inch rack, which can be

placed in a wiring closet with other equipment. To install the switch, follow these

steps:

Attach the mounting brackets on the switchʼs side panels (one on each side) and

secure them with the screws provided.

Figure 5 - Attaching Brackets

Use the screws provided with the equipment rack to mount the switch on the rack and

tighten it.

Figure 6 - Mounting switch

3.1.3 Power On the Switch

The switch is powered on by the AC 100~240V 50/60Hz internal high-performance

power supply. Follow the next tips to turn on the switch:

AC Electrical Outlet:

Intellinet recommends using a single-phase three-wire receptacle with a neutral outlet

or a multifunctional computer-professional receptacle. Make sure to connect the metal

ground connector to the grounding source on the outlet.

24-Port 10/100/1000Mbps + 2-Port 1000/10000Mbps SFP+ Ethernet Switch |

AC Power Cord Connection:

Connect the AC power connector on the back panel of the switch to an external

receptacle with the included power cord, and check that the power indicator turns on.

When it is ON, the device is receiving power.

3.2 Connect Computer to the Switch

Connect one end of an Ethernet cable to an RJ45 jack on your computer; connect the

other end to any RJ45 port of the switch. The maximum distance between the switch

and the computer should not exceed 100 meters. Once your devices are connected

and powered on, the Link/Act status indicator lights activate with the corresponding

ports on the switch.

Figure 7 - Connect Computer (NIC) to the switch

3.3 Switch connection to the PD

All 24 ports on the switch have PoE power-supply capability. The maximum output

power of one port is up to 30W. The switch powers PD devices such as Internet

phones, network cameras, wireless access points, etc. through Ethernet cables.
