Intel®Core™2 Extreme Quad-Core Mobile

Processor,

Intel®Core™2 Quad Mobile Processor,

Intel®Core™2 Extreme Mobile Processor,

Intel®Core™2 Duo Mobile Processor,

Intel®Core™2 Solo Mobile Processor and

Intel®Celeron®Processor

on 45-nm Process

Specification Update

December 2011

Document Number: 320121-008

2Specification Update

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED,

BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED

IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL

DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR

WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT,

UNLESS OTHERWISE AGREED IN WRITING BY INTEL, THE INTEL PRODUCTS ARE NOT DESIGNED NOR INTENDED FOR ANY

APPLICATION IN WHICH THE FAILURE OF THE INTEL PRODUCT COULD CREATE A SITUATION WHERE PERSONAL INJURY OR DEATH

MAY OCCUR.

Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not rely on the

absence or characteristics of any features or instructions marked "reserved" or "undefined." Intel reserves these for future definition

and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them. The information

here is subject to change without notice. Do not finalize a design with this information.

The products described in this document may contain design defects or errors known as errata which may cause the product to

deviate from published specifications. Current characterized errata are available on request.

Intel® processor numbers are not a measure of performance. Processor numbers differentiate features within each processor family,

not across different processor families. See www.intel.com/products/processor_number/ for details.

45nm products are manufactured on a lead-free process. Lead-free per EU RoHS directive July, 2006. Some E.U. RoHS exemptions

may apply to other components used in the product package. Residual amounts of halogens are below November, 2007 proposed

IPC/JEDEC J-STD-709 standards.

Intel® Active Management Technology requires the platform to have an Intel® AMT-enabled chipset, network hardware and

software, connection with a power source and a network connection.

Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.

Intel, Intel Core, Intel Centrino, Intel SpeedStep, Intel386, Intel486, Pentium, Pentium Pro, Pentium 4, MMX, and the Intel logo are

trademarks of Intel Corporation in the U.S. and other countries.

*Other names and brands may be claimed as the property of others.

Specification Update 3

Contents

Preface..................................................................................................................................5

Identification Information ........................................................................................................7

Summary Tables of Changes ..................................................................................................13

Errata .................................................................................................................................21

Specification Changes ...........................................................................................................53

Specification Clarifications .....................................................................................................54

Documentation Changes ........................................................................................................56

4Specification Update

Revision History

Document

Number

Revision

Version

Description

Date

320121

001

1.0

Initial release

July 2008

320121

002

1.0

Updated Title

Updated Identification Information

Updated Affected Documents

Added Erratum AZ62, AZ63, AZ64,AZ65,

AZ66

August 2008

320121

003

1.0

Added Erratum AZ66-74

October 2008

320121

004

1.0

Added Erratum AZ75

Added Specification Clarification AZ2

November 2008

320121

005

1.0

Table 1 added new skus and updated E and

R step information

Errata table added R step information

March 2009

320121

006

1.0

S-SPEC updated for new E and R step in

Table 1

April 2009

320121

007

1.0

Added Erratum AZ76

December 2010

320121

008

1.0

Added Erratum AZ77

December 2011

Preface

Specification Update 5

Preface

This document is an update to the specifications contained in the documents listed in the

following Affected Documents/Related Documents table. It is a compilation of device and

document errata, and specification clarifications and changes. This document is intended

for hardware system manufacturers and for software developers of applications,

operating system, and tools.

Information types defined in the Nomenclature section of this document are consolidated

into this update document and are no longer published in other documents. This

document may also contain information that has not been previously published.

Affected Documents

Document Title

Document

Number/Location

Intel® Core™2 Duo Processors and Intel® Core™2 Extreme

Processors on 45-nm Process for Platforms based on Mobile Intel®

965 Express Chipset family Datasheet

316745

Intel® Core™2 Extreme Quad-Core Mobile Processor, Intel® Core™2

Quad Mobile Processor, Intel® Core™2 Extreme Mobile Processor,

Intel® Core™2 Duo Mobile Processor, Intel® Core™2 Solo Mobile

Processor and Intel® Celeron® Processor on 45-nm Process for

Platforms based on Mobile Intel® 4 Series Express Chipset family

Datasheet

320120

Intel® Core™2 Extreme Quad-Core Processor Processors and Intel®

Core™2 Quad Processor on 45-nm Process for Platforms based on

Mobile Intel® 4 Series Express Chipset family Datasheet

320390

Intel® Celeron Processor Low Voltage and Ultra Low Voltage o 700

Series for Platforms based on Mobile Intel® GS45 Express Chipset

320389

Related Documents

Document Title

Document

Number/Location

Intel® 64 and IA-32 Architecture Software Developer's Manual

Documentation Changes

252046

Intel® 64 and IA-32 Architecture Software Developer’s Manual,

Volume 1: Basic Architecture

253665

Intel® 64 and IA-32 Architecture Software Developer’s Manual,

Volume 2A: Instruction Set Reference, A-M

253666

Intel® 64 and IA-32 Architecture Software Developer’s Manual,

Volume 2B: Instruction Set Reference, N-Z

253667

Intel® 64 and IA-32 Architecture Software Developer’s Manual,

253668

Preface

6Specification Update

Document Title

Document

Number/Location

Volume 3A: System Programming Guide

Intel® 64 and IA-32 Architecture Software Developer’s Manual,

Volume 3B: System Programming Guide

253669

IA-32 Intel® Architecture Optimization Reference Manual

248966

Intel Processor Identification and the CPUID Instruction Application

Note (AP-485)

241618

Intel® 64 and IA-32 Architectures Application Note TLBs, Paging-

Structure Caches, and Their Invalidation

317080

NOTE: Contact your Intel representative for the latest revision.

Nomenclature

Errata are design defects or errors. These may cause the processor behavior to deviate

from published specifications. Hardware and software designed to be used with any given

stepping must assume that all errata documented for that stepping are present on all

devices.

S-Spec Number is a five-digit code used to identify products. Products are differentiated

by their unique characteristics, e.g., core speed, L2 cache size, package type, etc. as

described in the processor identification information table. Read all notes associated with

each S-Spec number.

Specification Changes are modifications to the current published specifications. These

changes will be incorporated in any new release of the specification.

Specification Clarifications describe a specification in greater detail or further highlight

a specification‟s impact to a complex design situation. These clarifications will be

incorporated in any new release of the specification.

Documentation Changes include typos, errors, or omissions from the current published

specifications. These will be incorporated in any new release of the specification.

Note: Errata remain in the specification update throughout the product‟s lifecycle, or until a

particular stepping is no longer commercially available. Under these circumstances,

errata removed from the specification update are archived and available upon request.

Specification changes, specification clarifications and documentation changes are

removed from the specification update when the appropriate changes are made to the

appropriate product specification or user documentation (datasheets, manuals, etc.).

Identification Information

Specification Update 7

Identification Information

Component Identification via Programming Interface

Intel® Core™2 Extreme Quad-Core Mobile Processor, Intel® Core™2 Quad Mobile

Processor, Intel® Core™2 Extreme Mobile Processor, Intel® Core™2 Duo Mobile

Processor, Intel® Core™2 Solo Mobile Processor and Intel® Celeron® Processor on 45-

nm Process stepping can be identified by the following register contents:

Reserved

Extended

Family1

Extended

Model2

Reserved

Processor

Type3

Family

Code4

Model

Number5

Stepping

ID6

31:28

27:20

19:16

15:14

13:12

11:8

7:4

3:0

0000000b

0001b

00b

0110b

0111b

XXXXb

When EAX is initialized to a value of 1, the CPUID instruction returns the Extended

Family, Extended Model, Type, Family, Model and Stepping value in the EAX register.

Note that the EDX processor signature value after reset is equivalent to the processor

signature output value in the EAX register.

NOTES:

1. The Extended Family, bits [27:20] are used in conjunction with the Family Code, specified in

bits [11:8], to indicate whether the processor belongs to the Intel386®, Intel486®,

Pentium®, Pentium Pro, Pentium 4, or Intel Core processor family.

2. The Extended Model, bits [19:16] in conjunction with the Model Number, specified in bits

[7:4], are used to identify the model of the processor within the processor‟s family.

3. The Processor Type, specified in bits [13:12] indicates whether the processor is an original

OEM processor, an OverDrive processor, or a dual processor (capable of being used in a dual

processor system).

4. The Family Code corresponds to bits [11:8] of the EDX register after RESET, bits [11:8] of the

EAX register after the CPUID instruction is executed with a 1 in the EAX register, and the

generation field of the Device ID register accessible through Boundary Scan.

5. The Model Number corresponds to bits [7:4] of the EDX register after RESET, bits [7:4] of the

EAX register after the CPUID instruction is executed with a 1 in the EAX register, and the

model field of the Device ID register accessible through Boundary Scan.

6. The Stepping ID in bits [3:0] indicates the revision number of that model. See Table 2 for the

processor stepping ID number in the CPUID information.

Cache and TLB descriptor parameters are provided in the EAX, EBX, ECX and EDX

registers after the CPUID instruction is executed with a 2 in the EAX register.

Identification Information

8Specification Update

Component Marking Information

The processor stepping can be identified by the following component markings:

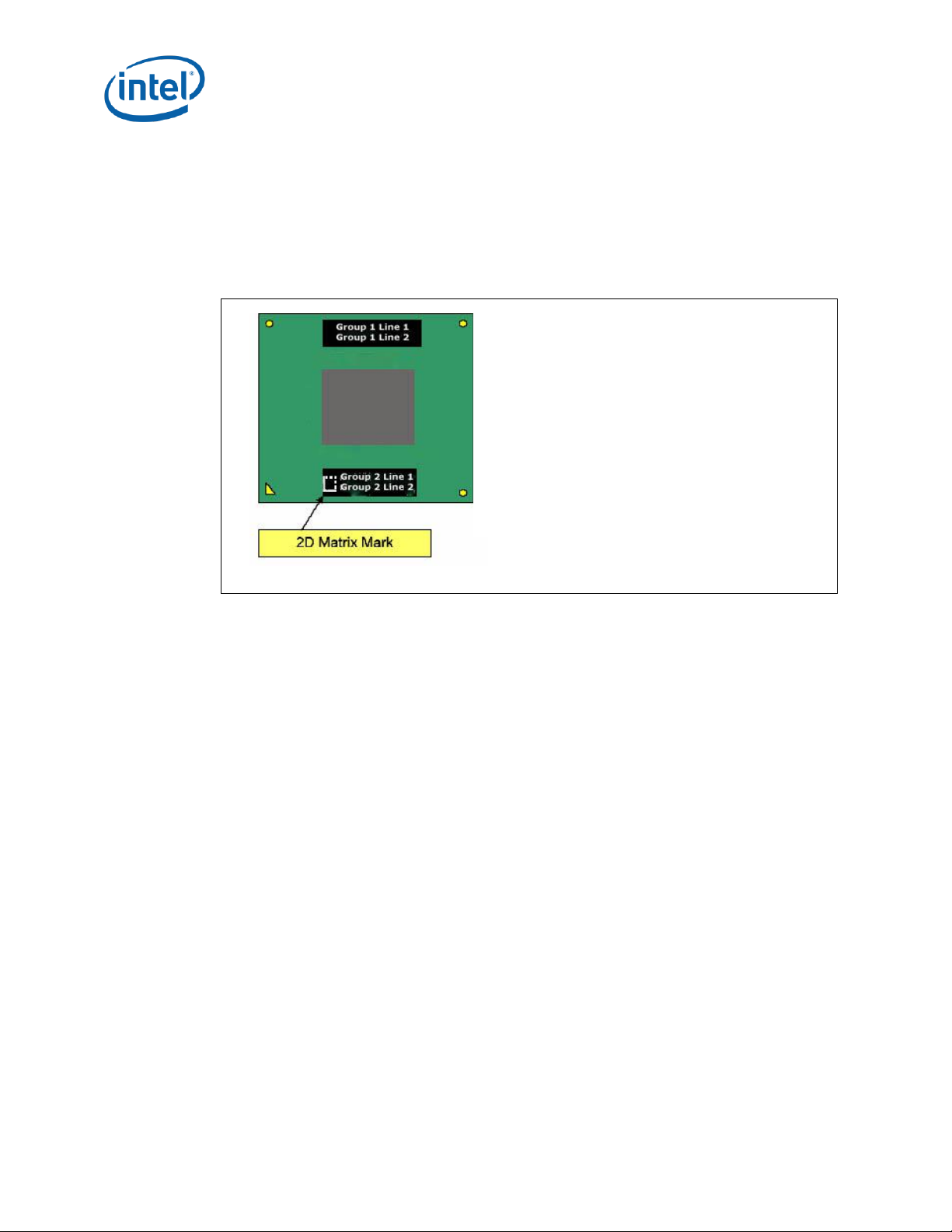

Figure 1. Processor S-Spec Top-side Markings (Example)

MARK EXAMPLE: Group

1 Line 1: Unit Identifier Processor #

Group 1 Line 2: FPO SSPEC#

Group 2 Line 1: Frequency/L2 Cache/FSB Speed

Group 2 Line 2: INTEL (m) © ’07

Identification Information

Specification Update 9

Table 1. Processor Identification Information

S-

Spec#

Processor

Package

Processor

Stepping

CPUID

Core Frequency

HFM/LFM/ SLFM

(GHz)

FSB Freq.

(MHz)

IDAT

Freq.(GHz)

HFM TDP

(W)

Cache(MB)

Notes

SLAQH

T9500

m-FCPGA

C-0

000010676h

2.6/1.2/0.8

800

2.8

2,3,4

SLAPW

T9500

m-FCBGA

C-0

000010676h

2.6/1.2/0.8

800

2.8

2,3,4

SLAQG

T9300

m-FCPGA

C-0

000010676h

2.5/1.2/0.8

800

2.7

2,3,4

SLAPV

T9300

m-FCBGA

C-0

000010676h

2.5/1.2/0.8

800

2.7

2,3,4

SLAPU

T8300

m-FCBGA

C-0

000010676h

2.4/1.2/0.8

800

2.6

2,3,4

SLAUU

T8100

m-FCPGA

C-0

000010676h

2.1/1.2/0.8

800

2.3

2,3,4

SLAPT

T8100

m-FCBGA

C-0

000010676h

2.1/1.2/0.8

800

2.3

2,3,4

SLAPA

T8300

m-FCPGA

M-0

000010676h

2.4/1.2/0.8

800

2.6

2,3,4

SLAPR

T8300

m-FCBGA

M-0

000010676h

2.4/1.2/0.8

800

2.6

2,3,4

SLAP9

T8100

m-FCPGA

M-0

000010676h

2.1/1.2/0.8

800

2.3

2,3,4

SLAPS

T8100

m-FCBGA

M-0

000010676h

2.1/1.2/0.8

800

2.3

2,3,4

SLAVJ

T8100

m-FCPGA

M-0

000010676h

2.1/1.2/0.8

800

2.3

2,3,4

SLAXG

T8100

m-FCPGA

M-0

000010676h

2.1/1.2/0.8

800

2.3

2,3,4

SLAZD

T8100

m-FCPGA

M-0

000010676h

2.1/1.2/0.8

800

2.3

2,3,4,7

SLAYZ

T8100

m-FCPGA

M-0

000010676h

2.1/1.2/0.8

800

2.3

2,3,4,7

SLAZC

T8300

m-FCPGA

M-0

000010676h

2.4/1.2/0.8

800

2.6

2,3,4,7

SLAZB

T9300

m-FCPGA

C-0

000010676h

2.5/1.2/0.8

800

2.7

2,3,4,7

SLAYY

T9300

m-FCPGA

C-0

000010676h

2.5/1.2/0.8

800

2.7

2,3,4,7

SLAZA

T9500

m-FCPGA

C-0

000010676h

2.6/1.2/0.8

800

2.8

2,3,4,7

SLAYX

T9500

m-FCPGA

C-0

000010676h

2.6/1.2/0.8

800

2.8

2,3,4,7

SLAQJ

X9000

m-FCPGA

C-0

000010676h

2.8/1.2/0.8

800

N/A

1,5,6

SLAZ3

X9000

m-FCPGA

C-0

000010676h

2.8/1.2/0.8

800

N/A

1,5,6,7

SLB47

T9600

m-FCPGA

C-0

000010676h

2.80/1.6/0.8

1066

2.93

4,6,10

SLB43

T9600

m-FCBGA

C-0

000010676h

2.80/1.6/0.8

1066

2.93

4,6,10

SLB46

T9400

m-FCPGA

C-0

000010676h

2.53/1.6/0.8

1066

2.66

4,6,10

SL3BX

T9400

m-FCBGA

C-0

000010676h

2.53/1.6/0.8

1066

2.66

4,6,10

SLB4E

P9500

m-FCPGA

C-0

000010676h

2.53/1.6/0.8

1066

2.66

6,11,12

SL3BW

P9500

m-FCBGA

C-0

000010676h

2.53/1.6/0.8

1066

2.66

6,11,12

SLB3S

P8600

m-FCPGA

M-0

000010676h

2.40/1.6/0.8

1066

2.53

6,11,12

SLB4N

P8600

m-FCBGA

M-0

000010676h

2.40/1.6/0.8

1066

2.53

6,11,12

SLB3R

P8400

m-FCPGA

M-0

000010676h

2.26/1.6/0.8

1066

2.40

6,11,12

Identification Information

10 Specification Update

S-

Spec#

Processor

Package

Processor

Stepping

CPUID

Core Frequency

HFM/LFM/ SLFM

(GHz)

FSB Freq.

(MHz)

IDAT

Freq.(GHz)

HFM TDP

(W)

Cache(MB)

Notes

SLB4M

P8400

m-FCBGA

M-0

000010676h

2.26/1.6/0.8

1066

2.40

6,11,12

SLB3Q

P8400

m-FCPGA

M-0

000010676h

2.26/1.6/0.8

1066

2.40

26,8,9

SL3BV

P8600

m-FCBGA

C-0

000010676h

2.40/1.6/0.8

1066

2.53

6,11,12

SL3BU

P8400

m-FCBGA

C-0

000010676h

2.26/1.6/0.8

1066

2.40

6,11,12

SLB48

X9100

m-FCPGA

C-0

000010676h

3.06/1.6/0.8

1066

N/A

1,5,6

SLAYS

T8300

m-FCPGA

M-0

000010676h

2.4/1.2/0.8

800

2.6

2,3,4,7

SLAYU

T8100

m-FCPGA

M-0

000010676h

2.1/1.2/0.8

800

2.3

2,3,4,7

SLAYP

T8100

m-FCPGA

M-0

000010676h

2.1/1.2/0.8

800

2.3

2,3,4,7

SLAYQ

T8300

m-FCPGA

M-0

000010676h

2.4/1.2/0.8

800

2.6

2,3,4,7

SLG8E

P7350

m-FCBGA

C-0

000010676h

2.00/1.6/0.8

1066

N/A

17,6,18

SLB45

P7450

m-FCPGA

C-0

000010676h

2.13/1.6/0.8

1066

N/A

17,6,18

SLB44

P7350

m-FCPGA

C-0

000010676h

2.00/1.6/0.8

1066

N/A

17,6,18

SLB54

P7450

m-FCPGA

M-0

000010676h

2.13/1.6/0.8

1066

N/A

17,6,18

SLB53

P7350

m-FCPGA

M-0

000010676h

2.00/1.6/0.8

1066

N/A

17,6,18

SLB5J

QX9300

m-FCPGA

E-0

00001067Ah

2.53/1.6/(n/a)

1066

2.8

14,15,16

SLB5G

Q9100

m-FCPGA

E-0

00001067Ah

2.26/1.6/(n/a)

1066

2.53

14,15,16

SLB64

SP9400

m-FCBGA

C-0

000010676h

2.40/1.6/0.8

1066

2.53

17,6,18

SLB63

SP9300

m-FCBGA

C-0

000010676h

2.26/1.6/0.8

1066

2.40

17,6,18

SLB66

SL9400

m-FCBGA

C-0

000010676h

1.86/1.6/0.8

1066

2.13

19,6,20

SLB65

SL9300

m-FCBGA

C-0

000010676h

1.60/0.8/0.8

1066

1.86

19,6,20

SLB5V

SU9400

m-FCBGA

M-0

000010676h

1.40/0.8/0.8

800

1.60

21,22,23

SLB5Q

SU9300

m-FCBGA

M-0

000010676h

1.20/0.8/0.8

800

1.40

21,22,23

SLGAR

SU3300

m-FCBGA

M-0

000010676h

1.20/0.8/(n/a)

800

N/A

5.5

24,13

SLGAS

723

m-FCBGA

M-0

000010676h

1.20/(n/a)/(n/a)

800

N/A

25,13

QJPQ

SU9600

m-FCBGA

R-0

00001067Ah

1.6/1.2/0.8

800

1.8

31,32,33

QJPM

SU9400

m-FCBGA

R-0

00001067Ah

1.4/1.2/0.8

800

1.6

31,32,33

QJPF

SU9300

m-FCBGA

R-0

00001067Ah

1.2/1.2/0.8

800

1.4

31,32,33

QJNG

SL9600

m-FCBGA

E-0

00001067Ah

2.13/1.6/0.8

1066

2.4

29,11,30

QJND

SL9400

m-FCBGA

E-0

00001067Ah

1.86/1.6/0.8

1066

2.13

29,11,30

QJNA

SL9300

m-FCBGA

E-0

00001067Ah

1.6/1.6/0.8

1066

1.86

29,11,30

QJNR

SP9600

m-FCBGA

E-0

00001067Ah

2.53/1.6/0.8

1066

2.66

27,11,28

QJNN

SP9400

m-FCBGA

E-0

00001067Ah

2.4/1.6/0.8

1066

2.53

27,11,28

QJNK

SP9300

m-FCBGA

E-0

00001067Ah

2.26/1.6/0.8

1066

2.4

27,11,28

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Intel Matériel informatique

Intel

Intel PXA27 Series Manuel utilisateur

Intel

Intel BX80605X3440 - Quad Core Xeon X3440 Manuel de service

Intel

Intel Atom E3900 SoC Series Manuel utilisateur

Intel

Intel E5345 - Xeon 2.33 GHz 8M L2 Cache 1333MHz FSB LGA771 Active Quad-Core... Mode d’emploi

Intel

Intel RMS25CB080 Guide de configuration

Intel

Intel I7-900 DESKTOP PROCESSOR - VOLUME 2 Manuel utilisateur

Intel

Intel Dialogic D/240SC-T1 Manuel utilisateur

Intel

Intel SBC 711 Guide rapide de l'utilisateur

Intel

Intel SRCSASRB - RAID Controller Manuel d'installation

Intel

Intel TS13X Manuel utilisateur

Intel

Intel RS25AB080 Manuel utilisateur

Intel

Intel SRCSASJV - RAID Controller Manuel d'installation

Intel

Intel Celeron 847 Manuel utilisateur

Intel

Intel Pentium III Processor 512K Mode d’emploi

Intel

Intel SRCU42E - Ultra320 SCSI PCI Express X8 RAID Storage... Manuel d'installation

Intel

Intel E5420 - CPU XEON QUAD CORE 2.50GHZ FSB1333MHZ 12M LGA771 HALOGEN FREE... Manuel utilisateur

Intel

Intel SASMF8I - RAID Controller Manuel d'installation

Intel

Intel NUC 11 Pro Kit NUC11TNKi3 Manuel utilisateur

Intel

Intel G23557-002 Manuel utilisateur

Intel

Intel X3350 - Xeon 2.66 Ghz 12M L2 Cache 1333MHz FSB LGA775 Quad-Core... Mode d’emploi

Intel

Intel NUC 13 Extreme Kit NUC13RNGi9 Manuel utilisateur

Intel

Intel 80C186XL Manuel utilisateur

Intel

Intel 82562EZ Mode d’emploi

Intel

Intel NUC Kit NUC1ATKPE Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Advantech

Advantech ASMB-935 Series Manuel utilisateur

Jupiter

Jupiter RAM PACK Manuel utilisateur
