Intel Pentium II OverDrive Manuel utilisateur

  II

Intel Corporation

5200 N.E. Elam Young Parkway, Hillsboro, OR

97124-6497

Intel Corporation assumes no responsibility for errors

or omissions in this guide, nor does Intel make any

commitment to update the information herein.

*Other brands and names are the property of their

respective owners.

First Edition May 1998

Part number: 696766-001

Information in this document is provided in connection with Intel

products. No license, express or implied, by estoppel or otherwise,

to any intellectual property rights is granted by this document.

Except as provided in Intel’s Three Year Limited Product Warranty

for this product, Intel assumes no liability whatsoever, and Intel

disclaims any express or implied warranty, relating to sale and/or

use of Intel products including liability or warranties relating to

fitness for a particular purpose, merchantability, or infringement of

any patent, copyright or other intellectual property right. Intel

products are not intended for use in medical, life saving, or life

sustaining applications. Intel may make changes to specifications

and product descriptions at any time, without notice.

The Pentium®II OverDrive®processor may contain design defects

or errors known as errata which may cause the product to deviate

from published specifications. Current characterized errata are

available on request.

English

Contents

Check your Computer's Owner's Manual .....................................3

Single Processor Installation Instructions ....................................4

Dual Processor Installation Instructions.....................................19

Troubleshooting and Additional Information.............................23

Getting Help ...............................................................................28

Three Year Limited Warranty .....................................................30

First check your computer's owner's manual to see if it has a section

on installing computer upgrade hardware such as the Pentium® II

OverDrive®processor. If it does, follow the owner's manual

procedure, using this manual for addtional information.

Check your computer's owner's manual

This symbol indicates a CAUTION or WARNING. It

identifies operations or situations that may be harmful

or dangerous to you or your equipment. For your

safety and to protect your equipment, read and

observe all cautions and warnings.

This symbol indicates a NOTE. It identifies items of

special interest that pertain to the section or

procedure you are reading. Notes typically clarify or

expand the material in the text.

Explanation of symbols used in this guide:

Warning: Danger to equipment! The Pentium II

OverDrive processor can be damaged by static

discharge. Before handling the Pentium II OverDrive

processor, be sure to ground yourself by touching the

metal on your computer. Limiting your movements

during installation reduces static electricity.

Step 2 — Ground yourself

Step 3—U

Step 1—Run Diagnostics Program

Prior to installing the Pentium® II OverDrive® processor, run the

diagnostic program on the included diskette to verify proper

operation of your PC. The diagnostic program will also update

Windows* 95 to improve multimedia performance when running

software written for Intel’s MMX™ technology.

To run the diagnostic program (requires Windows 95 or Windows

NT* 3.51 or greater):

1. Insert the Pentium II OverDrive processor Diagnostic

diskette into drive A.

2. Choose File (for Windows NT 3.51) or Start (for

Windows 95 or Windows NT 4.0 or greater).

3. Choose Run.

4. Type a:\diag and click OK,wait for the menu to

appear on screen, then choose Run Diagnostics from

the menu.

Once the diagnostics are completed, continue the installation

process with Step 2. Be sure to run the diagnostics program again

after installing the Pentium II OverDrive processor to verify proper

operation of the new processor.

If you experience problems after installing the Pentium II

OverDrive processor, contact Intel customer support for more

information. (See "Getting Help" on page 28.)

Step 1 — Run Diagnostics Program

English

To prevent damaging the Pentium II OverDrive processor and your

computer from a static discharge, ground yourself by touching the

metal back or side panel of your computer’s system unit.

Step 3 — Unplug computer and remove cover

Turn off the computer and any attached equipment (such as a

monitor or printer), unplug the power cord, and remove the cover.

Warning: Don't burn yourself! Many components can

become hot enough to cause mild skin burns. Wait at

least 15 minutes after turning off the power before

handling any parts.

OFF

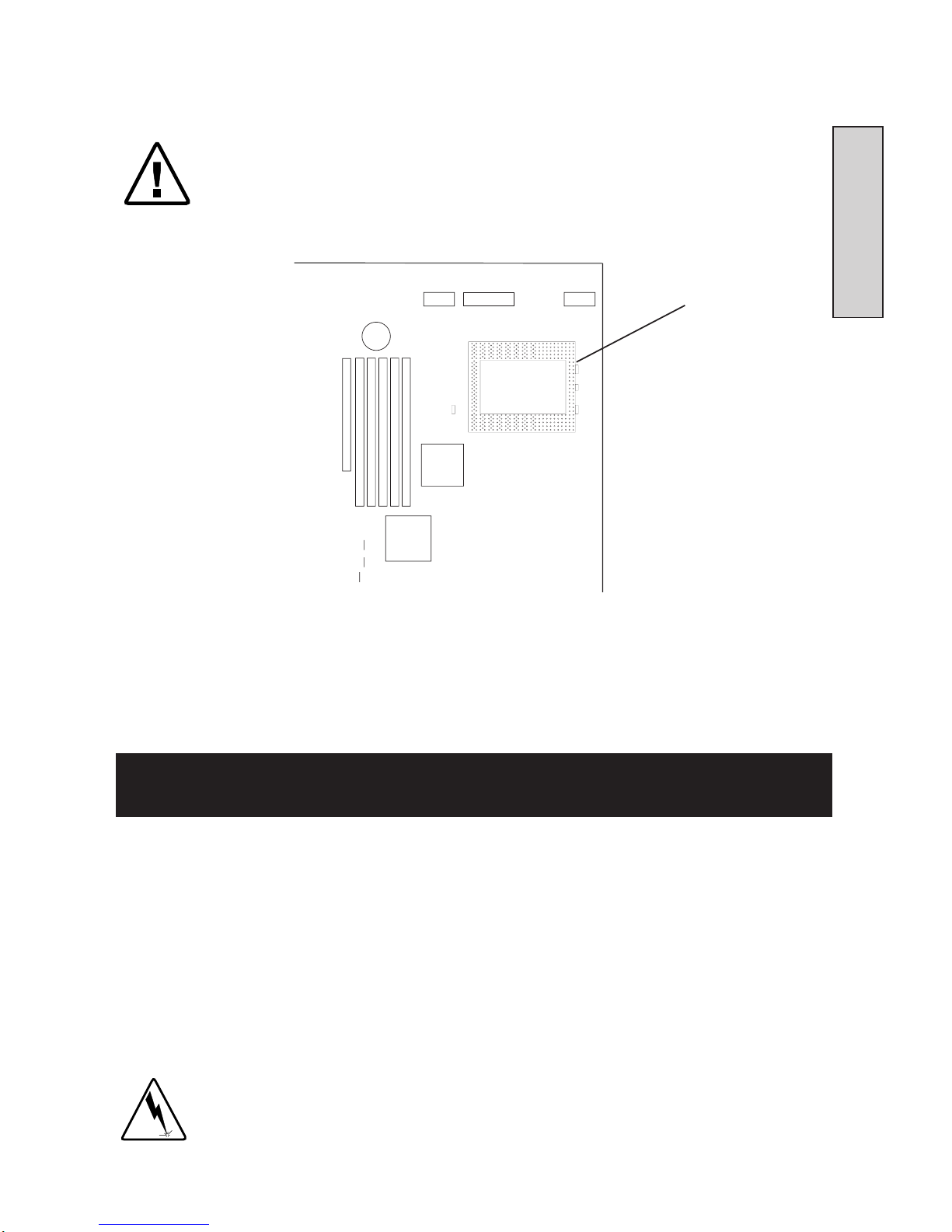

Step 4 — Find the computer's Pentium®Pro

processor

Back of

System

ATX Motherboard

Pentium Pro

processor

In some systems, the Pentium Pro processor may be partially

obscured from sight by the system power supply, add-in cards, or

floppy/hard drive mounting brackets. It may be necessary to

remove add-in cards or drives to gain access to the processor socket.

Refer to your system documentation for information on removing

those items.

Find the Pentium Pro processor in your computer. The Pentium Pro

processor in most computers looks like one of the following:

PC-3846

English

PC-3786

Clip

Fan power cable

Pentium Pro

processorBack of

system

Baby AT Motherboard

On top of your Pentium Pro processor there should be a passive

heatsink (which may be attached with a clip) or a fan heat sink with

an attached power cable.

Processor

socket

PC-3844

Step 4—Find the computer's

Pentium processor.

Typical ZIF socket

(with handle)

Socket

Handle

After locating the processor, examine the socket to determine the

socket type. There are two socket types:

Some computers have an empty second socket next to the

processor. For more information on the installation

process for these computers, see the dual processor

section on page 19.

The Owner's Manual for your computer may show the location of

the processor. If you can't locate your computer's original processor,

contact your dealer or your computer manufacturer for assistance.

Do not raise

socket handle

unless fan

heat sink

clip has been

undone first!

Step 5 — Determine the socket type

1) A socket with a handle that locks or unlocks called a zero

insertion force (ZIF) socket.

English

• If your computer has a power cable attached to the Pentium

Proprocessor'sfanheatsinkproceedwithStep6. Ifthefanheat

sink is attached with a clip go to Step 7. Otherwise, go directly

to Step 8.

Step 6 — Unplug the fan power cable

The fan power cable may be attached to your computer's power

supply or to a connector on the motherboard. If other cables are

in the way, carefully fold them out of the way so they don't touch

computer components. Then carefully unplug the heatsink's

power cable from the computer's power supply or slide the

power cable off the motherboard connector.

Your new OverDrive processor does not need the older

processor's fan, cable, or clip; after removing these

parts, store them with your Pentium Pro processor.

Typical LIF

socket

(no handle)

Warning: Damage to equipment! The Pentium II

OverDrive processor is incompatible with a LIF socket.

Attempting to install the Pentium II OverDrive processor

into a LIF socket will result in processor damage!

2) A socket without a handle is called a low insertion force

(LIF) socket.

If your system uses a software program, such as Intel’s LANDesk®

Client Manager, to monitor the processor fan operation, the

Pentium II OverDrive processor may be compatible with that

feature. Refer to the Getting Help section on page 28 for more

information.

PC-3843N

System power

supply cable

Fan power cable

System Power Supply
