USER'S MANUAL

Intel 946GZ Express Chipset

Intel FW82801GB ICH Chipset

Based

M/B ReadyFor LGA 775 Core™Quad

Processor

No. G03-946GZM3-F

Rev: 1.0

Release date: May, 2008

Trademark:

* Specifications and Information contained in this documentation are furnished for information use only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.



CHAPTER 1 INTRODUCTION OF INTEL 946GZ MOTHERBOARD SERIES

1-1 FEATURES OF MOTHERBOARD.................................................................................... 1

1-1.1 SPECIAL FEATURES OF MOTHERBOARD.................................................... 2

1-2 SPECIFICTION................................................................................................................... 

1-3 ITEM CHECKLIST..............................................................................................................3

1-4 LAYOUT DIAGRAM ........................................................................................................... 4

CHAPTER 2 HARDWARE INSTALLATION

2-1 INSTALL LGA 775 SUPPORTED INTEL PROCESSOR................................................ 5

2-2 INSTALL MEMORY............................................................................................................ 6

2-3 EXPANSION CARDS........................................................................................................... 7

CHAPTER 3 CONNCTORS, HEADERS & JUMPERS SETTING

3-1 CONNECTORS..................................................................................................................... 8

3-2 HEADERS.............................................................................................................................. 11

3-3 JUMPE SETTING................................................................................................................. 14

CHAPTER 4 USEFUL HELP

4-1 HOW TO UPDATE BIOS..................................................................................................... 15

4-2 TROUBLE SHOOTING....................................................................................................... 15

Environmental Protection Announcement

Do not dispose this electronic device into the trash while discarding. To minimize pollution

and ensure environment protection of mother earth, please recycle.

TABLE OF CONTENT



Chapter 1

Introduction of Intel 946GZ + ICH7 Motherboard Series

1-1 Features of motherboard

The Intel 946GZ+ ICH7 chipset motherboard series are based on the latest Intel 946GZ

Express Chipset technology which supports the innovative 65nm and 90nm Dual-Core Intel®

Pentium® D Processor 8 and 9 Series, Intel® Pentium® D Processor, and Intel® Core 2

Duo® (Code Name: Conroe) Processor with Intel® Hyper-Threading Technology. The

motherboard is optimized to deliver innovative features and professional desktop platform

solution with the advantages of the new generation dual core Intel® Core 2 Duo® Processor for

those who demand the best experience of personal computing. Through the high bandwidth of

dual channel DDR2 667/DDR2 533MHz/DDR2 400MHz system memories which are

expandable to 4 GB and the next generation PCI Express interface for the latest graphics cards

from both NVIDIA & ATI.

The Intel 946GZ + ICH7chipset motherboard series for Intel® Core 2 Duo® Processor are

absolutely the cost-effective solution for game enthusiasts and applications, and it also meets

the demanding usage of computing of gaming, multimedia entertainment and business

applications. Moreover, the Intel 946GZ express chipset incorporates Intel Graphics Media

Accelerator 3000 to provide you incredible visual quality, faster graphics performance and

flexible display options without the need for a separate graphics card.

The motherboards implement Intel 946GZ+ ICH7 Express Chipset which supports Front Side

Bus 1333MHz of data transferring and offers with 667MHz memory clock frequency for Dual

channel DDR2 400/DDR2 533/DDR2 667 MHz memory DIMMs to double the performance

of memory access. The motherboard is embedded with ICH7 chipset of providing one parallel

Ultra ATA 100 interface for one IDE drives and four serial ATA2 interface of 3Gb / s data

transfer rate for four serial ATA devices.

The 946GZ + ICH7 motherboard series offer one PCI-Express x16 graphics slot of 4Gbyte/sec

data transfer rate at each relative direction which gets 3.5 times of bandwidth more than AGP

8X and it’s up to a peak concurrent bandwidth of 8Gbyte/sec at full speed to guarantee the

ultimate GPU computing performance. Two 32-bit PCI slots guarantee the rich connectivity

for the I/O of peripherals. The motherboards are designed of tackling the profuse multimedia

requirements nowadays.

The motherboards provide 10 Mbit / 100Mbit Ethernet compatible LAN function by using the

Realtek RTL8102E10/100 PCI-E LAN chip. And the embedded ALC662 chipset fully

compatible with Sound Blaster Prostandards with providing 6-channel Azalia HD CODEC

offers you with the home cinema quality and satisfying software compatibility.

Embedded USB controller as well as capability of expanding to8 of USB2.0 functional ports

delivering 480Mb/s of rich connectivity, these motherboards meet the demands of future USB

peripherals which are also equipped with hardware monitor function on system to monitor

and protect your system and maintain your non-stop business computing.



Some special features---CPU Thermal Throttling/CPU Smart Fan in this motherboard are designed

for power user to use the over-clocking function in more flexible ways. But please be caution that the

over-clocking maybe causes the fails in system reliabilities. This motherboard provides the guaranteed

performance and meets the demands of the next generation computing. But if you insist to gain more

system performance with variety possibilities of the components you choose, please be careful and

make sure to read the detailed descriptions of these value added product features, please get them in

the coming section.

1-1.1 Special Features of Motherboard

CPU Thermal Throttling Technology--- (The CPU Overheat Protection

Technology)

To prevent the increasing heat from damage of CPU or accidental shutdown while at high

workload, the CPU Thermal Throttling Technology will force CPU to enter partially idle

mode from 87.5% to 12.5% according to preset CPU operating temperature in BIOS (from 40

to 90). When the system senses the CPU operating temperature reaching the preset

value, the CPU operating bandwidth will be decreased to the preset idle percentage to cool

down the processor. When at throttling mode the beeper sound can be optionally selected to

indicate it is in working.

CPU Smart Fan---( The Noise Management SystemOnly support 4-pin CPU cooler)

It’s never been a good idea to gain the performance of your system by sacrificing its acoustics.

CPU Smart Fan Noise Management System is the answer to control the noise level needed for

now-a-day’s high performance computing system. The system will automatically increase the

fan speed when CPU operating loading is high, after the CPU is in normal operating condition,

the system will low down the fan speed for the silent operating environment. The system can

provide the much longer life cycle for both CPU and the system fans for game use and

business requirements.



1-2 Specification

Spec Description

Design ∗Micro u-ATX form factor 4 layers PCB size: 24.5x18.0 cm

Chipset ∗Intel 946GZ Memory Controller Hub (MCH) Chipset

∗Intel 82801GB I/O Controller Hub (ICH7) Chipset

CPU Socket

(LGA775 )

∗Support Intel Pentium 4, Celeron D, Pentium D, and Core 2 Duo

775-Land LGA Package utilizes Flip-Chip Land Grid Array (FCLGA)

package processor

∗Support FSB Frequency 1333MHz

∗Suggest the power of the CPU should be below 65w

Memory Socket ∗Support Dual channel DDR2 400/DDR2 533/DDR2 667 MHz RAM

Module and which is expandable to4GB.

Expansion Slots ∗PCI-Express x16 slot 1pcs delivers up to 8 GB/s of concurrent bandwidth.

∗32-bit PCI slot x 2pcs at 133MHz

Integrate IDE and

Serial ATA2

∗One PCI IDE controller that supports PCI Bus Mastering, ATA PIO/DMA

and the ULTRA DMA 33/66/100 functions that deliver the data transfer

rate up to 100 MB/s; four Serial ATA2 ports provide 3 Gb /sec data

transfer rate.

Integrated VGA ∗Integrated Graphic Media Accelerator 3000 in 946GZ Express NB chipset.

LAN

∗Integrated Realtek RTL8102E 10M/100M PCI-E LAN chip.

∗Support Fast Ethernet LAN function of providing 10Mb / 100Mb

6CH-Audio ∗Realtek 6-channel ALC662Audio Codec onboard

∗Audio driver and utility included

BIOS ∗Award 4MB Flash ROM

Multi I/O ∗PS/2 keyboard and PS/2 mouse connectors

∗Floppy disk drive connector x1 &Hard disk drive connector x 1

∗Serial Port Connector x1

∗VGA Connector x1.

∗USB 2.0 connector x 4, headers x4

∗RJ45 LAN Connector x1

∗Parallel header x1

∗HDMI-SPDIF header x1

∗6-channel Audio connector (Line-in, Line-out, MIC)

1-3 Item Checklist

5Intel 946GZ Platform Processor Chipset based motherboard

5Intel 946GZ Platform Processor Chipset motherboard User’s Manual

5Cable for IDE

5Cable for Serial ATA Port

5CD for motherboard utilities

5I/O Back panel Shield



1-4 Layout Diagram

Intel 946GZ Chipset

ATX Power

Connector

CPU Socket mPGA775

DDR2

DIMMx2

USB Port

(USB2, USB3)

4MBit Flash BIOS

ALC662 6-CH

Audio Codec

32-bit PCI Slots

COM Port

MSPower ON

Jumper (JP1)

USB Port

PS2 KB

Mouse Port

Audio Connector

Front Panel Audio

Realtek RTL8102

ATA100

IDE Connector

Serial-ATA2

Connector

(SATA1, 2, 3, 4)

PS/2 Keyboard

SYSFAN2

PCI Express x16

VGA Connector

CPU FAN

SYSFAN1

Parallel HeaderFloppy Connector

Intel 82801 GB Chipset

Clear COMS (JBAT)

COM

PS/2 Mouse

VGA USB1

LAN

USB Port

MIC IN

Line IN

Line OUT

RJ45 Over USB Conn.

PowerLED

/Speaker Headers

CD Audio In

HDMI-SPDIF

ATX 12V Power Conn.



Chapter 2

Hardware Installation

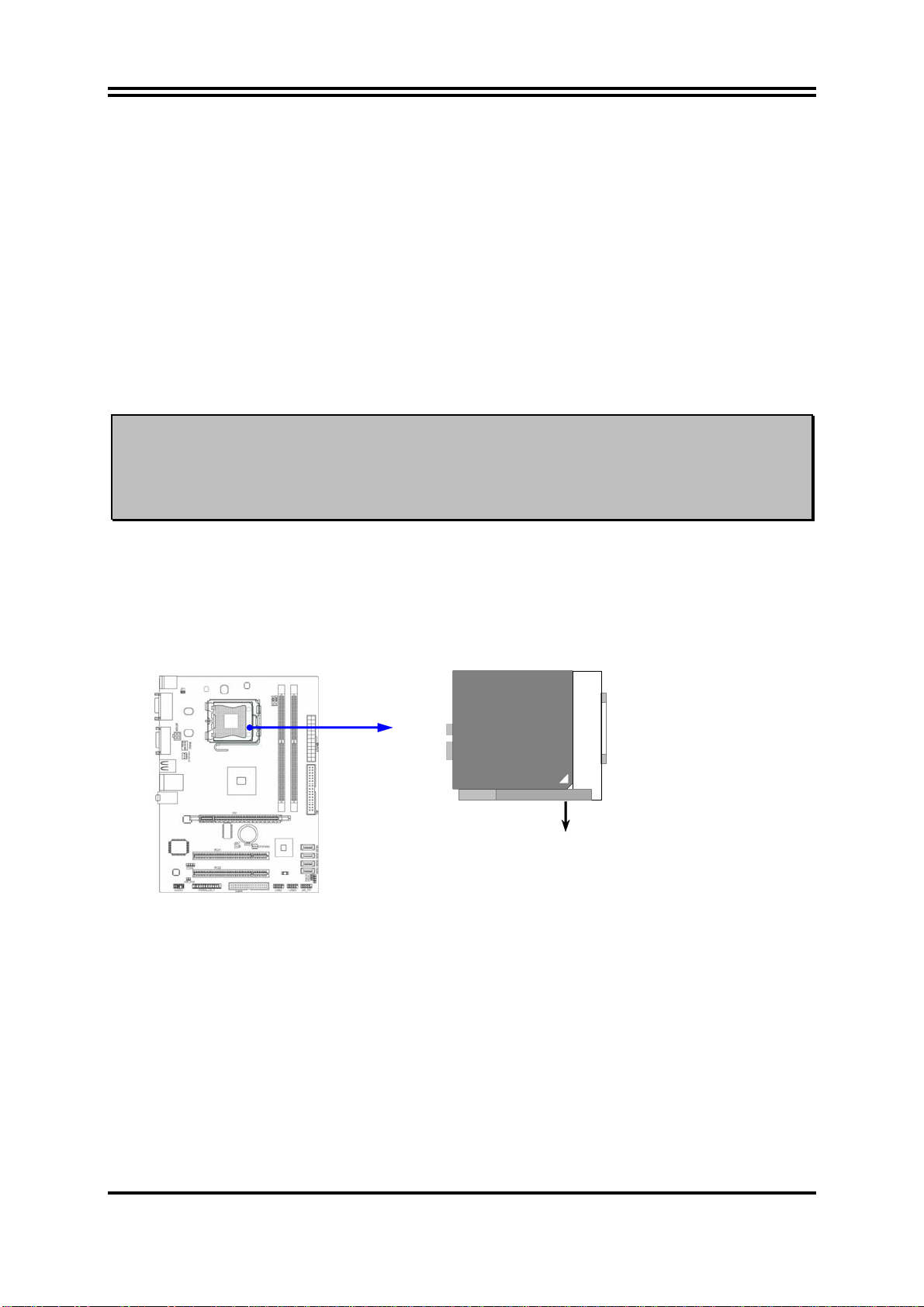

2-1 Install LGA 775 Supported Intel Processor

This motherboard provides a 775-pin surface mount, LGA775 Land Grid Array socket,

referred to as in the 775 Pin package utilizes Flip-Chip Land Grid Array (FC-LGA) package

technology.

The CPU that comes with the motherboard should have a cooling FAN attached to prevent

overheating. If this is not the case, then purchase a correct cooling FAN before you turn on

your system.

WARNING! Be sure that there is sufficient air circulation across the processor’s

heatsink and CPU cooling FAN is working correctly, otherwise it may

cause the processor and motherboard overheat and damage, you may install

an auxiliary cooling FAN, if necessary.

To install a CPU, first turn off your system and remove its cover. Locate the LGA775

socket and open it by first pulling the level sideways away from the socket then upward to a

90-degree angle. Insert the CPU with the correct orientation as shown below. The notched

corner should point toward the end of the level. Because the CPU has a corner pin for two

of the four corners, the CPU will only fit in the orientation as shown.

CPU LGA775 Socket

Colden Arrow

LGA775



2-2 Install Memory

This motherboard provides two 240-pin DDR2 DUAL INLINE MEMORY MODULES

(DIMM) socket for DDR2 memory expansion available from minimum memory volume of

128MB to maximum memory volume of 4GB DDR2 SDRAM.

Valid Memory Configurations

Bank 240-Pin DIMM PCS Total Memory

Bank 0, 1 (DIMM1) DDR2 400/ 533 DDR DRAM Module X1 128MB∼2 GB

Bank 2, 3 (DIMM2) DDR2 400/ 533 DDR DRAM Module X1 128MB∼2 GB

Total Memory (Max. 4 GB) 2 128MB∼4 GB

Recommend DIMM Module Combination

1. One DIMM Module ----Plug in DIMM1

2. Two DIMM Modules---Plug in DIMM1 and DIMM2 for Dual channel function

For Dual channel Limited!

3. Dual channel function only supports when 2 DIMM Modules plug in either both DIMM1 &

DIMM2

4. DIMM1 & DIMM2 must be the same type, same size, and same frequency for dual channel

function.

Install DDR2 SDRAM modules to your motherboard is not difficult, you can refer to figure

below to see how to install a 240-Pin DDR2 400/DDR2 533/DDR2 667 SDRAM module.



NOTE! When you install DIMM module fully into the DIMM socket the eject tab

should be locked into the DIMM module very firmly and fit into its

indention on both sides.

2-3 Expansion Cards

The 946GZ motherboard series offer one PCI-Express x16 graphics slot of 4Gbyte/sec data

transfer rate at each relative direction which gets 3.5 times of bandwidth more than AGP 8X

and it’s up to a peak concurrent bandwidth of 8Gbyte/sec at full speed to guarantee the

ultimate GPU computing performance. Two 32-bit PCI slots guarantee the rich connectivity

for the I/O of peripherals. The motherboards are designed of tackling the profuse multimedia

requirements nowadays..

PE1 / PCI-E x16 Slot

32-bit PCI Slot



Chapter 3

Connectors, Headers & Jumpers Setting

3-1 Connectors

(1) Power Connector (24-pin block) : ATXPWR

ATX Power Supply connector: This is a new defined 24-pins connector that usually

comes with ATX case. The ATX Power Supply allows using soft power on momentary

switch that connect from the front panel switch to 2-pins Power On jumper pole on the

motherboard. When the power switch on the back of the ATX power supply turned on,

the full power will not come into the system board until the front panel switch is

momentarily pressed. Press this switch again will turn off the power to the system

board.

** We recommend that you use an ATX 12V Specification 2.0-compliant power supply

unit (PSU) with a minimum of 350W power rating. This type has 24-pin and 4-pin

power plugs.

** If you intend to use a PSU with 20-pin and 4-pin power plugs, make sure that the 20-pin

power plug can provide at least 15A on +12V and the power supply unit has a minimum

power rating of 350W. The system may become unstable or may not boot up if the

power is inadequate.

(2) ATX 12V Power Connector (4-pin block) : ATX12V

This is a new defined 4-pins connector that usually comes with ATX Power Supply.

The ATX Power Supply which fully supports AM2 processor must including this

connector for support extra 12V voltage to maintain system power consumption.

Without this connector might cause system unstable because the power supply can not

provide sufficient current for system.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Intel Matériel informatique

Intel

Intel NUC Kit NUC1ATKPE Manuel utilisateur

Intel

Intel Core 2 Quad Q9400 Guide de référence

Intel

Intel WiFi Link 5100 Mode d’emploi

Intel

Intel Core i3 Desktop Series Manuel utilisateur

Intel

Intel BX80605I5760 Manuel utilisateur

Intel

Intel SBFCM Manuel utilisateur

Intel

Intel DG45ID - CARACTERISTIQUES TECHNIQUES Guide de configuration

Intel

Intel GD82559ER Manuel utilisateur

Intel

Intel Pentium II Instructions d'installation et d'utilisation

Intel

Intel 80C186XL Manuel utilisateur

Intel

Intel Pentium 4 Mode d’emploi

Intel

Intel EP80579 Manuel utilisateur

Intel

Intel X3350 - Xeon 2.66 Ghz 12M L2 Cache 1333MHz FSB LGA775 Quad-Core... Manuel utilisateur

Intel

Intel DZ77GAL-70K Guide de configuration rapide

Intel

Intel SASUC8I - RAID Controller Manuel d'installation

Intel

Intel P8700 - Core 2 Duo Processor Manuel utilisateur

Intel

Intel E1400 - Celeron 2.0GHz 800MHz 512KB Socket 775 Dual-Core... Mode d’emploi

Intel

Intel E5420 - CPU XEON QUAD CORE 2.50GHZ FSB1333MHZ 12M LGA771 HALOGEN FREE... Manuel utilisateur

Intel

Intel Galileo Manuel utilisateur

Intel

Intel 80960HA Manuel utilisateur

Intel

Intel SRCZCR - RAID Controller Storage Manuel utilisateur

Intel

Intel 925 - Pentium D 925 3.0GHz 800MHz 4MB-Cache Socket 775... Manuel utilisateur

Intel

Intel Core i7-980X Instructions d'utilisation et de sécurité

Intel

Intel MFS5000SI - Multi-Flex Server Compute Module Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Advantech

Advantech ASMB-935 Series Manuel utilisateur

Jupiter

Jupiter RAM PACK Manuel utilisateur
