Intel NUC11ATKPE Manuel utilisateur
1
NUC11ATKPE, NUC11ATKC4, NUC11ATKC2
User Guide - January 2022
Intel® NUC Kit NUC11ATKPE
Intel® NUC Kit NUC11ATKC4
Intel® NUC Kit NUC11ATKC2
User Guide
January 2022
2
NUC11ATKPE, NUC11ATKC4, NUC11ATKC2
User Guide - January 2022
You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products
described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject
matter disclosed herein.
No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.
All information provided here is subject to change without notice. Contact your Intel representative to obtain the latest Intel product
specifications and roadmaps.
The products described may contain design defects or errors known as errata which may cause the product to deviate from published
specifications. Current characterized errata are available on request.
Copies of documents which have an order number and are referenced in this document may be obtained by calling 1-800-548-4725 or by
visiting: http://www.intel.com/design/literature.htm.
Intel technologies' features and benefits depend on system configuration and may require enabled hardware, software or service activation.
Performance varies depending on system configuration. No computer system can be absolutely secure.
Intel and the Intel logo are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
*Other names and brands may be claimed as the property of others.
Copyright © 2022, Intel Corporation. All rights reserved.
3
NUC11ATKPE, NUC11ATKC4, NUC11ATKC2
User Guide - January 2022
Contents
1.0 Introduction ............................................................................................................................. 5
1.1 Before You Begin ........................................................................................................................................... 5
1.2 Installation Precautions ............................................................................................................................. 5
1.3 Observe Safety and Regulatory Requirements ......................................................................... 6
2.0 Open the Chassis ................................................................................................................... 7
3.0 Install and Remove System Memory ......................................................................... 8
3.1 Install SO-DIMMs........................................................................................................................................... 8
3.2 Remove SO-DIMMs ...................................................................................................................................... 9
4.0 Install an M.2 SSD ...............................................................................................................10
5.0 Close the Chassis .................................................................................................................12
6.0 Use the VESA Bracket (Optional) ...............................................................................13
7.0 Connect Power ......................................................................................................................15
8.0 Install an Operating System .........................................................................................17
9.0 Install the Latest Device Drivers and Software ................................................18
4
NUC11ATKPE, NUC11ATKC4, NUC11ATKC2
User Guide - January 2022
Revision History
Date Revision Description
January 2022 1.0 Initial release.
5
NUC11ATKPE, NUC11ATKC4, NUC11ATKC2
User Guide - January 2022
1.0 Introduction
This User Guide provides step-by-step installation instructions for these products:
Intel® NUC Kit NUC11ATKPE
Intel® NUC Kit NUC11ATKC4
Intel® NUC Kit NUC11ATKC2
1.1 Before You Begin
CAUTIONS
The steps in this guide assume you’re familiar with computer terminology and
with the safety practices and regulatory compliance required for using and
modifying computer equipment.
Disconnect the computer from its power source and from any network before
performing any of the steps described in this guide.
Failure to disconnect power, telecommunications links, or networks before you open
the computer or perform any procedures can result in personal injury or equipment
damage. Some circuitry on the board can continue to operate even though the front
panel power button is off.
Follow these guidelines before you begin:
Always follow the steps in each procedure in the correct order.
Create a log to record information about your computer, such as model,
serial numbers, installed options, and configuration information.
Electrostatic discharge (ESD) can damage components. Perform the
procedures described in this chapter only at an ESD workstation using an
antistatic wrist strap and a conductive foam pad. If such a station isn’t
available, you can provide some ESD protection by wearing an antistatic wrist
strap and attaching it to a metal part of the computer chassis.
1.2 Installation Precautions
When you install and test the Intel NUC, observe all warnings and cautions in the
installation instructions.
6
NUC11ATKPE, NUC11ATKC4, NUC11ATKC2
User Guide - January 2022
To avoid injury, be careful of:
Sharp pins on connectors
Sharp pins on circuit boards
Rough edges and sharp corners on the chassis
Hot components (such as SSDs, processors, voltage regulators, and heat sinks)
Damage to wires that could cause a short circuit
Observe all warnings and cautions that instruct you to refer computer servicing
to qualified technical personnel.
1.3 Observe Safety and Regulatory Requirements
If you don’t follow these instructions, you increase your safety risk and the possibility
of noncompliance with regional laws and regulations.
7
NUC11ATKPE, NUC11ATKC4, NUC11ATKC2
User Guide - January 2022
2.0 Open the Chassis
Unscrew the four corner screws on the bottom of the chassis and lift the cover.
8
NUC11ATKPE, NUC11ATKC4, NUC11ATKC2
User Guide - January 2022
3.0 Install and Remove System Memory
Intel NUC Kits NUC11ATKPE, NUC11ATKC4, and NUC11ATKC2 have two 260-pin
DDR4 SO-DIMM memory slots
Memory requirements:
1.2V low voltage memory
2933 MHz SO-DIMMs
Non-ECC
Up to 32 GB total (2x 16GB memory modules)
Find compatible system memory modules at the Intel® Product Compatibility Tool:
NUC11ATKPE
NUC11ATKC4
NUC11ATKC2
3.1 Install SO-DIMMs
If you plan to install just one SO-DIMM, install it in the lower memory socket.
To install the SO-DIMMs, follow these steps:
1. Observe the precautions in "Before You Begin" in Section 1.1.
2. Turn off all peripheral devices connected to the computer. Turn off the
computer and disconnect the AC power cord.
3. Align the small notch at the bottom edge of the SO-DIMM with the key in
the socket.
4. Insert the bottom edge of the SO-DIMM into the socket.
5. When the SO-DIMM is inserted, push down on the outer edge of the
SO-DIMM until the retaining clips snap into place. Make sure the clips
are firmly in place.
9
NUC11ATKPE, NUC11ATKC4, NUC11ATKC2
User Guide - January 2022
3.2 Remove SO-DIMMs
To remove a SO-DIMM, follow these steps:
1. Observe the precautions in "Before You Begin" in Section 1.1.
2. Turn off all peripheral devices connected to the computer. Turn off the
computer.
3. Remove the AC power cord from the computer.
4. Remove the computer’s cover.
5. Gently spread the retaining clips at each end of the SO-DIMM socket. The
SO-DIMM pops out of the socket.
6. Hold the SO-DIMM by the edges, lift it away from the socket, and
store it in an anti-static package.
7. Reinstall and reconnect any parts you removed or disconnected to reach the
SO-DIMM sockets.
8. Replace the computer’s cover and reconnect the AC power cord.
10
NUC11ATKPE, NUC11ATKC4, NUC11ATKC2
User Guide - January 2022
4.0 Install an M.2 SSD
Intel NUC Kits NUC11ATKPE, NUC11ATKC4, and NUC11ATKC2 support 80mm and
42mm SSDs.
Find compatible M.2 SSDs at the Intel® Product Compatibility Tool:
NUC11ATKPE
NUC11ATKC4
NUC11ATKC2

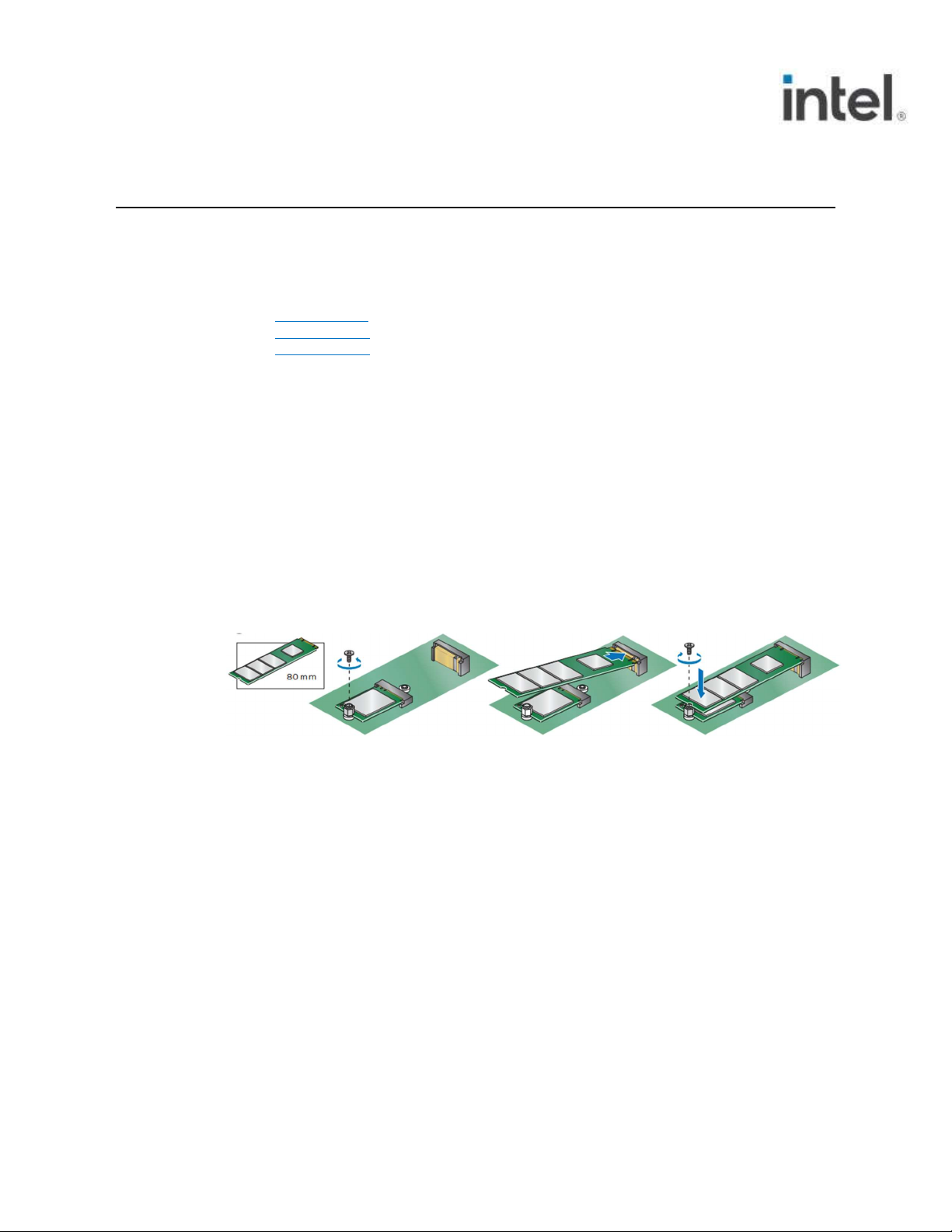

If you’re installing an 80mm M.2 SSD:
1. Remove the small silver screw from the 80mm metal standoff on the
motherboard.
2. Align the small notch at the bottom edge of the M.2 card with the key in the
connector.
3. Insert the bottom edge of the M.2 card into the connector.
4. Secure the card to the standoff with the small silver screw.
