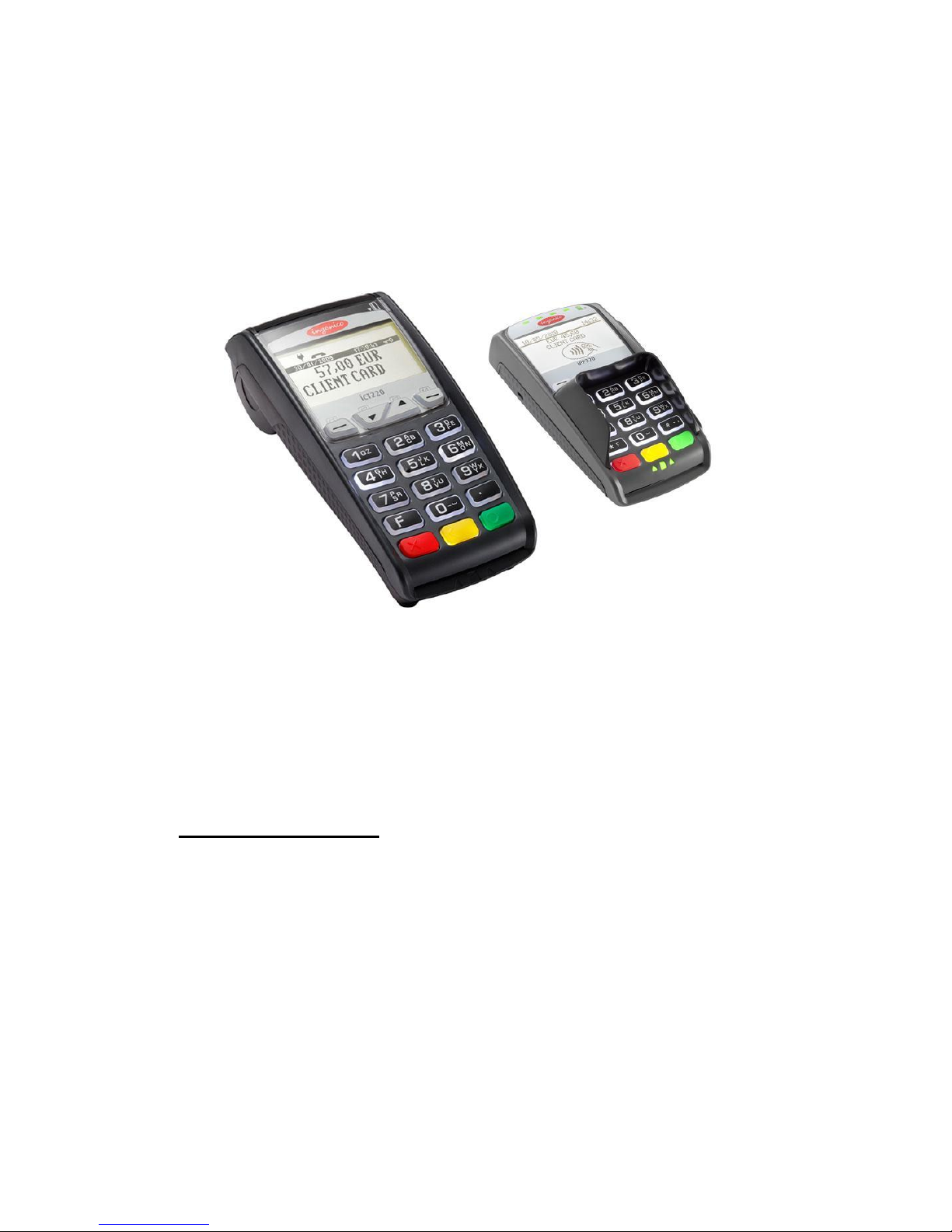

PAYMENT TERMINAL USER GUIDE

ICT220

Customer support: 6711 444

(24/7)

Payment terminals department: 6711 411

(on business days 9:00-17:00)

Email: posgrupp@estcard.ee

Nets Estonia AS

Tartu mnt 63, 10115 Tallinn

CONTENTS

1. PREPARATION OF A NEW PAYMENT TERMINAL FOR OPERATION .......................................................... 3

2. SALES TRANSACTION WITH A CHIP CARD........................................................................................................ 4

2.1 SALES TRANSACTION.......................................................................................................................................... 4

2.2 VERBAL AUTHORIZATION ................................................................................................................................. 5

2.3 REVERSAL.............................................................................................................................................................. 6

3. SALES TRANSACTION WITH A CONTACTLESS CARD .................................................................................... 8

3.1 SALES TRANSACTION.......................................................................................................................................... 8

3.2 VERBAL AUTHORIZATION ............................................................................................................................... 10

3.3 REVERSAL............................................................................................................................................................ 10

4. SALES TRANSACTION WITH A MAGSTRIPE CARD........................................................................................ 12

4.1 SALES TRANSACTION........................................................................................................................................ 12

4.2 VERBAL AUTHORIZATION ............................................................................................................................... 13

4.3 REVERSAL IN CASE OF MAGSTRIPE CARDS.................................................................................................. 13

5. REPEATED PRINTOUT............................................................................................................................................. 14

6. REPORTS...................................................................................................................................................................... 15

7. CLOSING THE DAY................................................................................................................................................... 15

7.1 AUTOMATIC SENDING OF TRANSACTIONS.................................................................................................. 15

7.2 SENDING TRANSACTIONS MANUALLY......................................................................................................... 16

8. REPLACEMENT OF THE PAPER ROLL ............................................................................................................... 16

1. PREPARATION OF A NEW PAYMENT TERMINAL FOR OPERATION

Take the terminal and the pinpad out of the packaging.

Your new payment terminal is already prepared for operation. There is no need to change any data in the

terminal or upload any new software.

Where LAN connection is used, connect the computer network cable to ETHERNET slot.

Connect the power source connector to the terminal. Connect the power source jack to the electricity network.

Close the cover for terminal connection slots.

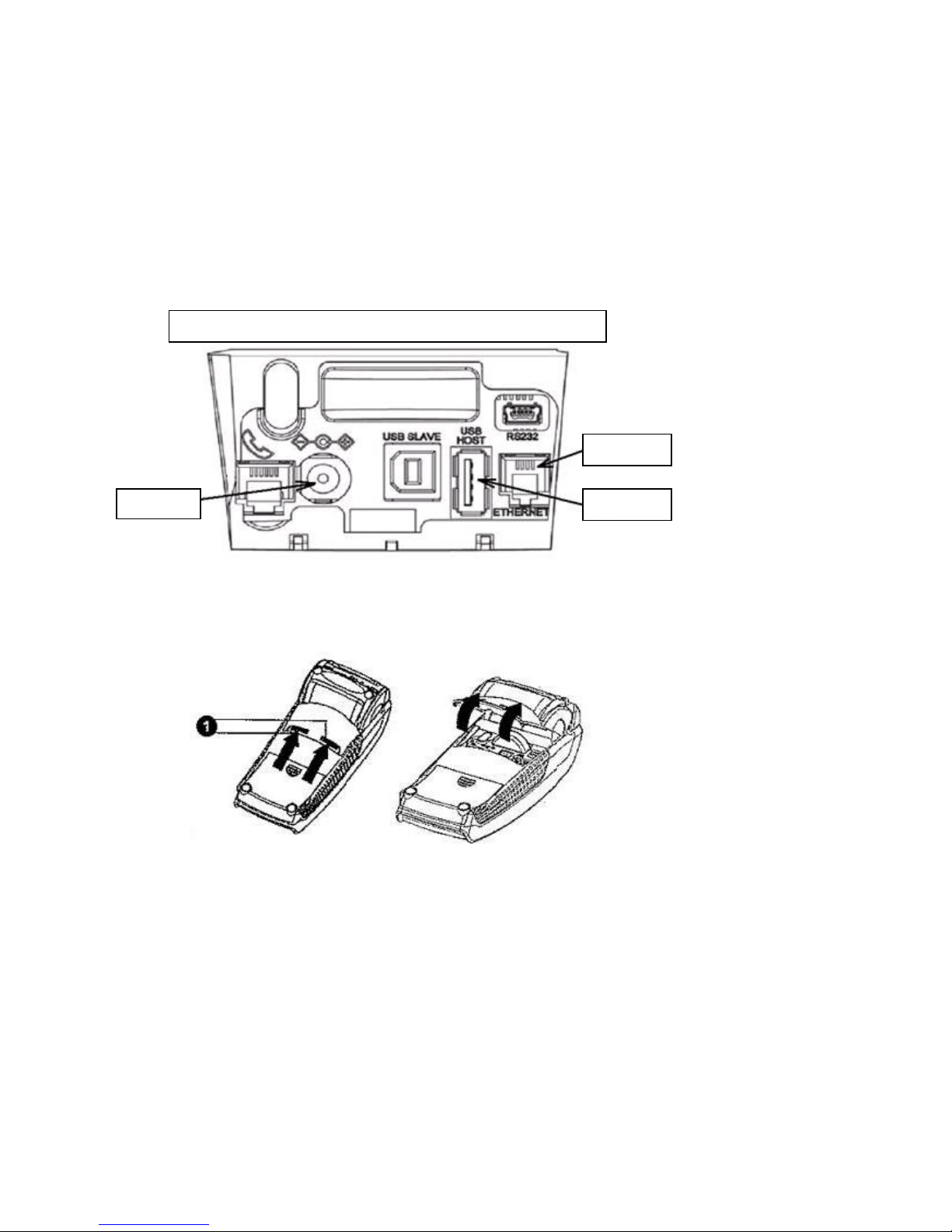

Cover removal

Press on the buttons on the sides of the cover (see, figure 1) and pull the cover upwards.

Restart

To perform restart simultaneously press on the YELLOW and POINT buttons.

Power

Ethernet

Pinpad

All connection slots of terminal are closed with the cover

2. SALES TRANSACTION WITH A CHIP CARD

2.1 SALES TRANSACTION

ACTION

PINPAD

TERMINAL

The terminal is in the standby mode.

TERE TULEMAST

Enter the sum of the transaction as a final sum.

For instance, 319 (3.19 EUR)

Then press the green key (ENTER).

PALUN OODAKE

SUMMA (EUR)

3.19

Ask the customer to insert the chip card in the reader of PIN PAD

Kasutage kaarti

3.19 EUR

KAARDITEHING

3.19

Kasutage kaarti

Where the pinpad prompts to select the language, the card owner

shall use F2 and F3 keys to select the suitable language and then

press the green key (ENTER) to confirm.

VALI KEEL

English

Estonian

Russian

Latvian

PALUN OODAKE

Where the card has several functions, they will be shown on the

pinpad’s screen.

The card owner shall use F2 and F3 keys to select the suitable

function and then press the green key (ENTER) to confirm.

Where the card has only one function, no choice is presented

on the screen.

VALI AID

VISA CREDIT

VISA DEBIT

PALUN OODAKE

Where the terminal asks for the PIN code the customer shall

enter the PIN code using the PINPAD keys.

Where the code was entered incorrectly, the yellow button

may be used to delete the numbers and the PIN code then

may be entered once again.

Where the terminal does not ask for the PIN code, no

respective message appears on the screen.

SISESTA PIN

3.19 EUR

PALUN OODAKE

PIN-i

SISESTAMINE

The terminal shall perform automatic control and the following information will appear on the screen:

Where the PIN code was entered correctly, the terminal connects

to the control center and performs automatic control.

Pin korras

ÜHENDUS

PALUN OODAKE

Pin korras

ÜHENDUS

PALUN OODAKE

The terminal receives response from the control center.

Autoriseerimine

OOTAN VASTUST…

Remove the card from the reader.

Tehing sooritatud,

VÕTA KAART

Tehing sooritatud,

VÕTA KAART

At the end of the transaction the terminal asks confirmation for

printing of the receipt. When the red button is pressed the buyer’s

receipt is not printed.

Palun oodake

Võta kviitung ja

Vajuta klahvi

Seller’s receipt Buyer’s receipt

Notes:

THE FIRST RECEIPT IS FOR THE SELLER AND THE SECOND ONE IS FOR THE BUYER

The transaction can be interrupted by pressing the RED button.

In case of an error in entering the sum, corrections can be made using the YELLOW button.

After the terminal controls the PIN code the text “PIN KONTROLLITUD” is printed on the receipt.

Where the receipt has no place for signature and the document number, the seller shall not ask for a signature and the

document number of the card owner.

Where for some reason authorization of the payment terminal fails, the error message is printed out along with the error

code and explanation.

2.2 VERBAL AUTHORIZATION

Where for any reason authorization of the transaction fails (the terminal is unable to establish connection with the bank or

receive the respective answer from the bank) the terminal may ask the seller “Helistad panka?”

If the seller selects “Jah” (presses the green button) the terminal prints out the necessary

transaction details that should be provided to the customer service by calling Nets Estonia

AS at 6 711 444.

Referral .

Helistad panka?

Ei Jah

The customer service employee registers the transaction manually and responds with the

authorization code that is to be entered into the terminal.

Autor. Kood

1234123412341234

Kehtib: 1212 (kkaa)

KAARDIMAKSE KVIITUNG

Terminal

FIRMA NIMI

AADRESS

Terminal: HPC11111 Reg: 12345673 Kassa: 101

Maksekaart

VISA

AID: A0000000012345

PAN: ************0017

CID: 40 TC:95D248A23412E422

TVR: 0000000000 TSI:0000 CVMR:000000

Tehing

Kviitung:123456 Aeg:12.09.2011 13:28:04

Autoris.nr.: 123223

SUMMA: 3.19 EUR

TEHING TEOSTATUD

PIN KONTROLLITUD

……………………………………………

PASS ( ) JUHIL ( ) ID( ) ( )

NR:

Tere tulemast!

KAARDIMAKSE KVIITUNG

Terminal

FIRMA NIMI

AADRESS

Terminal: HPC11111 Reg: 12345673 Kassa: 101

Maksekaart

VISA

AID: A0000000012345

PAN: ************0017

CID: 40 TC:95D248A23412E422

TVR: 0000000000 TSI:0000 CVMR:000000

Tehing

Kviitung:123456 Aeg:12.09.2011 13:28:04

Autoris.nr.: 123223

SUMMA: 3.19 EUR

TEHING TEOSTATUD

PIN KONTROLLITUD

Säilita kviitung väljavõtte

kontrolliks

Kohtumiseni!

At the end of the transaction the terminal asks for confirmation for printing of the second

receipt.

When the red button is pressed the buyer’s receipt is not printed.

Võta kviitung ja

Vajuta klahvi

The transaction is complete.

Notes:

The transaction can be interrupted by pressing the RED button.

In case of an error in entering the sum and the card number, corrections can be made using the YELLOW button.

In order to enter letters, press and hold the respective key until the required letter appears.

Example: Where it is necessary to type 00001N, simply type 00001 and then hold number 6 until the letter N appears on the

screen.

2.3 REVERSAL

In order to reverse the transaction, do the following:

ACTION

PINPAD

TERMINAL

The terminal is in the standby mode.

Press F1 key

TERE TULEMAST

From the menu select “Annulleerimine” (to navigate through the

menu use ▼ ▲ keys or F2 and F3 keys) and then press the

green key (ENTER) to confirm.

PALUN OODAKE

Tehingud

1-Saatmine

2-Annulleerimine

3-Kaarditehing

4-Käsitsitehing

Enter the number of the receipt that you wish to reverse and then

press the green key (ENTER).

Where the receipt number is not entered, the terminal shall

reverse the last transaction.

PALUN OODAKE

Annulleerimine

Anna kviitungi nr.

The terminal shall request confirmation for the reversal.

To continue press <JAH> or the green key (ENTER).

To cancel press <EI> or the red key (CANCEL)

PALUN OODAKE

Annulleerida?

PAN:************0001

Summa: 3.19 EUR

Ei Jah

The chip card must be inserted in the PINPAD reader.

Kasutage kaarti

-3.19 EUR

Annulleerimine

-3.19 EUR

Kasutage kaarti

Remove the card from the reader.

Õige kaart

Võta kaart

Õige kaart

Võta kaart

The terminal shall commence automatic control and the following information will be displayed:

The terminal dials the control center’s number and performs the automatic control.

ÜHENDUS

PALUN OODAKE

The terminal receives an answer from the control center.

OOTAN VASTUST…

At the end of the transaction the terminal asks for confirmation for printing of the second

receipt.

When the red button is pressed the buyer’s receipt is not printed

Võta kviitung

ja vajuta klahvi

The transaction is complete.

Seller’s receipt Buyer’s receipt

Notes:

Only transactions in the terminal’s memory can be reversed.

Where the transaction has already been reversed or is not in the terminal’s memory (e.g. already sent to the bank along

with the transactions for the previous day), the terminal shall display the notification: KVIITUNG PUUDUB

KAARDIMAKSE KVIITUNG

Terminal

FIRMA NIMI

AADRESS

Terminal: HPC11111 Reg: 12345673 Kassa: 101

Maksekaart

VISA

AID: A0000000012345

PAN: ************0017

CID: 40 TC:95D248A23412E422

TVR: 0000000000 TSI:0000 CVMR:000000

TÜHISTUS

Kviitung:123456 Aeg:12.09.2011 13:28:04

Autoris.nr.: 123223

SUMMA: -3.19 EUR

Tere tulemast!

KAARDIMAKSE KVIITUNG

Terminal

FIRMA NIMI

AADRESS

Terminal: HPC11111 Reg: 12345673 Kassa: 101

Maksekaart

VISA

AID: A0000000012345

PAN: ************0017

CID: 40 TC:95D248A23412E422

TVR: 0000000000 TSI:0000 CVMR:000000

TÜHISTUS

Kviitung:123456 Aeg:12.09.2011 13:28:04

Autoris.nr.: 123223

SUMMA: -3.19 EUR

Säilita kviitung väljavõtte

kontrolliks

Kohtumiseni!

3. SALES TRANSACTION WITH A CONTACTLESS CARD

3.1 SALES TRANSACTION

ACTION

PINPAD

TERMINAL

The terminal is in the standby mode.

TERE TULEMAST

Enter the sum of the transaction as a final sum.

For instance, 319 (3.19 EUR)

Then press the green key (ENTER).

PALUN OODAKE

SUMMA (EUR)

Sisestage summa…

3.19

In case of a contactless card transaction the card shall be

touched against the pinpad’s screen

Kasutage kaarti

3.19 EUR

Kaarditehing

3.19 EUR

Kasutage kaarti

The terminal shall perform automatic control and the following information will appear on the screen

The terminal connects to the control center and performs

automatic control.

ÜHENDUS

PALUN OODAKE

ÜHENDUS

PALUN OODAKE

The terminal receives response from the control center.

Autoriseerimine

OOTAN VASTUST…

The terminal receives the transaction confirmation from the

control center.

Tehing sooritatud

PALUN OODAKE

Tehing sooritatud

At the end of the transaction the terminal asks for confirmation

for printing of the second receipt.

When the red button is pressed the buyer’s receipt is not printed.

Võta kviitung ja

Vajuta klahvi

The transaction is complete.

Notes:

Terminal can ask to use the card’s chip.

(For instance, where the sum exceeds the contactless

transaction’s limit).

Info

Kasutage kiipi

Info

Kasutage kiipi

Insert the chip card in the reader and perform the payment just as

you would in case of an ordinary chip card transaction.

Kaarditehing

11.00 EUR

Kasutage kaarti

Kaarditehing

11.00 EUR

Kasutage kaarti

Seller’s receipt Buyer’s receipt

Notes:

THE FIRST RECEIPT IS FOR THE SELLER AND THE SECOND ONE IS FOR THE BUYER

The transaction can be interrupted by pressing the RED button.

In case of an error in entering the sum, corrections can be made using the YELLOW button.

Where the receipt has no place for signature and the document number, the seller shall not ask for a signature and the

document number of the card owner.

ACTION

PINPAD

TERMINAL

Where the terminal prints a place for signature on the receipt, the

seller shall ask for a signature and the document number of the

card owner.

After that the terminal asks to control correctness of the

signature (its correspondence to the signature on the document).

Palun allkirjastage

kviitung

Allkiri nõutud

Võtke kviitung

ja vajutage klahvi

If the signature is correct, press JAH. It completes the

transaction.

If the signature is incorrect, press EI. Terminal cancels the

transaction and prints out an error notification.

Palun allkirjastage

kviitung

Kas allkiri

on õige?

EI JAH

KAARDIMAKSE KVIITUNG

Terminal

FIRMA NIMI

AADRESS

Reg: 12345673 Kassa: 101

Terminal: ICT11111

Maksekaart

‘Mastercard’ Contactless

MasterCard

AL: MASTERCARD

AID: A0000000012345

PAN: ************0017

TEHING

Kviitung:123456 Aeg:12.09.2011 13:28:04

Autoris.nr.: 123223 T1

SUMMA: 3.19 EUR

TEHING TEOSTATUD

Tere tulemast!

KAARDIMAKSE KVIITUNG

Terminal

FIRMA NIMI

AADRESS

Reg: 12345673 Kassa: 101

Terminal: ICT11111

Maksekaart

‘Mastercard’ Contactless

MasterCard

AL: MASTERCARD

AID: A0000000012345

PAN: ************0017

TEHING

Kviitung:123456 Aeg:12.09.2011 13:28:04

Autoris.nr.: 123223 T1

SUMMA: 3.19 EUR

TEHING TEOSTATUD

Säilita kviitung väljavõtte kontrolliks

Kohtumiseni!

Where for some reason authorization of the payment terminal fails, the error message is printed out along with the error

code and explanation.

3.2 VERBAL AUTHORIZATION

Verbal authorization is performed exactly as described for chip cards, see section 2.2.

3.3 REVERSAL

In order to reverse the transaction, do the following:

ACTION

PINPAD

TERMINAL

The terminal is in the standby mode.

Press F1 key

TERE TULEMAST

From the menu select “Annulleerimine” (to navigate through the

menu use ▼ ▲ keys or F2 and F3 keys) and then press the green

key (ENTER) to confirm.

PALUN OODAKE

Tehingud

1-Saatmine

2-Annulleerimine

3-Kaarditehing

4-Käsitsitehing

Enter the number of the receipt that you wish to reverse and then

press the green key (ENTER).

Where the receipt number is not entered, the terminal shall

reverse the last transaction.

PALUN OODAKE

Annulleerimine

Anna kviitungi nr.

The terminal shall request confirmation for the reversal.

To continue press <JAH>or the green key (ENTER).

To cancel press <EI> or the red key (CANCEL).

PALUN OODAKE

Annulleerida?

PAN:************0001

3.19 EUR

Tehing Nr.112233

Ei Jah

In case of contactless transaction, the terminal does not require the card for reversal!

The terminal shall commence automatic control and the following information will be displayed:

VEATEADE

Terminal

FIRMA NIMI

AADRESS

Reg: 12345673 Kassa: 101

Terminal: ICT11111

Maksekaart

‘Mastercard’ Contactless

MasterCard

AL: MASTERCARD

AID: A0000000012345

PAN: ************0017

Kviitung:123456 Aeg:12.09.2011 13:28:04

Pank: 121- Summa ületab limiiti

Tagasta kaart

TEHINGUT EI TOIMUNUD

Autres manuels pour iCT220, iCT250

Table des matières

Autres manuels Ingenico Terminal de paiement

Ingenico

Ingenico iCT2 Series Manuel utilisateur

Ingenico

Ingenico Desk 2600 Manuel utilisateur

Ingenico

Ingenico Desk Series Manuel utilisateur

Ingenico

Ingenico iPP350 Manuel utilisateur

Ingenico

Ingenico iPA280 Manuel utilisateur

Ingenico

Ingenico iSMP4 Manuel utilisateur

Ingenico

Ingenico Isc480 Manuel utilisateur

Ingenico

Ingenico PAYZONE iCT250 Manuel utilisateur

Ingenico

Ingenico iWL250 3G Manuel d'instructions

Ingenico

Ingenico iWL250 WIFI Manuel utilisateur

Ingenico

Ingenico Move 5000 Manuel utilisateur

Ingenico

Ingenico i8550 Manuel utilisateur

Ingenico

Ingenico iCT220, iCT250 Manuel utilisateur

Ingenico

Ingenico Payzone iWL251 Manuel utilisateur

Ingenico

Ingenico PAYZONE iCT250 Manuel utilisateur

Ingenico

Ingenico iCT220, iCT250 Manuel d'instructions et de sécurité

Ingenico

Ingenico AXIUM RX7000 Manuel utilisateur

Ingenico

Ingenico PAYZONE iCT250 Manuel utilisateur

Ingenico

Ingenico Self/3000 Manuel utilisateur

Ingenico

Ingenico iWL25 Series Manuel utilisateur

Ingenico

Ingenico IWL220 GPRS Manuel utilisateur

Ingenico

Ingenico iWL2 Series Manuel utilisateur

Ingenico

Ingenico 5100 Manuel utilisateur

Ingenico

Ingenico iWL250G Manuel utilisateur

Manuels Terminal de paiement populaires d'autres marques

PAX

PAX D180SRF Manuel utilisateur

LinkPoint

LinkPoint AIO Manuel utilisateur

Moneris

Moneris hispeed 6200 Manuel utilisateur

Moneris

Moneris iWL220 Manuel utilisateur

Optimum

Optimum M4230 Manuel utilisateur

Triton

Triton RL5000 Manuel utilisateur

Ingenico group

Ingenico group Lane/8000 Manuel utilisateur

Gilbarco

Gilbarco FlexPay IV CRIND Manuel d'installation et d'exploitation

Infinite Peripherals

Infinite Peripherals Infinea Tab Lite Manuel utilisateur

PAX

PAX S920 Manuel utilisateur

dejavoo

dejavoo Z Series Manuel utilisateur

VeriFone

VeriFone VX 520 Series Manuel utilisateur

Optomany

Optomany axept S900 Manuel utilisateur

Skyzer

Skyzer iWL252 BLUETOOTH Manuel utilisateur

Moneris

Moneris iWL220 Manuel utilisateur

VeriFone

VeriFone HICAPS VX820 Manuel utilisateur

Magtek

Magtek DYNAPRO Manuel utilisateur

VeriFone

VeriFone UX401 Manuel utilisateur
