Introduction

Your new digital projector is easy to connect, easy to use, easy to maintain

and has XGA 1024x768 resolution.

The projector comes in a carry case that offers ample room for InFocus

accessory items such as the projector remote, color-coded cables, documen-

tation and CD. The color-coded cable straps and cables they contain make

your setup experience quick and easy, while the case’s design helps you

find and put away all items without the fear of anything becoming lost.

Online Registration:

receive product updates, announcements, and registration incentives.

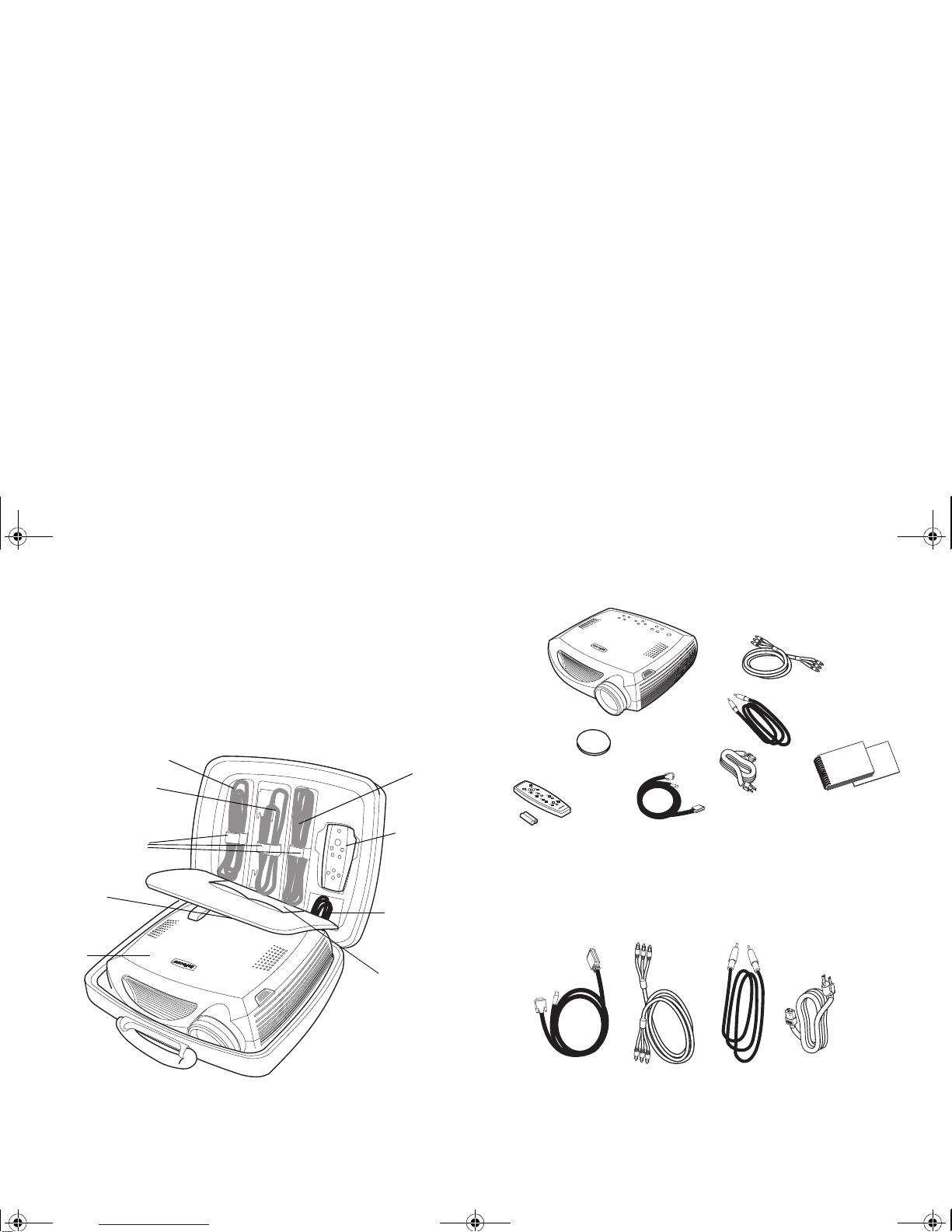

Included items

computer cable

power cable

video cable

remote

audio

cable

projector

user’s guide

quick start card

color-coded cable straps

and support

card *

* also holds business card

with CD,

and safety

card

user’s guide and CD,

remote computer

cable

projector

lens cap

power

cable

video cable

audio cable

quick start card,

safety card, support

card

computer

cable

video

cable

audio

cable

power

cable

LP650 User's Guide.fm Page 5 Monday, June 3, 2002 9:25 AM

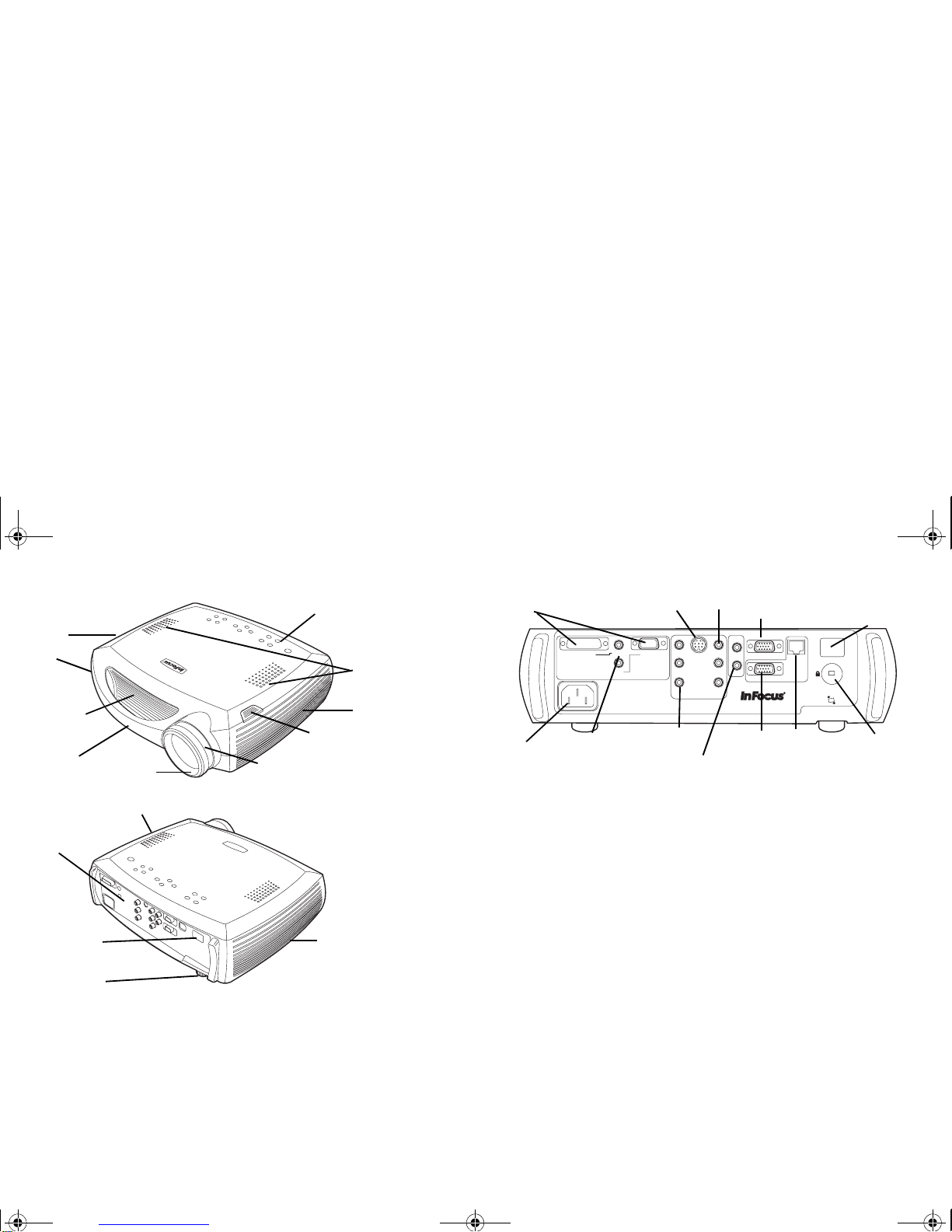

Projector components and features

keypad

speakers

zoom

focus

elevator foot release

remote

control

receiver (IR)

air intake

vent

carrying

handle

remote control

receiver (IR)

connectors

leveling

foot

heat vent

remote control

receiver (IR)

computer 1 computer 2

video

monitor out network

serial control

audio in

audio in audio in

audio out

s-video

computer in

lock

remote control

receiver (IR)

power

connector network

compu

monitor

s-video video

connector

component

video

computer

1 & 2

computer 1

& 2 audio

serial

connector

external

speakers

(audio out)

LP650 User's Guide.fm Page 6 Monday, June 3, 2002 9:25 AM

Connecting a computer

Required computer connections

Connect the black end of the computer cable to the Computer 1 connector

on the projector. Connect the blue end to the video port on your computer.

If you are using a desktop computer, you first need to disconnect the moni-

tor cable from the computer’s video port.

Connect the black power cable to the connector on the back of the projector

and to your electrical outlet.

The Power LED on the projector’s keypad turns solid green.

NOTE: Always use the power cable that shipped with the projector.

Optional computer connections

To control your computer’s mouse using the projector’s remote control, con-

nect the USB connector on the computer cable to the computer. USB drivers

must be installed to use the USB feature. For more information, see page 11.

To have sound with your presentation, connect the audio cable to your com-

puter and to the computer Audio In connector on the projector.

If you are using a desktop computer and want to see the image on your

computer screen as well as on the projection screen, plug the monitor cable

to the Monitor out connector on the projector.

computer1 computer2

video

monitor network

serial control

audioin

audioin audioin

audioout

s-video

computerin

connect computer cable

connect power cable

computer1 computer2

video

monitor network

serial control

audioin

audioin audioin

audioout

s-video

computer in

connect computer cable

computer1 computer2

video

monitor network

serial control

audioin

audioin audioin

audioout

s-video

computerin

computer1 computer2

video

monitor network

serial control

audioin

audioin audioin

audioout

s-video

computer in

connect audio cable

computer1 computer 2

video

monitor network

serial control

audioin

audioin audio in

audioout

s-video

computer in

connect monitor cable

LP650 User's Guide.fm Page 7 Monday, June 3, 2002 9:25 AM

If you prefer connecting your computer to the projector with an optional

VESA cable, connect one end of the cable to the VESA port on your com-

puter, and connect the other end of the cable to the blue Computer 2 con-

nector on the projector.

You can control the projector from an LCD control panel or computer by

connecting an RS-232 cable to the projector’s Serial connector. Specific

RS-232 commands can be found in the Service and Support section of our

website at www.infocus.com.

The projector can be managed by ProjectorNet networking software

through its Network connector.

Contact an authorized InFocus dealer or visit the ProjectorNet website at

www.infocus.com/projectornet for information on ProjectorNet.

computer1 computer2

video

monitor network

serial control

audioin

audioin audioin

audioout

s-video

computerin

connect VESA cable

connect RS-232 cable

computer1 computer2

video

monitor network

serial control

audioin

audioin audioin

audioout

s-video

computer in

computer1 computer 2

video

monitor network

serialcontrol

audioin

audioin audioin

audioout

s-video

computerin

Network

connect network cable

LP650 User's Guide.fm Page 8 Monday, June 3, 2002 9:25 AM

Displaying a computer image

Remove the lens cap.

Press the Power button on the top of the projector or the remote.

The LED flashes green and the fans start to run. When the lamp comes on,

the startup screen is displayed and the LED is steady green. It can take a

minute for the image to achieve full brightness.

? No startup screen? Get help on page 17.

Turn on your computer.

The computer’s image should appear on the projection screen. If it doesn’t,

press the Computer button on the projector’s keypad.

Make sure your laptop’s external video port is active.

Many laptops do not automatically turn on their external video port when a

projector is connected. Usually a key combination like FN + F5 is used to

turn the external display on and off. Refer to your computer’s documenta-

tion to learn your computer’s key combination.

? No computer image? Try pressing the Auto Image

button on the keypad. Get help on page 17.

remove lens cap

press Power

turn on computer

activate laptop’s external port

LP650 User's Guide.fm Page 9 Monday, June 3, 2002 9:25 AM

Autres manuels pour LP 650

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels InFocus Projecteur

InFocus

InFocus LP425z Manuel utilisateur

InFocus

InFocus LP210 Manuel utilisateur

InFocus

InFocus sp1080 Manuel utilisateur

InFocus

InFocus C105 Manuel d'utilisation et d'entretien

InFocus

InFocus ScreenPlay 5000 Manuel utilisateur

InFocus

InFocus LP70+ Manuel utilisateur

InFocus

InFocus in32 in34 Manuel utilisateur

InFocus

InFocus IN1501 Manuel utilisateur

InFocus

InFocus LitePro 610 Manuel utilisateur

InFocus

InFocus Proxima DP6850 Manuel utilisateur

InFocus

InFocus LightPro IN1142 Manuel utilisateur

InFocus

InFocus X16 Manuel utilisateur

InFocus

InFocus LP800 Manuel d'installation

InFocus

InFocus in122 Manuel utilisateur

InFocus

InFocus SplashX Manuel utilisateur

InFocus

InFocus IN78 Manuel utilisateur

InFocus

InFocus SCREEN PLAY 7205 Manuel utilisateur

InFocus

InFocus F5500 Manuel utilisateur

InFocus

InFocus LP 815 Guide de configuration rapide

InFocus

InFocus IN1100 Series Manuel utilisateur

InFocus

InFocus LP790 Manuel utilisateur

InFocus

InFocus CEILING MOUNT LP 1000 SERIES Manuel utilisateur

InFocus

InFocus LiteShow II Manuel utilisateur

InFocus

InFocus LP330 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
