Trident

IN72/IN74/IN76

Reference Guide

Declaration of Conformity

Manufacturer: InFocus Corporation, 27700B SW Parkway Ave. Wilsonville, Oregon

97070 USA

European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands

We declare under our sole responsibility that this projector conform to the following

directives and norms:

EMC Directive 89/336/EEC, Amended by 93/68/EEC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC

Safety: IEC 60950-1: 1st Edition

December, 2005

Trademarks

Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems

Incorporated. Digital Light Processing is a trademark or registered trademark of

Texas Instruments. Pixelworks is a trademark or registered trademark of Pixelworks

Inc. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks

or registered trademarks of HDMI Licensing LLC. InFocus, In Focus, and INFOCUS

(stylized), LP, LiteShow, LitePort, ASK and Proxima are either registered trademarks

or trademarks of InFocus Corporation in the United States and other countries.

FCC Warning

Note: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Agency Approvals

UL, cUL, TUV, GOST

Other specific Country Approvals may apply. Please see product certification label.

This document applies to models IN72, P720, IN74, P740, IN76, and P760.

InFocus reserves the right to alter product offerings and specifications at any time

without notice.

Table of Contents

Introduction 3

Positioning the projector 5

Choosing the aspect ratio 6

Video connectors 7

Connecting a video device 8

Composite (RCA) video connection 8

S-video connection 8

Component (RCA) connection 8

SCART RGB connection 8

Digital connections 9

DVI connection 9

HDMI connection 9

Computer connections 9

RS-232 connections (IN74 and IN76 only) 9

Displaying an image 10

Adjusting the image 10

Shutting down the projector 12

Troubleshooting your setup 12

Using the remote control 18

Using the keypad buttons 19

Optimizing video images 20

Customizing the projector 20

Using the menus 21

Picture menu 22

Settings menu 26

Maintenance 29

Cleaning the lens 29

Replacing the projection lamp 29

Appendix 32

Red LED behavior and projector errors 32

Remote control discrete codes 33

Projector dimensions for ceiling mount installations 34

Supported video formats 35

RS-232 terminal specifications for IN74 and IN76 36

Important Operating Considerations for Safety

• Place the projector in a horizontal position no greater than 15 degrees

off axis.

• Locate the projector in a well-ventilated area without any obstructions

to intake or exhaust vents. Do not place the projector on a tablecloth or

other soft covering that may block the vents.

• Locate the projector at least 4' (1.2 m) away from any heating or cooling

vents.

• Use only InFocus-approved ceiling mounts.

• Use only the power cord provided. A surge-protected power strip is

recommended.

• Refer to this guide for proper startup and shutdown procedures.

• This product has a lamp which contains a very small amount of mer-

cury. Wash hands after cleaning the area and handling the ruptured

lamp. Dispose of it as required by local, state or federal ordinances and

regulations. For more information see www.eiae.org.

• In the unlikely event of a lamp rupture, particles may exit through the

projector side vents. When the projector is turned on, keep people,

food, and drinks out of the "keep out" area under and around the pro-

jector, as indicated by the "X" areas below.

Follow these instructions to help ensure image quality and lamp life over

the life of the projector. Failure to follow these instructions may affect the

warranty. For complete details of the warranty, see the Warranty booklet.

5’/1.5m

8’/2.4m

2’/0.6m

3’/1m

Introduction

Your new InFocus projector is specifically designed for home theater appli-

cations. It sets a high standard using the latest DLP™ technology and new

DNX video processing from Pixelworks™. Whether you are watching mov-

ies or High Definition broadcasts or playing the latest video game, you will

enjoy amazing image quality. The unique design and color of the projector

make it a welcome addition to your home.

The projector is available in 3 different resolutions:

• IN72 has 854x480 resolution (480p)

• IN74 has 1024x576 resolution (576p)

• IN76 has 1280x720 resolution (720p)

This advanced reference guide covers all 3 models. Differences between the

models are noted.

Product specifications

To read the latest specifications, be sure to visit our website at www.info-

cus.com as specifications are subject to change.

Accessories

The standard accessories that came with your projector are listed on the

included user’s guide. Optional accessories can be found on our website at

www.infocus.com or at your retailer or dealer.

Online Registration

vate your warranty and receive product updates, announcements, and reg-

istration incentives.

focus

remote control

receiver (IR)

zoom (outer ring)

panel

base

connector

keypad

Connector Panel

The projector provides the following connection options:

• M1-DA/DVI (Digital Visual Interface)

• HDMI™ (High Definition Multimedia Interface)

• Component (RCA)

• SCART RGB (you must enable this connector, see page 26)

•S-video

• Composite video (RCA)

See “Video connectors” on page 7 for details.

The projector also provides the following connectors:

• RS-232 for serial control (not included on the IN72)

• 12 volt DC output (see below)

12 volt DC output

The 3.5mm mini-jack trigger provides a 12 volt, 0.25 amp DC output. It pro-

vides a constant output while the projector is on. It has numerous uses. For

example, if you connect your projection screen to the 12 volt DC output

with the cable that came with your screen, when you turn on the projector

the screen will move down; when you turn the projector off, the screen will

return to the storage position.

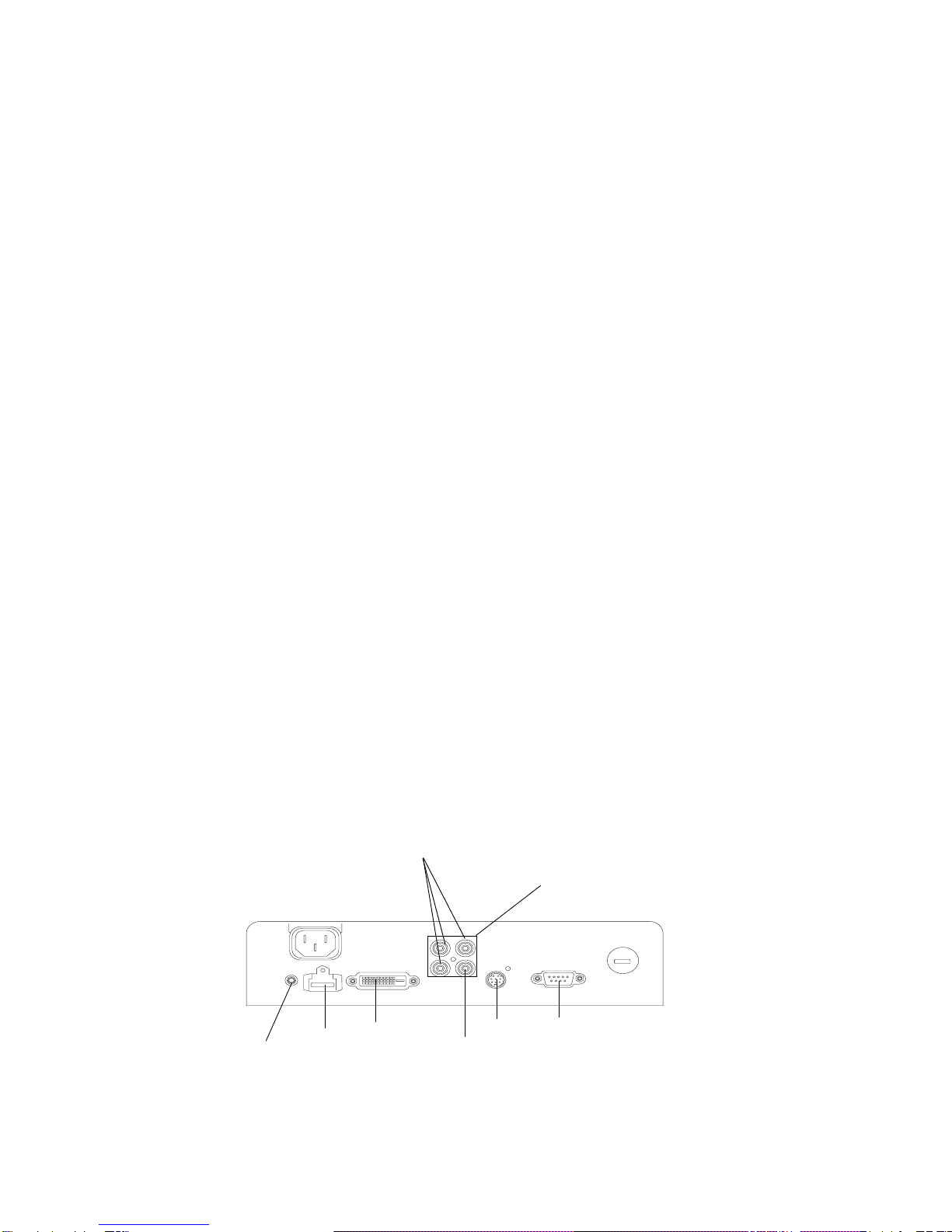

M1-DA/ S-video

12 volt

DC output

component RCA

composite

HDMI

RS-232

(not on IN72)

DVI RCA

12 volt DC output

+12v ground

3.5mm plug

to, for example, screen relay (see screen manufacturer

for details)

Positioning the projector

To determine where to position the projector, consider the size and shape of

your screen, the location of your power outlets, and the distance between

the projector and the rest of your equipment. Here are some guidelines:

• Position the projector on a flat surface at a right angle to the screen. The

projector must be at least 4.9 feet (1.5m) from the projection screen.

• For safety reasons, position the projector within 10 feet (3m) of your

power source (running extension cables may introduce a trip hazard).

To ensure adequate cable access, do not place the projector within 6

inches (.15m) of a wall or other object.

• If you are installing the projector on the ceiling, refer to the installation

guide that comes with the Ceiling Mount Kit for more information. To

turn the image upside down, see “Ceiling” on page 26. We recommend

using an InFocus authorized ceiling mount.

• Position the projector the desired distance from the screen. The distance

from the lens of the projector to the screen, the zoom setting, and the

video format determine the size of the projected image.

• The image offset is 128% for the IN72. This means that if you have an

image 10’ high, the bottom of the image will be 2.8’ above the center of

the lens. For the IN74 and IN76, the image offset is 115%.

NOTE: Visit the Service section of our website at www.infocus.com/calcu-

lator for an interactive image size calculator.

bottom of image

2.8 ft above center

10 ft high


Projection angle in 16:9 mode

lens center

of lens

Table 1:

Range of distance to the screen for a given screen size

for the IN72

Diagonal

Screen Size

(inches/m)

Distance to screen

Maximum

distance

(feet/m)

Minimum

Distance

(feet/m)

60/1.5 9.3/2.8 7.8/2.4

80/2 12.3/3.8 10.4/3.2

92/2.3 14.2/4.3 12/3.7

150/3.8 23.1/7 19.5/5.9

Table 2:

Distance to the screen for a given screen size for the

IN74/IN76

Diagonal

Screen Size

(inches/m)

Distance to screen

Maximum

distance

(feet/m)

Minimum

Distance

(feet/m)

60/1.5 8.3/2.5 6.6/2

80/2 11.1/3.4 8.8/2.7

92/2.3 12.8/3.9 10.1/3.1

150/3.8 20.8/6.3 16.4/5

Choosing the aspect ratio

Aspect ratio is the ratio of the image width to image height. HDTV and

most DVDs are 16:9, which is the default for this projector. When in 4:3

mode the projector places black bars on both sides of the image. Native

mode centers the image and turns off the internal scaler so that any resolu-

tion larger than the native projector resolution is cropped on the edges. Let-

terbox expands the image to fill the screen.

What you plan to project will also help you choose between 4:3 and 16:9. For

example, most TV shows are 4:3, while most movies are 16:9. If you have a

16:9 screen, then you should select an aspect ratio of 16:9 for anamorphic

movies and HDTV, and Native for 4:3 content. If you have a 4:3 screen you

should still use 16:9 for anamorphic movies or HDTV, but you also have the

option of using 4:3, Native, or Natural Wide for 4:3 content. Keep in mind

that anamorphic movies only appear correctly if the DVD player is set to

output to a 16:9 television. Natural Wide stretches a 4:3 image to fill the

entire 16:9 screen. The center two-thirds of the image is unchanged; the

edges of the image are stretched.

16:9 image input 16:9 image

16:9

aspect ratio

4:3 image input 4:3 image on 16:9 screen

black bars

4:3 aspect ratio

letterbox image input 16:9 image fills 16:9 screen

black bars

letterbox

aspect ratio

4:3 image fills 16:9 screen

natural wide

aspect ratio

4:3 image input

Video connectors

The first step for connecting video is determining what type of output con-

nectors your video device has. If there is more than one output, select the

one with the highest quality. The best quality ranking, with 1being the

highest, is:

1M1-DA/DVI or HDMI (both are digital inputs)

2component /SCART RGB video (RCAs)

3S-video

4composite video (RCA)

If your device has a VGA connector, you can use the M1-DA/DVI connector

for a high quality image. Many PC game systems have VGA connectors.

M1-DA/ S-video

12 volt

DC output

component RCA

composite

HDMI

RS-232

(not on IN72)

DVI RCA

SCART (all 4 connectors)

Connecting a video device

You can connect video devices such as VCRs, DVD players, camcorders,

digital cameras, video game consoles, HDTV receivers, and TV tuners to the

projector. Connect the audio from your video device to your stereo system

to get sound.

You can connect the projector to most video devices that can output video.

You cannot directly connect the coaxial cable that enters your house from a

cable or satellite company, the signal must pass through a tuner first. Exam-

ples of tuners are digital cable boxes, VCRs, digital video recorders, and sat-

ellite TV boxes. Basically, any device that can change channels is considered

a tuner.

A composite video cable is provided with your projector so you can quickly

and easily connect a video source to the projector and see the amazing

image that is displayed. Once you have determined a more permanent loca-

tion for your projector, we recommend purchasing higher quality cables in

the proper length to get the best image from your particular video equip-

ment. High quality cables optimized for your projector can be purchased

from www.infocus.com/store (in select areas) or from your dealer or

retailer.

Composite (RCA) video connection

Plug the composite video cable’s yellow connector into the video-out con-

nector on the video device. Plug the other yellow connector into the yellow

Composite connector on the projector.

S-video connection

If your video device uses a round, four-prong S-video connector, plug the

S-video cable into the S-video connector on your video device and into the

S-video connector on the projector.

Component (RCA) connection

If your device uses component connectors, plug a component video cable

with red, green, and blue RCA connectors into the source device’s compo-

nent connectors and the Component connectors on the projector.

SCART RGB connection

SCART (from Syndicat des Constructeurs d'Appareils Radiorécepteurs et

Téléviseurs) is a French-originated standard and connector for connecting

audio and video equipment to display devices. The video signal is sepa-

rated into its primary components for brighter, more accurate colors and

sharper detail. You must enable this connector in the Source Enable menu to

use it, see page 26. You will also need a SCART to 4-RCA adapter to connect

to your SCART device.

Digital connections

The M1-DA/DVI and HDMI (High-Definition Multimedia Interface) con-

nectors are digital and yield the highest quality image. It is common for

these signals to be encrypted with HDCP (high-bandwidth digital-content

protection). Your new projector ships standard with decryption codes so

you can enjoy these high quality, all digital images.

This projector uses the M1-DA connector, which has the following advan-

tages:

• allows connection to a digital DVI source

• allows connection to a component source

• allows connection to an analog computer source

• carries a USB control signal which allows you to easily update your

projector’s software as enhancements become available.

• has output pins that can power accessories.

The IN76 is an HDTV (High Definition Television) monitor, meaning it has

vertical scanning lines of 720 progressive, 1080 interlaced or higher. The

IN72 and IN74 are EDTV (Enhanced Definition Television) monitors, mean-

ing they have vertical scanning lines of 480 progressive or higher. HD con-

tent can be displayed on an EDTV monitor, the resolution is just less than

that of an HDTV.

DVI connection

If your video device uses a DVI connector, plug the DVI end of an M1-DA

cable into the video-out connector on the video device. This connector may

be labeled “To Monitor” on the video device. Plug the M1-DA end of the

cable into the M1-DA/DVI connector on the projector.

HDMI connection

HDMI is a standard, uncompressed, all-digital audio/video interface.

HDMI provides an interface between sources, such as set-top boxes, DVD

players, and receivers and your projector. Plug an HDMI cable into the

video-out connector on the video device and into the HDMI connector on

the projector.

Note that the projector has no audio capabilities, so audio signals trans-

ferred through HDMI will not be audible.

Computer connections

You can connect a computer’s VGA connector to the M1-DA/DVI input on

the projector using an M1-A cable.

RS-232 connections (IN74 and IN76 only)

You can control the projector from an LCD control panel or computer by

connecting an RS-232 cable to the projector’s Serial control connector. Spe-

cific RS-232 commands can be found in the Service section of our website at

www.infocus.com/support.

Autres manuels pour IN72

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels InFocus Projecteur

InFocus

InFocus SP7205 Manuel d'utilisation et d'entretien

InFocus

InFocus IN2128HDa Manuel utilisateur

InFocus

InFocus SP110 Mode d’emploi

InFocus

InFocus in3138hd Manuel utilisateur

InFocus

InFocus LP 740 LiteMount Manuel utilisateur

InFocus

InFocus ScreenPlay 7200 Manuel utilisateur

InFocus

InFocus LP280 Manuel utilisateur

InFocus

InFocus LP790 Instructions d'installation

InFocus

InFocus LP 650 Guide de l'administrateur

InFocus

InFocus SP8600 series Manuel utilisateur

InFocus

InFocus IN72 Manuel utilisateur

InFocus

InFocus IN1501 Manuel utilisateur

InFocus

InFocus Work Big IN35 Manuel

InFocus

InFocus SP5700 Manuel utilisateur

InFocus

InFocus IN42ff Manuel utilisateur

InFocus

InFocus in1144 Manuel utilisateur

InFocus

InFocus ScreenPlay 7205 Manuel utilisateur

InFocus

InFocus LP 815 Guide de configuration rapide

InFocus

InFocus IN112 Manuel utilisateur

InFocus

InFocus LP800 Manuel d'installation

InFocus

InFocus X1 Manuel utilisateur

InFocus

InFocus IN1124 Manuel utilisateur

InFocus

InFocus LP335 DRAGONFLY Manuel utilisateur

InFocus

InFocus X1a Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
