AURIX™ TC2xx Microcontroller Training

V1.0.0

GPT12_Timer_Concatenation_1

Timer concatenation of GPT12

Please read the Important Notice and Warnings at the end of this document

Scope of work

A 32-bit timer is formed by the concatenation of two timers of the

GPT12 module. On timer overflow an interrupt is generated, which

toggles an LED.

A 32-bit timer is formed by the concatenation of two 16-bit timers of the

GPT12 module. When the 32-bit timer overflows, an interrupt is generated

toggling an LED.

Introduction

›The General Purpose Timer Unit GPT12 is divided into two GPT blocks

(GPT1 and GPT2).

›The GPT12 unit incorporates five 16-bit timers which may operate

independently in several different modes.

›Block GPT2 contains two timers/counter: the core timer T6 and one auxiliary

timer T5.

›Both timers of block GPT2 can run in Timer Mode, Gated Timer Mode or

Counter Mode.

›An additional Capture/Reload register (CAPREL) supports also capture and

reload operation.

›The timer T5 in Counter Mode and the timer T6 in Timer Mode are used

together in this example.

Hardware setup

This code example has been

developed for the board

KIT_AURIX_TC297_TFT_BC-Step.

Implementation

Configuration of the GPT12 module

The function init_GPT12_module() is used to configure the two timers T5 and T6 of

GPT2 for concatenated 32-bit operation. It contains the following steps:

›The GPT12 module is enabled by calling the function IfxGpt12_enableModule().

›GPT2 prescaler is set to IfxGpt12_Gpt2BlockPrescaler_2 to get the highest possible

frequency by calling IfxGpt12_setGpt2BlockPrescaler().

›The functions IfxGpt12_T6_setMode() and IfxGpt12_T5_setMode() are used to

configure the modes of both timers. The core timer T6 is set to IfxGpt12_Mode_timer

and the auxiliary timer T5 is set to IfxGpt12_Mode_counter.

›Both the rising and falling edge of the Output Toggle Latch of timer T6 are selected as

active transition with the function IfxGpt12_T5_setCounterInputMode().

›The function IfxGpt12_T5_setRemoteControl() configures the timer T5 to be

activated by the run bit of core timer T6. IfxGpt12_T6_run() function starts timer T6

and implicitly timer T5, because the overflow of T6 is used as clock for T5.

The functions above are provided by the iLLD header IfxGpt12.h.

Implementation

Configuring the interrupt service routing for block GPT2

›The function IfxGpt12_T5_getSrc() returns the pointer to the service request control

(SRC) register of timer T5.

›The function IfxGpt12_T6_getSrc() returns the pointer to the SRC register of timer T6.

›The above mentioned pointers to the SRC registers are used to initialize and enable

the ISRs by setting the service provider and the priority number. This is done via the

functions IfxSrc_init() and IfxSrc_enable() provided by the iLLD header IfxSrc.h.

›The method implementing the ISR needs to be assigned a priority and a

CPU core responsible for its execution. This is done with the macro

IFX_INTERRUPT(isr, vectabNum, priority).

Implementation

The Interrupt Service Routines (ISRs)

›The incrementation of the counter values is different for both timers:

–The counter of timer T6 (Timer Mode) is incremented with the frequency of timer T6.

–The counter of timer T5 (Counter Mode) is incremented by each overflow of timer

T6.

›The overflow of each timer triggers an interrupt.

›Each timer has associated its own Interrupt Service Routine.

›The ISR of timer T6 is triggered after the overflow of the 16-bit timer value of timer T6.

›Due to the timer concatenation, the ISR of timer T5 is triggered with the overflow of the

32-bit timer value. This ISR toggles an LED.

›The 32-bit timer value is calculated in the ISR of T6 and is represented by

timerValueHIGH (T5) and timerValueLOW (T6).

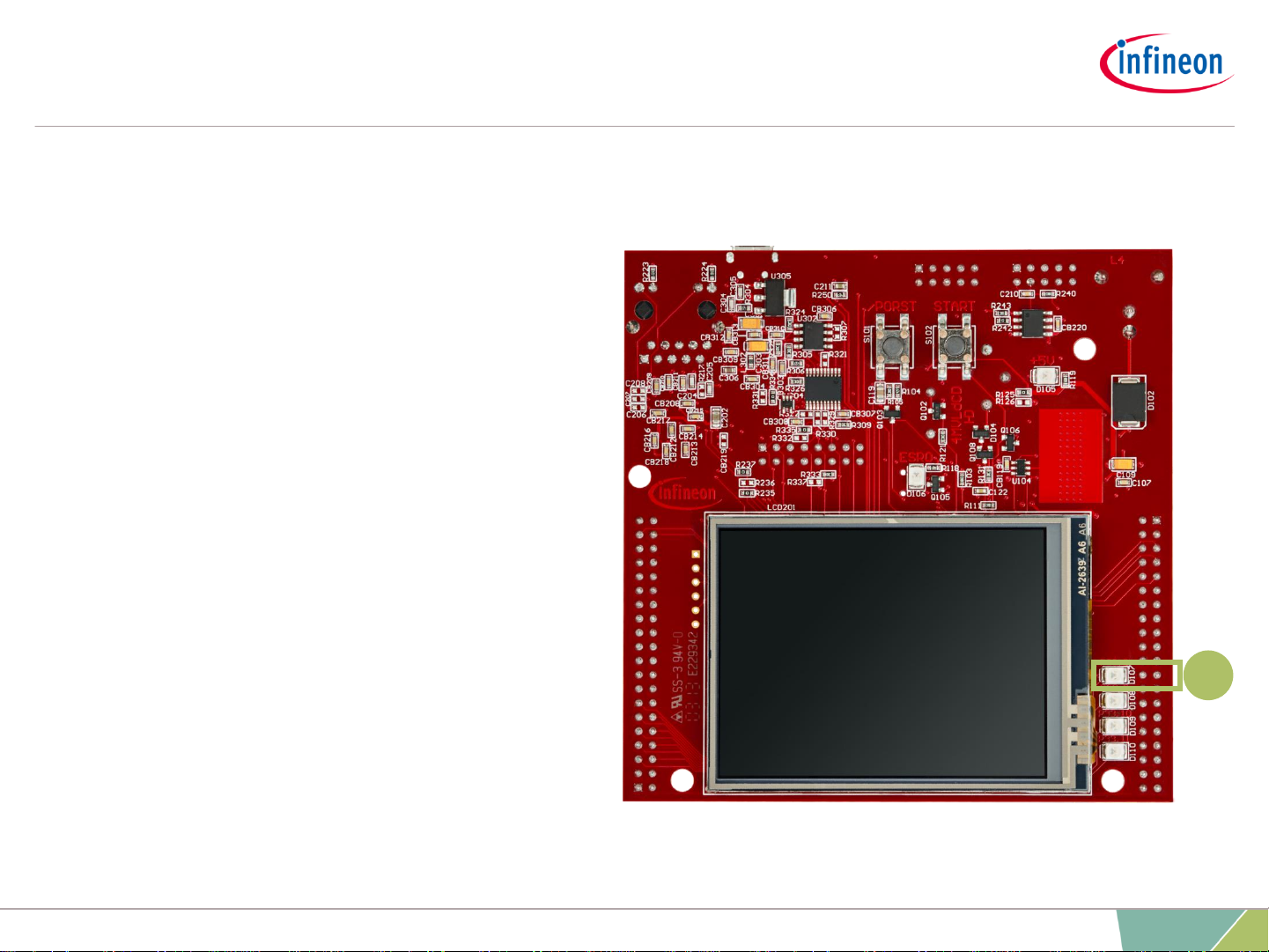

Run and Test

After code compilation and flashing the

device, perform the following steps:

›Check if LED D107 (1) is toggling its

state every 86 seconds:

–Maximum value of 32-bit timer is

4294967295

–Frequency of GPT12 module is 100

MHz

–Prescaler of GPT2 block is set to 2

–Timer T6 frequency is 100 MHz / 2

= 50 MHz, which means the value

of the 32-bit timer will be

incremented each 20 ns (1 / 50

MHz)

–Overflow of 32-bit timer after ≈ 86 s

(4294967295 * 20 ns)

›Check in the debugger if parameter

g_timerValue32Bit is incrementing

References

›More code examples can be found on the GIT repository:

›https://github.com/Infineon/AURIX_code_examples

›For additional trainings, visit our webpage:

›https://www.infineon.com/aurix-expert-training

›AURIX™ Development Studio is available online:

›https://www.infineon.com/aurixdevelopmentstudio

›Use the „Import...“ function to get access to more code examples.

›For questions and support, use the AURIX™ Forum:

›https://www.infineonforums.com/forums/13-Aurix-Forum
