Impex PHC-PWR9 Manuel utilisateur

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

PHC-PWR9

Retain This

Manual for

Reference

07-16-03

OWNER'S

MANUAL

POWERHOUSE CLUB

POWER 9

IMPEX FITNESS PRODUCTS

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICES..................................................................... 2

HARDWARE PACK……….....…....................................................................... 3

ASSEMBLY INSTRUCTIONS........................................................................... 5

EXPLODED DIAGRAM.........................................................................………. 18

PARTS LIST…………………………………………………………………………..20

WARRANTY.................................................................................................… 21

ORDERING PARTS......................................................................................... 21

BEFORE YOU BEGIN

Thank you for selecting the POWERHOUSE CLUB PWR9 by IMPEX

FITNESS PRODUCTS. For your safety and benefit, read this manual

carefully before using the machine. As a manufacturer, we are committed to

provide you complete customer satisfaction. If you have any questions, or

find there are missing or damaged parts, we guarantee you complete

satisfaction through direct assistance from our factory. To avoid unnecessary

delays, please call our TOLL-FREE customer service number. Our Customer

Service Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF

35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO

RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY

OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

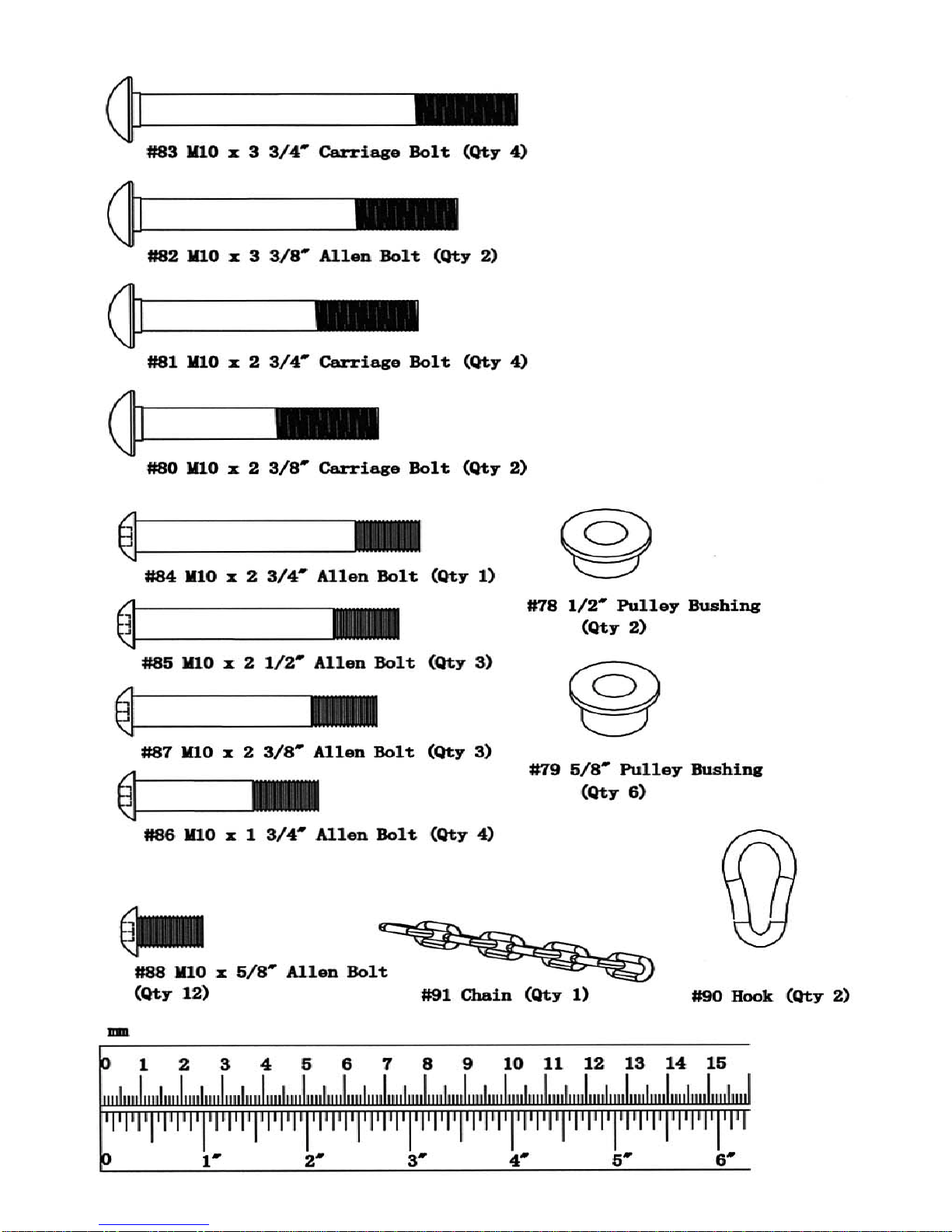

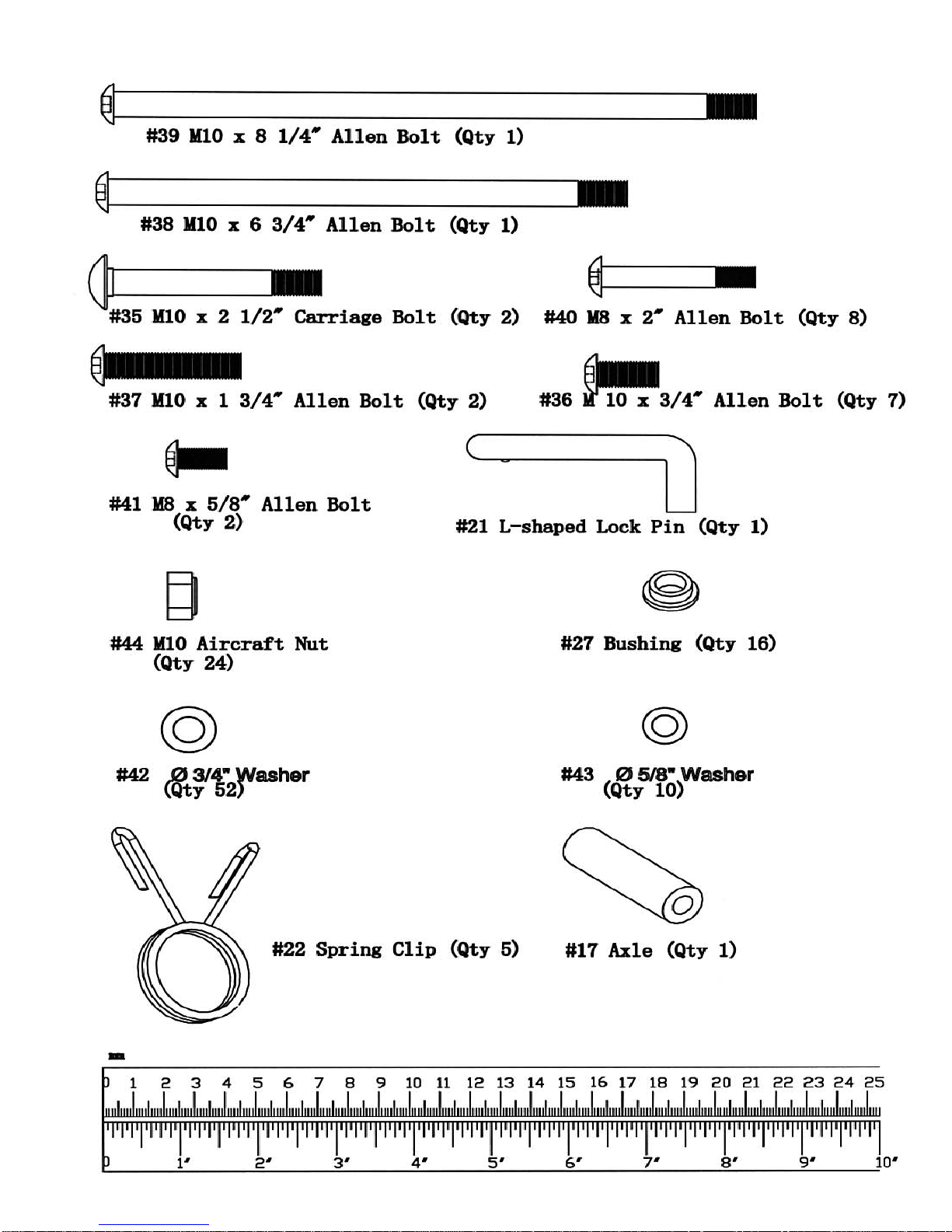

HARDWARE PACK

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen

Wrenches. NOTE: It is strongly recommended this machine be assembled by two or

more people to avoid possible injury.

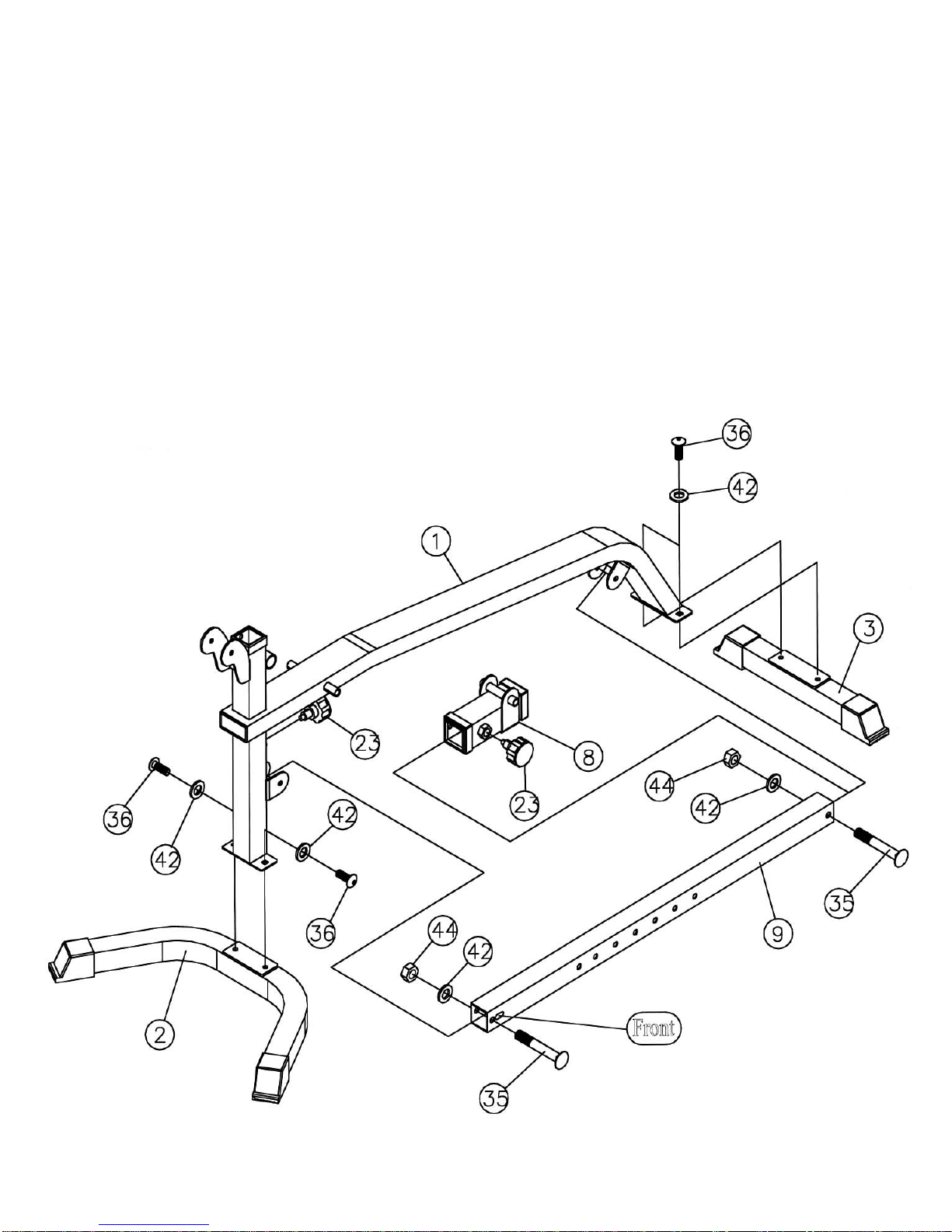

STEP 1 (See Diagram 1)

A.) Attach the Main Frame (#1) to the Front & Rear Stabilizers (#2 & 3). Secure each end

with two M10 x ¾” Allen Bolts (#36) and ∅¾” Washers (#42). Attach a Lock Knob (#23)

to the hole underneath the Main Frame.

B.) Slide the Sliding Block (#8) onto the Incline Adjustment Bar (#9). Align the hole then

secure it with a Lock Knob (#23) to hold the Sliding Block in position.

C.) Attach the Incline Adjustment Bar to the brackets on the Main Frame. Secure each end

with one M10 x 2 ½” Carriage Bolt (#35), ∅¾” Washer (#42), and M10 Aircraft Nut (#44).

DIAGRAM 1

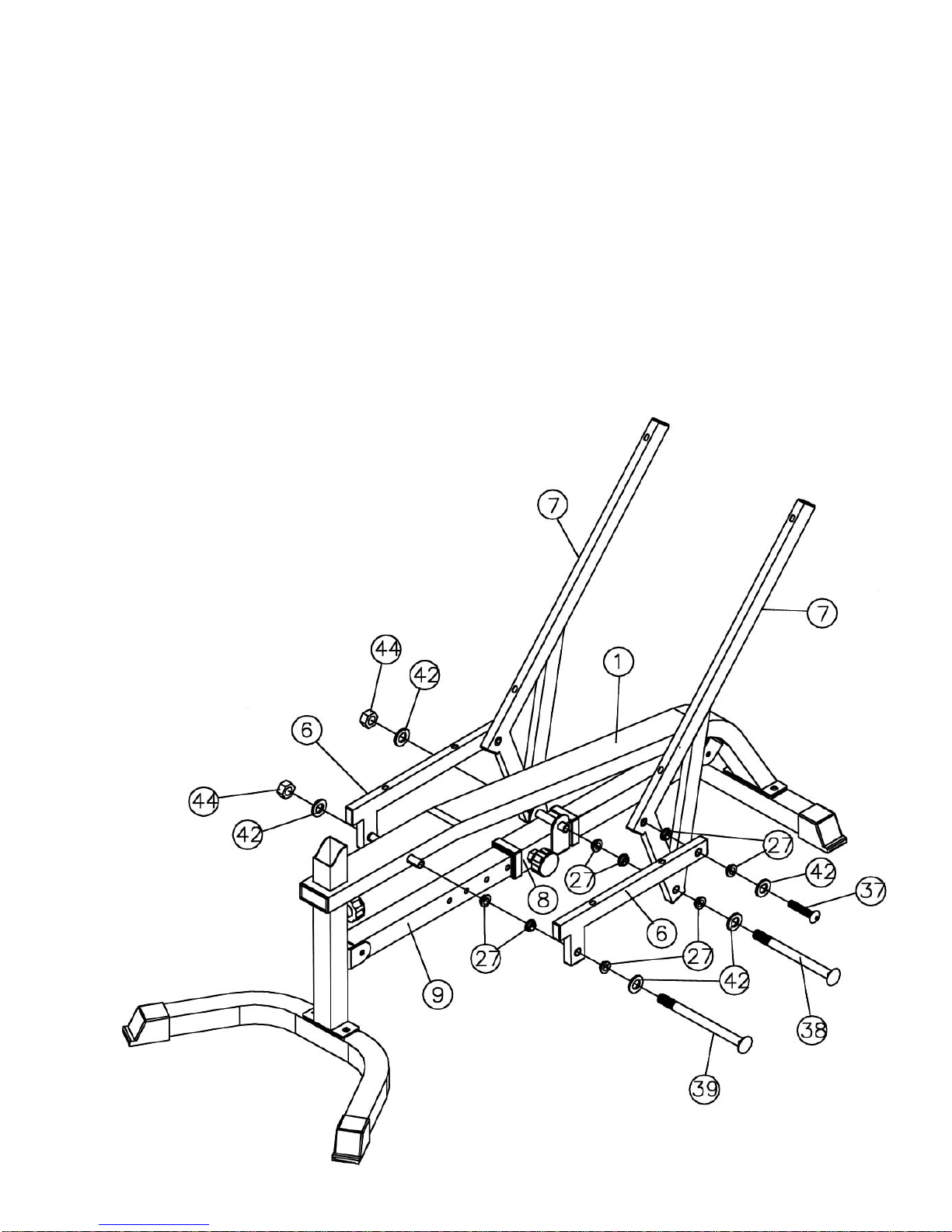

STEP 2 (See Diagram 2)

A.) Attach four Bushings (#27) to a Seat Support Frame (#6).

B.) Attach a Backrest Support (#7) to the rear of the Seat Support Frame (#6). Align the holes

and secure them with one M10 x 1 ¾” Allen Bolt (#37) and ∅¾” Washer (#42). Repeat

the same procedure to install the other side.

C.)Attach two Bushings to the pivot on the Sliding Block (#8). Attach two Bushings to each

Backrest Supports (#7). Align the holes and secure them with one M10 x 6 ¾” Allen Bolt

(#38), two ∅¾” Washers (#42), and one M10 Aircraft Nut (#44). Do not over tighten the

nut and bolt. The Supports need to swivel on the Bolt.

D.)Attach two Bushings to the pivot on the Main Frame (#1). Loosen and pull the Lock Knob

on the Sliding Block (#8). The Sliding Block needs to be able to slide on the Chromed

Incline Adjustment Bar (#9). Align the two Seat Support Frames (#6) to both ends of the

pivot on Main Frame. Secure them with one M10 x 8 ¼” Allen Bolt (#39), two ∅¾”

Washers (#42), and one M10 Aircraft Nut (#44).

E.) Use the Lock Knob on the Sliding Block (#8) to adjust and secure the backrest incline

position.

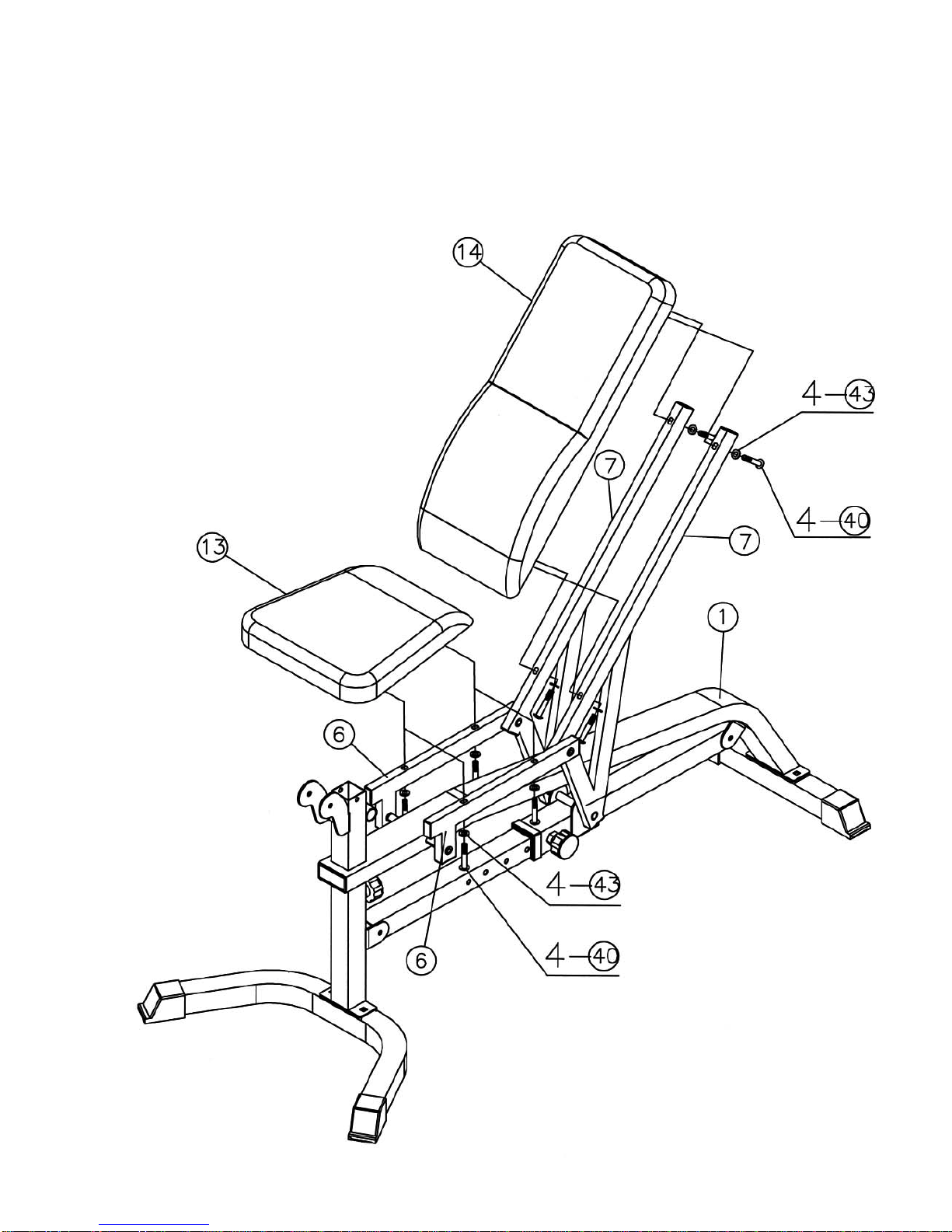

STEP 3 (See Diagram 3)

A.) Place the Backrest Board (#14) onto the Backrest Supports (#7). Secure it with four M8

x 2” Allen Bolts (#40) and ∅5/8” Washers (#43).

B.) Place the Seat Pad (#13) onto the Seat Support Frames (#6). Secure it with four M8 x

2” Allen Bolts (#40) and ∅5/8” Washers (#43). DIAGRAM 3

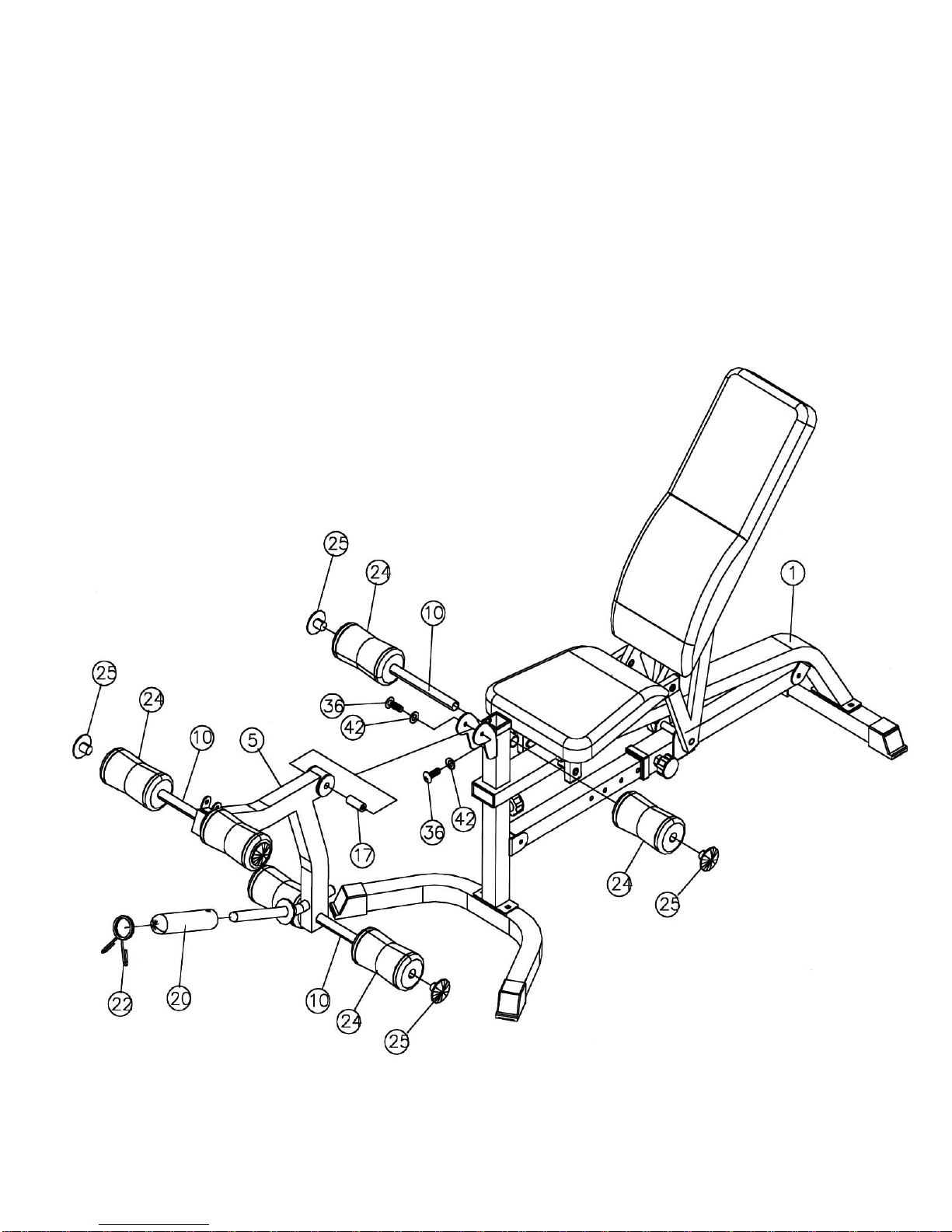

STEP 4 (See Diagram 4)

A.) Attach the Leg Developer (#5) to the open bracket on the Main Frame (#1). Secure it

with an Axle (#17), two M10 x ¾” Allen Bolts (#36), and two ∅¾” Washers (#42).

B.) Insert one Foam Tube (#10) halfway through the hole on the Main Frame. Insert two

Foam Tubes halfway through the holes on the Leg Developer (#5). Push six Foam

Rolls (#24) onto the Tubes from both ends. Plug six Foam Roll End Caps (#25) into

the Tubes.

C.) Slide the Olympic Sleeve (#20) onto the weight post on the Leg Developer. Attach a

Spring Clip (#22) to the Sleeve.

DIAGRAM 4

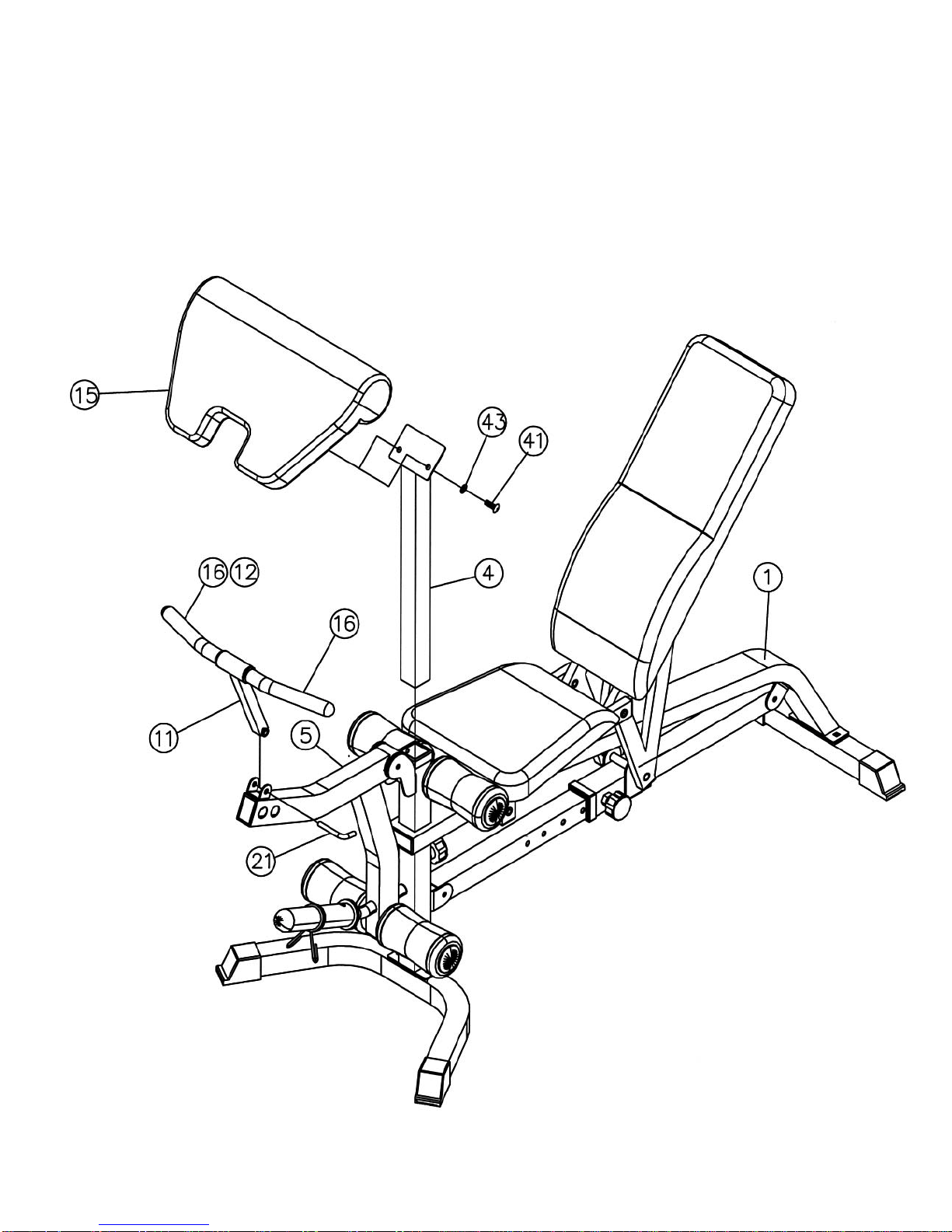

STEP 5 (See Diagram 5)

A.) Attach the Arm Curl Pad (#15) to the Arm Curl Stand (#4). Secure it with two M8 x 5/8”

Allen Bolts (#41) and two ∅5/8” Washers (#43). Insert the Arm Curl Stand into the front

opening on the Main Frame (#1). Use the Lock Knob to hold the desired Arm Curl height.

B.) Attach the Curl Bar Support Frame (#11) to the open bracket on the Leg Developer (#5).

Lock it with a L-shaped Pin (#21).

C.)Remove the Pin, Curl Bar Handle and Arm Curl when using the Leg Developer to exercise.

DIAGRAM 5
