Impex MARCY CLASSIC MCB-252 Manuel utilisateur
MARCY CLASSIC
MCB-252 COMBO BENCH
W/120 lbs Weight Set
IMPEX®INC.
2801 S. Towne Ave., Pomona, CA 91766
Tel: (800) 999-8899 Fax (626) 961-9966
www.impex-fitness.com
NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Exploded Diagram
Parts List
Warranty
Ordering Parts
Model
MCB-252
Retain This
Manual for
Reference
100302
OWNER'S
MANUAL
TABLE OF CONTENTS
BEFORE YOU BEGIN............................................................................................... 1
IMPORTANT SAFETY NOTICE................................................................................ 2
HARDWARE PACK……............................................................................................ 4
ASSEMBLY INSTRUCTIONS.................................................................................... 5
EXPLODED DIAGRAM.............................................................................................. 10
PARTS LIST..........................................................................................................…. 11
WARRANTY..........................................................................................................…. 12
ORDERING PARTS...............................................................................................…. 12
BEFORE YOU BEGIN
Thank you for selecting the MARCY CLASSIC MCB-252 COMBO BENCH
w/120 lbs weight set by IMPEX®INC. For your safety and benefit, read
this manual carefully before using the machine. As a manufacturer, we
are committed to provide you complete customer satisfaction. If you
have any questions, or find there are missing or damaged parts, we
guarantee you complete satisfaction through direct assistance from our
factory. To avoid unnecessary delays, please call our TOLL-FREE
customer service number. Our Customer Service Agents will provide
immediate assistance to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
1
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. A spotter is recommended during exercise.
13. Maximum user weight: 300 lbs.
14. Maximum weight capacity on the uprights: 120 lbs.
15. Maximum weight capacity on the leg developer: 100 lbs.
16. Maximum weight capacity on the lat bar: 100 lbs.
CARE AND MAINTENANCE
1. Lubricate moving parts with WD-40 or light oil periodically.
2. Inspect and tighten all parts before using the machine.
3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED
BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2

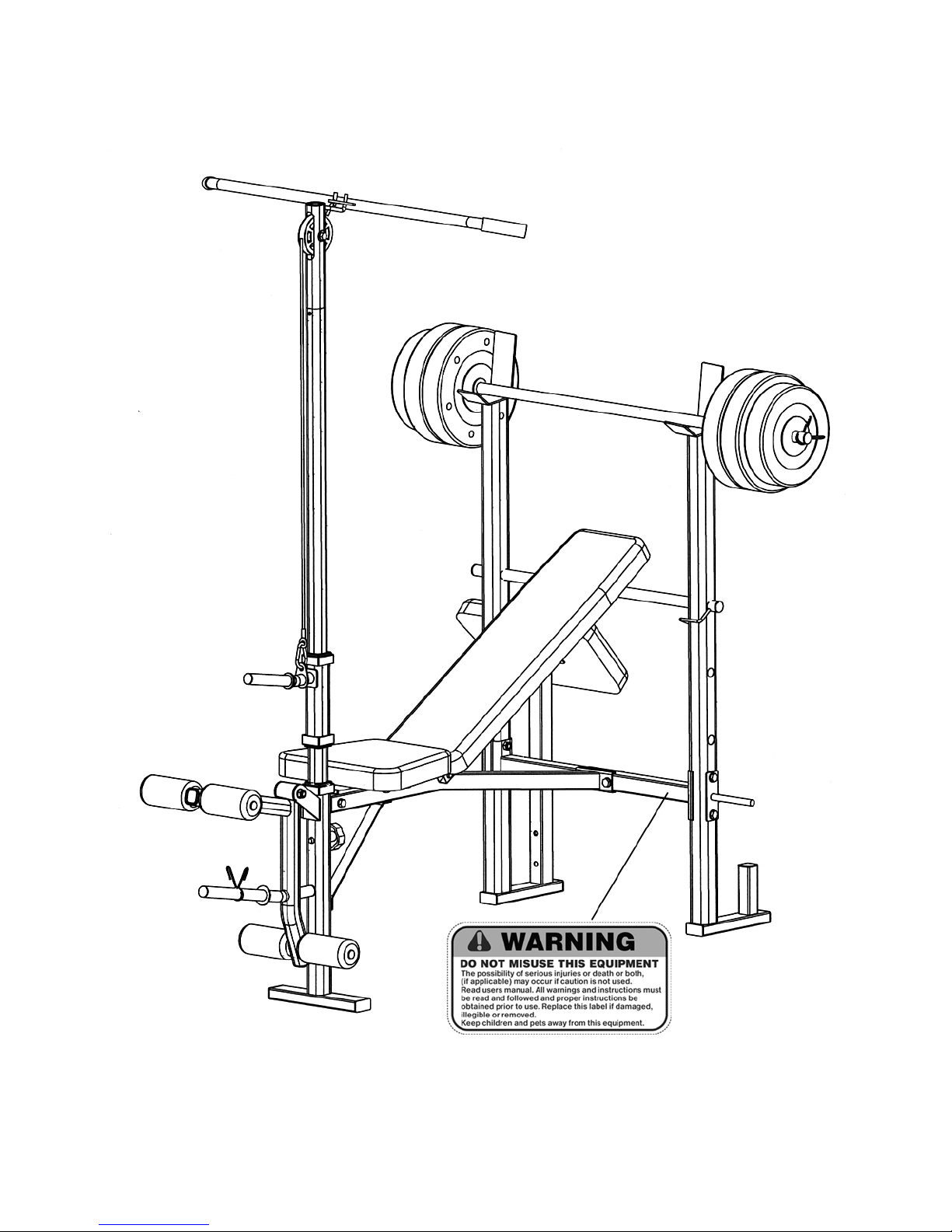

WARNING LABEL PLACEMENT
The Warning Label shown here has been placed on the Cross Brace. If the label is
missing or illegible, please call customer service at 1-800-999-8899 for replacement.
Apply the label in location shown.
3

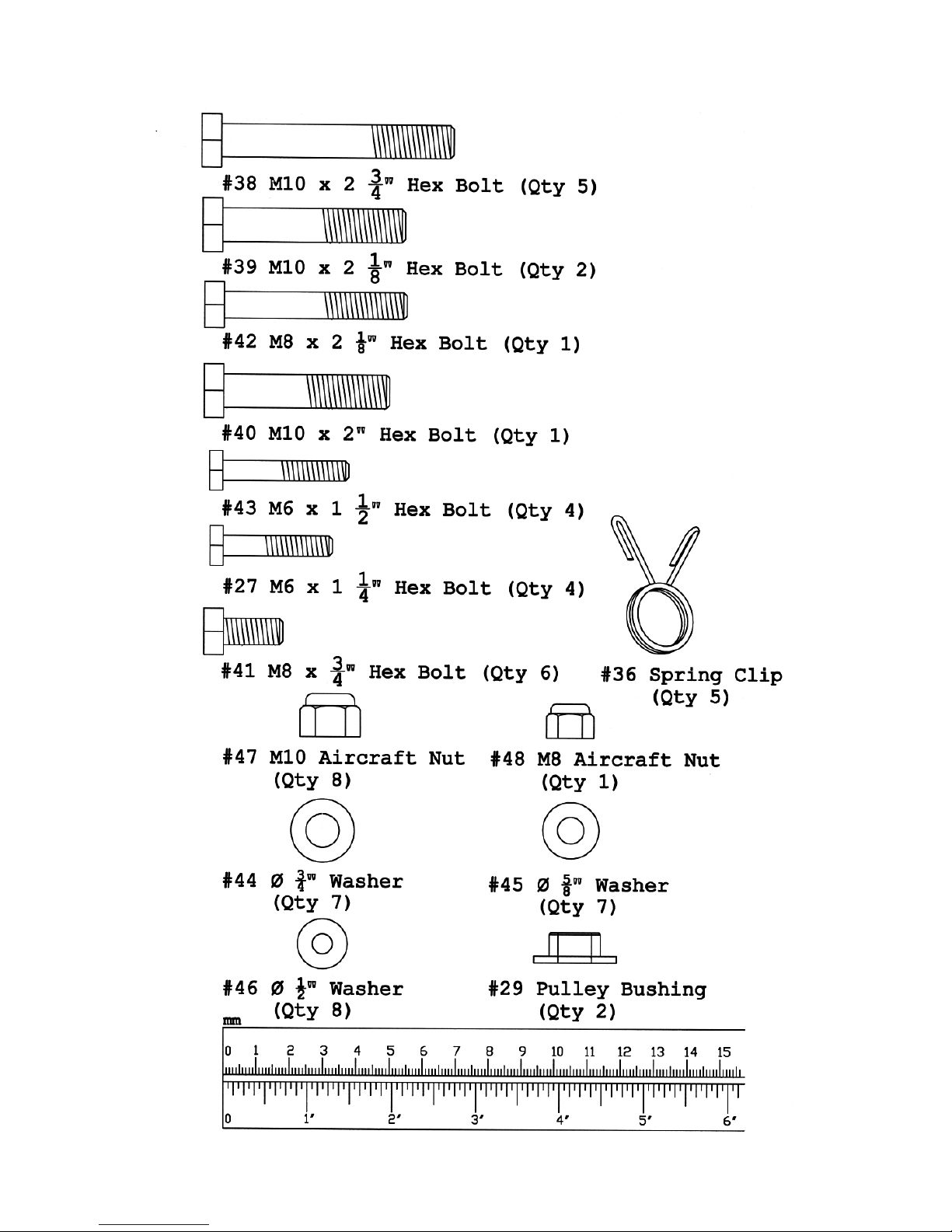

HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to measure the size.
4
ASSEMBLY INSTRUCTION
Tools required for assembling the machine: Two Adjustable Wrenches.
NOTE: It is strongly recommended that two or more people assemble this equipment to
avoid possible injury.

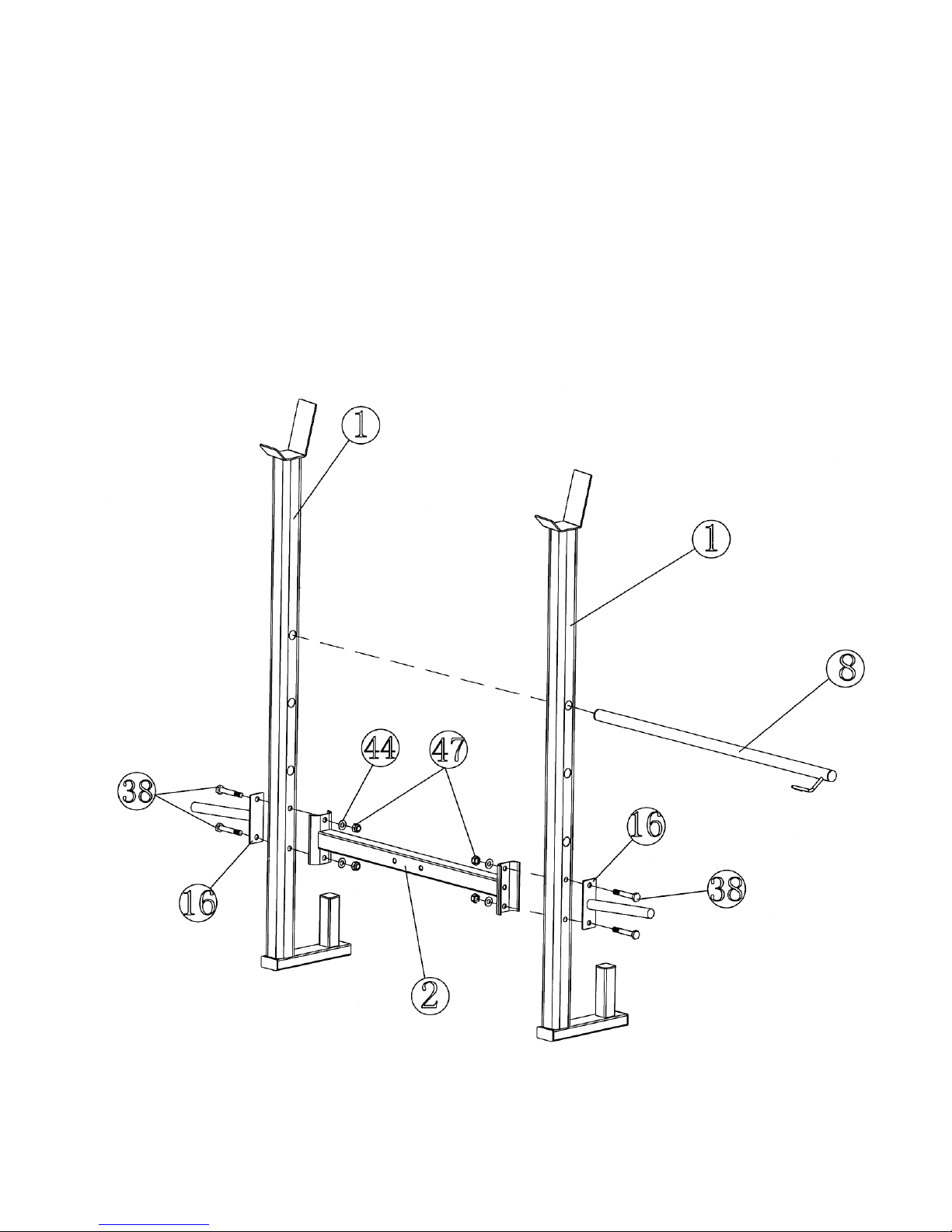

STEP 1 (See Diagram 1)
A.) Connect the two Rear Upright Beams (#1) by a Cross Brace (#2) in the mid-span.
Secure them with two M10 x 2 ¾” Hex Bolts (#38), one Weight Storage Post (#16), two
¾” Washers (#44), and two M10 Aircraft Nuts (#47) on each end of the Cross Brace.
B.) Insert the Backrest Adjustment Bar (#8) through a selected hole on the Rear Upright
Beams to obtain desired incline of Backrest.
DIAGRAM 1
5

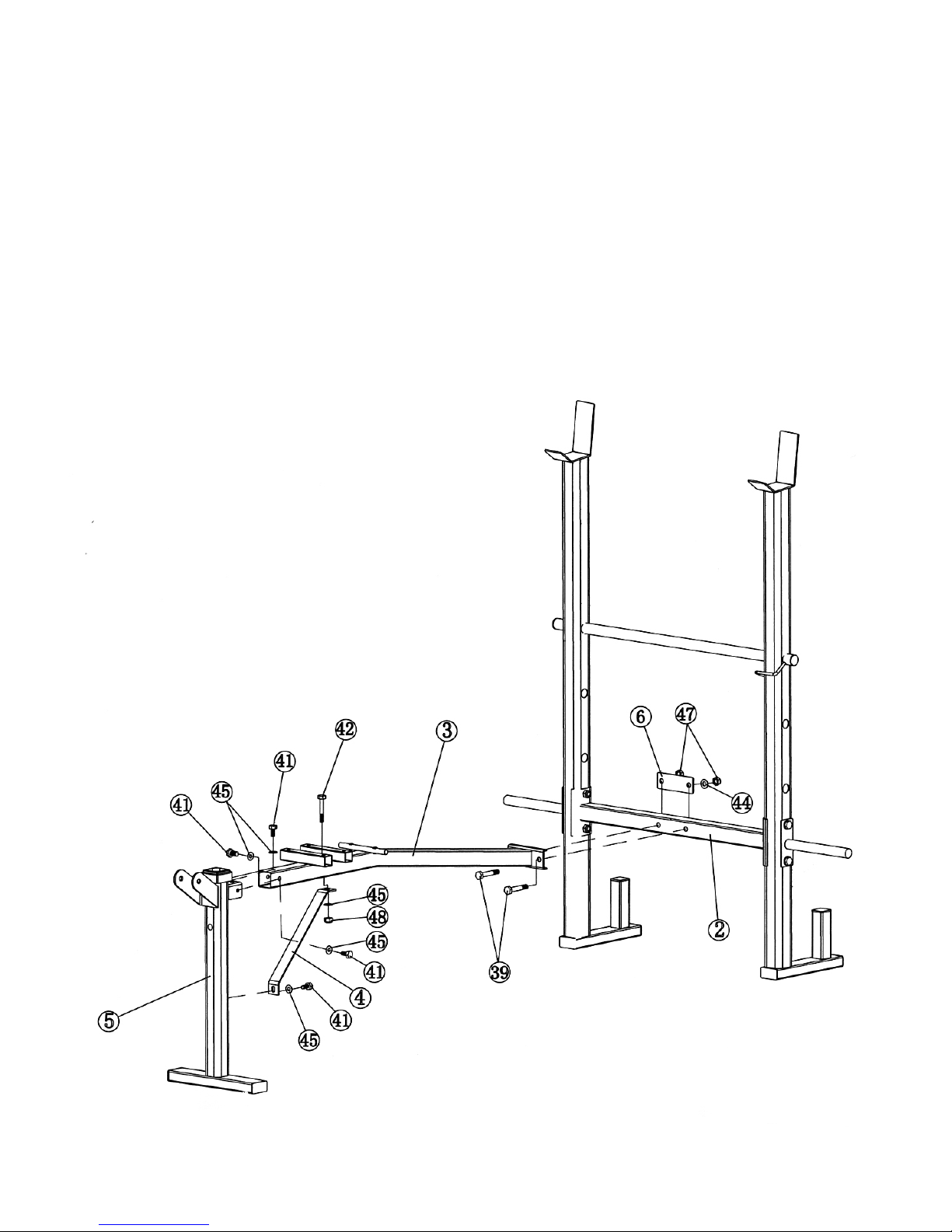

STEP 2 (See Diagram 2)
A.) Connect the Front Stabilizer (#5) to the Main Seat Support (#3) and secure them with
three M8 x ¾” Hex Bolts (#41) and three Ø 5/8” Washers (#45). DO NOT tighten the
Bolts yet.
B.) Connect the Main Seat Support to the Cross Brace (#2). Secure it with two M10 x 2 1/8”
Bolts (#39), one Bracket (#6), two ¾” Washers (#44), and two M10 Aircraft Nuts
(#47). DO NOT tighten the Nuts and Bolts yet.
C.) Connect one end of the Diagonal Support (#4) to the Main Seat Support (#3). Secure it
with one M8 x 2 1/8” Hex Bolt (#42), one 5/8” Washer (#45) and one M8 Aircraft Nut
(#48). Connect the other end to the Front Stabilizer (#5). Secure it with one M8 x ¾”
Hex Bolt (#41) and one 5/8” Washer (#45).
D.) Securely tighten all the Nuts and Bolts. DIAGRAM 2
6

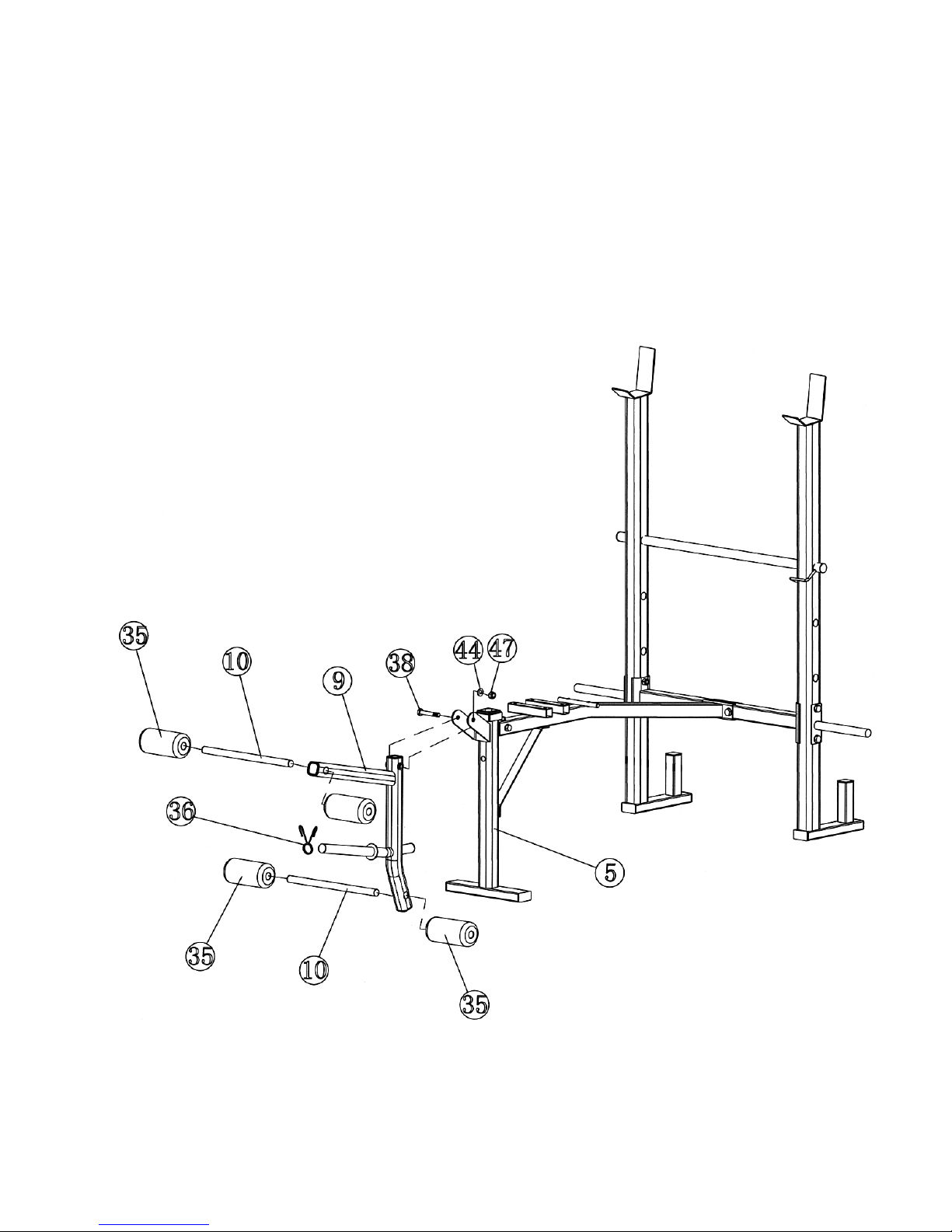

STEP 3 (See Diagram 3)
A.) Attach the Leg Developer (#9) to the open bracket on the Front Stabilizer (#5). Secure it
with one M10 x 2 ¾” Hex Bolt (#38), one Ø ¾” Washer (#44), and one M10 Aircraft Nut
(#47). Do not over tighten the Nut and Bolt. Make sure the Leg Developer is able
to swivel.
B.) Insert two Foam Tubes (#10) halfway through the holes on the Leg Developer. Push
four Foam Rolls (#35) onto the Tubes from both ends.
C.) Attach a Spring Clip (#36) onto the weight post on the Leg Developer. DIAGRAM 3
7

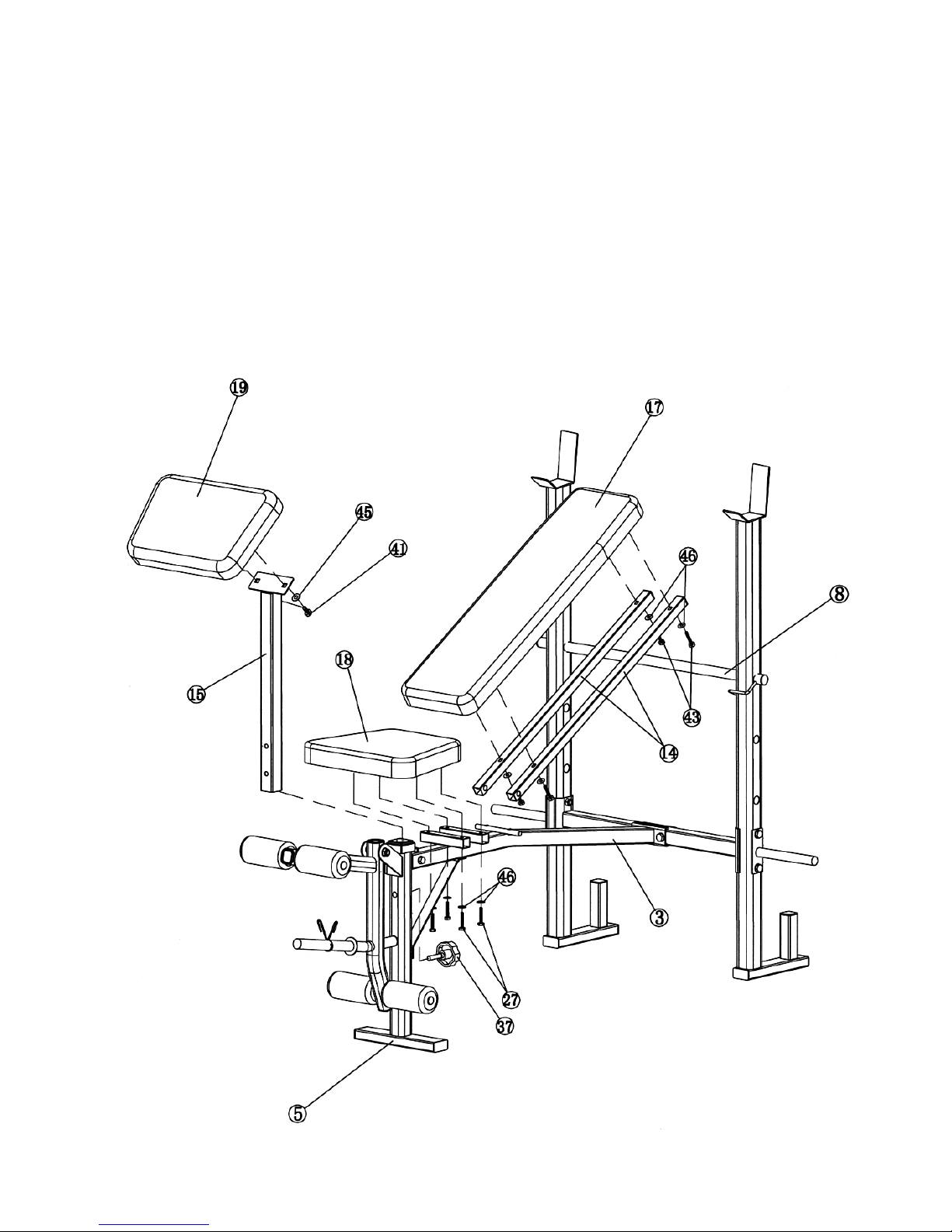

STEP 4 (See Diagram 4)
A.) Attach the Backrest Supports (#14) onto both ends of the Pivot on the Main Seat
Support (#3). Rest the other end against the Backrest Adjustment Bar (#8).
B.) Place the Backrest Board (#17) onto the Backrest Supports. Secure it with four M6 x 1
½” Hex Bolts (#43) and four ½” Washers (#46).
C.) Place the Seat Pad (#18) onto the bracket on the Main Seat Support (#3). Align the
holes and secure it with four M6 x 1 ¼” Hex Bolts (#27) and four ½” Washers (46).
D.) Attach the Arm Curl Pad (#19) to the Arm Curl Stand (#15). Secure it with two M8 x ¾”
Hex Bolts (#41) and two Ø 5/8” Washers (#45).
E.) Insert the Arm Curl Stand into the opening on the top of the Front Stabilizer (#5). Use a
Lock Knob (#37) to secure it at desired height.
DIAGRAM 4
8

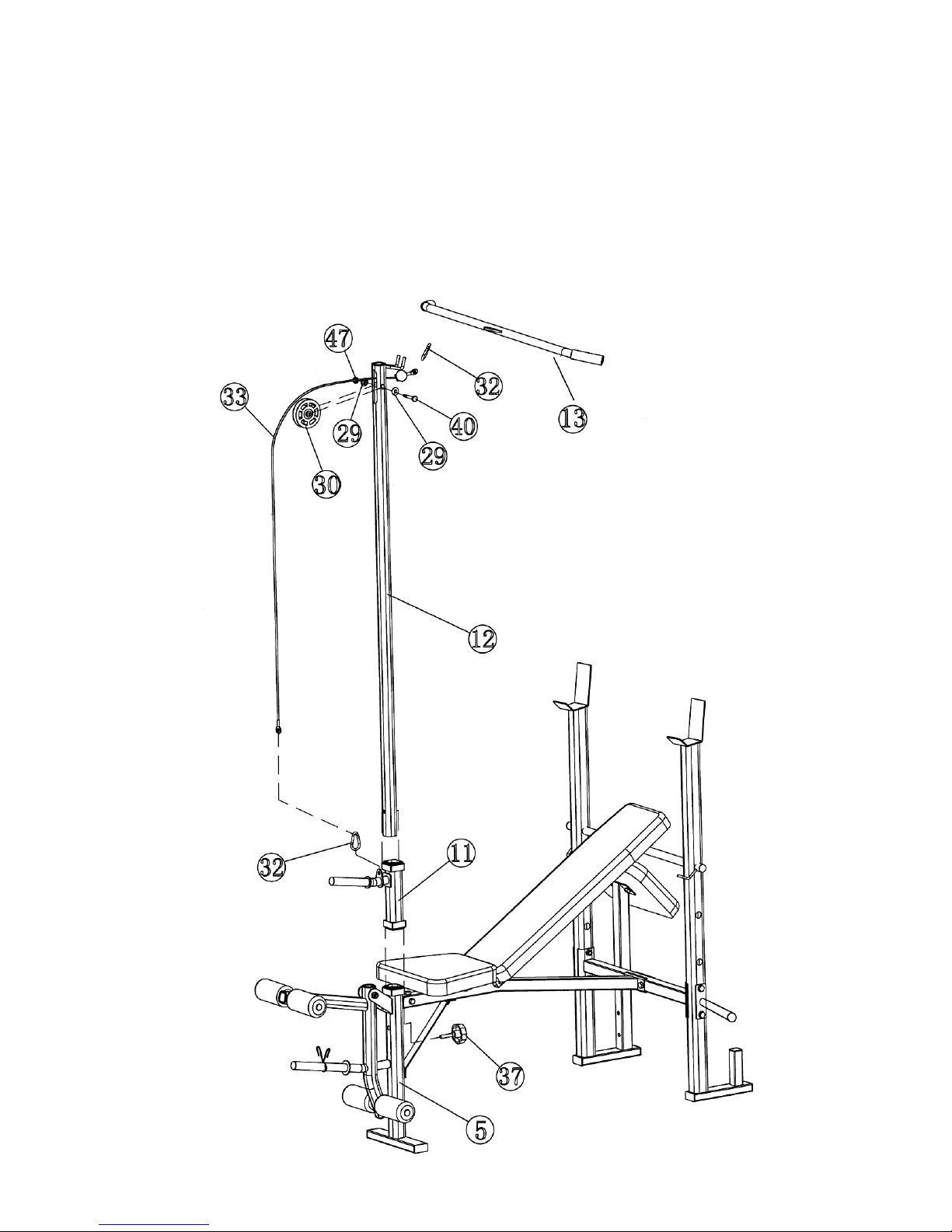

STEP 5 (See Diagram 5)
A.) Wrap the ball end of the Cable around the Pulley (#30). Place the Pulley in the open
slot on the Lat Bar Frame (#12). Secure it with one M10 x 2” Hex Bolt (#40), two Pulley
Bushings (#29), and one M10 Aircraft Nut (#47).
B.) Slide the Weight Holder (#11) onto the Lat Bar Frame from the bottom. Connect the
Cable to the Holder with a Hook (#32).
C.) Connect the Lat Bar (#13) to the Cable with a Hook (#32). When using the Lat Pull
Down, remove the Arm Curl and place it in the storage post behind the Rear Upright
Beam. Then Insert the Lat Bar Frame into the opening on the Front Stabilizer.
DIAGRAM 5
9
