IFM Electronic SA 00 Series Manuel utilisateur

Operating instructions

Flow sensor

SAxx00

SAxx10

SAxx30

SAxx40

80260078 / 00 05 / 2018

Contents

1 Preliminary note��4

2 Safety instructions ��4

3 Functions and features ��5

4 Function��5

4�1 Operating modes (ModE) ��6

4�2 Select the medium (MEdI) ��6

4�3 Define the internal pipe diameter (diA) ��6

4�4 Customer-specific calibration (CGA) ��7

4�5 Switching function��8

4�6 Analogue function ��9

4�7 Frequency output�� 11

4�8 Measured value damping (dAP) ��12

4�9 Colour change display (coLr)��13

4�10 IO-Link ��13

4�10�1 IO-Link process values ��14

5 Mounting��14

5�1 Installation position ��15

5�2 Interference in the pipe system ��17

5�3 Alignment��18

6 Electrical connection��18

7 Operating and display elements ��20

8 Menu��21

8�1 Main menu��21

8�2 Initialisation menu (INI)��23

8�3 Extended functions (EF) – Basic settings (CFG)��24

8�4 Min/Max memory (MEM) – Display (DIS) ��26

9 Set-up ��27

10 Parameter setting ��28

10�1 Parameter setting in general ��28

10�1�1 Switch between the menus��29

10�1�2 Change to the process value display (RUN mode) ��29

10�1�3 Locking / Unlocking ��29

10�1�4 Timeout��29

10�2 Settings for volumetric flow monitoring��30

10�2�1 Define the operating mode ��30

10�2�2 Define the internal pipe diameter��30

10�2�3 Configure the limit value monitoring for flow for OUT1��31

10�2�4 Configure the limit value monitoring for flow for OUT2��31

10�2�5 Configure the frequency signal for flow for OUT1 ��31

10�2�6 Configure the frequency signal for flow for OUT2 ��31

10�2�7 Configure the analogue output for flow for OUT2��32

10�2�8 Carry out the flow adjustment��32

10�2�9 Carry out the remote calibration ��33

10�3 Settings for temperature monitoring ��33

10�3�1 Configure the limit value monitoring for temperature for OUT2��33

10�3�2 Configure the frequency signal for temperature for OUT2 ��33

10�3�3 Configure the analogue output for temperature for OUT2��33

10�4 User settings (optional)��34

10�4�1 Configuration of the standard display ��34

10�4�2 Set the standard unit of measurement for flow��34

10�4�3 Select the medium��34

10�4�4 Configure colour change display ��34

10�4�5 Setting the output logic ��35

10�4�6 Set the measured value damping��35

10�4�7 Setting the switching delays ��35

10�4�8 Set output status in fault condition��35

10�4�9 Calibration of the curve of measured values ��35

10�5 Service functions ��36

10�5�1 Read min/max values ��36

10�5�2 Reset all parameters to factory setting ��36

11 Operation ��36

11�1 Read the process value ��36

11�2 Read the set parameters ��37

12 Technical data��37

13 Troubleshooting ��37

14 Servicing��38

15 Factory setting ��39

1 Preliminary note

Technical data, approvals, accessories and further information at

www�ifm�com�

►Instructions

> Reaction, result

[…] Designation of keys, buttons or indications

→Cross-reference

Important note

Non-compliance may result in malfunction or interference�

Information

Supplementary note�

CAUTION

Warning of personal injury�

Slight reversible injuries may result�

2 Safety instructions

• Read this document before setting up the product and keep it during the entire

service life�

• The product must be suitable for the corresponding applications and environ-

mental conditions without any restrictions�

• Only use the product for its intended purpose (→ 3 Functions and features)�

• Only use the product for permissible media (→ 12 Technical data)�

• If the operating instructions or the technical data are not adhered to, personal

injury and/or damage to property may occur�

• The manufacturer assumes no liability or warranty for any consequences

caused by tampering with the product or incorrect use by the operator�

• Installation, electrical connection, set-up, operation and maintenance of the unit

must be carried out by qualified personnel authorised by the machine operator�

• Protect units and cables against damage�

3 Functions and features

The unit monitors liquids and gases�

It detects the process categories flow and medium temperature�

Application area

• Air

• Water

• Glycol solutions (reference medium: 35 % ethylene glycol solution)

• Low-viscosity oils (viscosity: ≤ 40 mm²/s at 40 °C / ≤ 40 cSt at 104 °F)

• High-viscosity oils (viscosity: ≥ 40 mm²/s at 40 °C / ≥ 40 cSt at 104 °F)

Selection of the medium to be monitored → 10.4.3�

This is a class A product�

The unit may cause radio interference in domestic areas�

►If required, take appropriate EMC screening measures�

4 Function

• The unit detects flow based on the calorimetric measuring principle�

• The unit also detects the medium temperature�

• It features an IO-Link interface�

• The unit displays the current process value�

It generates 2 output signals according to the parameter setting:

OUT1/IO-Link: 2 selection options Parameter setting

- Switching signal for flow limit values → 10.2.3

- Frequency signal for flow → 10.2.5

OUT2: 7 selection options Parameter setting

- Switching signal for flow limit values → 10.2.4

- Switching signal for temperature limit values → 10.3.1

- Analogue signal for flow → 10.2.7

- Analogue signal for temperature → 10.3.3

- Frequency signal for flow → 10.2.6

- Frequency signal for temperature → 10.3.2

- Input for external teach signal → 10.2.9

4.1 Operating modes (ModE)

The unit provides three selectable operating modes for flow measurement:

Operating

mode

Medium Display unit

REL Liquids, air % (of the taught range) → 10.2.8

LIQU Liquids m/s, l/min, m3/h (fps, gpm, cfm)

GAS Air m/s, l/min, m3/h (fps, gpm, cfm)

The selected operating mode has no effect on the temperature measure-

ment, only absolute values in °C or °F are indicated.

The parameter settings are saved in the respective operating mode, i�e�

when the operating mode is changed, the settings are not lost�

If the operating modes LIQU and GAS are selected:

►Define the medium and the internal pipe diameter (→ 10.2.1)�

►If required, calibrate curve of measured values (→ 10.4.9)�

4.2 Select the medium (MEdI)

The unit has characteristic curves for different media� Depending on the operating

mode, the following media can be selected in the menu (→ 10.4.3):

Operating mode

Medium REL LIQU GAS

*OIL1:

viscosity ≥ 40 mm²/s at 40 °C / ≥ 40 cSt at 104 °F

**OIL2:

viscosity ≤ 40 mm²/s at 40 °C / ≤ 40 cSt at 104 °F

H2O x x

OIL1* x x

OIL2** x x

GLYC x x

AIR x x

4.3 Define the internal pipe diameter (diA)

In the operating modes LIQU and GAS the internal pipe diameter has to be en-

tered to define the volumetric flow (→ 10.2.2)

�

4.4 Customer-specific calibration (CGA)

Via the calibration factor CGA the sensor can be adjusted to a reference flow in

the application�

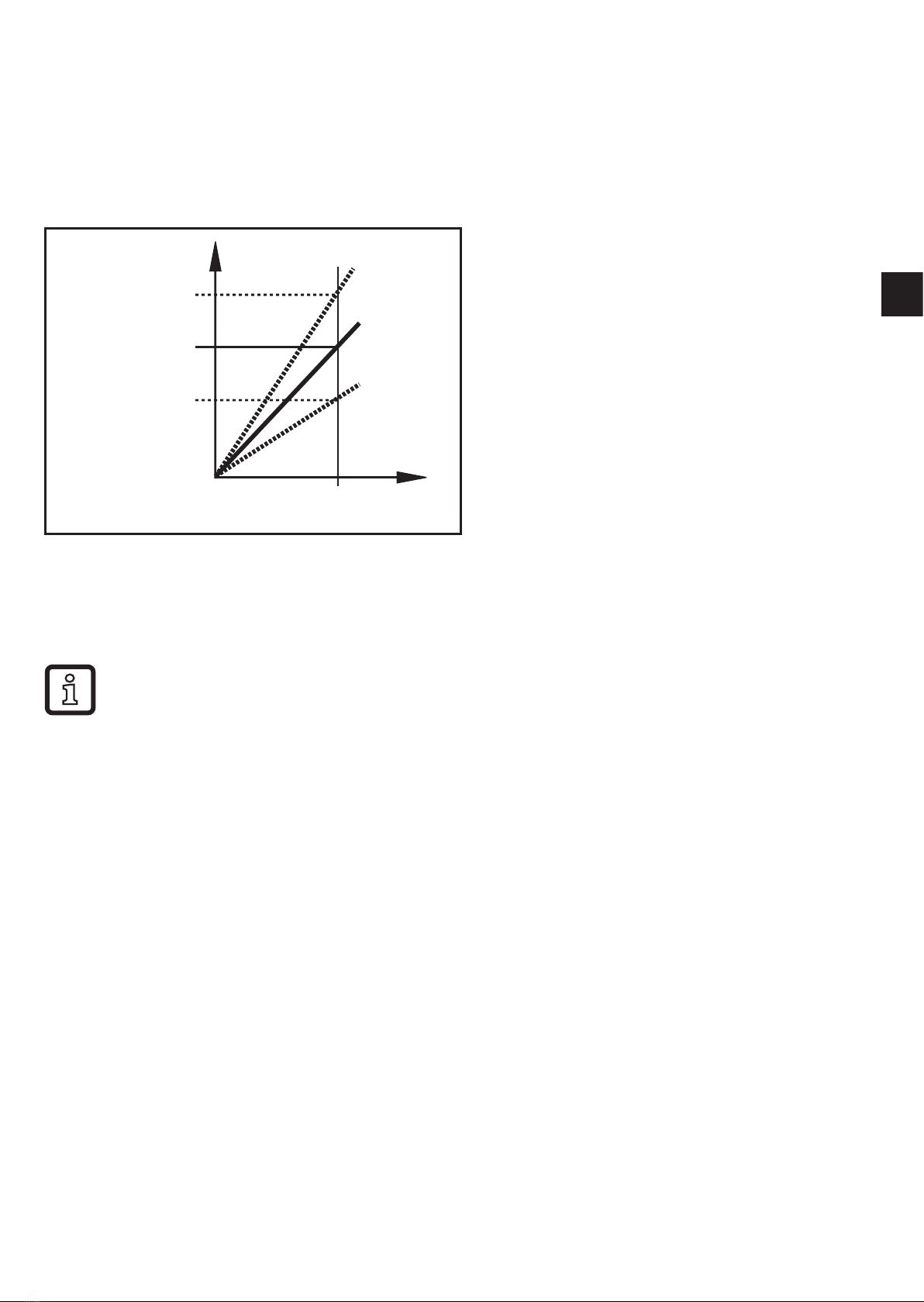

The customer-specific calibration allows changing the gradient of the curve of

measured values� It influences the display and the outputs�

140 % ME

100 % ME

60 % MEW

MEWQ

AV1

A = Operating value for display and

output signals

Q = Flow

MEW = Final value of the measuring

range

V0 = Curve of measured values at

factory setting

V1,

= Curve of measured values after

calibration

The change in the gradient is indicated in percentage�

Factory setting: CGA = 100 %�

After a change the calibration can be reset to factory setting (→ 10.5.2)�

Depending on the set CGA factor, it may not be possible to use the com-

plete measuring range�

4.5 Switching function

OUTx changes its switching status if it is above or below the set switching limits

(flow or temperature)� Hysteresis or window function can be selected� Example of

flow monitoring:

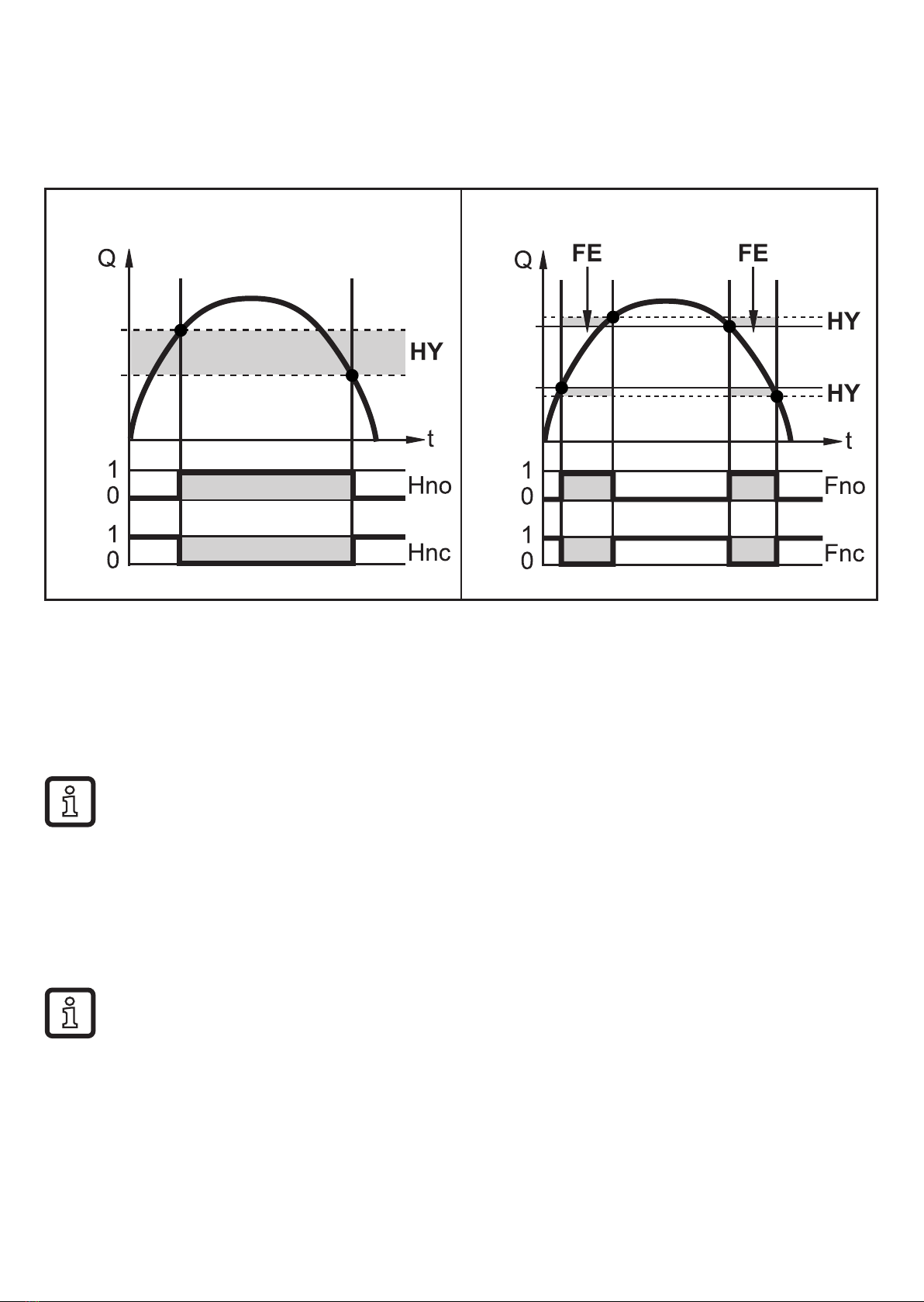

Hysteresis function Window function

rP FL

SP = set point

rP = reset point

HY = hysteresis

Hno = hysteresis NO (normally open)

Hnc = hysteresis NC (normally closed)

FH = upper limit value

FL = lower limit value

FE = window

Fno = window NO (normally open)

Fnc = window NC (normally closed)

When the hysteresis function is set, the set point SP and the reset point rP

are defined� The rP value must be lower than the SP value� The distance

between SP and rP is at least 4 % of the final value of the measuring range

(= hysteresis)�

If only the set point is changed, the reset point is changed automatically;

the difference remains constant�

When set to the window function the upper limit value FH and the lower lim-

it value FL are defined� The distance between FH and FL is at least 4 % of

the final value of the measuring range�FH and FL have a fixed hysteresis of

0�25 % of the final value of the measuring range� This keeps the switching

status of the output stable if the flow rate varies slightly�

4.6 Analogue function

The unit provides an analogue signal that is proportional to the flow quantity or the

medium temperature�

Within the measuring range the analogue signal is 4��20 mA�

The measuring range is scalable:

• [ASP2] determines at which measured value the output signal is 4 mA�

• [AEP2] determines at which measured value the output signal is 20 mA�

Minimum distance between [ASP2] and [AEP2] = 20 % of the final value of

the measuring range�

For flow measurement in the operating mode [ModE] = REL, [ASP2] and

[AEP2] are not available� In this operating mode, the characteristic curve of

the analogue output is defined by the flow adjustment:

high flow = 20 mA; low flow = 4 mA�

If the measured value is outside the measuring range or in the event of an internal

error, the current signals indicated in figure 1 are provided�

For measured values outside the display range or in case of a fault, messages are

displayed (UL, OL, Err; → 13)�

The analogue signal in case of a fault is adjustable (→ 10.4.8):

• [FOU] = On determines that the analogue signal goes to the upper final value

(22 mA) in case of an error�

• [FOU] = OFF determines that the analogue signal goes to the lower final value

(3�5 mA) in case of an error�

MEWMAW AEPASP

Q[% MEW]

T -20 120

1000 130

3,5FOU=OFF

21,5

[mA]

FOU=On

Err UL OL Err

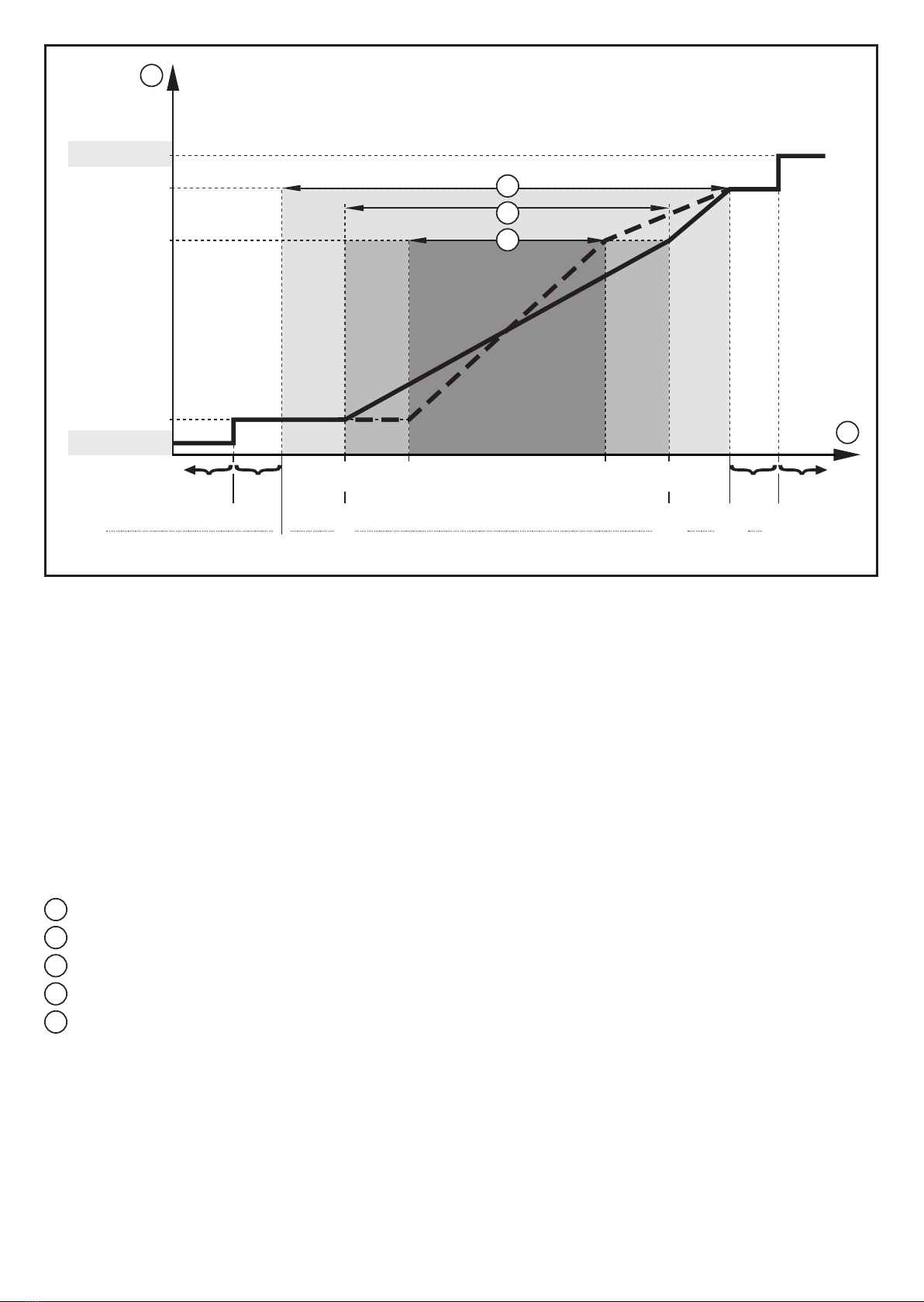

Figure 1: Characteristics of the analogue output according to the standard IEC 60947-5-7�

Q: Volumetric flow

T: Medium temperature

MAW: Initial value of the measuring range for non-scaled measuring range

MEW: Final value of the measuring range for non-scaled measuring range

ASP: Analogue start point with scaled measuring range

AEP: Analogue end point with scaled measuring range

UL: Below the display range

OL: Above the display range

Err: The unit is in the error state

Analogue signal

Measured value (flow or temperature)

Display range

Measuring range

Scaled measuring range

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels IFM Electronic Accessoires

IFM Electronic

IFM Electronic efector 300 SU7000 Manuel utilisateur

IFM Electronic

IFM Electronic O1D102 Manuel utilisateur

IFM Electronic

IFM Electronic ID000A Manuel utilisateur

IFM Electronic

IFM Electronic efector150 KQ6 Manuel utilisateur

IFM Electronic

IFM Electronic efector 200 OW Series Manuel utilisateur

IFM Electronic

IFM Electronic VNB001 Manuel utilisateur

IFM Electronic

IFM Electronic Efector 200 Guide d'installation

IFM Electronic

IFM Electronic efector 300 SU9001 Manuel utilisateur

IFM Electronic

IFM Electronic efector 160 Manuel utilisateur

IFM Electronic

IFM Electronic PI209 Series Manuel utilisateur

IFM Electronic

IFM Electronic efector300 SM8000 Manuel utilisateur

IFM Electronic

IFM Electronic efector 200 OT Manuel utilisateur

IFM Electronic

IFM Electronic efector 200 OG laser Manuel utilisateur

IFM Electronic

IFM Electronic efector 500 PB5 Series Manuel utilisateur

IFM Electronic

IFM Electronic PN50 Series Manuel utilisateur

IFM Electronic

IFM Electronic efector200 OGP50 Series Manuel utilisateur

IFM Electronic

IFM Electronic efector500 PC3 Series Manuel utilisateur

IFM Electronic

IFM Electronic efector 200 OJ51 Series Manuel utilisateur

IFM Electronic

IFM Electronic SU7000 Manuel utilisateur

IFM Electronic

IFM Electronic efector 300 SU8001 Manuel utilisateur

IFM Electronic

IFM Electronic Efector 200 OJ5192 Manuel utilisateur

IFM Electronic

IFM Electronic efector 200 O5 Manuel utilisateur

IFM Electronic

IFM Electronic SM6000 Manuel utilisateur

IFM Electronic

IFM Electronic LR8300 Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur

Axminster

Axminster Tooling Stylus Tip Ballpoint Pen Kit Manuel utilisateur
