IBASE Technology IB899 Manuel utilisateur

IB899

Intel®Braswell

USER’S MANUAL

Version 1.1

IB899 User’s Manual

Acknowledgments

AMI BIOS is a trademark of American Megatrends Inc.

PS/2 is a trademark of International Business Machines

Corporation. Intel and Luna-Pier are registered

trademarks of Intel Corporation. Microsoft Windows is a

registered trademark of Microsoft Corporation. Winbond is

a registered trademark of Winbond Electronics

Corporation. All other product names or trademarks are

properties of their respective owners.

IB899 User’s Manual iii

Table of Contents

Introduction.......................................................1

Checklist..............................................................................2

IB899 Specifications...........................................................3

Board Dimensions...............................................................5

Installations.......................................................6

Installing the Memory.........................................................7

Setting the Jumpers .............................................................8

Connectors on IB899.........................................................15

BIOS Setup.......................................................33

BIOS Introduction..................................................................... 34

BIOS Setup................................................................................. 34

Advanced Settings..................................................................... 35

CSM Configuration................................................................... 43

Chipset Settings ......................................................................... 45

Security Settings........................................................................ 46

Boot Settings.............................................................................. 47

Save & Exit Settings ................................................................. 48

Drivers Installation......................................49

Intel Chipset Software Installation Utility.........................50

VGA Drivers Installation..................................................53

Realtek HD Audio Driver Installation...............................55

LAN Drivers Installation...................................................56

TXE Drivers Installation...................................................59

Appendix...........................................................61

A. I/O Port Address Map...................................................61

B. Interrupt Request Lines (IRQ)......................................62

C. Watchdog Timer Configuration....................................63

iv IB899 User’s Manual

This page is intentionally left blank.

INTRODUCTION

IB899 User’s Manual 1

Introduction

IB899 is a 3.5-inch Disk Size SBC (102mm x 147mm) that comes with the

Intel® Pentium® N3700 \ N3710 and Celeron® N3000 \ N3010 series

processor. It has two DDR3L SO-DIMM sockets supporting up to 8GBs of

system memory. It also features the Intel® Gen8-LP graphics engine with

interface for CRT, DVI-D and 24-bit dual channel LVDS displays. The

platform provides four connectors of USB 3.0 at the board edge and USB

2.0 two ports with pin header. Two SATA III ports are included.

IB899 Features

- 3.5-inch Disk Size SBC, 142mm x 102mm

- Onboard Intel® Pentium® N3700 \ N3710 series

Celeron® N3000 \ N3010 series

- Two DDR3L SO-DIMM sockets, DDR3L-1600, Max. 8GB

- Intel® Gen8-LP graphics for CRT, DVI-D interface

- 24-bit dual channel LVDS interface

- Dual Intel I211-AT PCIe Gigabit LAN

- 4 x USB 3.0 on edge, 2 x USB 2.0 on board support

- Two SATA III, 2 x COM ports

- Digital I/O 4-in / 4-out, 1 x Full-size Mini-PCIe, 1 x Half-size Mini-PCIe

- Watchdog Timer, iSMART, RoHS compliance

INTRODUCTION

2IB899 User’s Manual

Checklist

Your IB899 package should include the items listed below.

3.5-inch Disk Size SBC

This User’s Manual

1 CD containing chipset drivers and flash memory utility

Serial ATA cable

I/O shield

INTRODUCTION

IB899 User’s Manual 3

IB899 Specifications

Product Name

IB899F-370(N3700 onboard)

IB899F-371(N3710 onboard)

IB899F-300(N3000 onboard)

IB899F-301(N3010 onboard)

IB899A-370 (N3700 onboard, w/MicroSD & TPM 2.0)

IB899A-371 (N3710 onboard, w/MicroSD & TPM 2.0)

**Default silk screen model # on PCB is IB899F**

Form Factor

3.5”

SoC Type/Speed

14nm Technology Process, FCBGA1170, Package= 25mm x 27mm

-Pentium®N3700 QC, up to 2.4Ghz , TDP=6W (C0-stepping, SR2A7)

-Pentium®N3710 QC, up to 2.56Ghz , TDP=6W (D1-stepping, SR2KL)

-Celeron®N3000 DC, up to 2.08GHz, TDP=4W (C0-stepping, SR29J)

-Celeron®N3010 DC, up to 2.24GHz, TDP=4W (D1-stepping, SR2KM)

Cache

2MB

BIOS

AMI BIOS

Memory

Intel®Pentium®/Celeron®SoC integrated memory controller

2 x DDR3 SO-DIMM socket, Support DDR3L (1.35V) only

Max. memory to 8GB (Non-ECC, Un-buffered)

VGA

Intel®Pentium®/Celeron®SoC integrated Gen 8 graphics

Support 3 x independent displays, DX11.1 (DX12 for Win 10) & OpenGL 4.2

-VGA x 1: Thru NXP PTN3392 DP to VGA **1920x1200 @ 60 Hz**

(C0133392BSF415000P)

-DVI-D x 1 ** 2560x1600@ 60 Hz**

-LVDS: 24-bit dual channel via NXP PTN3460 thru eDP

**1920x1200 @ 60 Hz** (C01Z3460BSF612000P)

LAN

Intel®I211-AT PCIe Gigabit LAN x 2

USB (Universal

Serial Bus)

Intel®Pentium®/Celeron®SoC built-in USB 3.0 host controller, support 4 ports

-Edge I/O x 4

Intel® Pentium®/Celeron®SoC built-in USB 2.0 host controller with USB hub

Renesas uPD720115K8-611-BAK-A(C013720115K861000P)

For total 4 ports x USB 2.0

-2 Ports thru pin header

-2 Ports thru Mini PCIe slot

Serial ATA Ports

Intel®Pentium®/Celeron®SoC built-in SATA III controller, supports 2 ports

Audio

Intel®Pentium®/Celeron®SoC built-in HD Audio controller + Realtek ALC662

Codec

LPC I/O

Nuvoton NCT5523D, Ver. C [64-pin LQFP, 7x7x1.4mm]

COM #1 (RS232/422/485)

-With EXAR SP339 (C014339EER1L29000P) x 1 for jumper-less

-Support ring-in with power @500 mA (selectable for 5V or 12V)

COM #2 (RS-232 only)

[Hardware Monitor]

2 x Thermal inputs; 2 x Voltage monitoring

Digital IO

4 in & 4 out

Expansion Slots

Mini PCIe socket x 2

Full-sized x1 : with USB 2.0 signal + support mSATA(via NXP switch)

Half-sized x1: with USB 2.0 signal

Edge Connectors

DVI-D x 1 for DVI

COM x 1 (RJ45 connector type)

RJ45 x 2 for LAN 1 & 2

USB 3.0 stack connector x 1 for 2 ports (from SoC)

INTRODUCTION

4IB899 User’s Manual

Onboard

Header/

Connector

DF11 2 x 4 pins header x 1 for 2 x USB 2.0

DF20 socket connector x 2 for 24-bit dual channel LVDS

(C1220220020220300P)

4 pins box header x 1 for backlight/brightness control (PWM mode)

DF11 2 x 6 pins box header x1 for Audio

DF11 2 x 8 pins box header x 1 for VGA

DF11 2 x 5 pins box header x 1 for COM2

2 x 5 pins header x 1 for LPC(80-port card debugging purpose)

Mini PCI-e(1x) connector x 2

SATA III connector x 2 for SATA device(BLUE color)

4-pins power connector x 2 (JST type, For SATA III device)

2 x 4 pins pin-header x 1 for front I/O ( RST, PWR, LEDs)

2-pins connector x 1 for power input (C12101112202101HAP)

Micro SD slot x 1 @ solder side (IB899A only)

BR2032 w/ adhesive tape = C272113012032B100P+

M1401020010010100

Watchdog

Timer

Yes (256 segments, 0, 1, 2…255 sec/min)

DC Input

9V~+24V (±5 % tolerance)

TPM 2.0

Infineon SL9665 (IB899A-370 only) [C01Z9665TT2007000P]

Infineon SL9665 (IB899A-371 only) [C01Z9665TT2007000P]

Others

iSMART 3.2

OS support

** Please note the priority**

- Windows 8.1(64-bit)

- Windows 7(64-bit,refer to Intel #558302 EHCI OS USB installation

guide)

- Fedora (Installation)

- Ubuntu (Installation)

- Windows 10 (32-bit / 64-bit)

- Embedded OS will be test by request

RoHS / REACH/

LVD /CE

Yes / Yes / Yes / Class B

Operating

system

0ﾟC to +60ﾟC

Board Size

102mm x 147mm

INTRODUCTION

IB899 User’s Manual 5

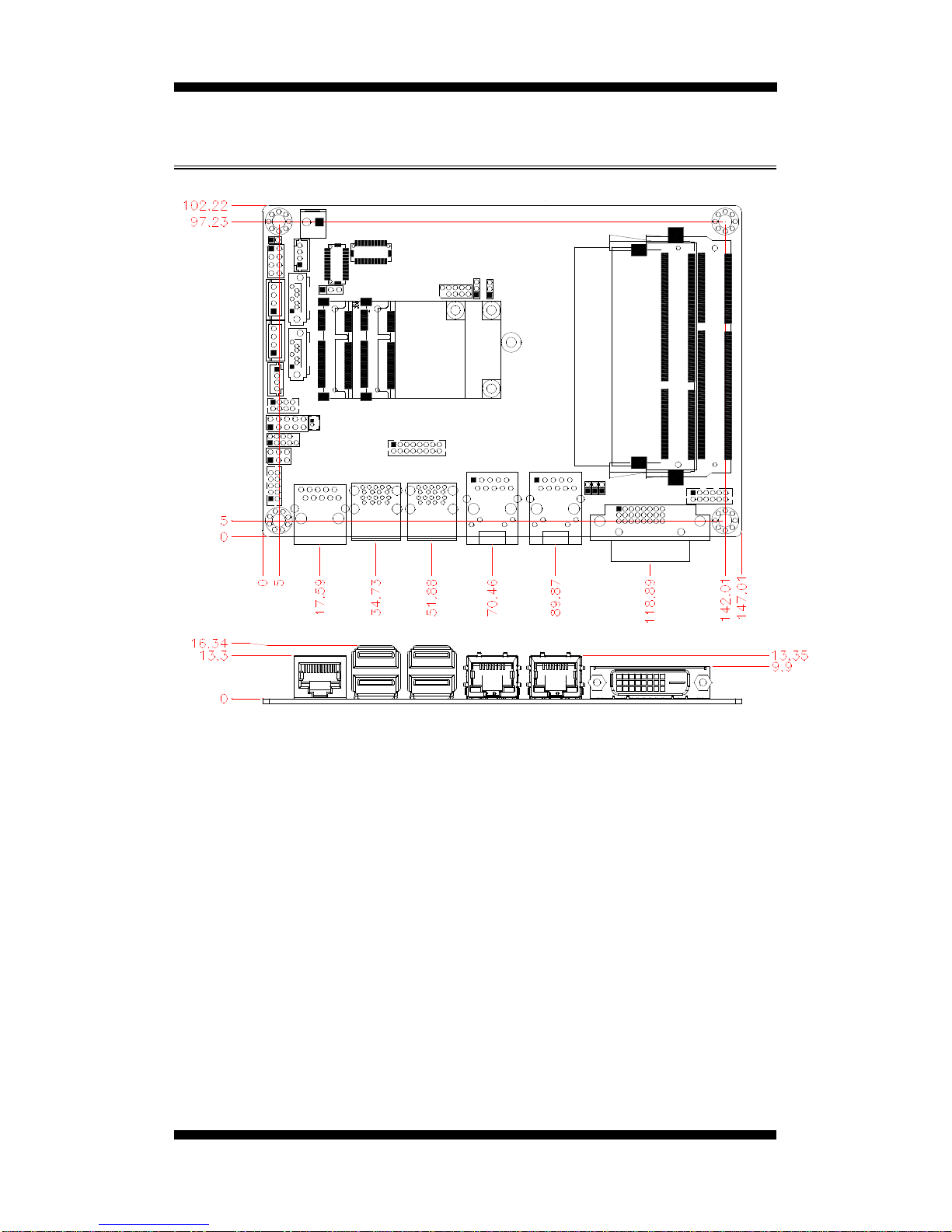

Board Dimensions

INSTALLATIONS

6IB899 User’s Manual

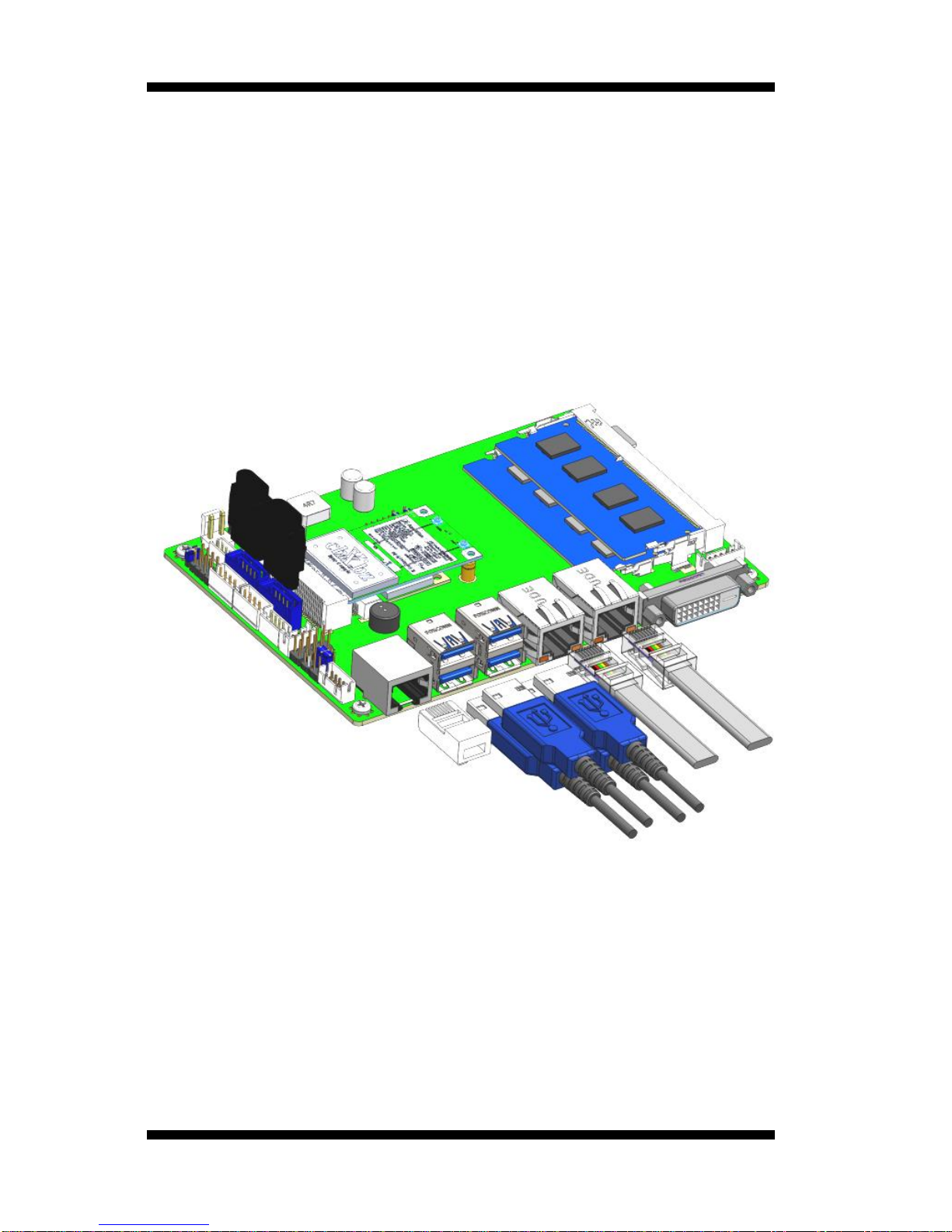

Installations

This section provides information on how to use the jumpers and connectors

on the IB899 in order to set up a workable system. The topics covered are:

Installing the Memory.........................................................................7

Setting the Jumpers .............................................................................8

Connectors on IB899 ........................................................................15
