HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

P/N 0428672C

Merchandisers

Note: Changed items have been underlined.

C2-XGE

Technical Data Sheet

P/N 0428672C

NSF®Certified

February 2006

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 6W Fan Assembly (1)

0058698 Fan Motor, Evaporator

0142780 Fan Blade

embossing toward motor

B. 0311588 Standard Non-adjustable (2)

Defrost Thermostat

C. 0137880 Optional Adjustable (3)

Refrigeration Thermostat

Item Part # Description Wiring Item #

HEATERS

D. Canopy Anti-Sweat Heater (4)

NA 4 ft

0109417 6 ft

0109417 8 ft

0109418 12 ft

LAMPS AND BALLASTS

E. Ballast, Electronic (5)

0376409 2 lamps

0376410 3 lamps

F. Fluorescent Lamp (6)

Replace with like fixtures

Revision C corrects statistical data on Page 3.

2 of 8 C2-XGE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

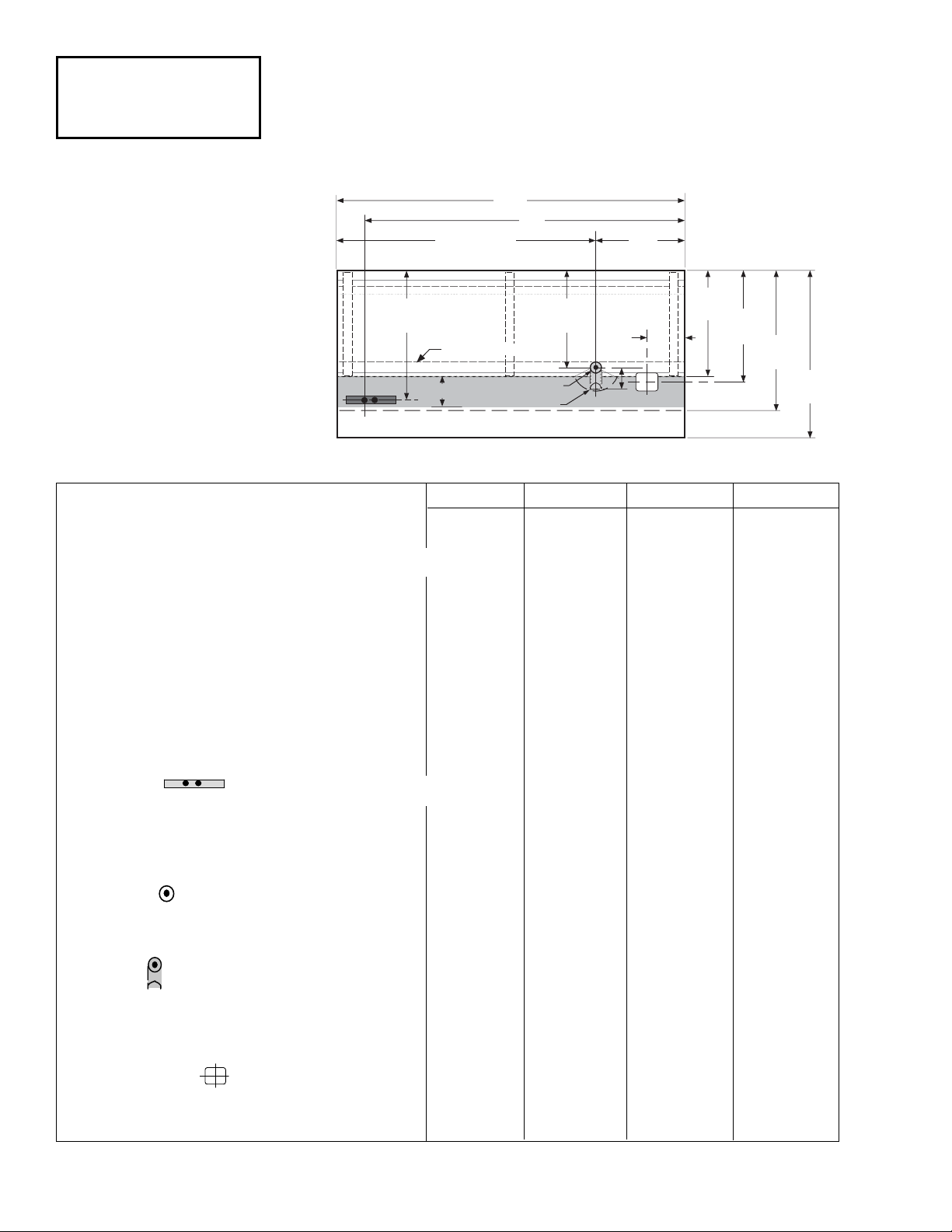

Plan Views

72 1/4(1835)

Elec.

Waste Outlet

(102)

34 5/8

(881)

46 1/2

(1182)

38 7/8

(98 6)

29 1/4

(743)

30 5/8

(778)

27 5/8

(703)

Refrig.

Water Seal

(see note)

C2XGE

73/4(199)

Skid/ External Base

Front

Dimensions shown as inches and (mm).

Dairy / Delicatessen

Precut & Packaged

Produce

05-2003

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 1/4(1226) 72 3/8(1838) 96 3/8(2448) 144 1/2(3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case

back to front (includes bumper) 46 1/2(1182) 46 1/2(1182) 46 1/2(1182) 46 1/2(1182)

Back of case to front of splashguard 38 7/8 (986) 38 7/8 (986) 38 7/8 (986) 38 7/8 (986)

Back of case to O/S edge of front skid rail 29 1/4 (743) 29 1/4 (743) 29 1/4 (743) 29 1/4 (743)

Width of skid rail 4 1/2 (114) 4 1/2 (114) 4 1/2 (114) 4 1/2 (114)

RH end of case to outside edge of external support 5 1/2(140) 5 1/2(140) 5 1/2(140) 5 1/2(140)

Distance between edges of external and center supports NA 31 1/8 (790) 40 5/8 (1032) 40 5/8 (1032)

Distance between edges of center supports 41 1/4 (1048) NA NA 44 (1118)

Stub-up area between front skid rail and splashguard 7 3/4 (199) 7 3/4 (199) 7 3/4 (199) 7 3/4 (199)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of farthest knockout 38 1/4 (972) 64 3/8 (1635) 88 3/8 (2245) 136 1/2 (3467)

Back O/S of case to center of knockout 34 5/8 (881) 34 5/8 (881) 34 5/8 (881) 34 5/8 (881)

Length of electrical raceway 16 1/8 (410) 34 1/2 (876) 35 5/8 (903) 35 5/8 (903)

Waste Outlet

LH End of case to the center of waste outlet 24 1/8 (613) 48 1/4 (1226) 72 1/4 (1835) 72 1/4 (1835)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102) 4 (102) 4 (102)

Outside diameter of the drip pipe 1 1/2 (38) 1 1/2 (38) 1 1/2 (38) 1 1/2 (38)

NNoottee::Water seal outlet must clear front skid rail.

Refrigeration Outlet

Back of case to center of refrigeration outlet 30 5/8 (778) 30 5/8 (778) 30 5/8 (778) 30 5/8 (778)

(D) RH end of case to center of refrigeration outlet 9 (230) 9 (230) 9 (230) 9 (230)

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

C2-XGE

Discharge Air (°F) 29

Evaporator (°F) 21

Unit Sizing (°F) 19

Btu/hr/ft* C2-XGE

Parallel 1037

Conventional 1108

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

C2-XGE

Frequency (hr) 6

Defrost Water (lb/ft/day) 6

(± 15% based on case configuration and product

loading).

OFFTIME C2-XGE

Temp Term (°F)48°F

Failsafe (minutes) 30

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

C2-XGE

CI/CO** 17°F / 7°F

Indoor Unit Only, Pressure Defrost

Termination** 48°F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Estimated Charge (lb)***

4 ft 1.3

6 ft 1.8

8 ft 2.3

12 ft 3.3

***This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

3 of 8

P/N 0428672C HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

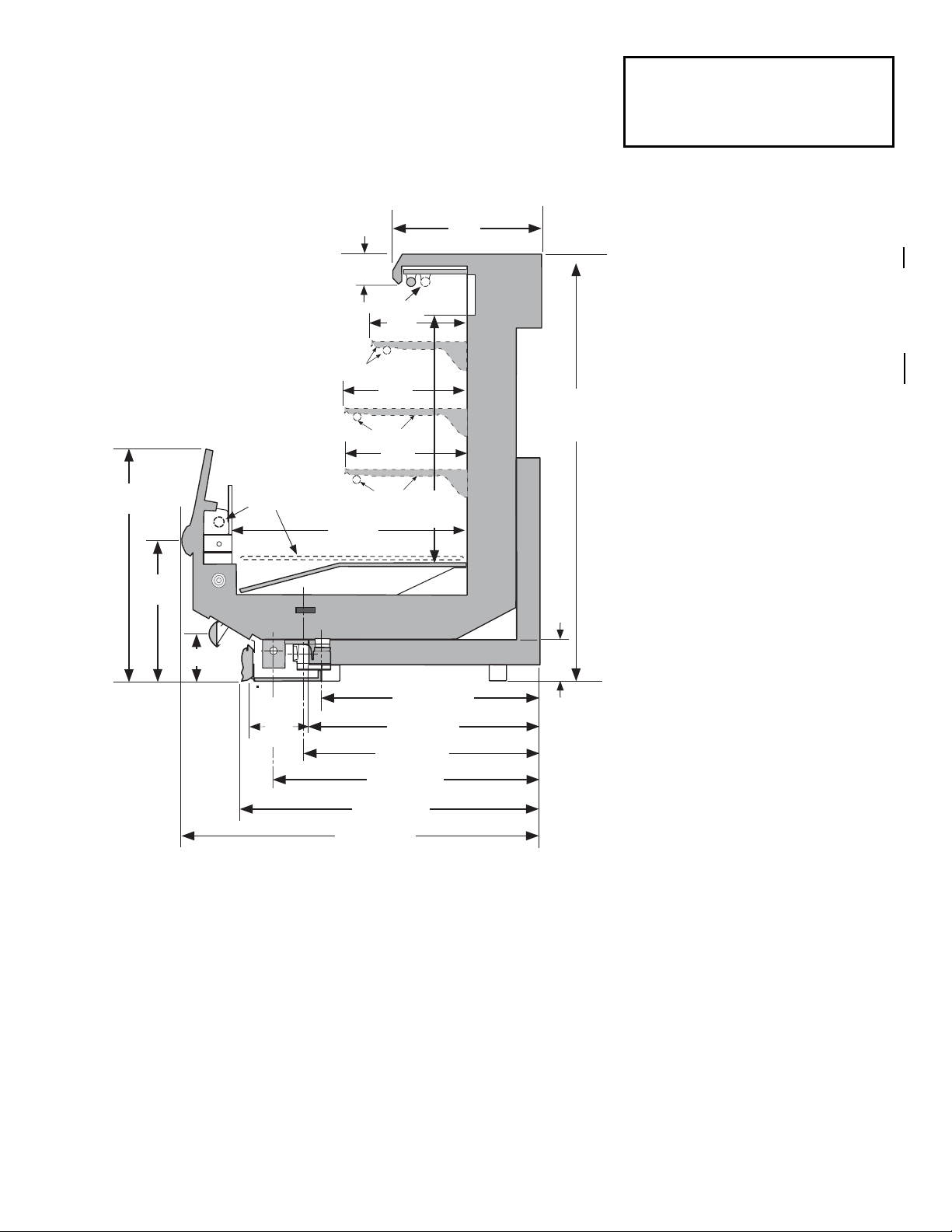

(Note:* Optional accessory items).

C2XGE

(483)

3 3/4

(95)

(305)

(Note*)

(457)

(Note*)

(457)

(Note*) 31 3/4

(806)

30 1/2

(776)

(Note*)

18 1/8

(463)

55 1/2

(1400)

FAN

5 1/4

(132)

27 5/8(703)

29 1/4(743)

30 5/8(778)

34 5/8(881)

38 7/8(987)

46 1/2(1181)

7 3/4

(197)

30 1/8

(766)

6 1/8(155)

Dimensions shown as inches and (mm).

Multi-deck, 3 Display Levels

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF ®) Standard #7 requirements.

Impact C2-XGE

Dairy / Delicatessen

Precut & Packaged Produce

C2-XGE

4 of 8 C2-XGE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact C2-XGE

Dairy / Delicatessen

Precut & Packaged Produce

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans 1 2 2 3

Amperes Watts

4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Evaporator Fan

120V 60Hz Standard 0.51 1.00 1.00 1.50 38 78 78 117

120V 50Hz Standard 0.55 1.10 1.10 1.65 42 84 84 126

230V 60Hz Export 0.25 0.50 0.50 0.75 40 80 80 120

230V 50Hz Export 0.28 0.56 0.56 0.84 44 88 88 132

120V 60Hz Energy Efficient 0.26 0.52 0.52 0.78 18 36 36 54

230V 60Hz Energy Efficient NA

Canopy Anti-sweat Heaters NA 0.75 0.75 1.00 45 90 90 120

Minimum Circuit Ampacity

120V 60Hz Standard 0.71 1.95 1.95 2.70

120V 50Hz Standard 0.75 2.05 2.05 2.85

230V 60Hz Export 0.45 1.45 1.45 1.95

230V 50Hz Export 0.48 1.51 1.51 2.04

120V 60Hz Energy Efficient 0.46 1.47 1.47 1.98

230V 60Hz Energy Efficient NA

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15

Standard Lighting

1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Optional Lighting

Additional 1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Additional 2 Row Canopy 0.51 1.02 1.02 1.54 59 118 118 170

1 Row Rail Light 0.26 0.51 0.51 0.77 30 59 59 85

1 Row Ledge Light 0.26 0.51 0.51 0.77 30 59 59 85

Optional Shelf Lighting

1 Row Shelf Receptacle 0.26 0.51 0.51 0.77 30 59 59 85

2 Row Shelf Receptacle 0.51 1.02 1.02 1.53 59 118 118 177

115V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 115V Lighting Circuit Total by 0.52

5 of 8P/N 0428672C HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Defrost

Termination

Thermostat Refrigeration

Thermostat

Dark Blue

}

Light Blue

Condensing

Unit

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

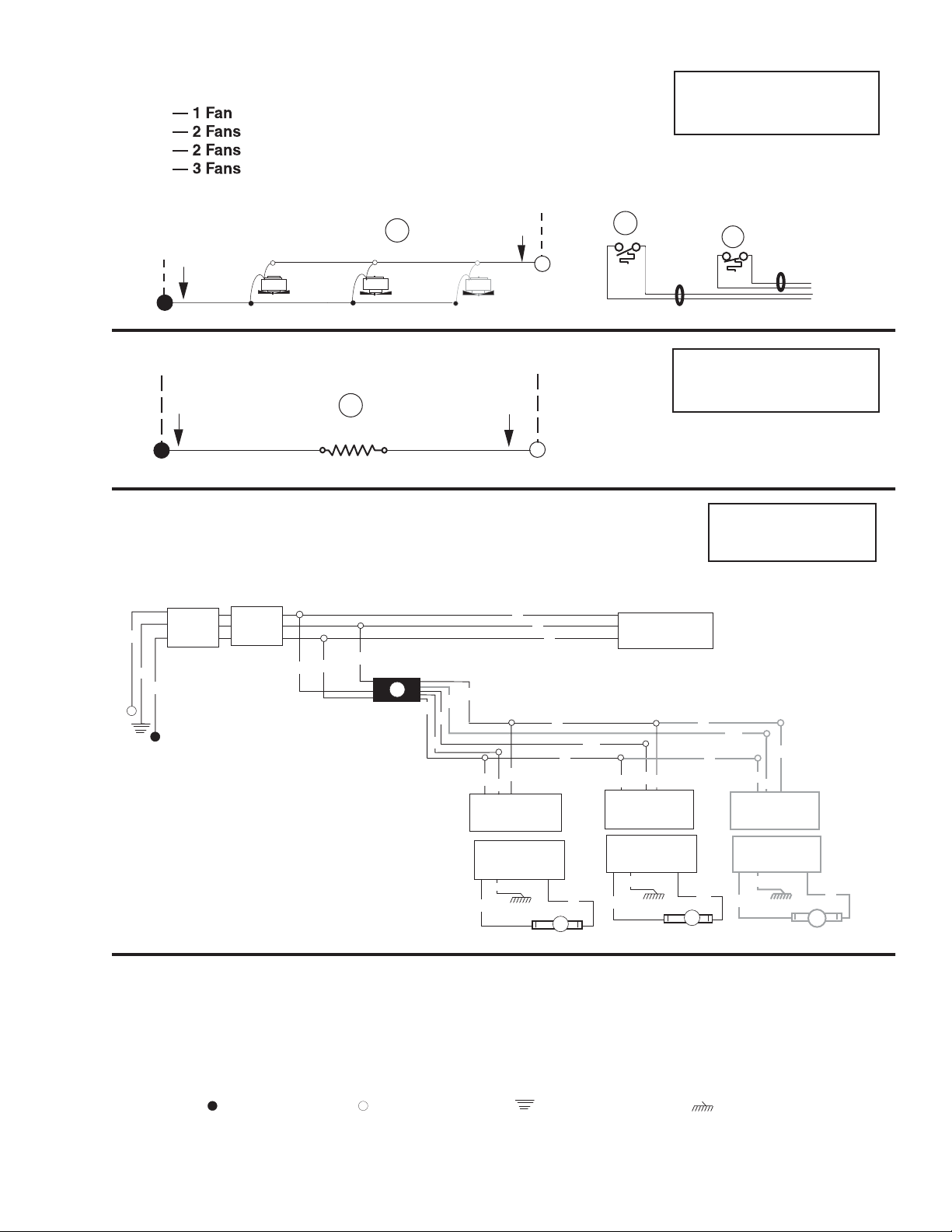

Fan Wiring

Offtime Defrost

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

1, 2 & 3 Fans

4 ft

6 ft

8 ft

12 ft

= Case GROUND

Connector

Connector Connector

Optional Shelf Harness and Light Circuits

for One Row of Shelves

120 V

Power

BL G

BL BL G

Shelf Harness

Shelf Light Circuits

BL R

Shelf Lighting

G G

Connector

Purple BAND 4

120V Power

Purple BAND

120V Neutral

Anti-Sweat Heater

Canopy

Anti-Sweat Heater

6 of 8 C2-XGE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Standard Lighting 1 Row Canopy or Optional 1 Row Rail

Light Circuits

Optional Lighting 2 Rows Canopy

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

WBL

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Note: Optional Construction for 2 Rows Canopy on the 8 ft would be to wire (1) 4-lamp ballast.

7 of 8P/N 0428672C HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

SHELF CONFIGURATION

This merchandiser is designed for

two or three shelves.

The depth of the shelf used in the

top eight (8) shelf hole locations

is critical to case performance.

If a shelf is placed in one of the

top eight (8) locations it must

comply with the angle/depth

requirements listed below.

Maximum Shelf

Shelf Angle Depth

0 º 12 in.

15 º 14 in.

or less

30 º 18 in.

or less

45 º 18 in.

or less

NOTE: Shelves placed in the

lower positions may be up to

18 in. deep when positioned

at a 0 º angle.

Top Eight (8)

Shelf Hole

Locations

18 in.

14 in.

12 in.

0°

15°

30°

45°

Angle

Maximum

Shelf

Size

18 in.

0°

18 in.

0°

Impact C2-XGE

Dairy / Delicatessen

Precut & Packaged Produce

C2-XGE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

8 of 8

Ballast Light Tray

Hinge

Remove Screws

Light Tray

Impact C2-XGE

Dairy / Delicatessen

Precut & Packaged Produce

Foil-covered

Anti-sweat

Heater

Canopy

Anti-Sweat Heater Wires

with Purple Markers

Electrical

Wireway

The ballast for the canopy and shelf lamps is located

behind the light tray on the left-hand end (when

facing case) of the merchandiser.

To access the ballast:

1. Remove screws from the front-lip of light tray

flange covering the bottom edge of the canopy.

Also remove screws located near the middle-rear

of light tray.

2. Swing front of light channel down on it’s rear

hinge.

3. Service or replace ballasts as required.

4. Reassemble items as they were originally

installed. Make sure that wires are not pinched

by re-installed light tray.

NOTE: Rail lamp ballast is located behind the

lower front panel.

CANOPY ANTI-SWEAT HEATER

The canopy anti-sweat heater location is shown

below. Connections are in the Electrical wireway.

Table des matières

Autres manuels Hussmann marchandiseur

Hussmann

Hussmann Impact Excel M3X-EP Mode d’emploi

Hussmann

Hussmann P4X-EP Mode d’emploi

Hussmann

Hussmann FW Manuel utilisateur

Hussmann

Hussmann GSVM4060F Manuel utilisateur

Hussmann

Hussmann DVG-8 Manuel utilisateur

Hussmann

Hussmann VR3-M-EP Instructions d'utilisation d'origine

Hussmann

Hussmann Impact C2-E Manuel utilisateur

Hussmann

Hussmann SI2N Mode d’emploi

Hussmann

Hussmann RI3-N Mode d’emploi

Hussmann

Hussmann M5NX-GEP Mode d’emploi

Hussmann

Hussmann D5NX-EP Mode d’emploi

Hussmann

Hussmann IMPACT P1X Manuel utilisateur

Hussmann

Hussmann IMPACT Elite E5 Manuel utilisateur

Hussmann

Hussmann FI Mode d’emploi

Hussmann

Hussmann ISLA Series Manuel du propriétaire

Hussmann

Hussmann Impact Excel M4X-EP Mode d’emploi

Hussmann

Hussmann SCSS Mode d’emploi

Hussmann

Hussmann Impact Excel M5X-GEP Mode d’emploi

Hussmann

Hussmann HEDN Mode d'emploi

Hussmann

Hussmann VSG Mode d’emploi

Hussmann

Hussmann Impact C2SLE Manuel utilisateur

Hussmann

Hussmann SHM-4 Guide rapide

Hussmann

Hussmann impact C4LE Mode d’emploi

Hussmann

Hussmann NEGDF Manuel utilisateur

Manuels marchandiseur populaires d'autres marques

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuel utilisateur

EPTA

EPTA COSTAN RHINO MULTI Manuel utilisateur

CASCO

CASCO Nano Cube Manuel utilisateur

True

True GDIM-26 Manuel utilisateur

Structural Concepts

Structural Concepts Oasis Mobile Series Instructions d'installation

Haussmann

Haussmann RL Manuel utilisateur

Howard McCray

Howard McCray R-CDS32E-4 Manuel utilisateur

EPTA

EPTA iarp Cool Emotions Delight Lite Manuel utilisateur

VALERA

VALERA BC 85 Manuel utilisateur

HL Display

HL Display 3eBin Manuel utilisateur

Dixie Narco

Dixie Narco DNCB 501E Manuel utilisateur

APW Wyott

APW Wyott Racer DMXD-30H Manuel utilisateur

Hoshizaki

Hoshizaki KD-90C Manuel utilisateur

Summit

Summit SCR1006 Manuel utilisateur

Delfield

Delfield Shelleyspeed SPM-28E Manuel utilisateur

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuel utilisateur

Kysor/Warren

Kysor/Warren GranBering KW Mode d’emploi

Crane

Crane BevMAX Refresh 6 Media Manuel utilisateur
