Hussmann IMPACT RLT Mode d’emploi

FGC

P/N 0445823_B

Merchandisers

RLT

with INNOVATOR Doors

Technical Data Sheet

P/N 0445823_B

NSF®Certified

April 2007

Warning:

Terminal block NOT for

case-to-case

wire connection!

Item Part # Description Wiring Item #

FAN ASSEMBLIES, AND THERMOSTATS

(A) Fan Assembly (1)

0435101 Standard Motor (Energy Efficient)

(MO.4410574)

0315470 Fan Blade (FB.0315470)

(B) 0331798 Standard Non-adjustable (2)

Defrost Thermostat (CT.4440256)

Refrigeration Thermostat (3)

(D) 0440423 Defrost Limit Thermostat (4)

(CT.4481089)

(E) 0446007 Relay Control Thermostat or (5)

Fan and Anti-sweat Heater

Thermostat (CT.4440353)

RELAYS

(F) 0342598 Control Relay (120V) (6)

(RL.4480238)

(G) 0342599 Control Relay (208V) (7)

(RL.4480237)

HEATERS

(H) Electric Defrost Heaters (208V) (8)

0461938 (1) 2 Door Models (HE.4850354)

0461939 (1) 3 Door Models (HE.4850355)

0461940 (1) 4 Door Models (HE.4850356)

0461941 (1) 5 Door Models (HE.4850357)

Item Part # (Qty) Description Wiring Item #

HEATERS (CONTINUED)

(I) Drain Pan Heater (Electric & Kool Gas) (9)

(120V)

0452974 (1) 2 Door Models (HE.4850575)

0452975 (1) 3 Door Models (HE.4850508)

0452976 (1) 4 Door Models (HE.4850509)

0452977 (1) 5 Door Models (HE.4850351)

(J) Koolgas Supplemental Heater – Plenum (10)

(120V)

0452980 (1) 2 Door Models (HE.4850576)

0452981 (1) 3 Door Models (HE.4850577)

0452982 (1) 4 Door Models (HE.4850510)

0452983 (1) 5 Door Models (HE.4850578)

(K) Koolgas Supplemental Drain Pan (11)

Heater – Bottom – (120V)

0452970 (2) 2 Door Models (HE.4850350)

0452971 (2) 3 Door Models (HE.4850506)

0452972 (2) 4 Door Models (HE.4850661)

0452973 (2) 5 Door Models (HE.4850507)

LAMPS AND BALLASTS

(L) 0430329 1 Lamp Ballast (BA.4480341)

0430330 2 Lamp Ballast (BA.4480342)

0424649 Export Ballast (BA.0424649)

(M) Standard Fluorescent Lamp

Replace with like fixtures

Refer to INNOVATOR REACH-INGLASS DOOR

INSTALLATION AND SERVICE MANUAL,P/N 0425683,

for Innovator II door and frame replacement parts.

We reserve the right to change

or revise specifications and

product design in connection

with any feature of our

products. Such changes

do not entitle the buyer to

corresponding changes,

improvements, additions or

replacements for equipment

previously sold or shipped.

Note: Revision B moved Items B and D on Page 1 and added Aftermarket part numbers.

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

2 Dr 3 Dr 4 Dr 5 Dr

General

(A) Case Length (without ends or partitions) 62 (1575) 92 1/2 (2350) 122 7/8 (3121) 153 3/8 (3896)

Maximum outside dimension of case back to front 42 1/8 (1070) 42 1/8 (1070) 42 1/8 (1070) 42 1/8 (1070)

(Includes bumper)

Back of case to rear of splashguard 39 3/8 (1000) 39

3/8 (1000) 39

3/8 (1000)

Width of Skidrail 4 1/2 (114) 4 1/2 (114) 4 1/2 (114) 4 1/2 (114)

Width of Bottom Front Support 6 (152) 6 (152) 6 (152) 6 (152)

Stub-up area between front skidrail and splashguard 6 3/8 (1000) 6 3/8 (1000) 6 3/8 (1000) 6 3/8 (1000)

Electrical Service

Left hand end of case to the center of nearest knockout 2 3/4 (70) 2 3/4 (70) 2 3/4 (70) 2 3/4 (70)

(B) Right hand end of case to the center of center knockout 56 7/8(1444) 87 3/8 (2219) 117 3/4 (2991) 148 1/8 (3764)

Back outside of case to center of knockout 34 1/2 (876) 34 1/2 (876) 34 1/2 (876) 34 1/2 (876)

Raceway Length 62 (1575) 62 (1575) 62 (1575) 62 (1575)

*NOTE: Electrical Field Wiring Connection Point is at terminal.

Waste Outlet

Back outside of case to center of waste outlet 34 1/2 (876) 34 1/2 (876) 34 1/2 (876) 34 1/2 (876)

Water Seal

Edge of water seal to center of waste outlet 11 (279) 11 (279) 11 (279) 11 (279)

Outside diameter of drip piping 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

** NOTE: Field installed water seal outlets, tees, and connectors are shipped with case.

Refrigeration Outlet

(D) Righthand end of case to center of righthand

refrigeration outlet 7 1/4 (184) 7 1/4 (184) 7 1/4 (184) 7 1/4 (184)

Back outside of case to center of refrigeration outlet 5 3/8 (138) 5 3/8 (138) 5 3/8 (138) 5 3/8 (138)

Outside bottom front supports from end of case 6 3/4(170) 6 3/4(170) 6 3/4(170) 6 3/4(170)

Center bottom front support from Centerline 24 (610) 24 (610) 24 (610) 24 (610)

Distance between Center and Outside supports will vary.

Top piping is standard in the RLT case.

RLT with Innovator Doors Technical Data Sheet

2 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Dimensions shown as inches & (mm).

08-2003

5 3/8

(142)

Front

6 (152)

(see note *) Water Seal

(see note **)

(860)

(813)

42 1/8

(1070)

Refrigeration

Outlet

Bottom Front

Support

Waste Outlet

Relay & Terminal

Block Location

Skid/External Base

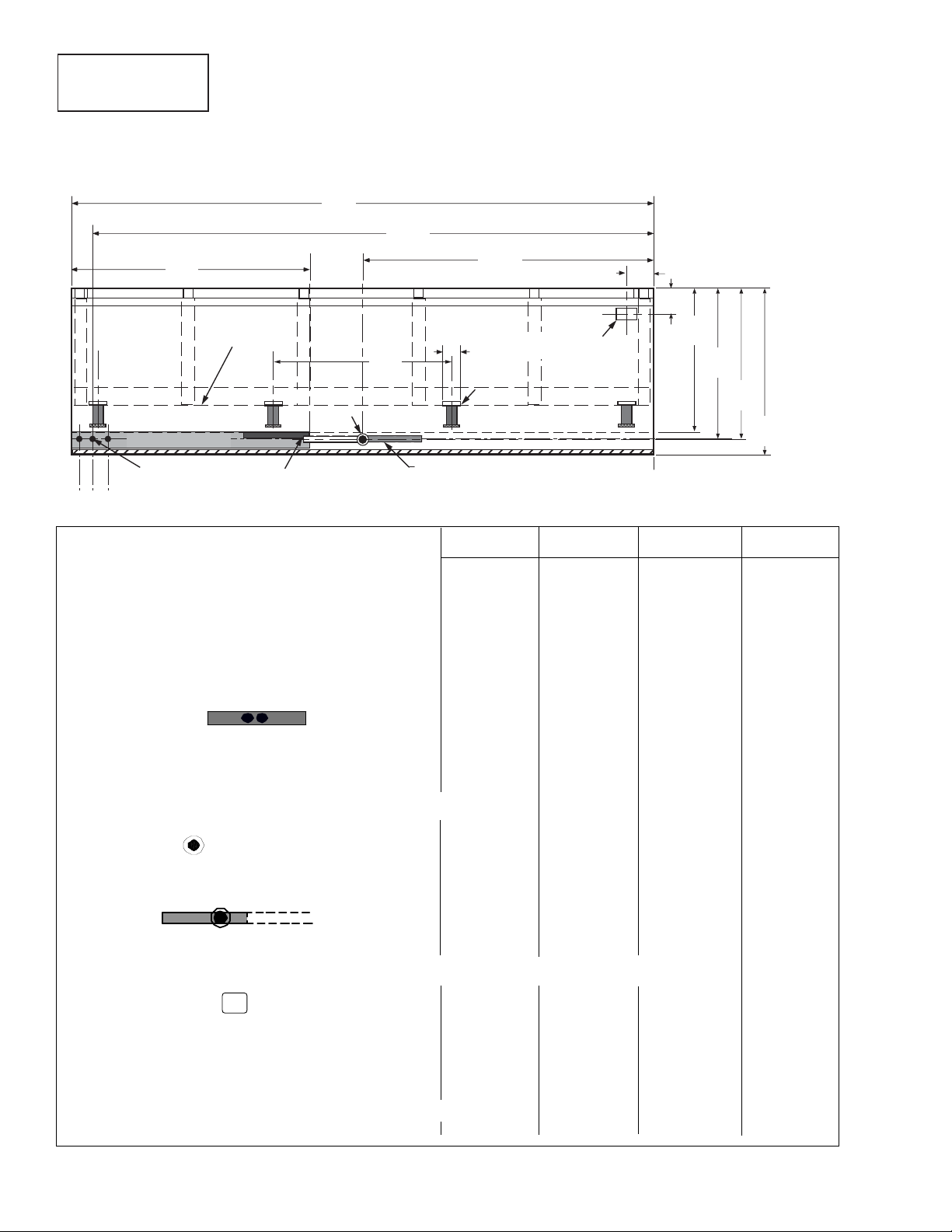

Tall Reach-In

2, 3, 4, & 5 Door

Engineering

Plan Views

(1219)

34 1/2

(876)

(1575)

Electrical Wireway

Dimensions shown as inches & (mm).

3 of 6P/N 0445823_B

Impact RLT

With INNOVATOR Doors

Frozen Food & Ice Cream

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

FF IC

Discharge Air (°F) –5 –12

Evaporator (°F) –11 –19

Unit Sizing (°F) –14 –22

Btu/hr/Door FF IC

Parallel 1355 1430

Conventional 1380 1460

DEFROST DATA

FF IC

Frequency (hr) 24 24

Defrost Water (lb/Dr/day) 1.2 1.3

(± 15% based on case configuration and

product loading.)

ELECTRIC FF IC

Temp Term (°F) 54°54°

Failsafe (minutes) 48 48

GAS

Duration (minutes) 22 22

OFFTIME Not Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

FF IC

CI/CO (Temp °F)* –18°/ –34° –26°/ –45°

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)*

Not Recommended

*Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Drip Pipe (in.) 1 1/4

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)**

2 Dr 3.2

3 Dr 4.7

4 Dr 6.3

5 Dr 8.1

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by each

Standard End (in.) 2

Optional End with Window (in.) 1 1/2

Optional Partition (in.) 1 1/2

32 (813)

5 3/8(138)

RLT

FAN

30 3/4(780)

34 1/2(876)

39 (991)

42 1/8(1070)

(508)

25 7/8

(657)

(559)

63 5/8(1618)

(2261)

85 1/2

(2172)

72 3/4

(1850)

Frame

34 (864)

7 1/8

(180)

6 1/4

(159)

Dimensions shown as inches & (mm).

Tall Reach-in 2, 3, 4 and 5 Door Models

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

RLT with Innovator Doors Technical Data Sheet

4 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Electrical Data

2 Dr 3 Dr 4 Dr 5 Dr

Number of Fans – 25W 2345

Amperes Watts

Merchandiser 2 Dr 3 Dr 4 Dr 5 Dr 2 Dr 3 Dr 4 Dr 5 Dr

Fans

Standard (Energy Efficient) 1.65 2.50 3.30 4.10 125 188 250 313

(Export: 220V 50 hz) 0.91 1.38 1.82 2.26 125 188 250 313

Anti-sweat Heaters

Doors 1.35 2.03 2.70 3.38 162 243 324 405

(Export: 220V 50 hz) 0.74 1.10 1.47 1.84 162 243 324 405

Frames 0.96 1.43 1.92 2.40 115 172 230 288

(Export: 220V 50 hz) 0.52 0.78 1.05 1.31 115 172 230 288

Minimum Circuit Ampacity

With Electric Defrost 4.17 6.17 8.13 10.09

With Koolgas Defrost 5.37 8.28 11.18 14.08

Maximum Over Current Protection 20 20 20 20

(Export: 220V 50 hz) 20 20 20 20

Defrost

Drain Heaters (120V) (KOOLGAS OR ELECTRIC)1.00 1.50 2.00 2.50 120 180 240 300

(Export: 220V 50 hz) 0.50 0.75 1.00 1.25 110 165 220 275

120V Koolgas Supplemental Heaters 4.30 6.78 9.18 11.58 516 814 1102 1390

(Export: 220V 50 hz) 2.35 3.70 5.01 6.32 472 744 1007 1270

208V Electric Defrost 7.7 11.5 15.4 19.2 1600 2400 3200 4000

(Export: 220V 50 hz) 6.7 10.0 13.3 16.6 1465 2200 2930 3660

Standard Vertical Lighting 2 Dr 3 Dr 4 Dr 5 Dr 2 Dr 3 Dr 4 Dr 5 Dr

Innovator* Doors (120V) 1.50 2.00 2.50 3.00 180 240 300 360

(Export: 220V 50 hz) 0.84 1.12 1.40 1.68 185 246 308 370

*Innovator or Innovator II

Impact RLT

With INNOVATOR Doors

Frozen Food & Ice Cream

Hussmann recommends against frame heater cycling with

Innovator

doors to prevent door seals from freezing to the

frames and tearing.

Electric Defrost Sequence - Low Temperature

1. Power from the defrost contactor energizes Defrost Heaters and 208V Evaporator Fan Relay Coil (7). Relay Contacts open the fan

circuit and energizes the Drain Pan Heater.

2. If the Defrost Heater raises internal air temperature above 90°F, the Defrost Limit Thermostat (4) will open.

3. Temperature rise of the evaporator closes the Relay Control Thermostat (5) at about 35°F, energizing 120V A.S. Relay Coils (6).

These relays’ contacts open the Frame and Door Heater Circuits, and prevent the Fan Circuit from energizing upon defrost

termination.

4. When Defrost Termination Thermostat ends defrost period, the defrost contactor opens the Defrost Heater and Evaporator Fan Relay

Coil Circuits. The Drain Pan Heater goes off.

5. Temperature fall of the evaporator opens the Relay Control Thermostat (5) at about 20°F, de-energizing 120V A.S. Relay Coils (6).

A.S. Relay Contacts close the Frame and Door Heater Circuits, and Fan Circuit.

5 of 6P/N 0445823_B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Defrost Termination

Thermostat

Refrigeration

Thermostat

(Optional)

Pink

}To

Condensing

Unit

A.S. Relay

Coil

Evaporator Fans 1

Fan Relay

COM

N.O.

Rod Heater (Drain) 9

N.C.

Relay Control

Fan Relay

BCOM N.C.

A.S. Relay

Door A.S. Heaters

Frame A.S. Heaters

120V POWER

OR L

120V POWER

Switch

NEUTRAL

17 20

208V

Evaporator Fan

Relay Coil

Defrost Heater

N.C.

Defrost Limit

208V 208V

Terminal Blocks in Raceway

Low Temperature with

Electric Defrost

20 21 22 26

3456 781011 1413 16

LIGHTS

(120V)

DEFROST HEATERS

(208V)

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

THESE ARE MARKER COLORS (WIRE MAY VARY.)

CAUTION: When multiplexing

merchandisers equipped with defrost

heaters, if branch circuit overcurrent

protection is larger than the

individual merchandiser’s defrost

circuit load, then additional

supplemental overcurrent protection

may be required per NEC Articles

210 and 240.

R = Red P = Purple 2P = Purple (2 Bands) DB = Dark Blue B = Black

BR =Brown Y =Yellow OR = Orange W = White

Fan and Heater Circuits - Electric Defrost (standard)

Low Temperature

24 2512

FANS & A.S.

(120V)

LIGHTS

(Neutral)

FANS & A.S. (Neutral)

Permanent Internal

Jumpers

R P WBRORRRRBBRRBP

2P BB ORB2PY

C.O.R.

6O.O.R.

Removable External

Jumpers

DB C.O.R.

Defrost Termination

Thermostat

FIELD WIRED

NEUTRAL

Dark Blue

Refer to Innovator Reach-In

Glass Door, Installation and

Service manual, P/N 0425683,

for Innovator door and frame

replacement parts.

120V

Fan Relay

N.C.

120V Fan

Relay Coil

RLT with Innovator Doors Technical Data Sheet

6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Gas Defrost Sequence - Low Temperature

1. Defrost vapor enters evaporator causing a rise in temperature. At about 35°F the Control Relay Thermostat (5) closes

the Fan Relay Coil and Control Relay Coil (6) circuit. The Coil opens the Fan, Door Heater, and Frame Heater circuits,

while energizing the Drain Pan, Bottom, and Plenum Heaters (9), (10) and (11).

2. If the Drain Pan Heater (9) raises internal air temperature above 90°F, the Heater Limit Thermostat (4) will open.

3. When the defrost timer ends a defrost period, the evaporator temperature will start to fall. At about 20°F, the Control

Relay Thermostat will open, de-energizing the Control Relay Coil and Fan Relay Coil (7). Control and Fan Relay’s will

open the Drain Pan Heater circuits, and will close the Fan, Door Heater, and Frame Heater circuits.

Permanent Internal

Jumpers

A.S. Relay

Coil

Evaporator Fans 1

Fan Relay

COM

N.O. Rod Heater (Drain)

N.C.

Relay Control

Fan Relay

BCOM N.C.

A.S. Relay

Door A.S. Heaters

Frame A.S. Heaters

120V POWER

C.O.R.

OR L

120V POWER

Switch

NEUTRAL

17 20

Terminal Blocks in Raceway

Low Temperature with

Gas Defrost

20 21 22 26

10 11 1413 16

LIGHTS

(120V)

Refrigeration

Thermostat

(Optional)

Pink

}To

Condensing

Unit

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

THESE ARE MARKER COLORS (WIRE MAY VARY.)

R = Red P = Purple 2P = Purple (2 Bands) DB = Dark Blue B = Black

BR =Brown Y =Yellow OR = Orange W = White

24 2512

FANS & A.S.

(120V)

LIGHTS

(Neutral) FANS & A.S. (Neutral)

PWBRORBP

2P BB ORB2PY

Removable External

Jumpers

Fan and Heater Circuits - Gas Defrost (optional)

Low Temperature

Fan Relay

Coil

Defrost Limit 4

O.O.R.

NEUTRAL

Refer to Innovator Reach-In

Glass Door, Installation and

Service manual, P/N 0425683,

for Innovator door and frame

replacement parts.

Drain Pan Heaters – Bottom

Koolgas Supplemental

Heater – Plenum

Table des matières

Autres manuels Hussmann marchandiseur

Hussmann

Hussmann IMPACT D5G Manuel utilisateur

Hussmann

Hussmann ASCS Mode d'emploi

Hussmann

Hussmann Impact Excel C6X-LEP Mode d’emploi

Hussmann

Hussmann SGB Mode d'emploi

Hussmann

Hussmann ISLA IM-H Series Manuel utilisateur

Hussmann

Hussmann IMPACT EDS1 Mode d’emploi

Hussmann

Hussmann IMPACT P2NE Manuel utilisateur

Hussmann

Hussmann PHRO Manuel utilisateur

Hussmann

Hussmann SI3 Mode d’emploi

Hussmann

Hussmann IMPACT LWUG Mode d’emploi

Hussmann

Hussmann IMPACT Excel C2NX-LE Mode d’emploi

Hussmann

Hussmann FMR Manuel utilisateur

Hussmann

Hussmann LBN Guide rapide

Hussmann

Hussmann DSF Mode d’emploi

Hussmann

Hussmann REACH-IN Manuel utilisateur

Hussmann

Hussmann Impact F6 Manuel utilisateur

Hussmann

Hussmann DM Manuel utilisateur

Hussmann

Hussmann P/N 0420057_B Manuel utilisateur

Hussmann

Hussmann Impact C2-LGE Mode d’emploi

Hussmann

Hussmann IMPACT LW Manuel utilisateur

Hussmann

Hussmann FWG Mode d’emploi

Hussmann

Hussmann PWR Manuel utilisateur

Hussmann

Hussmann ESBDVS Mode d’emploi

Hussmann

Hussmann microSC GSVM A Series Manuel utilisateur

Manuels marchandiseur populaires d'autres marques

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuel utilisateur

EPTA

EPTA COSTAN RHINO MULTI Manuel utilisateur

CASCO

CASCO Nano Cube Manuel utilisateur

True

True GDIM-26 Manuel utilisateur

Structural Concepts

Structural Concepts Oasis Mobile Series Instructions d'installation

Haussmann

Haussmann RL Manuel utilisateur

Howard McCray

Howard McCray R-CDS32E-4 Manuel utilisateur

EPTA

EPTA iarp Cool Emotions Delight Lite Manuel utilisateur

VALERA

VALERA BC 85 Manuel utilisateur

HL Display

HL Display 3eBin Manuel utilisateur

Dixie Narco

Dixie Narco DNCB 501E Manuel utilisateur

APW Wyott

APW Wyott Racer DMXD-30H Manuel utilisateur

Hoshizaki

Hoshizaki KD-90C Manuel utilisateur

Summit

Summit SCR1006 Manuel utilisateur

Delfield

Delfield Shelleyspeed SPM-28E Manuel utilisateur

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuel utilisateur

Kysor/Warren

Kysor/Warren GranBering KW Mode d’emploi

Crane

Crane BevMAX Refresh 6 Media Manuel utilisateur
