Hussmann Q3-BC Mode d’emploi

1 of 14

Q3 REMOTE

Technical Data Sheet

P/N Q3-DC/DS/BC/BS

Rev C

ecialt

Products

Q- 3 Series

ETL Listed

40427

ETL Sanitation

40427

ETL Sanitation

These merchandisers are manufactured to meet ANSI/National Sanitation

Foundation Standard #7 requirements.

We reserve the right to change or revise specifications and

roduct design in connection with any feature of our

roducts. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75F and 55% R.H.

Deli

Discharge Air (F) 28

Evaporator (F) 20

ote: Not recommended to control temp by regulating

coil temp allow t-stat to cycle and control temp.

tu/hr/

Parallel 735

Conventional 845

*For all refrigeration equipment other than Hussmann,

use conventional Btu values.

DEFROST DATA

Frequency Hrs 8

OFFTIME

Temp Term °F 45

Failsafe Minutes 40

ELECTRIC or GAS Not Recommended

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8*

Merchandiser Suction Line (in.) 5/8*

Estimated Charge (lb)***

4ft 1.2

5ft 1.5

6ft 1.8

*Dependent on case length and refrigerant type.

*** This is an average for all refrigerants types. Actual

refrigerant charge may vary by approximately half a

ound. GLYCOL REQUIREMENTS

GPM PSI

3ft 0.8 3.0

4ft 1.0 5.6

5ft 1.3 8.8

6ft 1.6 3.5

8ft 2.1 6.2

10ft 2.6 9.7

12ft 3.1 6.9

2 of 14

Q3 REMOTE

Technical Data Sheet

P/N Q3-DC/DS/BC/BS

Rev C

ecialt

Products

Q- 3 Series

Q3-DC Service Deli

Engineering

CROSS SECTION

3 of 14

Q3 REMOTE

Technical Data Sheet

P/N Q3-DC/DS/BC/BS

Rev C

ecialt

Products

Q- 3 Series

Q3-DS Service Deli

Engineering

CROSS SECTION

4 of 14

Q3 REMOTE

Technical Data Sheet

P/N Q3-DC/DS/BC/BS

Rev C

ecialt

Products

Q- 3 Series

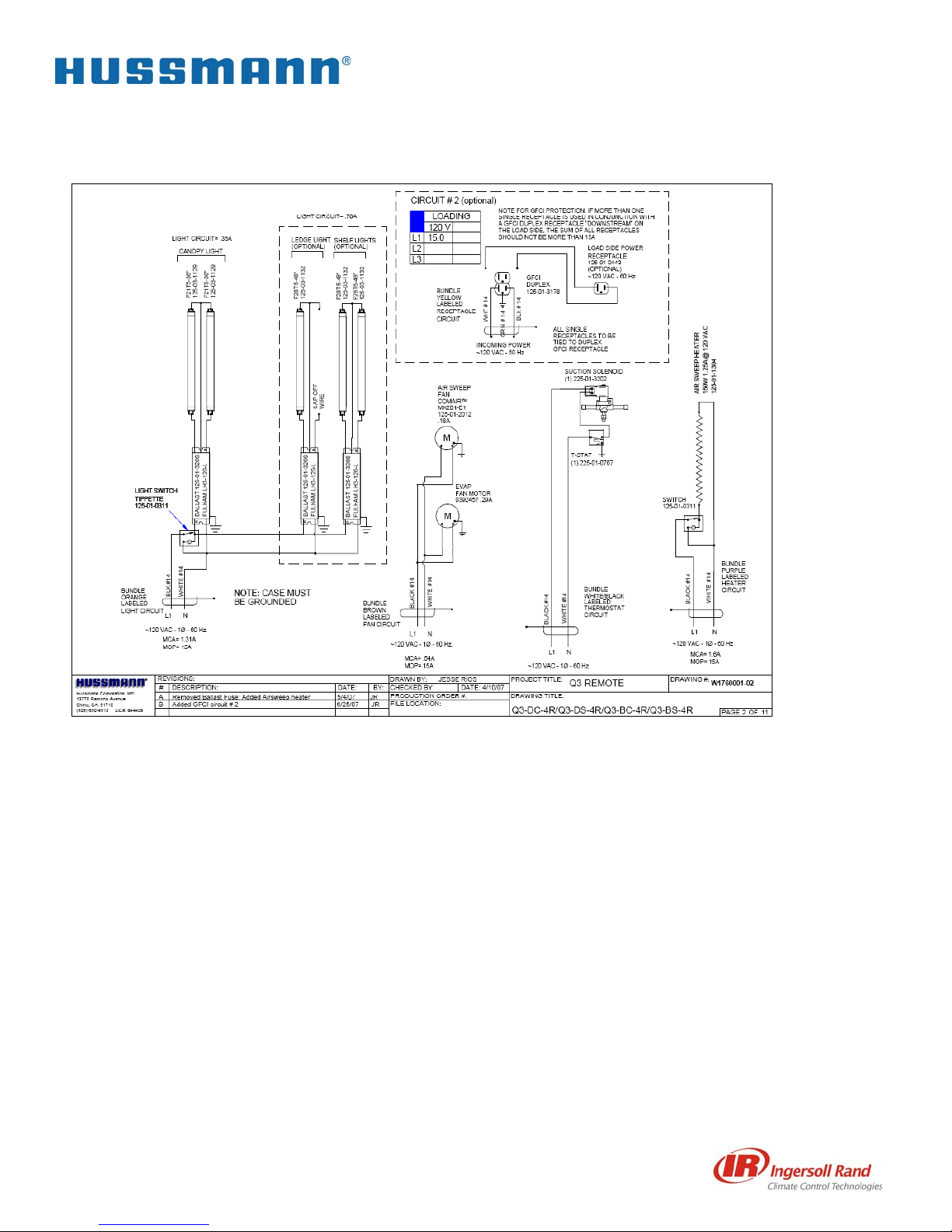

5 of 14

Q3 REMOTE

Technical Data Sheet

P/N Q3-DC/DS/BC/BS

Rev C

ecialt

Products

Q- 3 Series

6 of 14

Q3 REMOTE

Technical Data Sheet

P/N Q3-DC/DS/BC/BS

Rev C

ecialt

Products

Q- 3 Series

7 of 14

Q3 REMOTE

Technical Data Sheet

P/N Q3-DC/DS/BC/BS

Rev C

ecialt

Products

Q- 3 Series

8 of 14

Q3 REMOTE

Technical Data Sheet

P/N Q3-DC/DS/BC/BS

Rev C

ecialt

Products

Q- 3 Series

9 of 14

Q3 REMOTE

Technical Data Sheet

P/N Q3-DC/DS/BC/BS

Rev C

ecialt

Products

Q- 3 Series

10 of 14

Q3 REMOTE

Technical Data Sheet

P/N Q3-DC/DS/BC/BS

Rev C

ecialt

Products

Q- 3 Series
