HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P/N 0481313

Note: Changed items have been underlined.

Merchandisers

P2NE

Data Sheet Set

P/N 0481313

NSF®Certified

August 2004

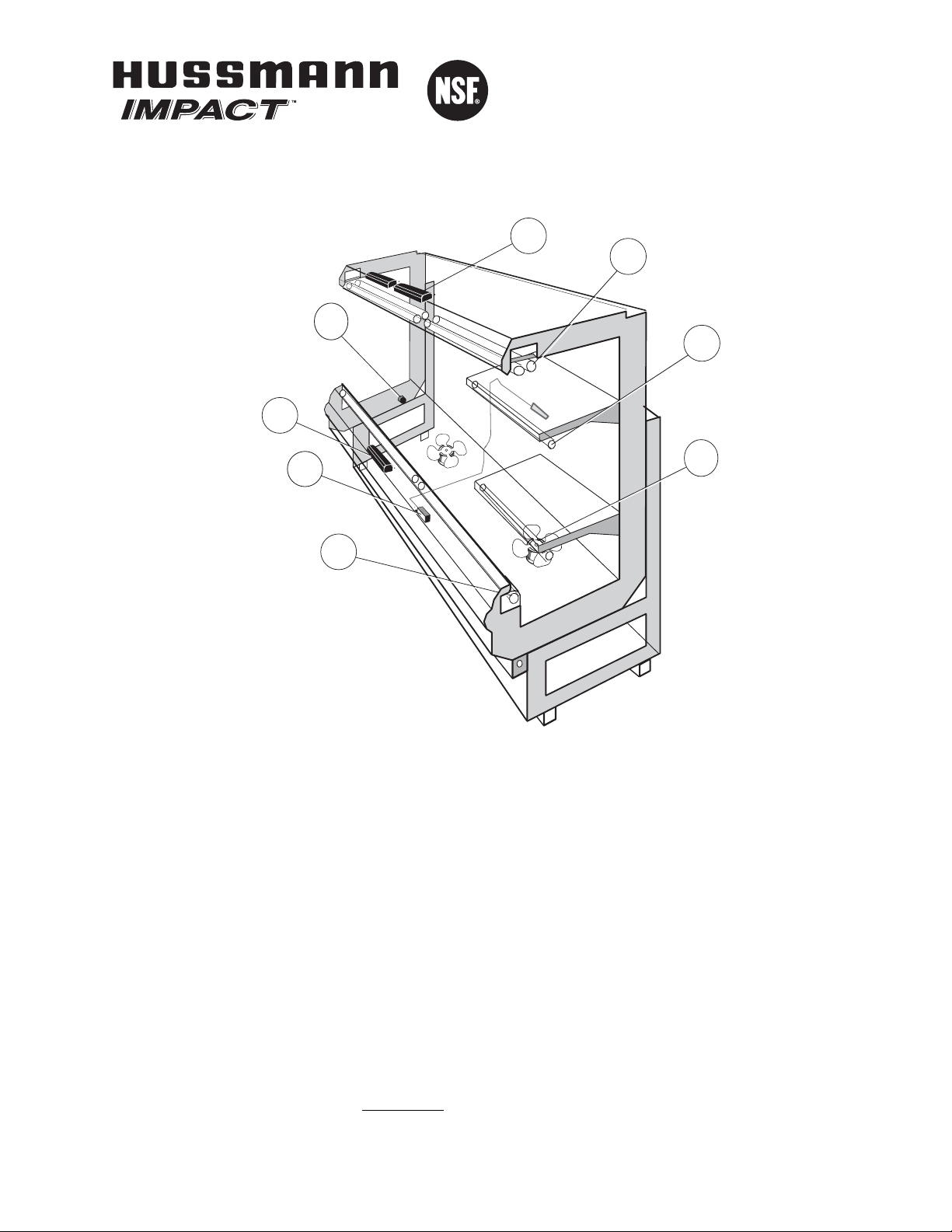

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 9W Fan Assembly (1)

0058698 Fan Motor, Evaporator

0142780 Fan Blade

embossing toward motor

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

C. 0137880 Optional Adjustable (3)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. 0428648 Ballast, Electronic

2 lamps (4)

D. 0428649 Ballast, Electronic

3 lamps (4)

E. Fluorescent Lamp (5)

Replace with like fixtures

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

2 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P2NE Technical Data Sheet

Front Base Rail

72 1/4 (1835)

43/8 (111)

Refrigeration

Outlet

Waste Outlet

Water Seal

(230)

Electrical

(787)

Access Area

40 5/8

(1030)

(686)

Front

271/2

(699)

(see note*)

29 1/2

(749)

33 1/2

(851)

3 (076)

4 (102)

Dimensions shown as inches and (mm).

8 Ft 12 ft

General

(A) Length of Case (without ends or partitions) 96 3/8(2448) 144 1/2(3670)

Maximum outside dimensions of case back to front (includes bumper) 40 5/8(1030) 40 5/8(1030)

Back of case to front of splashguard 33 1/2 (851) 33 1/2 (851)

Back of case to outside edge of front skidrail 29 1/2 (749) 29 1/2 (749)

Width of skidrail 2 1/8 (54) 2 1/8 (54)

Distance between inside edges of external support and center support 40 5/8 (1032) 40 5/8 (1032)

Distance between inside edges of center supports NA 44 (1118)

Width of external support 4 1/8 (105) 4 1/8 (105)

Stub-up area between front skidrail and splashguard 3 (76) 3 (76)

Right edge of case (excluding end) to inside edge of external support 1 3/8 (35) 1 3/8 (35)

Electrical Service

(B) Right end of case to center of farthest knockout 88 3/8 (2245) 136 1/2 (3467)

Back outside of case to center of knockout 31 (787) 31 (787)

Length of electrical raceway 34 1/2 (878) 34 1/2 (878)

*Note: Electrical Field Wiring Connection Point

Waste Outlet

Left end of case to center of waste outlet 72 1/4 (1835) 72 1/4 (1835)

Back outside of case to center of waste outlet 27 (686) 27 (686)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102)

Outside diameter of drip pipe 1 1/2 (38) 1 1/2 (38)

**Note: Water seal outlet must clear front skid rail.

Refrigeration Outlet

Right end of case to center of refrigeration outlet 9 (230) 9 (230)

Back outside of case to center of refrigeration outlet 27 1/2 (699) 27 1/2 (699)

Engineering

Plan View

P2NE

All Produce

09-2003

reliminar

eliminary

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

P2NE

Discharge Air °F 33

Evaporator °F 24

Unit Sizing °F 22

Btu/hr/ft** P2NE

Parallel 970

Conventional 1050

**For all refrigeration equipment other than

Husssmann, use conventional BTU values.

DEFROST DATA

P2NE

Frequency (hr) 8

Defrost Water (lb/ft/day) 6

(±15% based on case configuration and

product loading.

OFFTIME P2NE

Temp Term °F 48°F

Failsafe Minutes 30

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F – open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO** 17°F / 7°F

Indoor Unit Only, Pressure Defrost

Termination** 48°F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lbs)***

P2NE

8 ft 2.3

12 ft 3.3

***This is an average for all refrigerant types

actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by Each End

or Insulated Partition (in.) 1 1/2

P/N 0481313 3 of 6

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

P2NE

FAN

Refrigeration

Outlet

(Optional)

30 1/4

(770)

43/8

(111)

(76) 27 (686)

27 1/2 (699)

29 1/2 (748)

31 (787)

34 (862)

40 1/2 (1028)

16 5/8

(421)

73 7/8

(1878)

65/8 (170)

42 3/8

(1076)

38 1/4

(972)

24 1/2

(647)

7 1/2

(190)

3 1/8

(79)

38 1/8

(969)

25 1/2

(647) 17 3/8

(441)

Impact P2NE

All Produce

Multi-deck, 2 Display Levels

Dimensions shown as inches and (mm).

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

4 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P2NE Technical Data Sheet

Impact P2NE

All Produce

Electrical Data

8 Ft 12 Ft

Number of Fans — 6W 2 3

Amperes Watts

Merchandiser 8 Ft 12 Ft 8 Ft 12 Ft

Fans

Standard (120V 60Hz) 1.00 1.50 78 117

Energy Efficient (120V 60Hz) 0.52 0.78 36 54

Export (230V 50Hz) 0.56 0.84 88 132

Cycling Anti-sweat Heaters NA

Minimum Circuit Ampacity

With Standard Fans (120V 60Hz) 1.20 1.70

With Energy Efficient Fans (120V 60Hz) 0.72 0.98

Export (230V 50Hz) 0.76 1.04

Maximum Over Current Protection 120V 20 20

Maximum Over Current Protection 230V 15 15

Supplemental Gas Heaters NA

208V 1ΦΦElectric Defrost NA

Standard Lighting

1 Row Canopy 0.51 0.77 59 85

Optional Lighting

1 Row Canopy and 1 Rail 1.02 1.54 118 170

2 Rows Canopy 1.02 1.54 118 170

2 Rows Canopy and 1 Row Rail 1.53 2.31 177 255

Optional Shelf Lighting

1 Row of Shelves 0.51 0.77 59 85

2 Rows of Shelves 1.02 1.54 118 170

reliminar

eliminary

P/N 0481313 5 of 6

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Fan Wiring

Offtime Defrost

Connector

Connector Connector

Optional Shelf Harness and Light Circuits for

One Row of Shelves

120 V

Power

BL G

BL BL G

Shelf Harness

Shelf Light Circuits

BL R

Shelf Lighting

G G

Connector

2 & 3 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

P2NE Technical Data Sheet6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Standard Lighting 1 Row Canopy

Light Circuits

Optional Lighting 2 Row Canopy

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

= 120V POWER = 120V NEUTRAL

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Optional Lighting 1 Row Rail

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

WBL

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND
