Hussmann IMPACT D5RRIS Mode d’emploi

D5RRIS

Technical Data Sheet

P/N 0435044B

NSF®Certified

June 2006

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 0378349 Fan Motor, Discharge (1)

(MO.4410104)

0315470 Fan Blade

(FB.0315470)

B. 0047000 Fan Motor, Return (2)

(MO.4410103)

0315470 Fan Blade (FB.0315470)

C. 0137880 Optional Adjustable (3)

Refrigeration Thermostat

(CT.4481084)

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. 0428648 Ballast, 2 lamp Electronic

(BA.4480823) (4)

D. 0428649 Ballast, 3 lamp Electronic

(BA.0428649) (4)

E. Fluorescent Lamp (5)

Replace with like fixtures

P/N 0435044A

Merchandisers

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

We reserve the right to change or

revise specifications and product

design in connection with any

feature of our products. Such

changes do not entitle the buyer

to corresponding changes,

improvements, additions or

replacements for equipment

previously sold or shipped.

Rev. B added NSF certification & Aftermarket part numbers.

8 ft 12 ft

General

(A) Case Length* 96 3/8(2448) 144 1/2(3670)

Maximum O/S dimension of case back to front 53 1/8(1349) 53 1/8(1349)

(Note: Includes bumper and wall)

Back of case to O/S edge of front bumper 48 7/8 (1241) 48 7/8 (1241)

Back of case to front of splashguard 44 (1118) 44 (1118)

* Each End and Insulated Partition adds 1 1/2in. (38 mm) to the length of the lineup.

Electrical Service ** Electrical Field Wiring Connection Point

Back of case (wall) to center of 4x4x2 Electrical box 7 5/8(195) 7 5/8(195)

(B) RH End of case to center of 4x4x2 Upper Electrical box 2 1/2(64) 2 1/2 (64)

Waste Outlet

(D) End of case to the center of waste outlet 1 1/4 (32) 1 1/4 (32)

Outside diameter of the drip pipe 7/8 (22) 7/8 (22)

Refrigeration Outlet

Back of case (wall) to center of refrigeration outlet 6 3/4 (171) 6 3/4(171)

(E) LH end of case to center of refrigeration outlet 3 1/2 (89) 3 1/2(89)

Outside diameter of the liquid line 3/8 (10) 3/8 (10)

Outside diameter of the suction line 7/8 (22) 7/8 (22)

D5RRIS Technical Data Sheet2 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Front

Waste

Outlet

Upper Electrical

Box

Upper Refrigeration

Outlet

Cooler Wall

47 3/4

(1214)

53 1/8

(1349)

6 3/4

(171)

Canopy

Bumper

7 5/8

(195)

34 1/8

(867)

Cart Stop Rail

9 7/8

(251)

Lower Electrical

Box

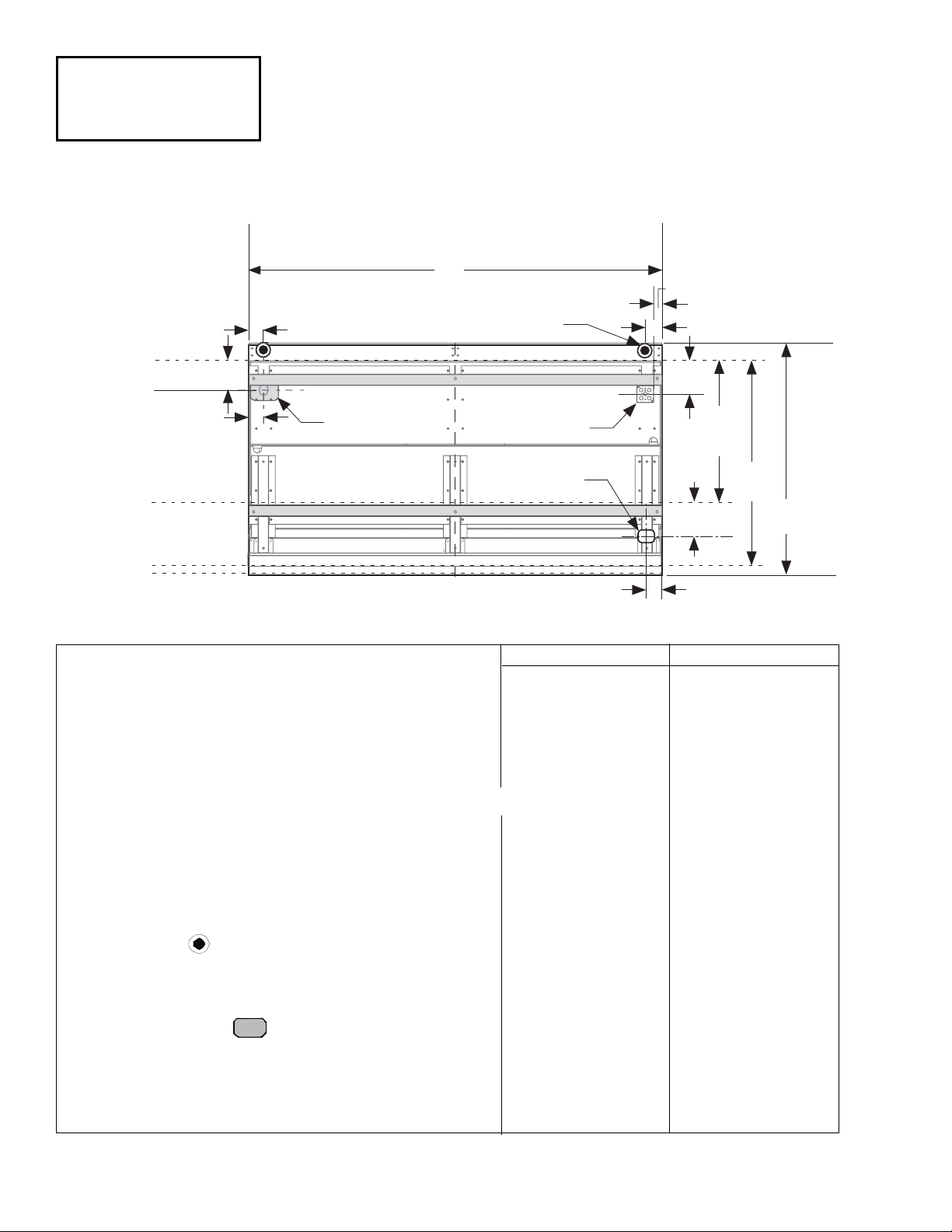

Engineering

Plan Views

Suspended

Roll-in Rear Load

Dairy

3-2003

Dimensions shown as in. & (mm).

NOTE: When joining D5 models with D5RRI or D5RRIS models, the drain location

for the D5 must be moved forward 2.325 inches (59 mm) to allow fronts to align.

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

D5RRIS

Discharge Air (°F) 32

Evaporator (°F) 21

Unit Sizing (°F) 19

Important Note: Btu numbers are for the

D5RRI when installed to a cooler operating at a

36°F air temperature. The unit cooler coil must

be sized for an additional load of 800 Btu/hr/ft

of D5RRIS case installed to the cooler.

Btu/hr/ft D5RRIS

Roll-in Dairy Carts

Parallel 1035

Conventional 1200

DEFROST DATA

D5RRIS

Frequency (hr) 6

Defrost Water (lb/ft/day) 6

(± 15% based on case configuration and product

loading).

OFFTIME D5RRIS

Time Terminated (minutes) 50

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat — NA

CONVENTIONAL CONTROLS

Low Pressure Backup Control

D5RRIS

CI/CO (Temp °F)*14 / 4

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)*

*Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 7/8

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Estimated Charge (lb)**

8 ft 2.7

12 ft 3.9

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length (in.) added to Lineup by

Each End or Insulated Partition 1 1/2

3 of 6P/N 0435044B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

8 7/8

(225)

33 1/8

(842)

81 1/4

(2065)

(1092)

47 7/8

(1217)

53 1/8

(1349)

Fan

Coil Fan

34 3/4

(881)

69 1/4

(1760)

47 3/4

(1214)

2 1/4(57)

78 3/4

(2001)

9 1/2

(241)

54 7/8

(1395)

(483)

14 1/8

(359) 6

(152)

D5RRIS

4 1/8 (106)

5 1/4 (132)

Cooler Wall

1(26)

48 7/8

(1242)

81 1/4

(2065)

Impact D5RRIS

Dairy

Dimensions shown as in. & (mm).

Suspended, Roll-in Rear Load

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF ®) Standard #7 requirements.

Electrical Data

8 ft 12 ft

Number of Fans

Discharge – 9W 4 6

Return – 9W 4 6

Amperes Watts

Merchandiser 8 ft 12 ft 8 ft 12 ft

Fans (Discharge)

Standard 3.08 4.62 248 372

Energy Efficient 1.52 2.28 100 150

Fans (Return)

Standard 2.20 3.30 200 300

Energy Efficient 1.52 2.28 100 150

Constant On Anti-sweat Heaters NA NA NA NA

Cycling Anti-sweat Heaters NA NA NA NA

Minimum Circuit Ampacity

With Standard Fans (60 hz) 5.5 8.2

With Energy Efficient Fans 3.3 4.8

Maximum Over Circuit Protection 120V 20 20

208V 1ΦΦElectric Defrost NA NA

Standard Lighting 8 ft 12 ft 8 ft 12 ft

1 Row Canopy 0.51 0.77 59 85

Optional Lighting

1 Row Canopy and 1 Row Rail 1.02 1.54 118 170

2 Rows Canopy 1.02 1.54 118 170

2 Row Canopy and 1 Row Rail 1.53 2.31 177 255

Shelf Lighting

2 Rows 1.02 1.54 118 170

D5RRIS Technical Data Sheet4 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact D5RRIS

Dairy

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

Refrigeration

Thermostat

Condensing

Unit

}

Light Blue

Shelf Lighting

Fan Wiring

Offtime Defrost

4 & 6 Discharge Air Fans

connectors

Optional Shelf Harness

and Light Circuits

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

4 & 6 Return Air Fans

5 of 6P/N 0435044B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Standard Lighting: 1 Row Canopy

Light Circuits

Optional Lighting: 2 Rows Canopy

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Optional Lighting: 1 Row Rail

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

WBL

RBL

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

RBL

D5RRIS Technical Data Sheet6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
