P/N 0407825B

C6HE

Data Sheet Set

P/N 0407825B

NSF®Certified

February 2004

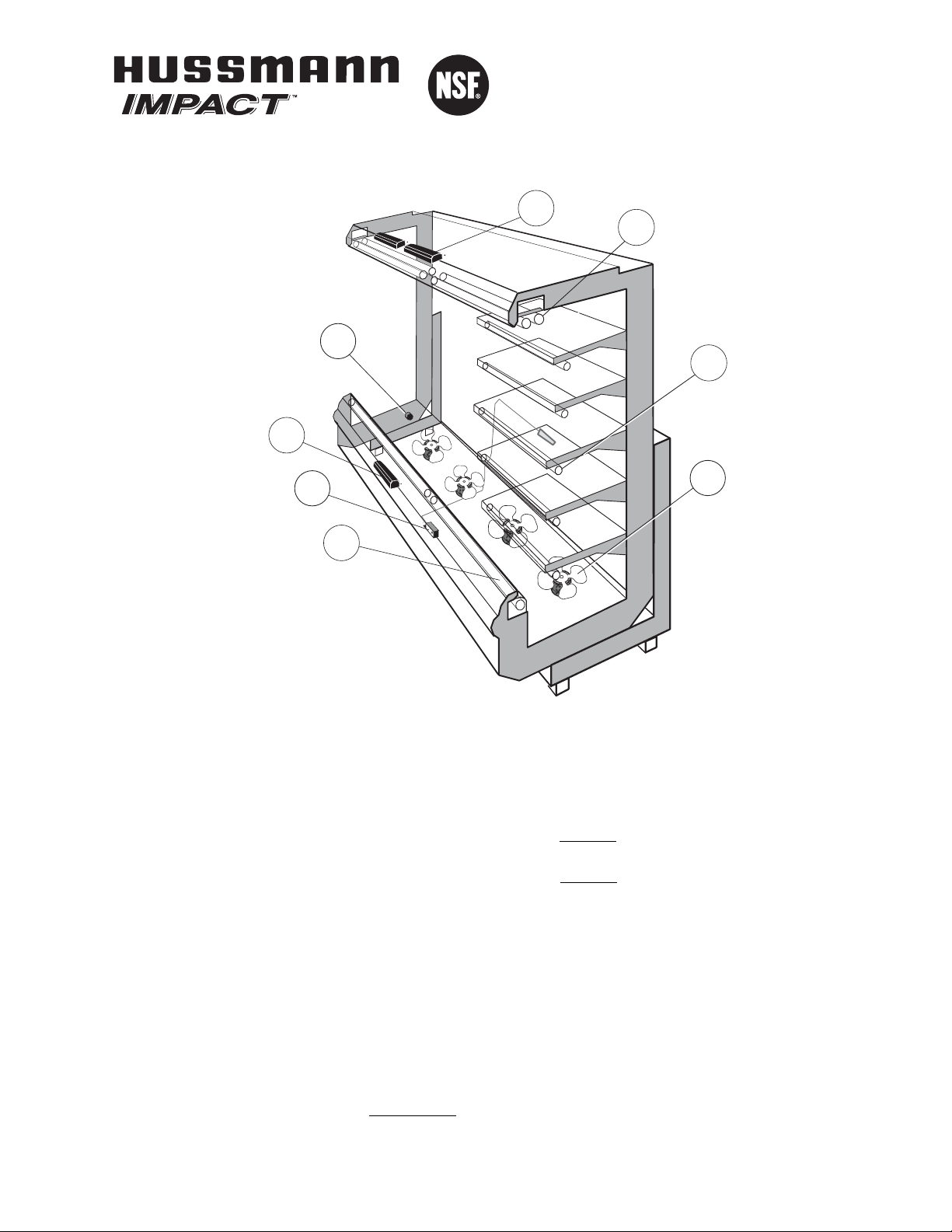

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 9W Fan Assembly (1)

0047000 Fan Motor, Evaporator

0380485 Fan Blade

embossing toward motor

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

C. 0137880 Optional Adjustable (3)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. 0428648 Ballast, Electronic

2 lamps (4)

D. 0428649 Ballast, Electronic

3 lamps (4)

E. Fluorescent Lamp (5)

Replace with like fixtures

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Note: Changed items have been underlined.

Merchandisers

8 ft 12 ft

General

(A) Case Length (without ends or partitions) 96 3/8(2448) 144 1/2(3670)

Maximum O/S dimension of case back to front (includes bumper) 46 1/4(1174) 46 1/4(1174)

Back of case to front of splashguard 38 5/8 (981) 38 5/8 (981)

Back of case to O/S edge of front skid rail 29 1/2 (749) 29 1/2 (749)

Width of skid rail 4 1/2 (114) 4 1/2 (114)

RH end of case to outside edge of external support 5 1/2(140) 5 1/2(140)

Distance between edges of external support and center support 40 5/8 (1032) 40 5/8 (1032)

Distance between edges of center supports NA 44 (1118)

Stub-up area between front skid rail and splashguard 7 (178) 7 (178)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of farthest knockout 88 3/8 (2245) 136 1/2 (3467)

Back of case to center of knockout 35 3/8 (899) 35 3/8 (899)

Length of electrical raceway 34 5/8 (878) 34 5/8 (878)

Waste Outlet

LH End of case to the center of waste outlet 72 1/4 (1835) 72 1/4 (1835)

Back O/S of case to center of waste outlet 27 1/2 (699) 27 1/2 (699)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102)

Outside diameter of the drip pipe 1 1/2 (38) 1 1/2 (38)

NOTE: Water seal outlet must clear front skid rail;

water seal rotation in forward direction only due to low base.

Refrigeration Outlet

Back of case to center of refrigeration outlet 30 5/8 (778) 30 5/8 (778)

(D) RH end of case to center of refrigeration outlet 9 (230) 9 (230)

2 of 6 C6HE Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

Plan Views Dimensions shown as inches and (mm).

01-2004

51/2(140)

13/8(35)

4 1/4(108)

27 1/2

(699) 30 5/8

(778)

46 1/4

(1174)

38 5/8

(981)

29 1/2

(749)

41/2(114)

7 (178) 4 (102)

Waste Outlet

35 3/8

(899)

40 5/8

(1032)

40 5/8

(1032)

Water Seal

(See note) Refrigeration

Outlet

Electrical

Front

72 1/4

(1835)

C6E

C6LE

C6GE

C6HE

Meat/Dairy/Delicatessen

Precut & Packaged

Produce

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75 (°F) and

55% R.H.

C6HE

Meat Produce Dairy

Discharge Air (°F) 29 29 31

Evaporator (°F) 21 21 24

Unit Sizing (°F) 19 19 22

Btu/hr/ft* C6HE

Parallel 1925 1925 1830

Conventional 2040 2040 1940

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

C6HE

Frequency (hr) 4

Defrost Water 10.5 lb/ft/day

(± 15% based on case configuration and

product loading).

OFFTIME C6HE

Temp Term (°F) 48

Failsafe (minutes) 30

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F – open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO** C6HE

Meat Produce Dairy

Temp (°F) 14°/ 4° 17°/ 7° 17°/ 7°

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)** 48°

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)*** C6HE

8 ft 3.2

12 ft 4.5

***This is an average for all refrigerant types

actual refrigerant charge may vary by

approximately half a pound.

Length (in.) Added to Lineup byEach

End or Insulated Partition 1 1/2

3 of 6

P/N 0407825B HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

C6HE

FAN

Lighted Shelf

(Optional)

7 1/2

(191)

45 5/8

(1159)

(2210)

(559)

66 5/8

(1693)

30 1/2

(775)

10 3/4 (273)

5 3/4

(146)

(686)

27 1/2 (699)

29 1/2 (749)

30 5/8 (778)

35 3/8 (899)

38 5/8 (981)

46 1/4 (1174)

(178)

Refrigeration

Outlet

22 1/8

(562)

6 1/8

(155)

4 3/8 (111)

53 3/4

(1366)

Impact C6HE

Meat/Delicatessen/Dairy

Precut & Packaged Produce

Multideck, 5 Display Levels

Dimensions shown as in. & (mm).

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

4 of 6 C6HE Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact C6HE

Meat/Delicatessen/Dairy

Precut & Packaged Produce

Electrical Data

8 ft 12 ft

Number of Fans — 9W 4 6

Number of Fans — 9W (Export) 4 6

(Export: 230V 50 hz shown)

Amperes Watts

Merchandiser 8 ft 12 ft 8 ft 12 ft

Fans

Standard (120V 60Hz) 2.80 4.20 210 320

Energy Efficient (120V 60Hz) 1.52 2.28 100 150

Export (230V 50Hz) 1.52 2.28 228 342

Cycling Anti-sweat Heaters NA

Minimu Circuit Ampacity

With Standard Fans (120V 60Hz) 3.00 4.40

With Energy Efficient Fans (120V 60Hz) 1.72 2.48

With Export Fans (230V 50Hz) 1.72 2.48

Maximum Over Current Protection 20 20

Export (230V 50Hz) 15 15

Electric Defrost Heaters (208V 1ΦΦ)NA

Standard Lighting

1 Row Canopy 0.51 0.77 59 85

Optional Lighting

1 Row Canopy and 1 Row Rail 1.02 1.54 118 170

2 Rows Canopy 1.02 1.54 118 170

2 Rows Canopy and 1 Row Rail 1.53 2.31 177 255

1 Row Ledge Lights 0.51 0.77 59 85

Optional Shelf Lighting

1 Row of Shelves 0.51 0.77 59 85

2 Rows of Shelves 1.02 1.54 118 170

3 Rows of Shelves 1.53 2.31 177 255

4 Rows of Shelves 2.04 3.08 236 340

5 Rows of Shelves 2.55 3.85 295 425

5 of 6

P/N 0407825B HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

=120V POWER =120V NEUTRAL =FIELD GROUND =CASE GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Fan Wiring

Offtime Defrost

4 & 6 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

Connector

Connector Connector

Optional Shelf Harness and Light Circuits for

One Row of Shelves

120 V

Power

BL G

BL BL G

Shelf Harness

Shelf Light Circuits

BL R

Shelf Lighting

G G

Connector

Standard Lighting 1 Row Canopy or Optional 1 Row Rail

Light Circuits

Optional Lighting 2 Rows Canopy

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

= 120V POWER = 120V NEUTRAL

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Optional Lighting 3 Row Canopy

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

WBL

555

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

WBL

555

6 of 6 C6HE Data Sheet
