Husky HYLS-7208 Manuel utilisateur

Item # 303329581

Model # HYLS-7208

THANK YOU

We appreciate the trust and confidence you have placed in Husky through the purchase of this workbench. We strive to continually create

quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

Thank you for choosing Husky!

USE AND CARE GUIDE

72-INCH 8-DRAWER AND 1-DOOR

STAINLESS STEEL MOBILE WORKBENCH

Questions, problems, missing parts?

Before returning to the store, call

Husky Customer Service

8 a.m. –7 p.m., EST, Monday-Friday

9 a.m. –6 p.m., EST, Saturday

1-888-HD-HUSKY

HUSKYTOOLS.COM

Table of Contents

Table of Contents .................................................................2

Safety Information ...............................................................2

Warnings.............................................................................2

Warranty..............................................................................3

1 YEAR LIMITED WARRANTY...............................................3

What is Covered .................................................................3

What is Not Covered ..........................................................3

Pre-assembly........................................................................4

Planning Assembly..............................................................4

Tools Required ................................................................... 4

Product Specifications........................................................ 4

Hardware Included............................................................. 4

Package Contents ............................................................... 5

Assembly..............................................................................6

Operation.............................................................................8

Care and Cleaning.................................................................9

Service Parts.......................................................................10

Workbench....................................................................... 10

Safety Information

WARNINGS

1. Do not overload the product.

2. Do not let children approach the product.

3. Do not open more than one drawer at a time.

4. To help prevent the product from tipping, load the

product starting with the bottom drawers.

5. Lock all drawers and door before moving the product.

6. Make sure all drawers close tightly before

locking/unlocking.

7. Do not step in any drawer/drawers.

8. Keep the locking casters’ brake set unless you are moving

the product. This will help to prevent the product from

rolling.

9. When moving this product, push it rather than pull it.

10. Do not modify the product in any way. Unauthorized

modification may impair the function and/or safety of

the product, and may affect the life of the product.

DANGER: Read and understand all instructions. Failure

to follow all instructions may result in injury and/or

damage.

DANGER: Check for damaged parts and any other

conditions that may affect the operation of this product.

Replace damaged or worn parts, and never use this

product with a damaged part.

WARNING: The warnings, cautions, and instructions

discussed in this manual cannot cover all possible

conditions or situations that may occur.

WARNING: Before using this product, carefully check

that all parts are in good condition, and that the product

will operate properly and perform its intended function.

CAUTION: The user must always be aware of their

environment and ensure that they use the product in a

safe and responsible manner.

3 HUSKYTOOLS.COM

Please contact 1-888-HD-HUSKY for further assistance.

Warranty

1 YEAR LIMITED WARRANTY

WHAT IS COVERED

Manufacturer warrants to the original consumer purchaser (“Purchaser”) of the 72-inch 8-drawer and 1-door stainless steel mobile

workbench (“Product”) that each Product shall be free from defects in workmanship and materials for a period of 1 year from the

date of original purchase. The manufacturer obligation under this warranty shall be limited to repair or replacement of, or adequate

compensation for the Product which shall not be greater than the amount of the purchase price of the Product, at the option of the

manufacturer, during the warranty period. All replaced parts and Products become the property of the manufacturer and must be

returned to the manufacturer.

This warranty excludes normal wear and tear of the Product and its parts or components, and damage arising from any of the

following: negligent use or misuse of the Product, use contrary to this use and user guide, or alteration by anyone other than the

manufacturer. The warranty period of 1 year shall not be extended or renewed by the repair or replacement of, or compensation

for, the Product. Any warranty implied by applicable law is limited in duration to one year from the date of purchase and is subject

to the same conditions and limitations as is provided for our express warranty.

Except as set forth herein, and to the extent applicable, there are no warranties on this Product either express or implied, and the

manufacturer disclaims all warranties including, but not limited to, any implied warranties of merchantability, infringement or

fitness for a particular purpose. No warranty or guarantee given by any person, firm, or corporation with respect to this product

shall be binding on the manufacturer.

WHAT IS NOT COVERED

The manufacturer (and its employees, officers, members, managers, affiliates and assigns) shall not be liable for any incidental,

consequential, special, indirect, remote, special or punitive damages for breach of any warranty, express or implied, including, but

not limited to, lost profits, lost savings, loss of anticipated benefits and attorneys’ fees, which arise out of the purchase, use or

inability to use the Product, whether arising out of contract, negligence, strict tort, product liability, or any other legal theory on

which a claim is based. As noted above, to the extent damages are allowed by our express warranty or by applicable law, those

damages may not exceed the purchase price paid for the Product. Without limiting the foregoing Purchaser assumes all risk and

liability for loss, damage or injury to Purchaser and Purchaser’s property and to others and their property arising out of the use,

misuse, or inability to use this Product. This limited warranty shall not extend to anyone other than the original purchaser of this

product, is nontransferable and states your exclusive remedy.

Some states do not allow the exclusion or limitation of incidental, consequential, special, or punitive damages, so the above

limitation or exclusion may not apply to you. The above warranty gives you specific legal rights, and you may have other rights

which vary from state to state.

Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.HUSKYTOOLS.com.

Pre-assembly

PLANNING ASSEMBLY

Unpack all items and compare them to the Hardware Included and Package Contents lists. Lay all parts on a flat non-abrasive surface

such as cardboard or carpet. If any item appears damaged or is missing, do not assemble the product and contact customer service.

WARNING: It is recommended that at least two

people assemble this product.

TOOLS REQUIRED

Safety

goggles

PRODUCT SPECIFICATIONS

Maximum Capacity Per Drawer

75 lbs

Maximum Capacity Per Shelf

50 lbs

Maximum Total Capacity

1000 lbs

NOTE: Begin product assembly close to the final

intended location of your workbench. This product

is heavy and may be difficult to move after

assembly.

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

_____AA ______BB ___CC ___DD _______EE

Part

Description

Quantity

Handle Bolt M6

Caster Bolt M8

Plugs

Shelf Support

Wrench

5 HUSKYTOOLS.COM

Please contact 1-888-HD-HUSKY for further assistance.

Pre-assembly (continued)

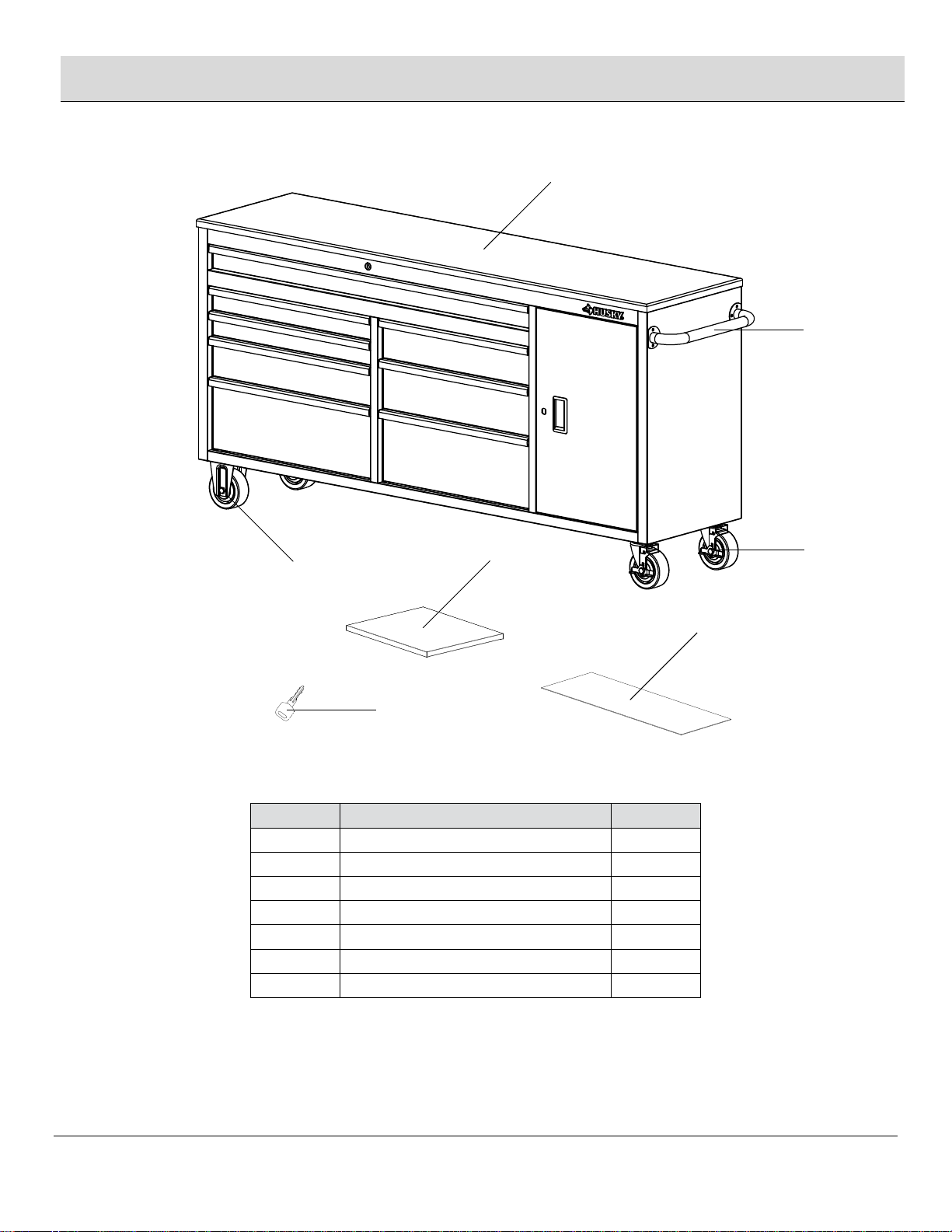

PACKAGE CONTENTS

Part

Description

Quantity

Workbench

Side Handle

Fixed Caster

Swivel Caster

Shelf

Liner

Key

Assembly

Attaching the side handle

Attaching the casters

NOTE: The side handle could be installed on either

the left or right side of the workbench as desired.

□Position the side handle (B) over pre-installed nuts on

the desired side of the workbench (A).

□Insert the handle bolts (AA) through the holes on the

side handle (B).

□Use a wrench (EE) or 10 mm wrench/socket (not

included) to tighten the handle bolts (AA) to the

workbench (A).

□Install the plugs (CC) over the pre-installed nuts on the

opposite side of the side handle (B).

WARNING: At least two people are needed to lay

down the workbench. Do not attempt this alone.

□Lay the workbench (A) on its backside.

□Position the swivel casters (D) on the side of the

workbench (A) of your choice and align the holes to the

pre-installed nuts on the underside of the workbench

(A).

□Use the wrench (EE) to fully tighten the caster bolts (BB)

to the workbench (A).

□Repeat these steps to install the fixed casters (C).

NOTE: Make sure to install both of the swivel

casters (D) on the same side.

NOTE: For ease of use, place swivel casters (D) on

the side you will regularly push or pull.

NOTE: If you plan to push the workbench against a

wall, place swivel casters (D) on the front long side

for ease of access.

7 HUSKYTOOLS.COM

Please contact 1-888-HD-HUSKY for further assistance.

Assembly (continued)

Attaching shelf supports

Installing the shelf

WARNING: At least two people are needed to lift

the workbench. Do not attempt this alone.

□Carefully lift the workbench upright.

□The shelf (E) is shipped upside down at the bottom

inside the cabinet. Tilt the shelf (E) diagonally and

remove it from the cabinet. Flip it over so the flat

surface faces up.

□Determine which location the shelf is desired. Place the

shelf supports (DD) by hooking them over the tabs.

Make sure all four shelf supports (DD) are at the same

level.

□Slide the shelf (E) in on top of all four shelf supports

(DD).

Installing liners

□Place the matching liners (F) in each drawer and on each shelf.

Operation

Removing the drawers

□Pull the drawer out so that it is almost fully extended.

□On the RIGHT-hand side, push the black release lever DOWN.

□On the LEFT-hand side, pull the black release lever UP.

□While holding the levers as instructed, pull the drawer forward until

released from the slides attached to the workbench.

Replacing the drawers

Locking and unlocking

□To replace the drawer, pull the slides out completely.

□Insert the brackets on each side of the drawer slides

into the corresponding slots on the workbench slides,

making sure they are properly positioned.

□Once the brackets are inserted into the slots,

completely close the drawer to set all slides in their

proper positions.

NOTE: Drawer lock and cabinet lock use different

keys. Match the code on the lock to the code on

the key.

□To lock the unit, insert the key (G) into the lock cylinder

and turn it 1/4-turn to the left. Then remove the key.

□To unlock the unit, insert the key (G) into the lock

cylinder and turn it 1/4-turn to the right. Then remove

the key.

NOTE: The drawers must be fully closed before

locking or unlocking the unit.

9 HUSKYTOOLS.COM

Please contact 1-888-HD-HUSKY for further assistance.

Care and Cleaning

□Avoid harsh, abrasive cleaners, and other corrosive chemicals.

□Do not use a scouring pad for cleaning.

□Keep dry and avoid damp environments.

□Use a quality stainless steel cleaner and follow instructions that come with the cleaner. Wipe ALONG the grain (NOT against).

□Wood top can be cleaned with a damp cloth and wiped dry immediately with a dry cloth. If needed, solvent-based wood

furniture cleaner can be used.

□Clean up any spills immediately to prevent stains from forming on the wood top.

Service Parts

WORKBENCH

NOTE: Replacement keys may be ordered using the

code shown on the face of the lock. The drawer and

door lock may have different key codes.

Part

Description

Quantity

Part

Description

Quantity

Shelf

Wrench

Shelf Support

Liner

Handle Bolt

Fixed Caster

Side Handle

Left Large Drawer

Door

Left Medium Drawer

Right Small Drawer

Left Small Drawer

Right Medium Drawer

Full Length Drawer

Right Large Drawer

Key

Caster Bolt

Lock

Swivel Caster

Wood Top

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Husky Rangement des outils

Husky

Husky TB-303B Manuel utilisateur

Husky

Husky HOTC4609BJ5M Manuel utilisateur

Husky

Husky HOTC8422BL2M Manuel utilisateur

Husky

Husky VRT-5606BUHU Manuel utilisateur

Husky

Husky HOTC5213B1OS Manuel utilisateur

Husky

Husky HPRO72TLOCKERBL Manuel utilisateur

Husky

Husky H5CH2R Manuel utilisateur

Husky

Husky HOTC5623BL2S Manuel utilisateur

Husky

Husky UACT-H-360121 Manuel utilisateur

Husky

Husky H61MWC15HP Manuel utilisateur

Husky

Husky HOTC8422BB1M Manuel utilisateur

Husky

Husky H46MWC9XD Manuel utilisateur

Husky

Husky H46MWC9BOXD Manuel utilisateur

Husky

Husky H72MWC15R Manuel utilisateur

Husky

Husky HOTC5618BD1S Manuel utilisateur

Husky

Husky H40CH4TR6 Manuel utilisateur

Husky

Husky H52CH6HDV3WHT Manuel utilisateur

Husky

Husky HOUC3304JX1 Manuel utilisateur

Husky

Husky HBR902490W5R Manuel utilisateur

Husky

Husky HOTC7218B11MYS Manuel utilisateur

Husky

Husky H61CH4P Manuel utilisateur

Husky

Husky H346CH Manuel utilisateur

Husky

Husky HOTC6110BB1M Manuel utilisateur

Husky

Husky H72MWC15 Manuel utilisateur

Manuels Rangement des outils populaires d'autres marques

Ryobi

Ryobi RWB03 Manuel utilisateur

Scheppach

Scheppach ts 2100 Manuel utilisateur

Cornwell Tools

Cornwell Tools CTB360AKBK Manuel utilisateur

DIVERSIFIED WOODCRAFTS

DIVERSIFIED WOODCRAFTS SHAIN GSB-6024 Manuel utilisateur

Cassese

Cassese CS200 CART Manuel utilisateur

Kendall Howard

Kendall Howard ESDW-9630-1000 Manuel utilisateur

Lista

Lista Align Instructions de montage

Workzone

Workzone 99609 Manuel utilisateur

Stanley

Stanley STST83800-1 Manuel utilisateur

Homak

Homak PROFESSIONAL Series Manuel du système

Perel

Perel ROLLER SHUTTER STORAGE CABINET Manuel utilisateur

BGS technic

BGS technic 4107 Manuel utilisateur

Clarke

Clarke CWB1250 Manuel utilisateur

Ryobi

Ryobi RWB02 Manuel utilisateur

Sealey

Sealey PTB66004 Manuel utilisateur

General International

General International Excalibur 40-100 Manuel de la liste des pièces

Newpo

Newpo Light Duty Workbench Manuel de la liste des pièces

Kobalt

Kobalt 0827415 Manuel utilisateur
