Husky Extra Deep 46 in. 9-Drawer Mobile Work Bench
USE AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 a.m – 7 p.m., EST, Monday-Friday
9 a.m – 6 p.m., EST, Saturday
THANK YOU
We appreciate the trust and con dence you have placed in Husky through the purchase of this cabinet. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Husky!
1-888-HD-HUSKY
HUSKYTOOLS.COM
Model # / Store SKU / Internet SKU
H46MWC9GBXD / XXXXXXXXX / XXXXXXXXX
H46MWC9GWXD / XXXXXXXXX /XXXXXXXXX
H46MWC9TRXD / XXXXXXXXXX /XXXXXXXXX
H46MWC9TBKXD / XXXXXXXXXX / XXXXXXXXXX
H46MWC9TBXD / XXXXXXXX /XXXXXXXX
H46MWC9TGXD / XXXXXXXX /XXXXXXXX
CAUTION: Load unit starting with bottom
drawers. Overloading the top of the unit may
result in the product becoming unstable and
creating a tipping hazard, which may cause
personal injury or product damage.
Table of Contents
Table of Contents..................................................2
Safety Information ...............................................2
Warranty ................................................................4
Specifications ........................................................4
Package Contents..................................................4
Hardware Included........................................................... 4
Assembly ...............................................................6
8............................... ................................ecnanetniaM
7..............................................................
Operation
Safety Information
1. Do not pull this unit, push it when moving.
2. Use the brakes when this product is not being
moved. This prevents the product from rolling.
3. Secure this product properly before moving it with a
forklift.
4. Do not tow the product with power equipment.
5. Do not alter this product in any manner. For
example, do not weld external lock bars or attach
electrical equipment.
Do not stand on this product. You
may fall which may cause personal injury or
Be careful when opening more than
one drawer. The product may become unstable
and tip, which may cause personal injury or
product damage.
CAUTION: Keep the product on level surfaces.
The product may become unstable and tip if
stored or moved on an unlevel surface, which
may cause personal injury or product damage.
CAUTION:
CAUTION:
CAUTION:
Lock the drawers before moving
this product. The drawers could come open and
make the product unstable and tip, which may
cause personal or product damage.
.............. 4Alternative Tools For Assembly (Not Included)
Replacement Parts ................................................9
product damage.
6. Before locking the cabinet, ensure the drawers are
completely closed in order for the lock bars to work properly.
Cordless Power Tool Battery Chargers ...............8
2
Do not attach or mount this product
to a vehicle or mobile trailers. This may cause
personal injury or product damage. Mounting this
product to any vehicle or mobile trailers in any
warranty.
CAUTION:
manner will void
7. Extension cord
Follow all manufacturers' Warnings and Operating
Instructions for your extension cord.
Only use a three-wire extension cord with all three prongs
intact. Never remove the round grounding prong.
Check the insulation and plugs of extension cord before
using. Do NOT use cord if it is worn or damaged.
□
□
□
□
Do not insert extension cord through hole without grommet
in place.
□
Extension cord must be connected to a 125 Volt GFCI
protected outlet with proper ground. If GFCI outlet is not
available, use an extension cord with GFCI protection
built in.
□
□
□
Do NOT overload extension cord.
Remove extension cord from the hole
before moving or transporting storage cabinet.
Only use an extension cord that is rated for outdoor use.
□Do NOT connect extension cord to outlet that also sup-
plies critical safety equipment with power.
8. Electrical Shock Hazard
□ Do not plug cord into outlet with wet hands.
□ Do not use this cabinet near a bathtub, a shower, or a
swimming pool.
□ Cabinet plugs must match the outlet.
□ Never modify the plug in any way.
□ Do not use any adapter plugs with earth (grounded) cabinet
power strips.
□
of electric shock.
□ Avoid body contact with earthed or grounded surfaces. There
is an increased risk of electric shock if your body is earthed or
grounded.
CAUTION: RISK OF ELECTRICAL SHOCK: This unit has
one power supply cord. Make sure the cord is
unplugged before any servicing or cleaning.
3 Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
NOTE : This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.However, there
is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
□Reorient or relocate the receiving antenna.
□Increase the separation between the equipment and
receiver.
□Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
□Consult the dealer or an experienced radio/TV
technician for help.
NOTE : This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
WARNING: Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
Specifications
Casters support up to 1200 lbs.
NOTE: Begin product assembly close to t nal
intended location of your cabinet. This product is
heavy and may be di cult to move after assembly.
)rewardtenibac(repthgiewmumixaM 100 lbs.
Package Contents
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Part Description
AA
BB M6 x 16 bolt
M8 x 25 bolt
8
CC Hex key 1
Quantity
BB
AA CC
Warranty
The manufacturer warrants the product to be free from defects in materials and workmanship for a period of three (3) years from date of
purchase. This warranty applies only to the original consumer and only to products used in normal use and service. If this product is found to
be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the manufacturer’s
mishandling.
This warranty shall not apply to any product that is found to have been improperly installed, setup, or used in any way not in accordance with
the instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of an accident, misuse, abuse,
negligence, alteration, faulty installation, or any other failure not relating to faulty material or workmanship. This warranty shall not apply to
ar purpose,
consequential
or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.
Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com.
ALTERNATIVE TOOLS FOR ASSEMBLY
(Not Included)
4
*12 mm wrench or socket
16
Part Description Quantity
A
B
C
Cabinet 1
Cabinet handle 1
D
2
2
2
Swivel caster
Storage hook
E
Fixed caster
Package Contents (continued)
NOTE:
The keys are inside top drawer.
5HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.
A
E
B
C
D
A
A
D
AA
B
BB
Assembly
1
Attaching the cabinet handle
Position the cabinet handle (B) over the holes on the
cabinet (A).
Attach with the bolts (BB) and tighten with supplied
hex key (CC).
NOTE:
The holes in the cabinet are tapped and do not
require nuts.
□
□
CAUTION:
Two people are recommended for assembly.
Attaching the storage hook
3
□Position the storage hook (E) over the holes on the
cabinet (A).
□
Attach with the bolts (BB) and tighten with supplied
hex key (CC).
6
Attaching the casters
□Be sure the drawers are locked and lay the cabinet (A)
□emasehtno,tinuehtot)D(sretsacleviwsehthcattA
side as the handle, inserting bolts (AA) through the swivel
casters(D) and into the cabinet (A).
□Tighten with supplied hex key (CC) or 12 mm wrench/socket.
□Repeat this process for the xed casters (C) on the
opposite side of the cabinet (A).
□Return the cabinet (A) to its upright position.
CAUTION: Do not over tighten the bolts.
2
A
E
BB
Installation of Power Cord
4
Untie power cord located inside drawer.
Gently pull cord plug through grommet.
□
□
Operation
1
Removing the drawers 2
Re-inserting the drawers
Fully extend the empty drawer.
□
□
elihwrevelesaelerenoehtpuhsuP pulling
down on the other release lever.
□Pull the drawer outward until it is released from the
drawer slide.
Extend the drawer slides.
□
□
Insert the brackets on each side of the drawer into
the slots in the slides, being careful that they are
properly positioned.
□Once properly inserted, completely close the drawer
to set the slides in their proper positions.
7Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
3Power Cords
□
□
BE SURE TO FOLLOW ALL ELECTRICAL SAFETY PRECAUTIONS.
Warning: Do Not forcefully pull on the power cords to avoid
damaging the power strip and causing injury.
Cordless Power Tool Battery Chargers
See Charger’s Owner’s Manual for proper use and care of charger and batteries.
Follow all Warnings and Instructions provided with your battery charger.
□
Place chargers and electrical connections in till.
□
Chargers are for use in dry locations only. Do NOT expose to liquid, vapor, or rain. Should your charger become wet,
Do NOT attempt to use. Unplug extension cord from supply before handling wet charger or cords.
□
Only use chargers and batteries that are intact and operating properly.
□
Do NOT touch metal prongs when plugging charger into extension cord.
□
□
Do NOT place or attempt to charge lead acid, car type batteries in storage cabinet.
□
□Periodically clean the drawer fronts, drawer trim, and other surfaces with a mild detergent and water.
□you would on a car.
□
Maintenance
1 Caster maintenance 2 Drawer maintenance
□Grease the casters annually using high-quality
bearing grease.
□Lu
bearing grease.
bricate the slides semi-annually with high-quality
8
9Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.

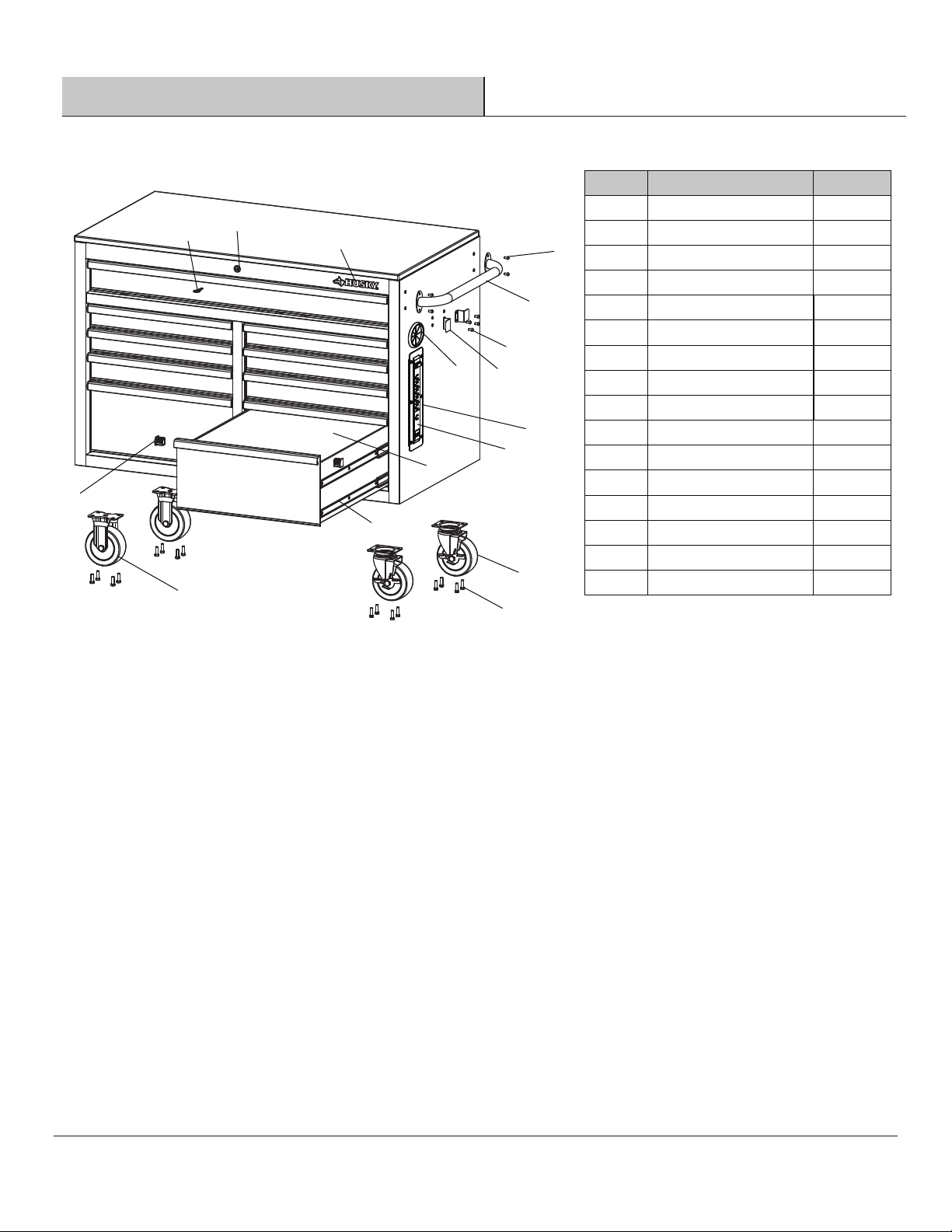

Replacement Parts
For assistance with replacement parts please call 1-888-HD-HUSKY.
Drawer Liner 9
A Cabinet Handle 1
B
2
C
2
DLock 1
F
Badge
1
HDrawer Slide
22
G
Caster Bolt 16
I
4
J
Key 2
E
Part Description Quantity
Fixed Caster
Swivel Caster
Handle Bolt
K
Outlet
1
L
Outlet Panel Cover
1
M
Rubber Grommet
1
N
Storage Hook
2
O
4Storage Hook Bolt
P
18Drawer Handle Cap
C
D
EF
G
K
L
N
O
H
I
P
J
A
M
B
Questions, problems, missing parts? Before returning to the store call
Husky Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday
9 a.m. - 6 p.m., EST, Saturday
1-888-HD-HUSKY
HUSKYTOOLS.COM
Retain this manual for future use.
Ce manuel convient aux modèles suivants
5
Table des matières
Autres manuels Husky Rangement des outils
Husky
Husky H61MWC10PB Manuel utilisateur
Husky
Husky H27CH5TR4BGK Manuel utilisateur
Husky
Husky HPRO72MWC20BRD Manuel utilisateur
Husky
Husky N2R482478W5B Manuel utilisateur
Husky
Husky H46MWC9XD Manuel utilisateur
Husky
Husky HOWT72XDB12/22 Manuel utilisateur
Husky
Husky UAC-H-26005 Manuel utilisateur
Husky
Husky HPRO72TLOCKERBL Manuel utilisateur
Husky
Husky HOTC4116B23S Manuel utilisateur
Husky
Husky H4TR1R Manuel utilisateur
Husky
Husky HPRO72MWC20BLK Manuel utilisateur
Husky
Husky H46MWC9GBXD-TL Manuel utilisateur
Husky
Husky H52MWC10BLU Manuel utilisateur
Husky
Husky H63MWC11FT Manuel utilisateur
Husky
Husky 70220HWVR Manuel utilisateur
Husky
Husky HPRO63TLOCKERBL Manuel utilisateur
Husky
Husky HOTC7218B12M Manuel utilisateur
Husky
Husky H52MWC10WHT Manuel utilisateur
Husky
Husky H72MWC10BLK-SC Manuel utilisateur
Husky
Husky HOTC4609B15M Manuel utilisateur
Manuels Rangement des outils populaires d'autres marques
Ryobi
Ryobi RWB03 Manuel utilisateur
Scheppach
Scheppach ts 2100 Manuel utilisateur
Cornwell Tools
Cornwell Tools CTB360AKBK Manuel utilisateur
DIVERSIFIED WOODCRAFTS
DIVERSIFIED WOODCRAFTS SHAIN GSB-6024 Manuel utilisateur
Cassese
Cassese CS200 CART Manuel utilisateur
Kendall Howard
Kendall Howard ESDW-9630-1000 Manuel utilisateur
Clarke
Clarke CWB1250 Manuel utilisateur
Ryobi
Ryobi RWB02 Manuel utilisateur
Sealey
Sealey PTB66004 Manuel utilisateur
General International
General International Excalibur 40-100 Manuel de la liste des pièces
Newpo
Newpo Light Duty Workbench Manuel de la liste des pièces
Kobalt
Kobalt 0827415 Manuel utilisateur
