HunterDouglas EverWood Guide de l'utilisateur

Installation

•

Operation

•

Care

EverWood

Alternative Wood &

Parkland

Wood Blinds

PowerView

Gen 3 Automation and

SimpleLift

™

with PowerView Gen 3 Automation

Operating Systems

CONTENTS

Questions?

Call Hunter Douglas Consumer Support at (800) 789-0331.

their respective owners.

GETTING STARTED...................................................................................... 1

Product View — PowerView®Gen 3 Automation..........................................1

Product View — SimpleLift™ with PowerView®Gen 3 Automation.............2

Unpack the Blind..............................................................................................3

INSTALLATION ............................................................................................. 4

Installation Overview.......................................................................................4

STEP 1 — Install the Brackets ........................................................................4

Mount the Installation Brackets — Inside or Ceiling Mount .........................5

Mount the Installation Brackets — Outside Mount .......................................7

STEP 2 — Connect the Power Cable, If Applicable......................................10

STEP 3 — Install the Blind............................................................................11

STEP 4 — Connect the Power Source, If Applicable....................................15

Testing the Blind ............................................................................................21

OPERATION................................................................................................. 22

Operate the Blind...........................................................................................22

Operating the PowerView®App and Gen 3 Remote.....................................23

Resetting the Blind (If Necessary).................................................................24

TROUBLESHOOTING ................................................................................. 25

CARE............................................................................................................. 31

Removing the Blind (If Necessary) ................................................................31

Cleaning Procedures......................................................................................31

CHILD SAFETY............................................................................................ 32

DECLARATIONS.......................................................................................... 33

WARRANTY ................................................................................................ 34

GETTING STARTED

Product View — PowerView®Gen 3 Automation

End

Bracket

Hold-Down

Brackets and Pin

(Optional)

Required with 2

∕

" slat size; optional with 2" slat size.

Valance, slats, and bottom rail vary by product.

Intermediate

Bracket

(If Required)

Valance Splice

(If Required)

Valance2

Corner Clips for

Valance Returns

(If Required)

End Bracket

Spacer Block1

Intermediate

Bracket

Spacer Block1

Headrail Bracket Shim

(Optional)

2" or 4"

Extension

Brackets

(Optional)

End Bracket

Spacer Block1

End

Bracket

12V Battery

Wand

Magnetic

Valance Clips2

Transceiver

Assembly

Control

Button

GETTING STARTED

Product View — SimpleLift™ with PowerView®Gen 3 Automation

End

Bracket

Required with 2

∕

" slat size; optional with 2" slat size.

Valance and slats vary by product.

Intermediate

Bracket

(If Required)

Valance Splice

(If Required)

Valance2

Corner Clips for

alance Returns

(If Required)

End Bracket

Spacer Block1

Intermediate

Bracket

Spacer Block1

Headrail Bracket Shim

(Optional)

2" or 4"

Extension

Brackets

(Optional)

End Bracket

Spacer Block

End

Bracket

Power

Cable

12V Battery

Wand

Magnetic

Valance Clips2

Transceiver

Assembly

Control

Button

SimpleLift

™

Hold-Down

Brackets

(Optional)

GETTING STARTED

Thank you for purchasing Hunter Douglas horizontal blinds. With proper installation,

operation, and care, your new blinds will provide years of beauty and performance.

Please thoroughly review this instruction booklet and the enclosed packing list before

beginning the installation.

Tools and Fasteners Needed

■ Ballpoint pen

■

⁄

" hex and flathead screwdrivers

■ Level (laser level is recommended)

■ Measuring tape and pencil

■ Power drill,

⁄

" drill bit, and

⁄

" hex driver

In addition, you will need fasteners designed to work with your specific mounting surface(s).

■ #6 Hex Head Screws (Provided). Two 1

⁄

" screws are provided per installation bracket.

■ Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws

long enough for a secure attachment.

■ Nuts and Screws (Provided). Extension brackets come with screws and nuts.

■ Wire Retainers (Not Provided). If using 18V DC Power Supply, satellite battery mount or

rechargeable battery wand, wire retainers are recommended to secure the power cable.

Unpack the Blind

■ Remove the blind from the package. Keep the packaging until the blind operates to your

satisfaction.

■ Refer to the packing list and check for all necessary parts.

■ Contents of your hardware package may vary depending upon the options chosen.

■ Do not remove the slat protector tape (if applied). Doing so will damage the slat finish.

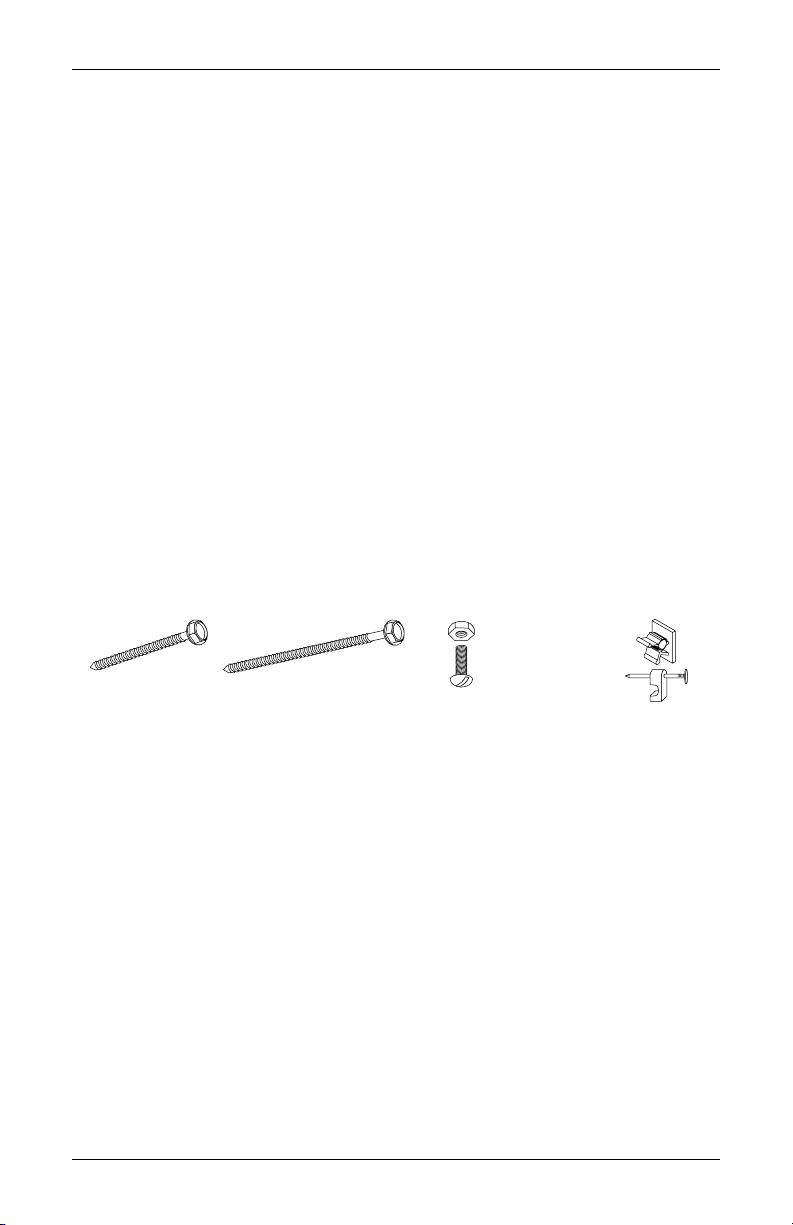

Nut

and Screw

(Two Provided with

Each Extension Bracket)

Wire Retainers

(Not Provided)

#6 x 1

∕

Hex Head Screw

(Provided)

Longer #6 Hex Head Screw

for Use with Spacer Blocks

(Not Provided)

INSTALLATION

Installation Overview

To install your blind, you will need to perform the following four steps:

STEP 1: Install the Brackets

STEP 2: Connect the Power Cable

STEP 3: Install the Blind

STEP 4: Connect the Power Source, If Applicable

STEP 1 — Install the Brackets

■ Two end brackets are used to mount horizontal blinds. Wider blinds also require one or

two intermediate brackets, as shown in the tables below.

Mounting Types and Window Terminology

If the installation brackets are mounted correctly, the rest of the installation process follows

easily. To prepare for this important first step, review the mounting types and basic window

terminology illustrated below.

■ Refer to the appropriate page below based on your order:

➤ Inside or Ceiling Mount — Page 5

➤ Outside Mount — Page 7

Width of Blind Intermediate Brackets

Up to 48" 0

⁄

" – 60" 1

⁄

" – 96" 2

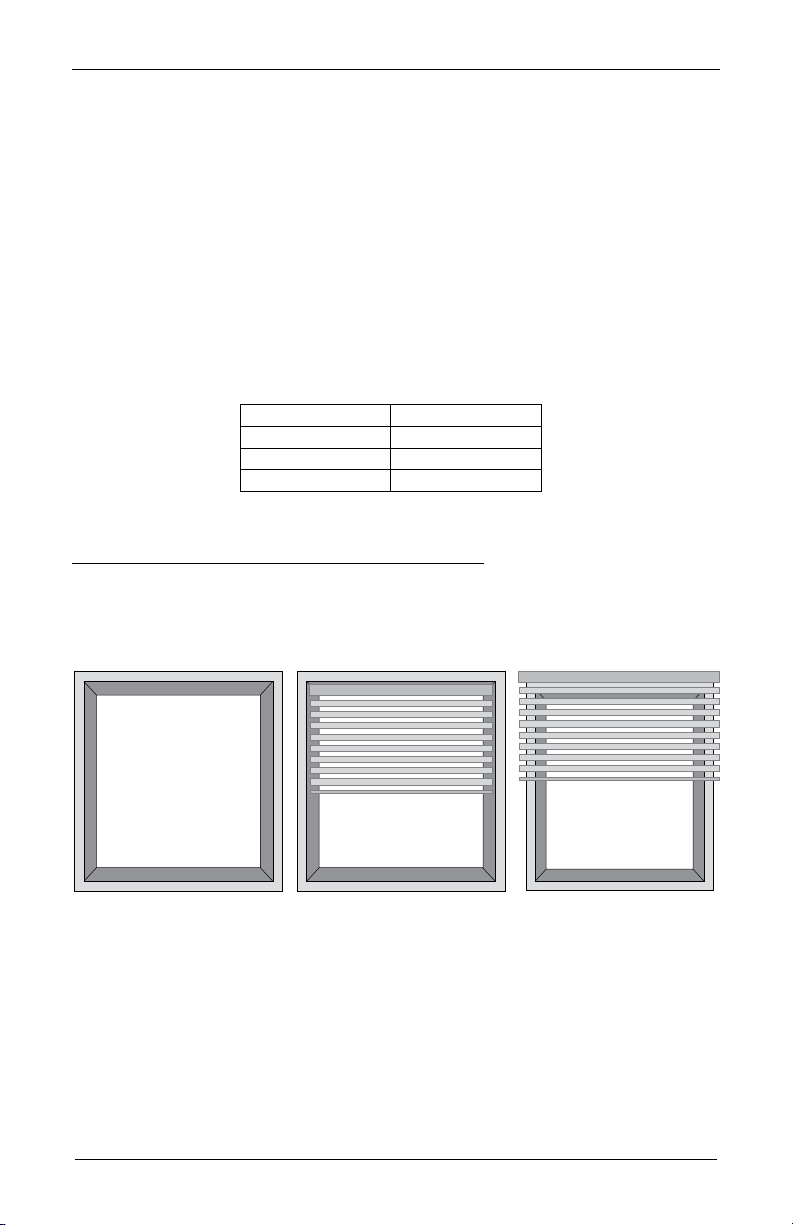

Outside Mount

Blind mounts

outside window

opening.

Inside Mount

Blind ﬁts within

window opening.

Collectively, the sill and

jambs are called the

“window casement.”

Molding

Head Jamb

Sill

Jamb Jamb

INSTALLATION

Mount the Installation Brackets — Inside or Ceiling Mount

Headrail Bracket Shims (Optional)

Headrail bracket shims are used to gain clearance for valance clips with inside or ceiling

mounts. One shim for each end bracket and two shims for each intermediate

bracket are included.

■ With each end bracket, first fold the shim and then position it on top of the end bracket to

gain the required clearance.

■ With each intermediate bracket, stack two

unfolded shims.

NOTE: Headrail bracket shims may also be

used to level the blind whenever the mounting

surface is uneven. The shims can be cut along

their fold line to make them fit.

Attach the End Brackets

With inside or ceiling mounts, attach the two end brackets flush against the sides of the

window casement or to the ceiling. Choose the most appropriate of the following mounting

methods:

■ Side/Top Mount (Inside mount only): Mount the end brackets with one screw through

a side hole and one screw through a top hole, as shown below left.

■ Side Mount (Inside mount only): Mount the end brackets with two screws through

diagonal side holes.

■ Top Mount (Inside or ceiling mount): Top mount the end brackets with screws through

the two top holes, as shown below right.

■ Ceiling mount only: If the end brackets are flush with the back wall, attach them with

one screw through a top hole and one screw through a rear hole.

■ Mark each required screw hole.

Single

Shim

Intermediate

Bracket

Side/Top

Mount

Top Mount

INSTALLATION

IMPORTANT: The front edges of the end brackets must align.

■ Use a

⁄

" drill bit to drill holes for the mounting screws.

■ Attach the end brackets using the screws provided.

NOTE: For blinds with 2

⁄

" slats, spacer blocks are used with inside mounts to position

the end brackets a minimum of

⁄

" away from the glass. The spacing prevents the slats

from rubbing the glass when they are tilted open.

Attach the Intermediate Brackets (If Required)

■ Evenly space the intermediate bracket(s) between the two end brackets.

➤ Adjust spacing if needed to avoid interference with internal headrail mechanisms.

■ Attach the intermediate bracket(s) with two screws through diagonal top holes.

IMPORTANT: The rear of the end brackets and intermediate bracket(s) must align.

Proceed to “STEP 2 — Connect the Power Cable, If Applicable” on page 10.

Intermediate

Bracket

End

Bracket

End

Bracket

Space Evenly Space Evenly

INSTALLATION

Mount the Installation Brackets — Outside Mount

To attach the end brackets, a flat vertical surface of at least 1

⁄

" is required.

Mark the End Bracket Locations

■ Mark where the ends of the headrail will be located.

➤ Center the headrail over the window opening at the desired height.

Use a pencil to lightly mark each end of the headrail.

➤ Alternatively, measure the width of the headrail and use that

width to mark the headrail end points over the window opening.

■ Make a second mark

⁄

" to the outside of the headrail

end marks. The outer marks are where the outside

edges of the end brackets will be located.

Attach the End Brackets

NOTE: The illustrations in this section show spacer blocks mounted with the end brackets.

Spacer blocks are required for all outside mount 2

⁄

" blinds, unless extension brackets are

used. Spacer blocks are optional for 2" slat size.

■ Align the outside edge of each end bracket with the outer marks.

■ Mark diagonal screw holes.

■ Use a

⁄

" drill bit to drill holes for the mounting screws.

Mark

Measure and Mark

∕

" Out from

Ends of Headrail

Mark

INSTALLATION

■ Attach the end brackets using two screws

through diagonal holes.

➤ If using spacer blocks, use #6 screws

long enough for a secure installation

⁄

" long screw is recommended).

IMPORTANT: The tops of the end

brackets must align.

CAUTION: The rear of the end

brackets or spacer blocks must be flush

against a flat mounting surface. Do not

mount end brackets on acurved

molding.

Attach the Intermediate Brackets (If Required)

■ Evenly space the intermediate bracket(s) between the two end brackets.

➤ Adjust spacing if needed to avoid interference with internal headrail mechanisms.

■ Attach the intermediate bracket(s) with

two screws through diagonal holes.

IMPORTANT: The tops of the end brackets

and intermediate bracket(s) must align.

Intermediate

Bracket

End

Bracket

End

Bracket

Space Evenly Space Evenly

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HunterDouglas Store vénitien

HunterDouglas

HunterDouglas RB 500 Manuel utilisateur

HunterDouglas

HunterDouglas PowerView M40T Manuel utilisateur

HunterDouglas

HunterDouglas Sonnette Manuel utilisateur

HunterDouglas

HunterDouglas Paramount Headrail Systems Manuel de la liste des pièces

HunterDouglas

HunterDouglas Vignette Modern Roman Shades Manuel de la liste des pièces

HunterDouglas

HunterDouglas PowerView Venetian Blind 18VDC Manuel utilisateur

HunterDouglas

HunterDouglas Luminette Privacy Sheers Manuel de la liste des pièces

HunterDouglas

HunterDouglas Silhouette Halo Duolite Manuel de la liste des pièces

HunterDouglas

HunterDouglas 2" Horizontal Aluminum Blinds Manuel de la liste des pièces

HunterDouglas

HunterDouglas Remembrance Motorized Shade Caractéristiques techniques

HunterDouglas

HunterDouglas Blockout Manuel utilisateur

HunterDouglas

HunterDouglas LiteRise Manuel utilisateur

HunterDouglas

HunterDouglas Luminette PowerView Instructions de montage

HunterDouglas

HunterDouglas Duette Manuel utilisateur

HunterDouglas

HunterDouglas Provenance Woven Wood Shades Manuel de la liste des pièces

HunterDouglas

HunterDouglas Silhouette A Deux Manuel de la liste des pièces

HunterDouglas

HunterDouglas LiteRise Manuel d'utilisation

HunterDouglas

HunterDouglas Standard Cordlock, Moveable Slat Specialty... Guide de l'utilisateur

HunterDouglas

HunterDouglas WOODMATES Manuel utilisateur

HunterDouglas

HunterDouglas LiteRise Manuel de la liste des pièces

HunterDouglas

HunterDouglas RB 500 Guide de sécurité

HunterDouglas

HunterDouglas Duette SkyLift Manuel utilisateur

HunterDouglas

HunterDouglas Duette Manuel de la liste des pièces

HunterDouglas

HunterDouglas Vignette Tiered Manuel utilisateur

Manuels Store vénitien populaires d'autres marques

Jysk

Jysk ROGEN Manuel utilisateur

SOMFY

SOMFY 1241752 Manuel utilisateur

Rollos

Rollos S-Nanorollo V2 Guide de planification

Teptron

Teptron Move Manuel utilisateur

Renson

Renson Outdoor Loggia Guide de sécurité

Project Source

Project Source CDLF2342W Manuel utilisateur

Domondo

Domondo PureNight Manuel d'instructions d'installation

rollease acmeda

rollease acmeda Easy Spring Air Guide de configuration

IKEA

IKEA KADRILJ Manuel utilisateur

Hallis Hudson

Hallis Hudson Rolls Super glide Manuel utilisateur

Benthin

Benthin P1614 Manuel utilisateur

MV LINE

MV LINE CLARA 015 Mode d’emploi

Current

Current E-WAND Mode d’emploi

weinor

weinor VertiTex ZipR Manuel

Roto

Roto ZAR M R4/R7 Manuel utilisateur

SOMFY

SOMFY Movelite WT Series Manuel utilisateur

Acmeda

Acmeda RF400 Series Manuel utilisateur

Motura

Motura Pli_353/3 Manuel utilisateur
