GETTING STARTED

Product View

End Cap

Bottom

Bar

Cassette

Installation

Brackets

Cassette

SoftTouch™

Wand

Activation

Arm

GETTING STARTED

Thank you for purchasing Hunter Douglas Alstra®Woven Textures®, Designer Roller and

Screen Shades with SoftTouch™Motorization. With proper installation, operation, and care,

your new shades will provide years of beauty and performance. Please thoroughly review this

instruction booklet before beginning the installation.

Tools and Fasteners Needed

■ #1 Flat blade and #2 Phillips screwdriver

■ Level (laser level is recommended)

■ Measuring tape and pencil

■ Power drill,

⁄

" drill bit and a

⁄

" hex driver

In addition, you will need fasteners designed to work with your specific mounting surface(s).

■ #6 Hex Head Screws (Provided). Two 1

⁄

" screws are provided per

installation bracket.

Mounting Types and Window Terminology

If the installation brackets are mounted correctly, the rest of the installation process will

follow easily. To prepare for this important first step, review the mounting types and basic

window terminology illustrated below.

■ Refer to the appropriate page below based on your order:

➤ Inside Mount for Cassette — page 3

➤ Outside Mount for Cassette — page 4

#6 x 1½"

Hex

Head Screw

Outside Mount

Shade mounts outside

window opening.

Inside Mount

Shade ﬁts within

window opening.

Collectively, the sill and

jambs are called the

“window casement.”

Molding

Head Jamb

Sill

Jamb Jamb

INSTALLATION

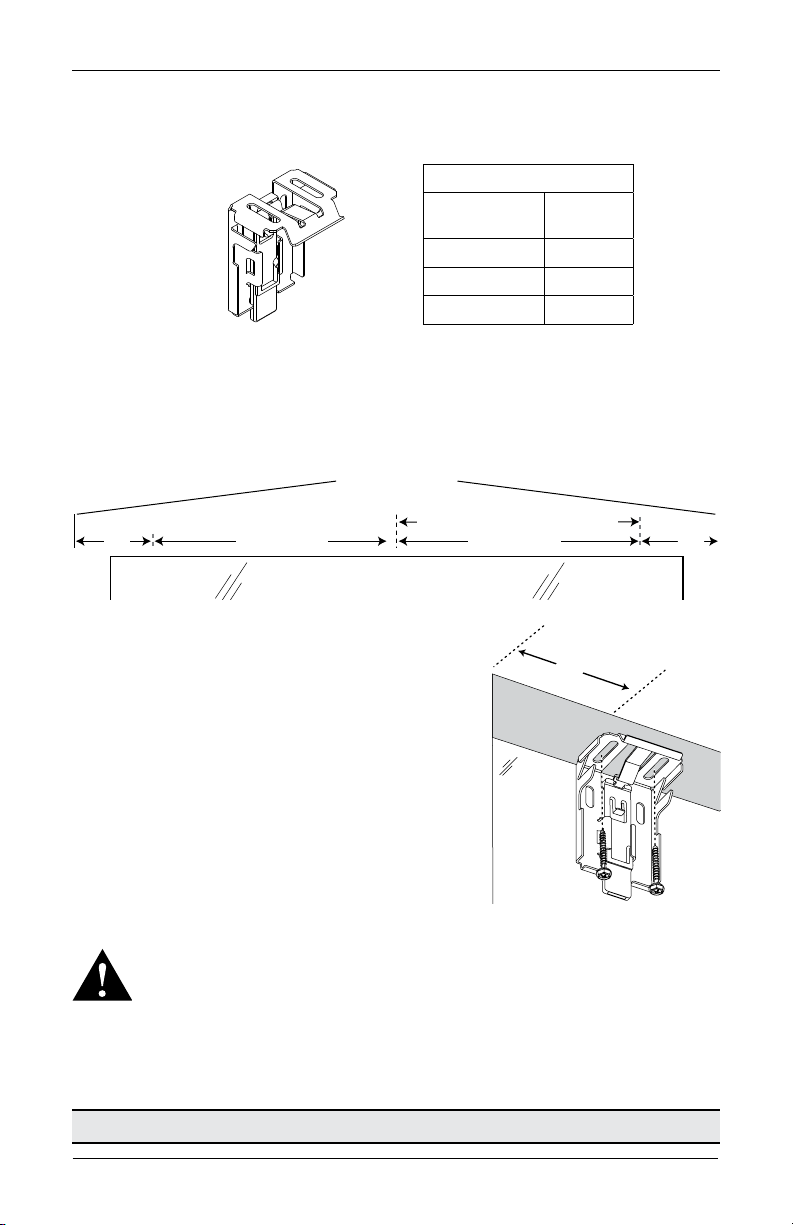

Mount the Installation Brackets Cassette — Inside Mount

The number of installation brackets required varies depending on the shade width, as shown

in thetable.

■ Mark 3

⁄

" in from each jamb for bracket location.

➤ If more than two installation brackets came with your order, space additional bracket(s)

evenly between the two end brackets and mark their location. Mount into wood

whenever possible.

■ Center the brackets on your marks and mark the screw

holes.

➤ The minimum depth required for mounting is 1

⁄

Fully recessed mounting requires 4" for the large

cassette and 3

⁄

" for the small cassette to be flush

with the front of the window opening.

■ For SoftTouch™Motorization with battery wand.

Fully recessed mounting requires 4

⁄

" for large

cassette and 4

⁄

" for small cassette. Minimum depth

required with attached battery wand is 2

⁄

IMPORTANT: The front edges of the installation brackets

must be level and aligned to eachother.

■ Drill the screw holes with a

⁄

" drill bit.

WARNING: Product is heavy. Mount into wood/metal studs or into concrete with

concrete anchors. Drywall anchors are not recommended.

■ Use a level to check that the mounting surface is level. Shim the brackets if necessary.

Shims are not provided.

■ Attach the installation brackets using the screws provided.

Proceed to “Mount the Battery Wand Clips (If Applicable)” on page 5.

Cassette

Installation

Bracket

Cassette Shade

Shade

Width

Brackets

Required

Up to 36" 2

⁄

" – 66" 3

⁄

" – 90" 4

Headrail End Marks

Window Opening

Space Evenly Space Evenly

Minimum 15½" For Battery Wand

3½"

Inside Mount

3½"

INSTALLATION

Mount the Installation Brackets Cassette — Outside Mount

The number of installation brackets required varies depending on the shade width, as shown

in the table.

■ Center the cassette over the window opening at the desired height. Use a pencil to lightly

mark each end of the cassette.

➤ Alternatively, measure the width of the headrail and use that width to mark the

headrail end points over the window opening.

■ If using spacer blocks, snap

each block into a bracket

before installing the

bracket.

■ Mark 3½" in from each end of the cassette.

➤ If more than two installation brackets came with your order, space additional bracket(s)

evenly between the two end brackets and mark their location. Mount into wood

whenever possible.

Cassette Shade

Shade

Width

Brackets

Required

Up to 36" 2

⁄

" – 66" 3

⁄

" – 90" 4

⁄

" – 120" 5

Cassette

Installation

Bracket

Installation BracketsJamb Jamb

Space EvenlySpace Evenly3½" 3½"

Motor

End

Minimum 15½" For Battery Wand

Cassette

Spacer

Block Cassette

Bracket

End of

Cassette

Mark

3½"

Cassette

Spacer

Block

Outside Mount

3½"

INSTALLATION

■ Center the brackets or spacer blocks (if ordered) on your marks and mark the screw holes.

➤ A minimum 4" flat vertical surface is required to mount the brackets.

➤ The top of the installation brackets should be at the desired height. The brackets

should be level andaligned.

IMPORTANT: The front edges of the installation brackets must be level and aligned

to eachother.

■ Drill the screw holes with a

⁄

" drill bit.

WARNING: Product is heavy. Mount into wood/metal studs or into concrete with

concrete anchors. Drywall anchors are not recommended.

■ Use a level to check that the mounting surface is level. Shim the brackets if necessary.

Shims are not provided.

■ Attach the installation brackets using the screws provided.

➤ With cassette spacer blocks, use 2" screws provided. If not using cassette spacer

blocks, use 1

⁄

" screws provided.

Mount the Battery Wand Clips (If Applicable)

If You Have a Cassette Shade with an attached Battery Wand...

■ Attach the battery wand clip to the back of the cassette approximately 10" from the

motor side.

➤ Place the bottom of the clip into the lip, squeeze to compress the clip then rotate it up

and hook it into the top channel.

Squeeze to

Compress

Clip Installed

Correctly

INSTALLATION

Install the Cassette

■ Install the cassette straight into the bracket as shown to ensure the features on the

bracket align with the open sections in the back of the cassette.

■ Push the cassette back to snap the spring tab on the bracket.

Spring

Tab

Bracket

Cassette

Release Tab

INSTALLATION

Connect the Power Source

NOTE: When power is connected to the motor, a blue LED in the bottom of the control side

end cap will flash twice to indicate the shade is ready for operation.

■ Refer to the appropriate page based on your order.

➤ For an optional attached battery wand, see below.

➤ For an optional satellite battery pack, see “Satellite Battery Pack” on page 8.

➤ For an optional satellite-mounted rechargeable battery wand, see page 9.

➤ For an optional 18V DC Power Supply, see page 11.

➤ For an optional 18V DC Power Supply with daisy-chain connections, see page 12.

➤ For an optional C-size satellite battery wand or large DC supply, see the instructions

that came with the wand.

Attached Battery Wand

Plug the Power Cable into the Battery Wand

■ Snap the battery wand into the battery wand clip on the back of the cassette.

■ Connect the power cable from the

motor to the battery wand.

Proceed to “Unpack the Wand and Add to Activation Arm” on page 12.

Brackets removed for clarity.

Battery Wand

Battery Wand Clip

Power Cable

INSTALLATION

Satellite Battery Pack

■ Mount the Satellite Battery Pack

■ Decide where you want to mount the bracket. A satellite

battery pack may be mounted in any orientation.

■ Mark the screw holes.

■ Drill the screw hole using a

⁄

" drill bit.

■ Attach the installation brackets using the screws provided.

■ Position the battery wand so the power cable is easily connected to the socket.

■ Snap the battery wand into the bracket.

■ Place the cover with its slot over the socket in the battery wand.

■ Plug the power cable from the shade

into the extension cable.

■ Plug the other end of the extension cable

into the socket of the battery wand.

Proceed to “Unpack the Wand and Add to Activation Arm” on page 12.

Bracket for the

Satellite Battery Pack

Socket

Battery Wand Cover

Slot

Socket

Battery Wand Cover

Extension

Cable

Power Cable

from Shading

Autres manuels pour Alustra Woven Textures

Table des matières

Autres manuels HunterDouglas Store vénitien

HunterDouglas

HunterDouglas Standard Cordlock, Moveable Slat Specialty... Guide de l'utilisateur

HunterDouglas

HunterDouglas Pirouette PowerView+ Gen 3 Automation Manuel de la liste des pièces

HunterDouglas

HunterDouglas 5-156 Manuel utilisateur

HunterDouglas

HunterDouglas 5-216 Manuel utilisateur

HunterDouglas

HunterDouglas Cadence Soft Vertical Blinds Manuel de la liste des pièces

HunterDouglas

HunterDouglas PowerView Manuel utilisateur

HunterDouglas

HunterDouglas EverWood Guide de l'utilisateur

HunterDouglas

HunterDouglas PowerView Venetian Blind 18VDC Manuel utilisateur

HunterDouglas

HunterDouglas SCG 64 Manuel utilisateur

HunterDouglas

HunterDouglas Sonnette Manuel de la liste des pièces

HunterDouglas

HunterDouglas PowerView Gen 3 Manuel utilisateur

HunterDouglas

HunterDouglas Provenance Woven Wood Shades Manuel de la liste des pièces

HunterDouglas

HunterDouglas Alustra Woven Textures ST30 Manuel de la liste des pièces

HunterDouglas

HunterDouglas Silhouette Duolite UltraGlide Manuel utilisateur

HunterDouglas

HunterDouglas RB 500 Manuel utilisateur

HunterDouglas

HunterDouglas Cadence Manuel de la liste des pièces

HunterDouglas

HunterDouglas Decor Standard Cordlock Manuel du propriétaire

HunterDouglas

HunterDouglas Brilliance Manuel d'utilisation

HunterDouglas

HunterDouglas 5-151 Manuel utilisateur

HunterDouglas

HunterDouglas Blockout Manuel utilisateur

HunterDouglas

HunterDouglas Duette Honeycomb Shades Manuel utilisateur

HunterDouglas

HunterDouglas Remembrance Motorized Shade Caractéristiques techniques

HunterDouglas

HunterDouglas Paramount Headrail Systems Manuel de la liste des pièces

HunterDouglas

HunterDouglas Wood Blinds Manuel utilisateur

Manuels Store vénitien populaires d'autres marques

Jysk

Jysk ROGEN Manuel utilisateur

SOMFY

SOMFY 1241752 Manuel utilisateur

Rollos

Rollos S-Nanorollo V2 Guide de planification

Teptron

Teptron Move Manuel utilisateur

Renson

Renson Outdoor Loggia Guide de sécurité

Project Source

Project Source CDLF2342W Manuel utilisateur

Domondo

Domondo PureNight Manuel d'instructions d'installation

rollease acmeda

rollease acmeda Easy Spring Air Guide de configuration

IKEA

IKEA KADRILJ Manuel utilisateur

Hallis Hudson

Hallis Hudson Rolls Super glide Manuel utilisateur

Benthin

Benthin P1614 Manuel utilisateur

MV LINE

MV LINE CLARA 015 Mode d’emploi

Current

Current E-WAND Mode d’emploi

weinor

weinor VertiTex ZipR Manuel

Roto

Roto ZAR M R4/R7 Manuel utilisateur

SOMFY

SOMFY Movelite WT Series Manuel utilisateur

Acmeda

Acmeda RF400 Series Manuel utilisateur

Motura

Motura Pli_353/3 Manuel utilisateur
