Huawei B68L Manuel utilisateur

B68L Wireless Gateway

Quick Start

96722754_01

1Getting to know your B68L

Power button

Press and hold for about 3 seconds to power the

B68L on or off.

WPS button

Press and hold for 3 or more seconds to active WPS

connection when Wi-Fi is turned on.

LAN port Connect to computer, switch, or other LAN device.

Power port Connect to compatible power adapter.

Telephone port Connect to telephone.

External antenna

port Connect to external antenna.

Network mode

indicator

Fast red blinking: no SIM/USIM card is found, the

PIN is not verified, or the SIM/USIM card is not

working properly.

Steady yellow: registered with a 3G/2G network.

Steady green: connected to the Internet.

Off: no signal.

Wi-Fi/WPS

indicator

Steady on: Wi-Fi turned on or data transfer in

progress.

Blinking: a WPS connection is being set up.

Off: Wi-Fi turned off.

Power indicator

On: the B68L is powered on.

Off: the B68L is powered off.

LAN indicator

Steady on: LAN port is connected to a client.

Off: no client is connected to LAN port.

SIM/USIM card

slot

Install a SIM/USIM card to access to the Internet via

a 3G/2G data connection.

Reset button

Restoring the default settings of the B68L will erase

all previous settings.

When the B68L is powered on, use a sharply pointed

object to press and hold for about 3 seconds until all

indicators are blinking to restore the B68L to its

factory settings. After the factory defaults are

restored, the B68L will restart automatically.

2Installation

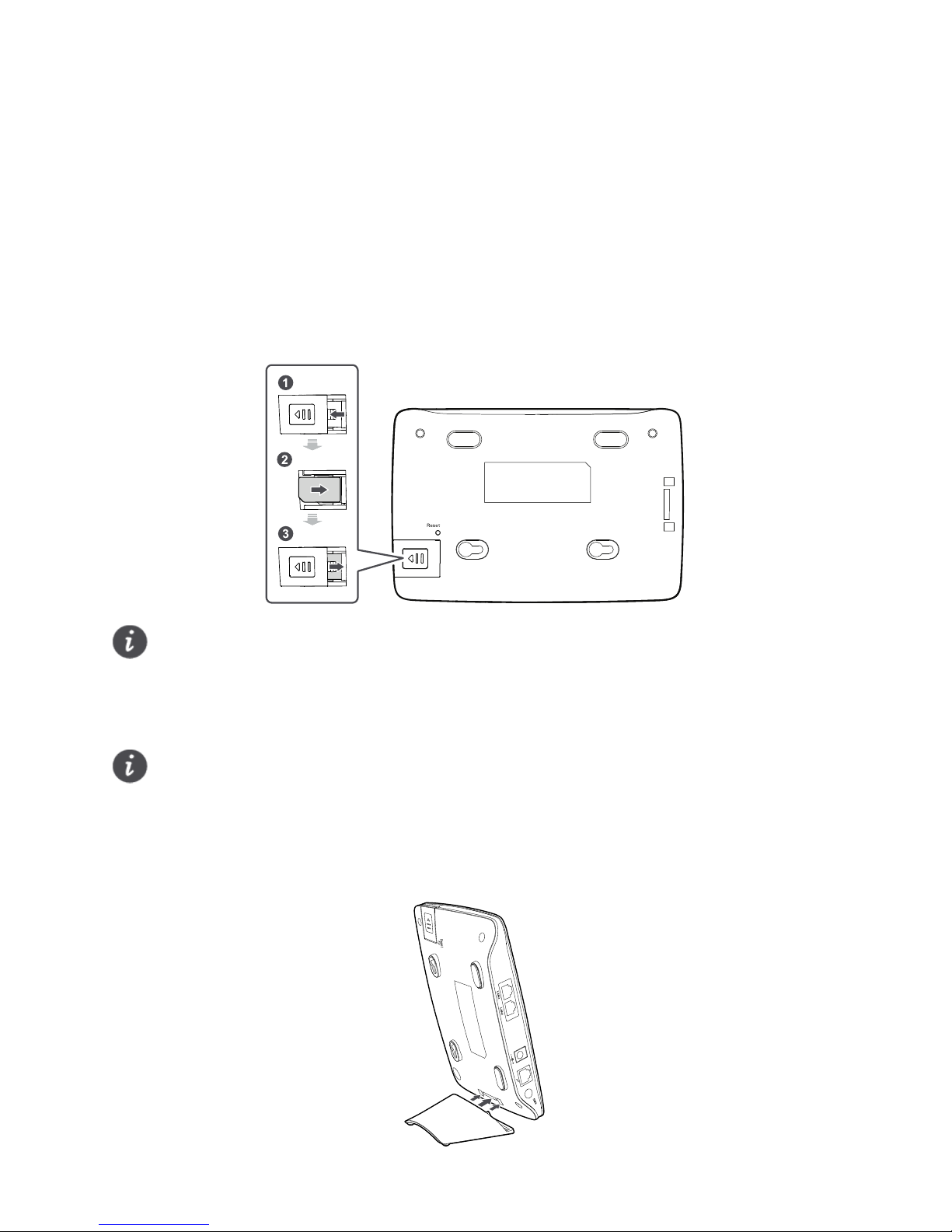

Installing the SIM/USIM card

1. Slide off the card slot cover.

2. Insert the SIM/USIM card into the card slot. Ensure that the beveled edge of the

SIM/USIM card aligns with that of the card slot.

3. Close the card slot cover.

(Optional) Installing the table stand

You can place the B68L on a flat surface such as a table or a desk, or hang it on a wall.

You can also use the table stand of the B68L to place it upright.

Insert the latches into the table stand slots on the bottom of the B68L.

Reset

Before removing the SIM/USIM card, ensure that the B68L is powered off and

disconnected from th

e power outlet.

The table stand is an optional accessory, and may not included in the packaging box.

If required, please contact your local dealer purchase it.

(Optional) Installing the external antenna

In areas with poor reception, connect an external antenna to the B68L's external

antenna port to improve signal reception.

Before using external antenna, log in to the web management page (default address:

http://192.168.1.1, default password: admin). Choose Internet > Mobile

Network and set Antenna mode to Outer.

The external antenna is an optional

accessory, and may not included in the packaging

box. If required, please contact your local dealer purchase it.



Before installing the external antenna, ensure that the B68L is powered off and

disconnected from the power outlet.



Only use the external antenna indoors, and do not use it during thunderstorm.



Do not change another unexpected antenna unless manufacture provide.

Connecting cables

Once connected to a power outlet, the B68L automatically powers on.

Power adapter

Telephone

Computer Laptop, tablet, or smart phone

To prevent interference caused by radio signals, place the B68L at least 1 meter (3.28

feet) away from telephone and other electrical devices.

Do not connect the B68L to the telephone wall outlet (or any Public Switched

Telephone Network), because doing so could damage the B68L due to excessive heat.

3Setting up a Wi-Fi connection

Turning on Wi-Fi on the B68L

When the indicator is steady on, the Wi-Fi of the B68L is turned on.

To manually turn Wi-Fi on, log in to the web management page (default address:

http://192.168.1.1, default password: admin), and choose Home Network >

WLAN Settings. On the displayed page, select Enable WLAN 2.4 GHz and click

Save.

Recording the SSID and Wi-Fi key

The default SSID and Wi-Fi key are printed on the B68L's rear label.

Make sure your client (computer, tablet, or smart phone) also supports Wi

-Fi.

To prevent unauthorized parties from accessing your wireless network, it is

recommended that you change the SSID and Wi

-Fi key from time to time. Log in to

the web management page (default address:

http://192.168.1.1, default password:

admin

), choose Home and click Set Up WLAN to set WLAN 2.4 GHz SSID and

Password

Setting up a Wi-Fi connection from a client

On Windows 7

1. Click on the status bar on the PC desktop.

2. A dialog box is displayed, and the computer scans for available wireless networks

within range. From the search results, select the wireless network with the same

SSID as the B68L, and click Connect.

3. In the Connect to a Network dialog box, enter the B68L's Wi-Fi key, and click

OK. Note that the Wi-Fi key is case sensitive.

4. When Connected is displayed next to the B68L's SSID, the PC is connected to the

wireless network.

On Mac OS

1. Click on the status bar on the Mac desktop. Choose Turn AirPort On from

the displayed menu.

2. The Mac then scans for available wireless networks within range. From the search

results, select the wireless network with the same SSID as the B68L.

3. In the displayed dialog box, enter the B68L's Wi-Fi key, and click Join. Note that

the Wi-Fi key is case sensitive.

4. When a check mark appears next to the B68L's SSID, the Mac is connected to the

wireless network.
