NE20E-S8 Configuration Help

1. New site or Expansion

This parameter is used for the NE20E-S to choose to purchase a new chassis or the

old chassis only expand LPU or upgrade software. If you want to purchase a new

NE20E-S , select "New site".If the software upgrade of the different version or the old

chassis only expand LPU, select "Expansion".

2. Please select the version

V800R008 supports the following: Hardware: Replacement of old hard pipe cards

with the 2-Port 10GBase LAN/WAN-SFP+ Physical Interface Card H and 8-Port

100/1000Base-X-SFP Physical Interface Card H Software: BRAS licenses, including

the NE20E-S Series PPPoE/IPoE Function License, NE20E-S Series Subscribers

Quantity(1k Subscribers) License, NE20E-S Series L2TP Function License. Please

confirm the corresponding iManager version is correct when you select the version:

V800R005:the corresponding iManager U2000 version is V100R009C00 or later;

V800R006:the corresponding iManager U2000 version is V200R014C50 or later;

V800R007: the corresponding iManager U2000 version is V200R015C50 or later;

eSight version is V300R003C10 or later; V800R008: the corresponding iManager

U2000 version is V200R016C50 or later; eSight version is V300R006C00 or later;

V800R009: the corresponding iManager U2000 version is V200R017C50 or later;

V800R010: the corresponding iManager U2000 version is V200R018C50 or later.

V800R011: the corresponding iManager U2000 version is V200R018C60 or later.

3. Please select the version that after upgrading

V800R008 supports the following: Hardware: Replacement of old hard pipe cards

with the 2-Port 10GBase LAN/WAN-SFP+ Physical Interface Card H and 8-Port

100/1000Base-X-SFP Physical Interface Card H Software: BRAS licenses, including

the NE20E-S Series PPPoE/IPoE Function License, NE20E-S Series Subscribers

Quantity(1k Subscribers) License, NE20E-S Series L2TP Function License. Please

confirm the corresponding iManager version is correct when you select the version:

V800R005:the corresponding iManager U2000 version is V100R009C00 or later;

V800R006:the corresponding iManager U2000 version is V200R014C50 or later;

V800R007: the corresponding iManager U2000 version is V200R015C50 or later;

eSight version is V300R003C10 or later; V800R008: the corresponding iManager

U2000 version is V200R016C50 or later; eSight version is V300R006C00 or later;

V800R009: the corresponding iManager U2000 version is V200R017C50 or later;

V800R010: the corresponding iManager U2000 version is V200R018C50 or later.

V800R011: the corresponding iManager U2000 version is V200R018C60 or later.

4. Need the PPPoE/IPoE function or not(just for filtering card and license)

This parameter is used to filter PPPoE/IPoE function card and license:

If Yes is selected, the license(per chassis) parameters that support PPPoE/IPoE will

be displayed, and the board that don't support PPPoE/IPoE will be filtered out and

hidden.

If No is selected, the license parameters that support PPPoE/IPoE will be filtered out

and hidded.

5. Need Basic Software CD or not

The basic software has been loaded on the equipment,and can be downloaded from

http://support.huawei.com.The CD is not delivered by default. If the CD is required by

customer,please choose 'YES'.

6. ===R01S300A Assembly===

o6.1 Please select the capacitance of Rechargeable battery

50Ah Rechargeable battery can supply power for 2-4 hours,92Ah for 4-8 hours.

o6.2 Please select the manufacturer of Rechargeable battery

1.EnerSys is advised in high temperature area such as Middle East,Shuangdeng is

advised for other countries.

2.Only Coslight and Shuangdeng can be chosen in following

countries:China,Southeast,North Korea,Sudan,Iran,Cuban,Libya,Burma and so on.

o6.3 Please select the quantity of Heater

1.Heater is not necessary when temperature is higher than -15 degrees centigrade.

2.1pcs Heater is advised when temperature is between -15 and -20 degrees.3.2pcs

Heaters are advised when temperature is lower than -20 degrees.

7. ===Basic Configuration===

o7.1 Please select the Portfolio Quotation of Basic Configuration

1. The basic configuration includes Chassis, 2*MPUE1, 2*Power, Power cord/PGND

cable, without NSP, Software Charge or Document.

2. The DC basic configuration includes DC Power cord (3m) and PGND cable (3m).

The AC basic configuration includes PGND cable (3m).

o7.2 Please select the type of NSP

NSP-120-E:provide NSP ability of 120G,support wide temperature range -40~-65.

NSP-A:provide NSP ability of 120G,don't support wide temperature range,support

value-added service(IPSEC/NAT/VxLan/value-added service).

NSP-B:provide NSP ability of 240G,don't support wide temperature range,support

value-added service(IPSEC/NAT/VxLan/value-added service).

NSP-C:provide NSP ability of 480G,don't support wide temperature range,support

value-added service(IPSEC/NAT/VxLan/value-added).

Network Service

Processor (NSP-50)

Network Service

Processor (NSP-50-E, Apply for - 40~ 65degree scene)

Network Service

Processor (NSP-120-E)

Network Service

Processor (NSP-120)

Network Service

Processor(NSP-A)

Network Service

Processor(NSP-B)

o7.3 Please select the quantity of NSP

Double NSPs are suggested for 1+1(Turbo) backup or 1:1 backup.

o7.4 Need DC PDU or not

1.Including DC PDU and PGND cable, without power cable(the length of power cable

is calculated automatically);2.The PDU of S2/S4/S8 could support 2 chassises. The

PDU of S16 could support 4 chassises. The quantity of power cable which connect

the PDU to PDF(Power Distribution Frame) is calculated with total chassises by

default.

o7.5 Need update to MPUE1 or not

Need config MPUE1 to support PPPoE/IPoE function

o7.6 Please select the type of NSP after upgrading

Need config NSP-A/NSP-B/NSP-C to support PPPoE/IPoE function.

NSP-50:provide NSP ability of 50G,don't support wide temperature range.

NSP-120:provide NSP ability of 120G,don't support wide temperature range.

NSP-120-E:provide NSP ability of 120G,support wide temperature range -40~-65.

NSP-A:provide NSP ability of 120G,don't support wide temperature range,support

value-added service(IPSEC/NAT/VxLan/value-added service).

NSP-B:provide NSP ability of 240G,don't support wide temperature range,support

value-added service(IPSEC/NAT/VxLan/value-added service).

NSP-C:provide NSP ability of 480G,don't support wide temperature range,support

value-added service(IPSEC/NAT/VxLan/value-added service).

8. Total ports of all card

Each chassis can support 108 ports for NSP-50 at most, while 118 ports for NSP-

120/NSP-A/NSP-B/NSP-C. Expansion, the max number of ports for each chassis

needs to include the existing network.

9. ===High speed Card===

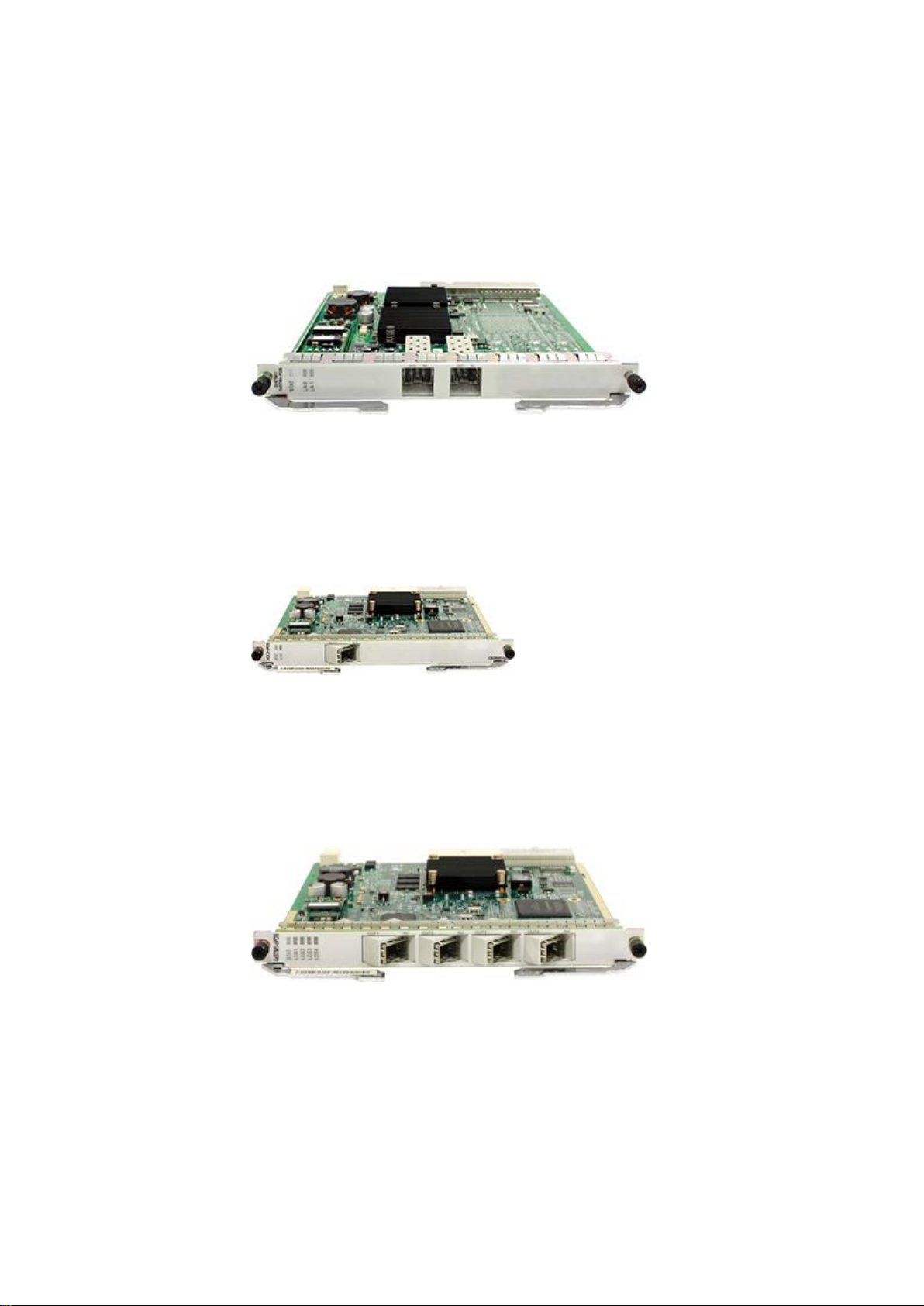

o9.1 1-Port 40GBase-CFP Physical Interface Card(PIC)

1.Need work with V8R7C10 or later software version.

2.Only NSP-120/NSP-A/NSP-B/NSP-C support this card.

If configure with NSP-120/NSP-A/NSP-B, Sub-slots of No.3-No.6 can support this

card.

If configure with NSP-C, all slots can support this card.

3.Does not support outdoor application.

1-Port 40GBase-

CFP Physical Interface Card(PIC)

o9.2 4-Port 10GBase LAN-SFP+ Physical Interface Card(PIC)

Need be fixed with NSP-120/NSP-120-E, and NSP-50/NSP-50-E don't support this

card.

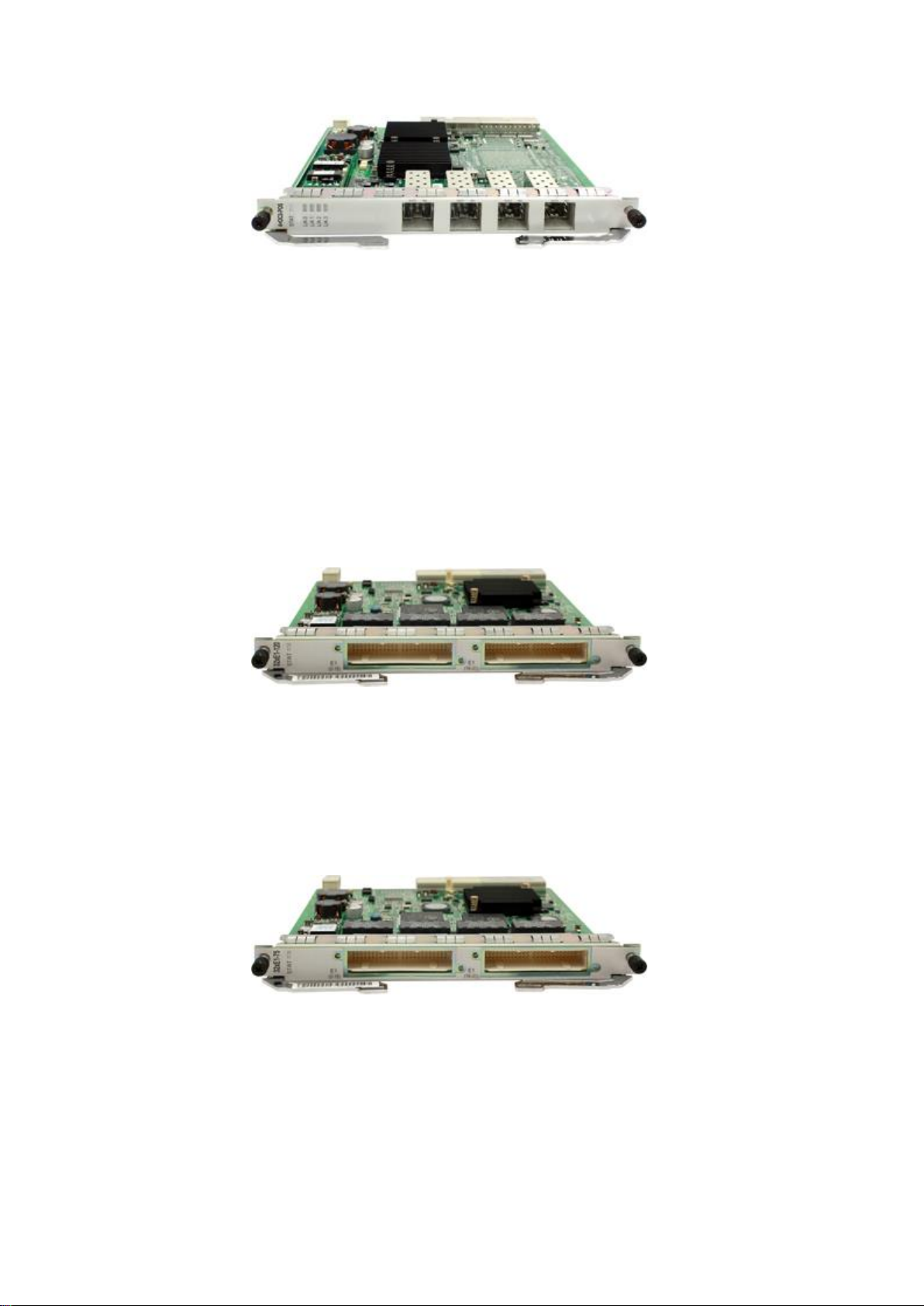

o9.3 4-Port 10GBase LAN/WAN-SFP+ Physical Interface Card

1. Only NSP-120 /NSP-120-E/NSP-A/NSP-B/NSP-C support this card.

If configure with NSP-120 /NSP-120-E/NSP-A/NSP-B, Sub-slots of No.3-No.6 can

support this card.

If configure with NSP-C, all slots can support this card.

2. This card support GE/10GE auto-sensing.

4-Port 10GBase

LAN/WAN-SFP+ Physical Interface Card

o9.4 4-Port 10GBase-SFP+MACsec Interface Card

NSP-A/NSP-B support this card.If configured NSP-A/NSP-B, it can be configured 4

PCS at most( No.3-No.6).

o9.5 2-Port 10GBase LAN/WAN-SFP+ Physical Interface Card(PIC)

This card support GE/10GE auto-sensing.

2-Port 10GBase

LAN/WAN-SFP+ Physical Interface Card

o9.6 2-Port 10GBase LAN/WAN-SFP+ Physical Interface Card H

1. Need work with NSP-A/NSP-B

2. Mainly used in IP hard pipe scenario.

o9.7 2-Port 10GBase LAN/WAN-SFP+ Physical Interface Card H

Specifications: 1)Support IP hard pipe 2)Support interface type:10GE 3)Specifications

list:

http://3ms.huawei.com/mm/docMaintain/mmMaintain.do?method=showMMDetail&f_i

d=CIP180525031314083 Configuration precautions: 1)Need work with NSP-A/NSP-

B/NSP-C.

2-Port 10GBase

LAN/WAN-SFP+ Physical Interface Card H

o9.8 2-Port 10GBase LAN/WAN-SFP+ Physical Interface Card E(PIC-E)

1.Only NSP-A/NSP-B/NSP-C support this card.

If configure with NSP-A/NSP-B, Sub-slots of No.3-No.6 can support this card.

If configure with NSP-C, all slots can support this card.

2.As this card with ETM chipset(enhanced Qos), it must insert in the slot which

capacity bigger than 20G,or else the card would not registered.

o9.9 1-Port 10GBase LAN/WAN-SFP+ + 8-Port 100/1000Base-X-SFP

Physical Interface Card

This card support GE/10GE auto-sensing.

1-Port 10GBase

LAN/WAN-SFP+ + 8-Port 100/1000Base-X-SFP Physical Interface Card

o9.10 20-Port 100/1000Base-X-CSFP/10-Port 100/1000Base-X-SFP

Physical Interface Card(PIC)

Specifications: 1)Support interface type:GE/FE 2)Specifications list:

http://3ms.huawei.com/mm/docMaintain/mmMaintain.do?method=showMMDetail&f_i

d=CIP180525031314083 Configuration precautions: 1)Need configure with NSP-

A/NSP-B/NSP-C, all slots can support this card. 2)20*GE CSFP card can be

configured with both CSFP and SFP transceiver. Each CSFP transceiver can be work

as 2 GE mode, while each SFP transceiver only work as 1 GE mode. 3)Don't support

Electrical Transceiver.

20-Port

100/1000Base-X-CSFP/10-Port 100/1000Base-X-SFP Physical Interface

Card(PIC)

o9.11 10-Port 100/1000Base-X-SFP Physical Interface Card

10-Port

100/1000Base-X-SFP Physical Interface Card

o9.12 10-Port 100/1000Base-X-SFP Physical Interface Card H

1. Need work with NSP-A/NSP-B

2. Mainly used in IP hard pipe scenario.

o9.13 10-Port 100/1000Base-X-SFP Physical Interface Card E(PIC-E)

1.NSP-A/NSP-B/NSP-C support this card. If configure with NSP-A/NSP-B/NSP-C, all

the sub-slot can support this card.

2.As this card with ETM chipset(enhanced Qos), it must insert in the slot which

capacity bigger than 10G, or else the card would not registered.

o9.14 8-Port 100/1000Base-X-SFP Physical Interface Card H

1. Need work with NSP-A/NSP-B/NSP-C

2. Mainly used in IP hard pipe scenario.

8-Port

100/1000Base-X-SFP Physical Interface Card H

o9.15 8-Port 100/1000Base-RJ45 Physical Interface Card(PIC)

8-Port

100/1000Base-RJ45 Physical Interface Card

o9.16 8-Port 100/1000Base-X-SFP Physical Interface Card

8-Port

100/1000Base-X-SFP Physical Interface Card

10. ===Low speed Card===

o10.1 2-Port OC-3c/STM-1c (or 1-Port OC-12c/STM-4C) POS-SFP Physical

Interface Card

The model exchange between 155M and 622M control by command. The default

mode is 155M. Need configure corresponding Optical Transceiver.

2-Port OC-3c/STM-

1c (or 1-Port OC-12c/STM-4C) POS-SFP Physical Interface Card

o10.2 1-Port Channelized STM-1c POS-SFP Physical Interface Card

Need configure 155M SFP/eSFP Optical Transceiver.

1-Port Channelized STM-1c POS-SFP

Physical Interface Card

o10.3 4-Port Channelized STM-1c POS-SFP Physical Interface Card(PIC)

Need configure 155M SFP/eSFP Optical Transceiver.

4-Port Channelized

STM-1c POS-SFP Physical Interface Card(PIC)

o10.4 4-Port OC-3c/STM-1c POS-SFP Flexible Interface Card(PIC)

Need configure 155M SFP/eSFP Optical Transceiver.

4-Port OC-3c/STM-

1c POS-SFP Physical Interface Card

o10.5 4 Channels GE/FE PoE Electrical Interface Board

1. The calbes should be done on site.

2. NSP-A/NSP-B support this card. If configure with NSP-A/NSP-B/NSP-C, all of the

Sub-slots can support this card.

o10.6 32-Port E1 Physical Interface Card(PIC,120ohm)

Need configure E1 Cable

32-Port E1 Physical

Interface Card(120ohm)

o10.7 32-Port E1 Physical Interface Card(PIC,75ohm)

Need configure E1 Cable

32-Port E1 Physical

Interface Card(75ohm)

o10.8 16-Port E1 Physical Interface Card(PIC,120ohm)

Need configure E1 Cable
