AR1200 Series Enterprise Routers

Brochure

AR1200 Series Enterprise Routers

Brochure

AR1200 Series Enterprise Routers

Huawei AR1200 series enterprise routers (AR1200 for short) are next-generation enterprise-class routers based on

the Huawei proprietary Versatile Routing Platform (VRP), which take advantage of Huawei long-term accumulation

in data communication, wireless, access network, and core network elds. The AR1200 integrates routing,

switching, 3G, WLAN, voice, and security functions. It uses the multi-core CPU and non-blocking switching structure

and provides industry-leading system performance and extensibility, meeting service development requirements in

the future. The AR1200 provides an integrated solution for enterprise networks, speeds up multi-service provision,

and protects customers' investments.

The AR1200 uses the embedded hardware encryption technique and supports the voice Digital Signal Processor

(DSP). It supports rewall functions, call processing, voice mail, and various application programs. The AR1200

supports various wired and wireless access modes, such as E1/T1, xDSL, WiFi, 3G, etc. The AR1220V, AR1220W and

AR1220VW provide the PoE function by using xed 100M Ethernet interfaces.

The AR1200 provides four models: AR1220, AR1220V, AR1220W and AR1220VW.

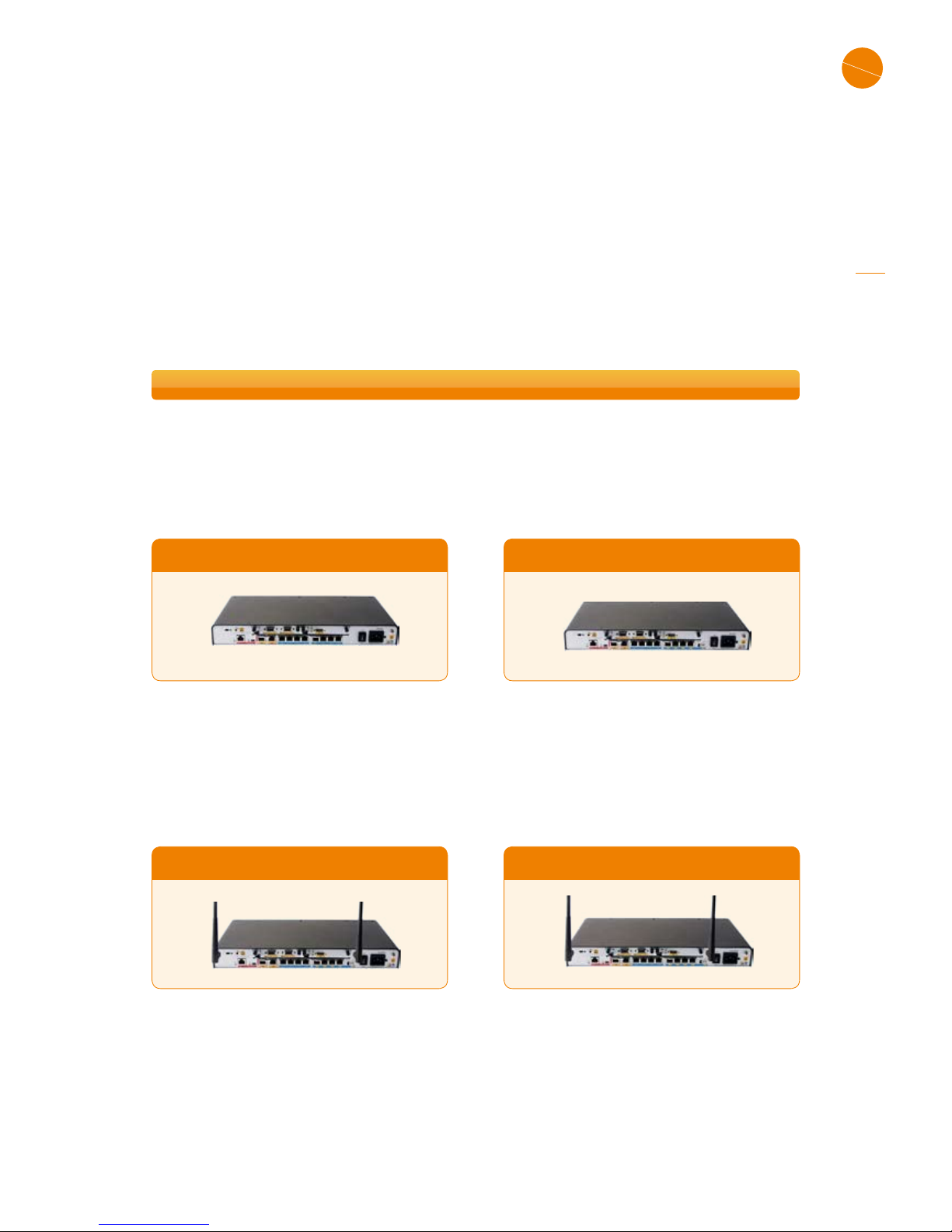

AR1220 AR1220V

AR1220

AR1220W

AR1220V

AR1220VW

Forwarding capacity: 350 Kpps•

WAN speed with services: 25Mbps•

Fixed port: 8*FE, 2*GE•

Slot: 2*SIC•

Dimensions (WxDxH): 390 mm x 220 mm x •

44.5mm

Forwarding capacity: 350 Kpps•

WAN speed with services: 25Mbps•

Fixed port: 8*FE(four FE ports support PoE), 2*GE•

PoE: compliance with IEEE 802.3af and 802.3at•

DSP: 32 channels supported•

Slot: 2*SIC•

Dimensions (WxDxH): 390 mm x 220 mm x 44.5mm•

Forwarding capacity: 350 Kpps•

WAN speed with services: 25Mbps•

Fixed port: 8*FE (four FE ports support PoE), 2*GE•

PoE: compliance with IEEE 802.3af and 802.3at•

Slot: 2*SIC•

WiFi: compliance with 802.11b/g/n•

Dimensions (WxDxH): 390 mm x 220 mm x 44.5mm•

Forwarding capacity: 350 Kpps•

WAN speed with services: 25Mbps•

Fixed port: 8*FE (four FE ports support PoE), 2*GE•

PoE: compliance with IEEE 802.3af and 802.3at•

DSP: 32 channels supported•

Slot: 2*SIC•

WiFi: compliance with 802.11b/g/n•

Dimensions (WxDxH): 390 mm x 220 mm x 44.5mm•

Product Overview

AR1200 Series Enterprise Routers

Brochure

The AR1200 supports various interface cards, including Ethernet interface cards, E1/T1/PRI/VE1/VT1 interface

cards, synchronous/asynchronous interface cards, ADSL2+/G.SHDSL interface cards, FXS/FXO voice cards and ISDN

interface cards. These cards are classied into SIC (Smart Interface Card) cards and WSIC (Double-Width SIC) cards

depending on slot type. The following are the appearances and description of main interface cards.

The AR1200 uses the multi-core CPU and non-blocking switching structure and provides industry-leading system

performance, meeting network extension requirements and service development requirements of enterprises.

Multi-core CPU•

The multi-core CPU improves the speed of concurrent processing of data and voice services, which makes it

possible to deploy a large number of services.

Non-blocking switching•

Independent protocol management, service processing, and data switching, ensuring high performance and •

improving service reliability

Integrated routing and switching functions•

This feature improves the data switching efciency between interface cards and simplies device congurations

and maintenance.

Hot swappable interface cards and redundant components such as fan modules, ensuring service reliability and•

stability

3rd Generation AR with Industry-Leading Performance

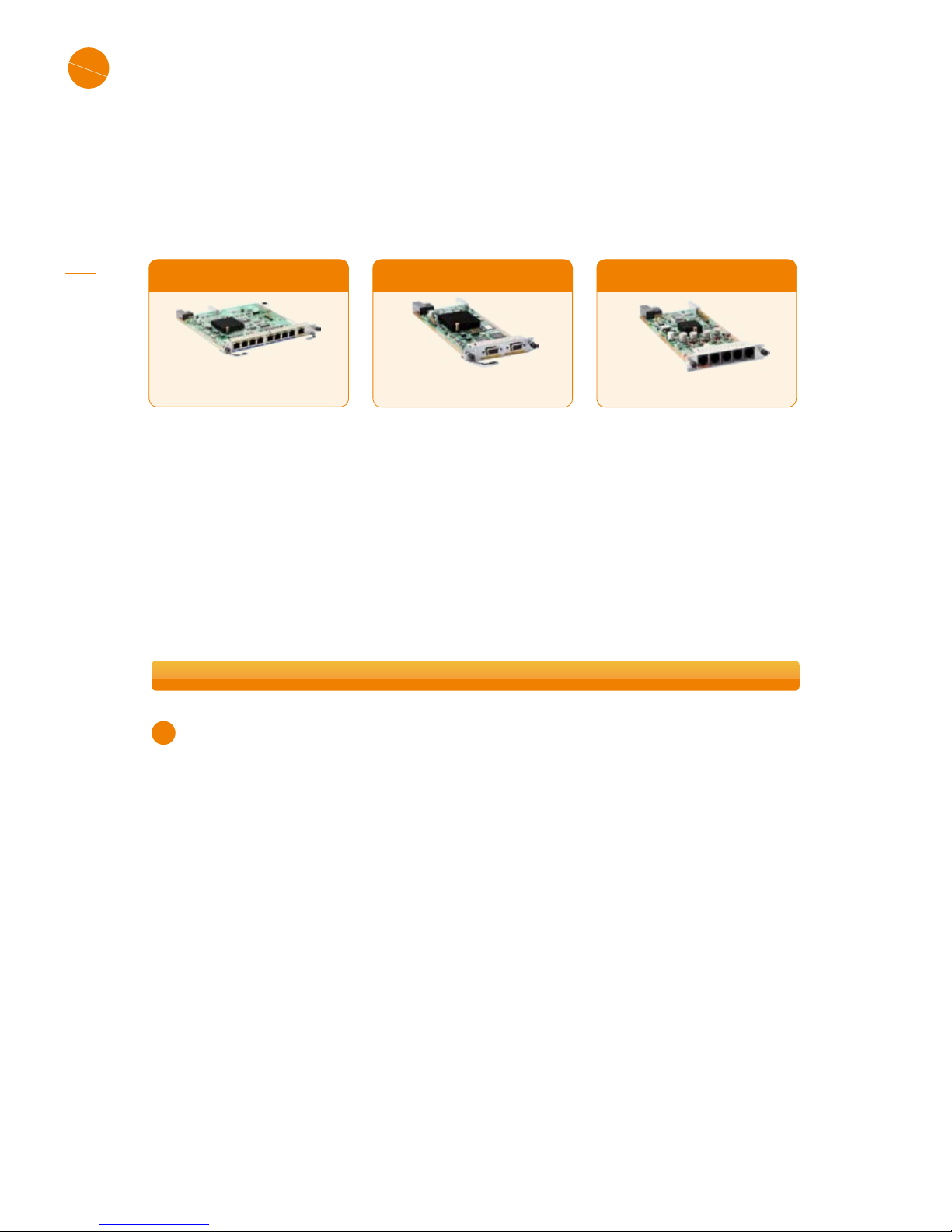

WSIC card SIC card SIC card

L2/L3 Ethernet interface card FXS/FXO voice card

Channelized E1/T1/PRI/VE1/VT1

multifunctional interface card

Interfaces work in 10/100 Mbit/•

s or 10/100/1000 Mbit/s auto-

sensing mode.

Provides the Layer 2 and Layer•

3 Ethernet switching function,

and enables the AR1200 to

communicate with other devices

in a LAN network.

Sends, receives, and processes •

E1/T1 data trafc.

Provides channelized E1/T1 •

access, and groups and binds

channels.

Provides the VoIP function over •

the E1/T1 line.

Provides the ISDN PRI function.•

Provides the local and remote•

loopback functions for test and

troubleshooting.

Supports access and processing •

of AT0 loop trunk of analog

phone, fax, and telephone

exchange.

Transmits voice signals over IP •

network.

Features and Beneﬁts

Brochure

AR1200 Series Enterprise Routers

Dual-Mode Network, Supporting Flexible Access

1) Wireless Mode

2) Wired Mode

Access Mode Description

WLAN

Compliance with 802.11n and compatible with 802.11b/g, saving investment•

Multiple-input and multiple-output (MIMO), increasing bandwidth and improving user •

experience

Authentication technologies such as WEP, WPA, WAPI, and 802.1x, ensuring security•

Compliance with 3G standards, including CDMA2000 EV-DO, WCDMA, and TD-SCDMA, •

providing exible network access

NQA, monitoring the link real-time status and ensuring SLA•

Link backup for enterprise services, improving reliability•

Security VPN over 3G links, ensuring reliable service transmission•

LTE Switching from 3G networks to LTE networks supported in future, protecting customers' •

investments

Access Mode Description

Fiber

Support for GigabitEthernet optical interfaces, allowing exible network access•

1 Gbit/s bandwidth or higher bandwidth, meeting transmission requirements of bandwidth-•

thirsty services such as voice services

Copper cable

Support for various interfaces, including xDSL interfaces, E1/T1 interfaces, serial ports, and •

ISDN interfaces, to protect customers' investments

Uplink access rates ranging from 64 kbit/s to 1 Gbit/s, which can be selected by customers•

PoE support on Ethernet interfaces, providing power for powered devices over twisted pair•

cables and facilitating installation of powered devices

AR1200 Series Enterprise Routers

Brochure

Outstanding Voice Experience

The AR1200 provides various voice functions for enterprise data networks, enabling the enterprises to communicate

exibly and efciently.

Basic voice functions provided by the built-in PBX, SIP server, and SIP access gateway•

Value-added voice services, including multi-party communication, IVR automatic connection, ring-back-tone, •

parallel ringing, sequential ringing, one number link you (ONLY), bill management, and subscriber management

Intelligent call routing, ensuring high reliability of voice services•

Interconnection with the NGN/IMS/PBX/terminal of mainstream vendors•

QoE, detecting voice service quality in real time•

Jitter buffer, echo cancellation, and packet loss compensation, improving customer experiences•

Secure Service Access

During service provision, the AR1200 ensures security of enterprise networks. It provides a complete security

protection mechanism including user access control, packet detection, and active attack defense. This mechanism

protects customers' investments.

Built-in rewall•

Authentication technologies on ports, such as 802.1x authentication, MAC address authentication, and portal •

authentication

Authentication methods, including RADIUS and HWTACACS•

VPN technologies, including IPSec VPN and GRE VPN•

3Services Integrated on One Router

The AR1200 integrates routing, switching, 3G, WLAN, voice, and security functions.

Open Service Platform

The AR1200 interconnects with the third-party IT systems by using the Open Service Platform (OSP) to provide a

unied communication solution for enterprise users. The customers, agents, third-party vendors, and manufacturers

can develop and use the AR1200 as required.

Fast service integration and customization, meeting customized requirements•

Service integration without deploying dedicated servers, saving investments and simplifying management•

Services synchronized with cloud-side services, and local services processed locally, which improves service •

quality and efciency.

Intelligent Service Deployment

As the enterprise scale increases, enterprise users have high requirements on service deployment. The AR1200

provides the following service deployment functions:

The AR1200 provides a mini-USB port. By using the mini-USB, users can congure the devices through GUI. •

Users can use the USB disk to deploy devices, and the devices are plug-and-play. •

The AR1200 supports the auto-cong function. The auto-cong function enables the AR1200 to automatically •

obtain congurations.

Brochure

AR1200 Series Enterprise Routers

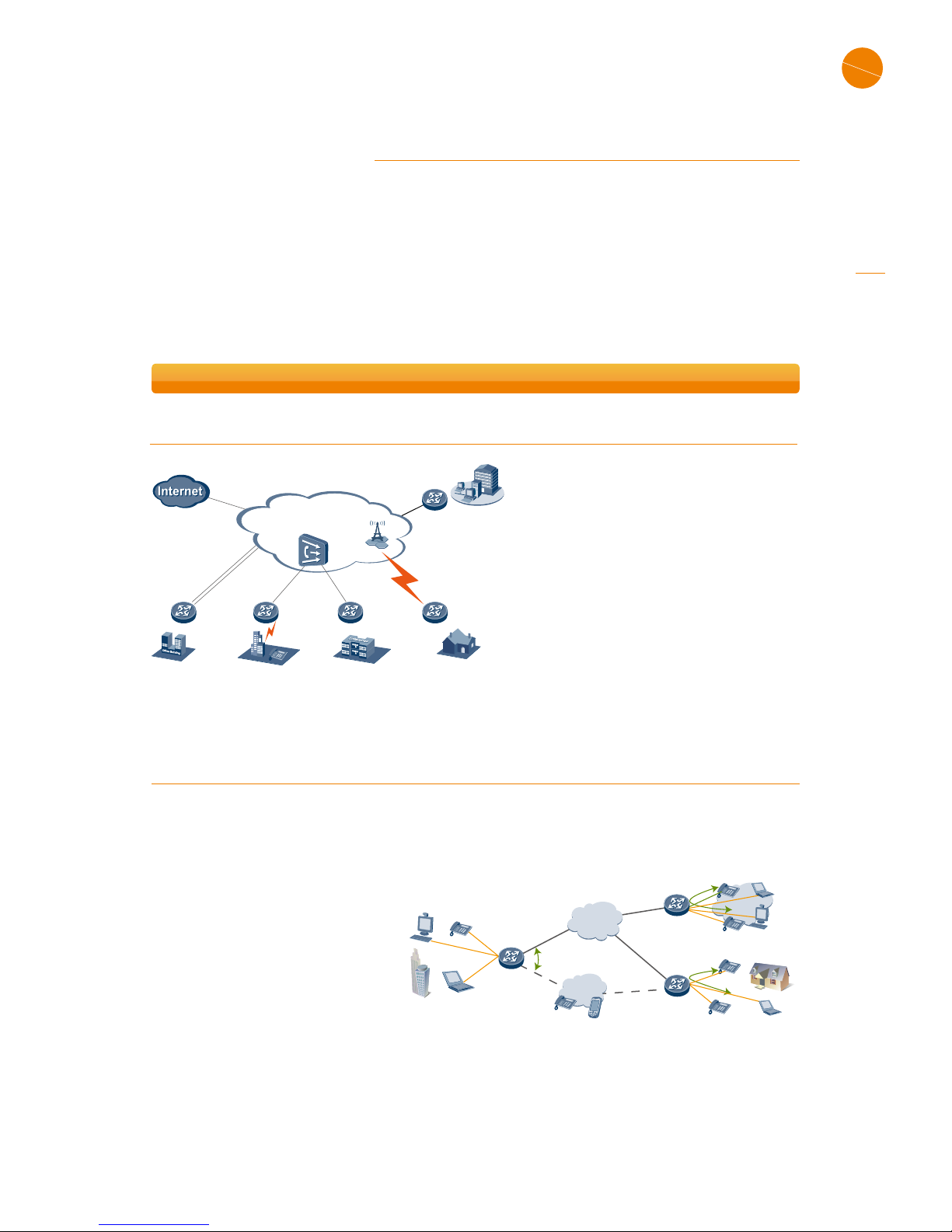

The AR1200s function as the egress routers

of enterprise branches and provide exible

access methods to support remote network

connections. An AR1200 meets various access

requirements, including leased line, Ethernet,

xDSL, 3G, and WLAN. This saves deployment and

maintenance costs and provides a large value to

customers. The xed 100M Ethernet interfaces

of AR1220V, AR1220W and AR1220VW support

the PoE function in compliance with IEEE 802.3af

and 802.3at; therefore, the AR1220V, AR1220W and AR1220VW can provide power for powered devices (PDs),

such as IP phones. An 802.3at interface provides more than 30 W power, ensuring power for large-power PDs.

1, WAN Access

2, High-Quality Voice Service

Simpliﬁed Service Management

Enterprise users require simply service management. The AR1200 provides the following functions to simplify service

management:

The AR1200 works with the iTec network management system to simplify device management.•

The AR1200 provides the NQA function to monitor links in real time.•

By using the NetStream function provided by the AR1200, users can view trafc characteristics and statistics •

clearly, which is basis for network optimization.

Typical Application

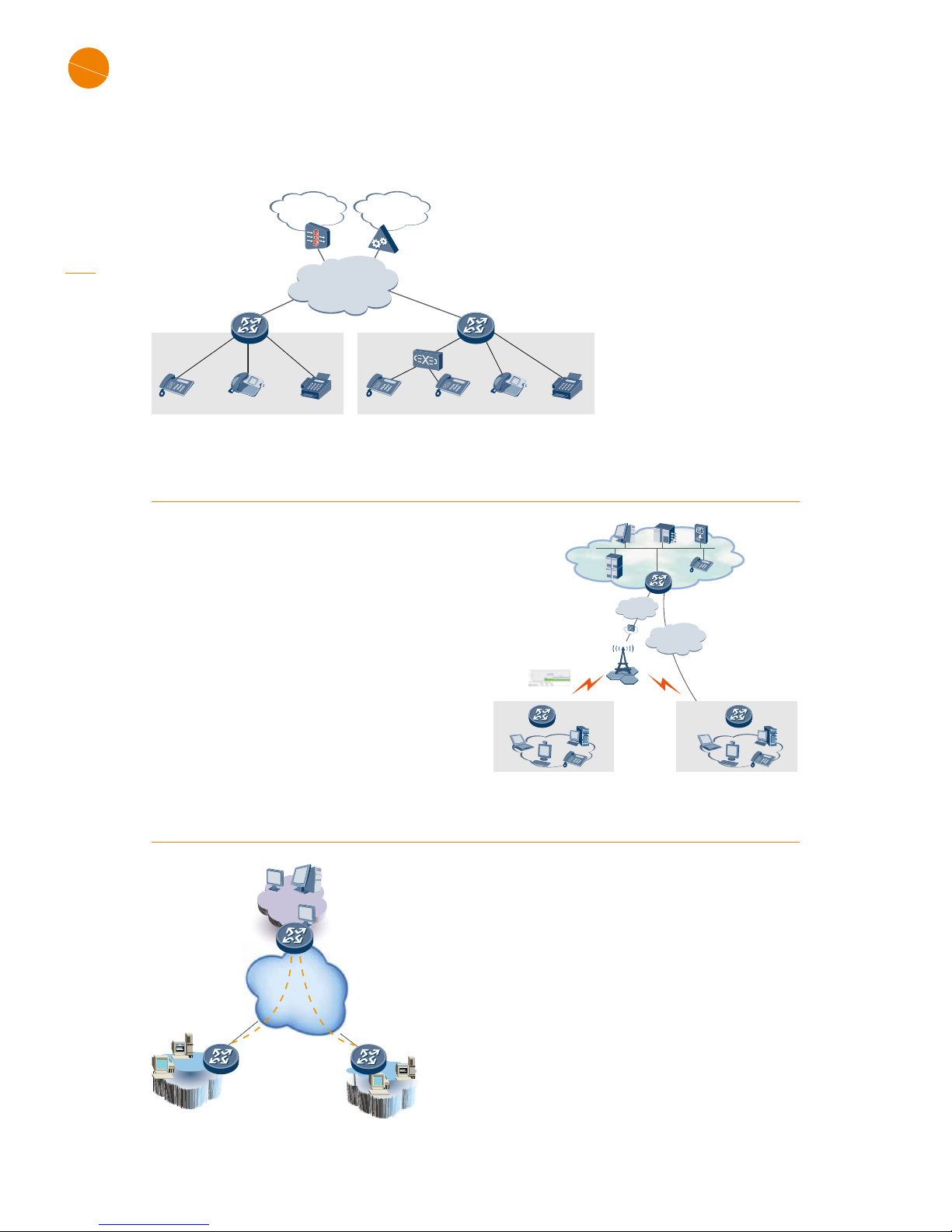

As a voice gateway for enterprise networks, the AR1200 can function as an IP PBX or SIP gateway.

IP PBX application

The AR routers have built-in PBX, which

supports the enterprise main number,

IVR, and bill query functions to enhance

corporate image and improve enterprise

communication efciency. The AR1200

is located in a branch to provide the

intelligent dialing function. When a fault

occurs on the WAN, the PSTN network

is used as a backup for calls. When the SIP server at the headquarters is unreachable, the built-in local SIP server of the

AR1200 implements communication between branches and communication between branch and PSTN network. This

ensures reliability of the voice service.

AR1200

AR2200

WAN

PSTN

Mid-scale branch

Headquarters

Remote small-scale branch

AR3200

(PBX& SIP server)

Local SIP server

WAN

Leased line

Headquarters

ADSL2+/G.SHDSL/

Ethernet

AR1200

AR3200

AR1200AR1200

WLAN

PoE

AR1200

AR1200 Series Enterprise Routers

Brochure

The AR1200 complies with 3G standards including

CDMA2000 EV-DO, WCDMA, and TD-SCDMA, meeting

the wireless communication requirements between

branches and the headquarters. Users can use a 3G USB

disk to deploy 3G services on the AR1200, saving service

card slots. In addition, the 3G data link can be used as a

backup for wired link to protect the xDSL, FE/GE, and ISDN

uplinks. The backup link improves network stability and

reduces network construction costs. The AR1200 provides

the NQA function to detect 3G link quality, ensuring the

SLA.

3, 3G Wireless Access in Branch

AR3200

Headquarters

Carrier’s network

Wired link

NQA

AR1200 AR1200

Branch 1Branch 2

Internet

The AR1200 integrates voice,

fax, and IP services. When

providing voice services

for enterprise users, the

AR1200 functions as the

SIP access gateway of a

branch to transform phone

signals into VoIP signals. The

AR1200 uplink interfaces are

connected to the IMS/NGN

network to allow any media including phones, handsets, and computers to communicate at any time.

SIP gateway application

IMS network

SBC Soft switch

Branch Headquarters E1

POTS POTS POTSIP Phone IP PhoneFAX FAX

NGN network

IP bearer

network

AR1200 AR3200

TDM PBX

4, VPN in Branch

The AR1200 provides various secure access functions to

implement communication between enterprise branches

and between branches and the headquarters, and to enable

partners to access enterprise resources. Tunnels such as GRE

VPN and IPSEC VPN are set up between the headquarters and

branches to implement secure data access and transmission.

The AR1200 implements fast tunnel deployment and

authentication for branches. Using a tunnel, partners can

access and share enterprise resources.

Headquarters

ExternalVPN

AR1200AR1200

IPSEC VPN GRE VPN

LL/FR/X25

AR3200

PartnerBranch

Brochure

AR1200 Series Enterprise Routers

Technical Speciﬁcations

Item AR1220 AR1220V AR1220W AR1220VW

Hardware

Forwarding capacity 350Kpps 350Kpps 350 Kpps 350 Kpps

WAN speed with services 25Mbps 25Mbps 25Mbps 25Mbps

Device switching capacity 8Gbps 8Gbps 8Gbps 8Gbps

Slot switching bandwidth SIC & WSIC slots 2Gbps

Fixed WAN ports 2*GE 2*GE 2*GE 2*GE

Fixed LAN ports 8*FE 8*FE 8*FE 8*FE

SIC slots 2 2 2 2

WSIC slots (default/max) 0/1 0/1 0/1 0/1

DSP slots -

32 channels

supported by

default

-32 channels supported by

default

WiFi - - 802.11 b/g/n 802.11 b/g/n

USB 2.0 ports 2 2 2 2

Mini-USB ports 1 1 1 1

Serial auxiliary/ console port 1 1 1 1

Memory 512 MB 512 MB 512 MB 512 MB

Flash 256 MB 256 MB 256 MB 256 MB

Max. power 54W 54W 60 W 60 W

PoE power - External 100W External 100W External 100W

AC power 100 V-240 V 100 V-240 V 100 V-240 V 100 V-240 V

Frequency 50 Hz/60 Hz 50 Hz/60 Hz 50 Hz/60 Hz 50 Hz/60 Hz

Dimensions (width x depth x

height)

390 mm x 220

mm x 44.5 mm

390 mm x 220

mm x 44.5 mm

390 mm x 220

mm x 44.5 mm

390 mm x 220 mm x

44.5 mm

Weight 2.9KG 2.9KG (without

interface cards)

2.9KG (without

interface cards)

2.9KG (without interface

cards)

Ambient temperature 0°C-40°C 0°C-40°C 0°C-40°C 0°C-40°C

Relative humidity 5-90% (non-

condensing)

5-90% (non-

condensing)

5-90% (non-

condensing) 5-90% (non-condensing)

AR1200 Series Enterprise Routers

Brochure

**Note: The maximum number of slots includes the number of combined slots.

Software

Voice RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call

WLAN AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key

management), WLAN radio management (802.11b/g/n), WLAN user management

3G CDMA 2000 EV-DO Rev A, WCDMA, TD-SCDMA, individual 3G uplink/backup link

LAN IEEE 802.1, IEEE 802.3, VLAN management, MAC address management, MSTP

IPv4 unicast routing Routing policy, static route, RIP, OSPF, IS-IS, BGP

Multicast IGMP version1/2/3, PIM SM, PIM DM, MSDP

MPLS LDP, MPLS L3 VPN, static LSP, dynamic LSP

VPN IPSec VPN, GRE VPN

QoS

MPLS QoS, priority mapping, trafc policing (CAR), trafc shaping, congestion

avoidance (based on IP precedence/DSCP WRED), congestion management (LAN

interface: SP/WRR/SP+WRR; WAN interface: PQ/CBWFQ), MQC (trafc classier,

trafc behavior, and trafc policy), H-QoS, WLAN QoS, FR QoS

Security

ACL, rewall, 802.1x authentication, MAC address authentication, Web

authentication, AAA authentication, RADIUS authentication, HWTACACS

authentication, broadcast storm suppression, ARP security, ICMP attack defense,

URPF, IP Source Guard, DHCP snooping, CPCAR, blacklist, IP source tracing

Management and

maintenance

Upgrade management, device management, Web network management system,

GTL, SNMP, RMON, RMON2, NTP, CWMP, Auto-Cong, deployment using USB disk,

NetConf

How to Conﬁgure

Device model•

The device model is determined by the slot quantity and forwarding capacity that you require.

Card•

The interface cards, including SIC cards and WSIC cards, are inserted into service card slots. Two SIC slots can be combined

into one WSIC slot by removing the guide rail.

Software•

The basic software and licensed software are available. The basic software provides basic functions such as routing,

switching, voice, and security. The licensed software provides additional functions such as PBX.

Before choosing an AR1200, determine the device model, cards, and software congurations.

Autres manuels pour AR1200 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Huawei Routeur réseau

Huawei

Huawei B715 Manuel utilisateur

Huawei

Huawei WS550 Manuel utilisateur

Huawei

Huawei B593 Fiche d'information produit

Huawei

Huawei E5170s-22 Manuel utilisateur

Huawei

Huawei B612s-25d Caractéristiques techniques

Huawei

Huawei EchoLife HG8245 Manuel utilisateur

Huawei

Huawei NE05E Instructions d'installation

Huawei

Huawei AR1220-S Caractéristiques techniques

Huawei

Huawei HG8010 series Manuel utilisateur

Huawei

Huawei AR1200-S Series Manuel utilisateur

Huawei

Huawei Quidway NetEngine 20 series Manuel utilisateur

Huawei

Huawei S1700 Series Manuel utilisateur

Huawei

Huawei EG8247Q Manuel utilisateur

Huawei

Huawei E5 Manuel utilisateur

Huawei

Huawei WIFI AX2 Manuel utilisateur

Huawei

Huawei WIFI AX2 Manuel utilisateur

Huawei

Huawei AR500 Manuel du propriétaire

Huawei

Huawei S3026C-PWR Manuel utilisateur

Huawei

Huawei B311As-853 Caractéristiques techniques

Huawei

Huawei Quidway S3000-EI Series Manuel utilisateur

Huawei

Huawei HG232f Manuel utilisateur

Huawei

Huawei AR1200 Series Manuel utilisateur

Huawei

Huawei WS7001 Manuel utilisateur

Huawei

Huawei V300R005 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
