Huawei NT3BB-4PVWN-147 Manuel utilisateur

NT3BB-4PVWN-147

VDSL Router 4 Port Wi-Fi Dual Band

Quick Installation Guide

Image device

Version NT3BB-4PVWN-147

1. NT3BB-4PVWN-147 Router Status

2. Internet connection Settings

3. WAN,Wireless Settings

4. Hardware Installation

5. Packing List

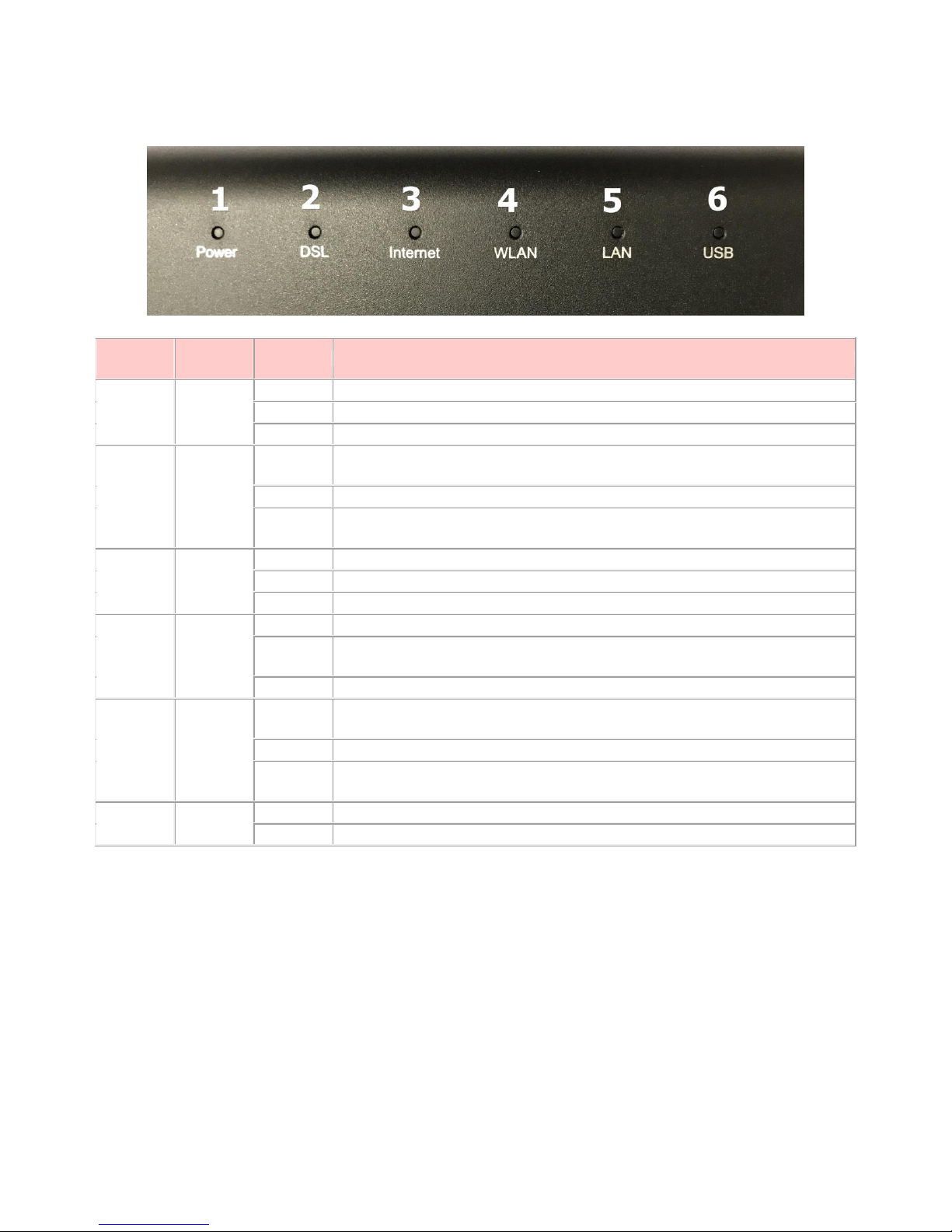

1. NT3BB-4PVWN-147 Router Status

Status

No.

Indicator

Status

Description

POWER

The device is turned on

Blinking

The device is starting up

Off

The device is turned off or out of service

DSL

The Devices connected to the network NODE Dslam (cabinet)

Blinking

The device is connecting to Dslam (NODE of network)

Off

The device is not connection with Dslam (NODE cabinet of the network)

Internet

Connect to the Internet

Blinking

The device is receiving send data over the Internet

Off

Cannot connect to the Internet

WLAN

Blinking

The Wireless function is enabled

Fast Blinking

Data transmission between Router and the device (Wireless)

Off

The wireless function is disabled

LAN

There is Lan connectivity between the router and the device

Blinking

Data is being transmitted between Router and Computer

Off

There is no Lan connectivity between the router and the device

USB

Router is connected to USB

Off

Router is not connected to USB

2. Internet connection Settings

There are 2 type to set the Internet connection.

Type 1. Shortcut

Step 1 Open the Internet Explorer(IE) browser and enter http://192.168.1.1/3bb

Step 2 In the Quick Configuration page that is displayed, enter the username, password

(for surf internet) and validate code.

After finishing, click Save to apply the internet settings.

Step 3 In the Quick Configuration page appears pop-up "Save Completed", click OK to

close this page.

Step 4 In the Quick Configuration page that is displayed, click Close to close this page.

Type 2. General

Step 1 Open the Internet Explorer(IE) browser and enter http://192.168.1.1

Step 2 In the login window, enter the Username is admin and Password is last 4

digits of router Mac Address and Validate code

Step 3 Click Login. After the password is authenticated, the Web configuration window is

displayed.

Condition

♦If you put the wrong Username/Password more than 30 times, the system will

lock for 1 minutes. Then the system will lock out automatically

♦You should change the password after the first login to protect against

unauthorized access

♦After logging in to the system for 5 minutes, if you do not perform any operations

it will log out and returns to the login interface automatically.

Note: If you want to Remote to customer’s device, please ask for customer’s permission

all the times (See How Remote Router Click)

3. WAN,Wireless Settings

3.1 IP Address Of Cards LAN settings

Configure TCP / IP properties of cards LAN is Obtain an IP address automatically from

modem or configure IP address of the computer in the network with Router 2. Web

configuration Type 1. Shortcut to access the internet (“Wan Setting” Step direct to

device is checking)

3.2 Wireless settings

- Choose Home Network --> Click WLAN Settings(1)

- The default SSID settings ,for Wireless and 2.4GHz(2) and Wireless 5GHz(3) (You can

choose both or just one signal)

- SSID: named what you want.

- Enable SSID: Tick To turn signal (can choose both or just one signal)

- WPA pre - shared key(4) set the password that you need

- Enter Validate Code(5)

- Click Save(6)

- After finishing, you can enter URL Website to access Internet

4. Hardware Installation

4.1 step 1 : Connect the incoming line to the DSL interface of the device through a

telephone cable(1)

4.2 step 2 : Connect the network card of your PC to the LAN interface of the device through

an Ethernet cable (MDI/MDIX)(2)

4.3 step 3 : Plug the input end of the power adapter to the wall outlet and connect the

output end to the Power interface of the device(3)

The following application diagram is for the connection of the router, PC

and Telephone.

Note : The figures in this guide are for reference only. The appearance and display

features may vary slightly depending on the actual product version.

5. Packing List

The following table lists the items in the product package.

รายการ

จ านวน

VDSL Router

Power Adapter

RJ 45 Cable

RJ 11 Cable

Quick Installation Guide

Safety Information

Note: If you find anything missing or damaged, contact service provider.
