Wireless ADSL Router

WA1003A-RU

User Manual

FCC Notices

This device complies with Part 15 of FCC rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that

may cause undesired operations.

CAUTION: Change or modification not expressly approved by the party responsible

for compliance could void the user’s authority to operate this equipment.

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provid e reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment in to an outlet on a circuit different

from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for

help.

User Manual

Quidway W1000 Series Wireless Access Device

WA1003A-RU Wireless ADSL Access Point Table of Contents

Table of Contents

Chapter 1 Basic Information of Product......................................1-1

1.1 Packing List........................................................................1-1

1.2 Appearance of WA1003A-RU............................................1-2

1.2.1 Front Panel Display.................................................1-2

1.2.2 Rear Panel Connections .........................................1-3

1.3 Features and Standards Compatibility and Compliance of

Product.....................................................................................1-4

1.3.1 Features of Product.................................................1-5

1.3.2 Standards Compatibility and Compliance...............1-8

Chapter 2 Installation....................................................................2-1

2.1 Before You Start.................................................................2-1

2.1.1 Installation Overview ...............................................2-1

2.1.2 Installation Requirements........................................2-1

2.2 Choosing Installation Location...........................................2-8

2.3 Installing USB Driver........................................................2-10

2.4 Network Connections.......................................................2-11

2.4.1 Connect ADSL Line...............................................2-11

2.4.2 Connect WA1003A-RU to Ethernet.......................2-11

2.4.3 Hub or Switch to WA1003A-RU Connection.........2-12

2.4.4 Computer to WA1003A-RU Connection................2-12

2.5 Power on WA1003A-RU..................................................2-12

2.6 Factory Reset Button .......................................................2-13

Chapter 3 Configuring...................................................................3-1

3.1 WAN Configuration Summary............................................3-1

User Manual

Quidway W1000 Series Wireless Access Device

WA1003A-RU Wireless ADSL Access Point Table of Contents

3.2 Configuring IP Settings on Your Computer........................3-2

3.2.1 Configure Windows XP for DHCP...........................3-3

3.2.2 Configure Windows 2000 for DHCP........................3-7

3.2.3 Configure Windows ME for DHCP ..........................3-8

3.2.4 Configure Windows 95 and Windows 98 for DHCP3-8

3.2.5 Configure Windows NT 4.0 for DHCP.....................3-9

3.3 Login to Home Page ..........................................................3-9

3.4 Configure the WA1003A-RU............................................3-11

3.4.2 Setup Menu...........................................................3-12

3.4.3 Wireless Settings...................................................3-14

3.4.4 Wireless Security...................................................3-15

3.4.5 Configure Connection 1 for PPPoA.......................3-21

3.5 Change the Connection Type..........................................3-24

3.5.1 Configure Connection 1 for PPPoE.......................3-24

3.5.2 Configure Connection 1 for Bridge........................3-27

3.5.3 Configure Connection 1 for Static IP for WAN......3-29

3.5.4 Configure Connection 1 for DHCP for WAN .........3-32

3.5.5 Configure Connection 1 for CLIP ..........................3-34

3.6 Create a New Connection................................................3-37

3.7 DHCP Configuration for LAN...........................................3-39

3.7.2 Enable DHCP Relay..............................................3-41

3.8 Management IP................................................................3-42

3.9 Save Configuration Changes...........................................3-43

3.10 Advanced WA1003A-RU Management .........................3-45

3.10.2 UPnP...................................................................3-45

3.10.3 LAN Clients..........................................................3-47

3.10.4 Port Forwarding...................................................3-49

3.10.5 Access Control ....................................................3-53

3.10.6 Advanced Security ..............................................3-56

User Manual

Quidway W1000 Series Wireless Access Device

WA1003A-RU Wireless ADSL Access Point Table of Contents

3.10.7 Bridge Filters .......................................................3-59

3.10.8 Multicast Pass-through........................................3-60

3.10.9 Static Routing......................................................3-61

3.10.10 Dynamic Routing...............................................3-62

3.11 Wireless Management...................................................3-63

3.12 Multiple Virtual Connections ..........................................3-64

3.13 Tools and Utility Menus..................................................3-65

3.13.2 User Management...............................................3-65

3.13.3 System Commands.............................................3-66

3.13.4 Remote Log.........................................................3-68

3.13.5 Update Gateway..................................................3-69

3.13.6 Ping Test .............................................................3-71

3.13.7 Modem Test.........................................................3-72

3.14 Status Menus.................................................................3-72

3.14.2 Network Statistics................................................3-73

3.14.3 Connection Status...............................................3-74

3.14.4 DHCP Clients ......................................................3-74

3.14.5 Modem Status .....................................................3-75

3.14.6 Product Information.............................................3-76

3.14.7 System Log..........................................................3-77

3.14.8 Help Menu...........................................................3-78

Chapter 4 Trouble Shooting .........................................................4-1

Chapter 5 Specifications...............................................................5-1

Chapter 6 Appendix.......................................................................6-1

6.1 Factory Default Settings.....................................................6-1

6.2 Abbreviations .....................................................................6-1

User Manual

Quidway W1003 Series Wireless Access Device

WA1003A-RU Wireless ADSL Access Point Chapter 1 Basic

Information of Product

1-1

Chapter 1 Basic Information of Product

1.1 Packing List

Open the shipping carton and carefully remove all items. Make

sure that you have the items listed here.

 One WA1003A-RU

 One screw-on antenna

 One CD-ROM containing the User’s Guide and USB driver

 One twisted-pair telephone cable used for ADSL connection

 One straight-through Ethernet cable

 One USB cable for USB connection

 One AC power adapter suitable for your electric service

 One User manual

 One Quick Installation Guide

User Manual

Quidway W1003 Series Wireless Access Device

WA1003A-RU Wireless ADSL Access Point Chapter 1 Basic

Information of Product

1-2

1.2 Appearance of WA1003A-RU

1.2.1 Front Panel Display

Figure 1-1 Front Panel

Place the WA1003A-RU in a location that permits an easy view of

the LED indicators on the front panel.

The LED indicators on the front panel include the Power, Status,

ADSL Link/Act and LAN (1-4) Link/Act indicators. The ADSL and

Ethernet indicators monitor link status and activity (Link/Act).

User Manual

Quidway W1003 Series Wireless Access Device

WA1003A-RU Wireless ADSL Access Point Chapter 1 Basic

Information of Product

1-3

Table 1-1 LED indicators of WA1003A-RU

LED

indicators Description

Power Steady green light indicates the unit is powered on. When the device

is powered off this remains dark.

Status

Lights steady green during power on self-test (POST). Once the

connection status has been settled, the light will blink green. If the

indicator lights steady green after the POST, the system has failed

and the device should be rebooted.

ADSL:

Link/Act

Steady green light indicates a valid ADSL connection. This will light

aftertheADSLnegotiationprocesshasbeensettled.Ablinkinggreen

light indicates activity on the WAN (ADSL) interface.

WLAN

1 – 4:

Link/Act

A solid green light indicates a valid link on startup. These lights blink

when there is activity currently passing through the Ethernet port.

USB:

Link/Act Steady green light indicates a valid USB connection. A blinking green

light indicates activity on the USB interface.

1.2.2 Rear Panel Connections

All cable connections to the WA1003A-RU are made at the rear

panel. Connect the power adapter here to power on the WA1003A-RU.

Use the Reset button to restore the settings to the factory default

values in the next chapter for instructions on using the reset button).

User Manual

Quidway W1003 Series Wireless Access Device

WA1003A-RU Wireless ADSL Access Point Chapter 1 Basic

Information of Product

1-4

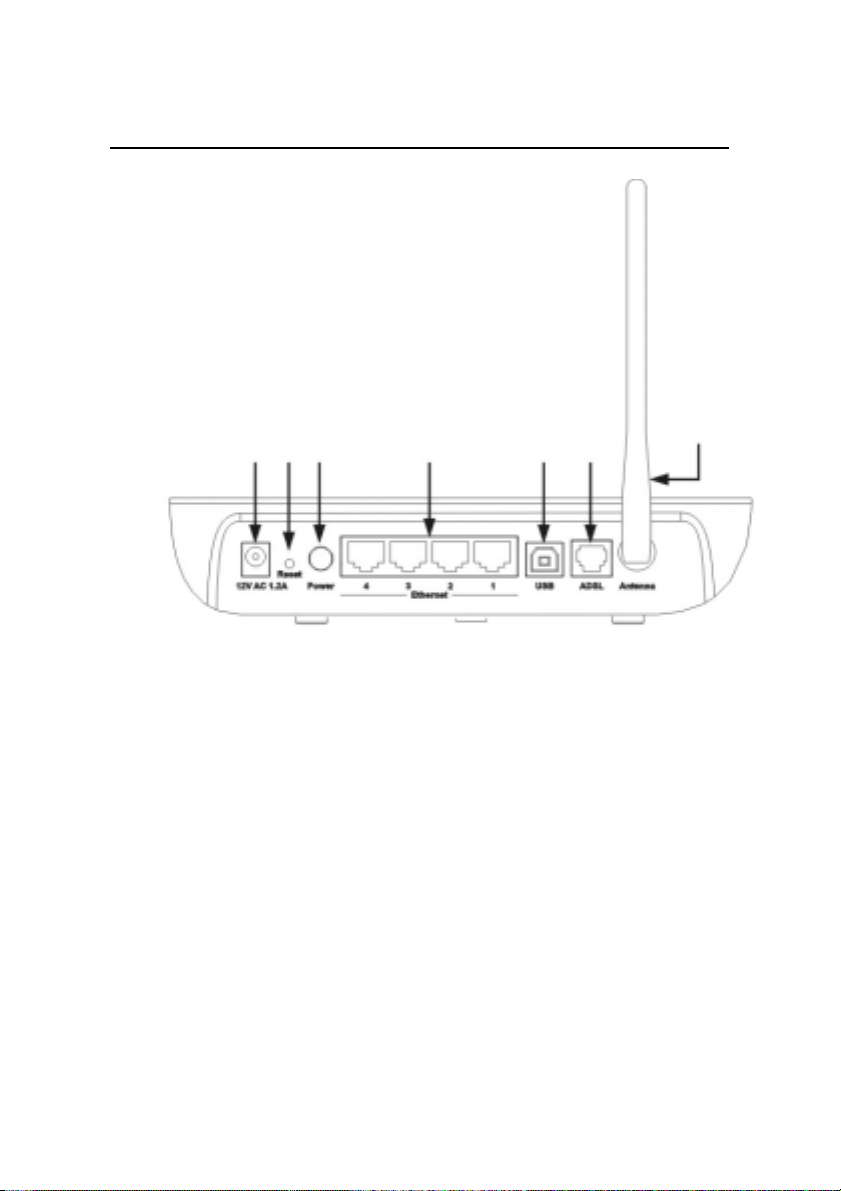

Figure 1-2 Rear panel

1.3 Features and Standards Compatibility and

Compliance of Product

The WA1003A-RU is designed to provide a simple, cost-effective

and secure ADSL Internet connection for wired (Ethernet) and

wireless (802.11b) stations on your network. The WA1003A-RU

combines high-speed ADSL connection technology, TCP/IP routing

and 802.11b wireless connectivity in one compact unit.

The WA1003A-RU is easy to install and use. The WA1003A-RU

connects to an Ethernet LAN via a standard Ethernet 10BASE-T

User Manual

Quidway W1003 Series Wireless Access Device

WA1003A-RU Wireless ADSL Access Point Chapter 1 Basic

Information of Product

1-5

interface using RJ-45 connectors. The ADSL connection is made

using ordinary twisted-pair telephone line with standard RJ-11

connectors. This arrangement allows wired and wireless workstations

to share network resources and connect to the Internet using a single

WAN interface and IP address.

The WA1003A-RU supports transparent bridging or it can be

used for IP packet routing over the Internet. Cost saving features of

the WA1003A-RU such as NAT (Network Address Translator) and

DHCP (Dynamic Host Configuration Protocol) improve efficiency and

security. The advanced security enhancements, packet filtering and

port redirection, can help protect your network from potentially

devastating intrusions by malicious agents outside your network.

All the 802.11b wireless settings for the WA1003A-RU are

entered on a single page in the web manager. Security for the wireless

interface comes in two forms, WEP Encryption and MAC Address

Control.

1.3.1 Features of Product

The WA1003A-RU utilizes the latest ADSL enhancements to

provide a reliable Internet portal suitable for most small to medium

sized offices. WA1003A-RU advantages include:

• PPP (Point-to-Point Protocol) Security – The WA1003A-RU

supports PAP (Password Authentication Protocol) and CHAP

(Challenge Handshake Authentication Protocol) for PPP

connections.

• DHCP Support – Dynamic Host Configuration Protocol

automatically and dynamically assigns al LAN IP settings to each

Table des matières

Autres manuels Huawei Routeur réseau

Huawei

Huawei Quidway S8500 Series Manuel utilisateur

Huawei

Huawei AR1200 Series Manuel utilisateur

Huawei

Huawei E5373s-155 Manuel utilisateur

Huawei

Huawei ATN 910C-K Manuel utilisateur

Huawei

Huawei 3 Prime Manuel utilisateur

Huawei

Huawei Quidway S3000-EI Series Manuel utilisateur

Huawei

Huawei 5G CPE Pro H112-372 Manuel utilisateur

Huawei

Huawei B593s-931 Caractéristiques techniques

Huawei

Huawei LTE CPE E5172 Manuel utilisateur

Huawei

Huawei Quidway S3500 Series Manuel utilisateur

Huawei

Huawei Quidway S9300 Manuel utilisateur

Huawei

Huawei AR3200 Series Manuel utilisateur

Huawei

Huawei Mobile WiFi Smart E355 Manuel utilisateur

Huawei

Huawei AR150/200 Series Manuel utilisateur

Huawei

Huawei NetEngine 8000 F Instructions d'installation

Huawei

Huawei AR2200-S Series Manuel utilisateur

Huawei

Huawei CarFi Manuel utilisateur

Huawei

Huawei WiFi AX3 Manuel utilisateur

Huawei

Huawei Vodafone B970 Manuel utilisateur

Huawei

Huawei AR150 series Manuel utilisateur

Huawei

Huawei EchoLife HG8245 Manuel utilisateur

Huawei

Huawei eSpace IAD101H Manuel utilisateur

Huawei

Huawei B612 Manuel utilisateur

Huawei

Huawei Quidway S1700-8-AC Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
