Quidway® S8500 100M Ethernet Interface Board

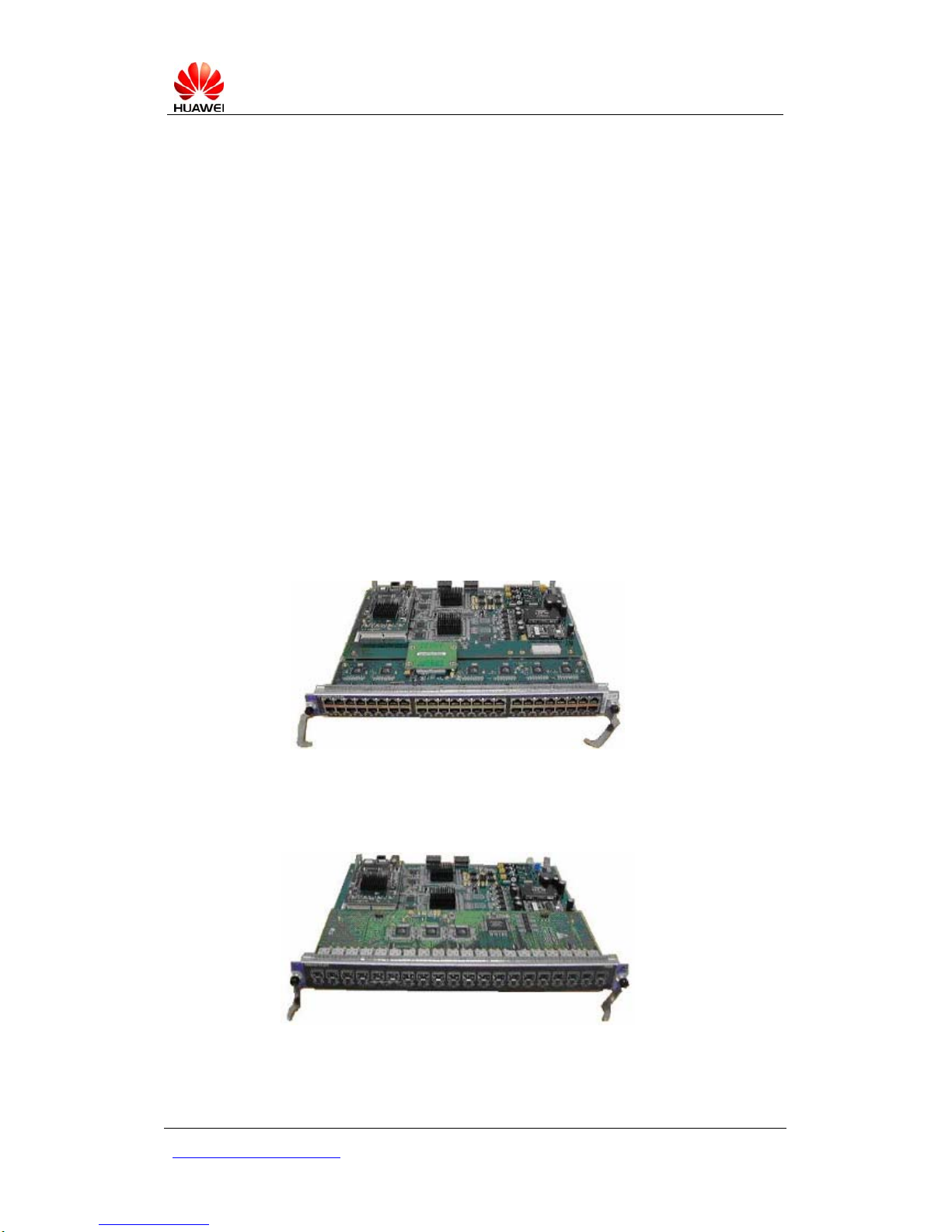

Overview

Quidway® S8500 core route switch developed by Huawei can provide 20-port and 48-port

100 M Ethernet interface boards externally, including FT48 and FP20. Where, FT48 board

provides forty-eight 100 M Ethernet electrical interfaces externally and FP20 provides

twenty 100 M Ethernet optical interface. The optical interface uses the SFP module and

supports hot swap. By replacing the module, it can support different transmission distance.

All boards meet the IEEE 802.3u standard and provide full line-speed 100 M processing

capability for all ports to meet the actual requirement of 100 M networking.

FT48

FT20

http://datacomm.huawei.com

Quidway® S8500 100M Ethernet Interface Board

http://datacomm.huawei.com

Main Characteristics

Flexible Configurations and Expandability

The 100 M interface board can work in any service slot of S8500. Up to three, five, eight

and twelve FE interface boards can be configured on S8502/S8505/S8508/S8512

together respectively, implementing high speed service switch. The user selects 100 M

interface board of different port densities as required and selects optical modules

according to the transmission distance.

Table 1 Description of FP20 interface module

SFP module Central

wavelength Connector Matching cable Max. transmission

distance

50/125µm

Multi-Mode Fiber

100BASE-FX-MM-SFP 62.5/125µm

Multi-Mode Fiber

2km

100BASE-FX-SM-SFP 15km

100BASE-FX-SM-LR-SFP

1310nm

40km

100BASE-FX-SM-VR-SFP 1550nm

9/125µm

Single-Mode Fiber 80km

The interface board is connected with other interface board through the switching network

chip Crossbar in the system. Any port service of the same interface board or different

interface boards can realize non-blocking switching according to it. Meanwhile, the service

of different ports can aggregate to some interface board port to realize high-speed long

distance transmission.

Hot Swap Function

All interface boards support the hot swap function. The user can plug in/out interface

boards as required. It will not affect the service of other interface boards. The

management system can detect and recognize the interface board in real time and

implement auto configuration, thus ensuring that the existing service is available

continually to the best degree. Meanwhile, the optical module can implement hot swap

and plug-and-play.

Quidway® S8500 100M Ethernet Interface Board

http://datacomm.huawei.com

Flexible Service Function Configuration

The user can configure the interface board of different densities, interface types and

function features according to different application occasions. The interface board falls

into standard type and enhanced type according to the features such as the support for

MPLS VPN. While meeting the diversified requirements of user, it saves the user’s

investment to the best degree.

Table 2 FE interface board types

Name Description

Standard Module

LSBM2FT48B0 48-port 10/100 BASE-TX Interface Module, RJ45

LSBM1FP20B0 20-port 100BASE-Fx Interface Module, SFP Req.

MPLS Enhanced Module

LSBM2FT48CA0 S8500 48-port 10/100BASE-TX Interface Module, RJ45

LSBM1FP20CA0 S8500 20-port 100BASE-FX Interface Module, SFP Req.

Service Features

The interface board can work in any service slot.

The interface board supports the hot swap function.

Support IEEE 802.3x (flow control).

Support IEEE 802.3ad (link aggregation).

Support IEEE 802.1d (STP).

Support IEEE 802.1w (RSTP).

Support IEEE 802.1s (MSTP).

Support IEEE 802.1p (COS priority).

Support IEEE 802.1Q (VLAN).

Support IEEE 802.3, IEEE 802.3u, IEEE 802.3z and IEEE 802.3ab.

Support suppressing the broadcast storm.

Support standard and extended ACL rule.

Quidway® S8500 100M Ethernet Interface Board

http://datacomm.huawei.com

Support Diff-Serv/QoS, whose major functions include the traffic policing CAR, traffic

shaping, priority label resetting, packet redirection, queue scheduling mechanism,

congestion avoidance mechanism, flow mirroring, port mirroring and traffic statistics.

Support eight priority queues/ports.

Support maximum match and packet-by-packet forwarding mode.

Support line-speed forwarding of layer-2 and layer-3 datagrams.

Support the equivalent route.

Support multicast forwarding.

The enhanced board supports the MPLS forwarding.

Specifications

Dimensions

346.40 mm (length) × 399.15 mm (width) × 40.1 mm (height)

Running Environment

Operation temperature: 0 oC– 45 oC

Storage temperature: - 40 oC – 75 oC

Relative humidity: 5% – 95% non-condensing

Fungus resistance: level 0

Operation altitude: - 60 m – 3000 m

Security Standard Compliance

- EN 60950-1 (LVD Directive)

- UL 60950-1, Edition 1, April 1, 2003

- IEC 60950-1

Quidway® S8500 100M Ethernet Interface Board

http://datacomm.huawei.com

EMC Standard Compliance

- CISPR 22: 2003-04-10 Edition 4 Class A

- EN55022: 1998+ A1: 2000+A2: 2003 Class A

- CFR Title 47, FCC part 15, Subpart B, Class A

- ICES-003, Issue 4, 2004 Class A

- AS/NZS 3548 Class A

- VCCI V-4 （2002）Class A

- EN 55024: 1998, A1:2001, A2:2003
