Huawei ME906J Instructions d'installation

HUAWEI ME906J LTE M.2 Module

Acceptance Inspection Guide

Issue

Date

2013-05-22

Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service. For

any assistance, please contact our local office or company headquarters.

Huawei Technologies Co., Ltd.

Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People’s Republic of China

Tel: +86-755-28780808 Global Hotline: +86-755-28560808 Website: www.huawei.com

E-mail: m[email protected]

Please refer color and shape to product. Huawei reserves the right to make changes or improvements to any

of the products without prior notice.

No part of this document may be reproduced or transmitted in any form or by any means without prior written

consent of Huawei Technologies Co., Ltd.

The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and

possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble,

decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions

are prohibited by applicable laws or such actions are approved by respective copyright holders under

licenses.

Trademarks and Permissions

, , and

are trademarks or registered trademarks of Huawei Technologies Co., Ltd.

Other trademarks, product, service and company names mentioned are the property of their respective

owners.

Notice

Some features of the product and its accessories described herein rely on the software installed, capacities

and settings of local network, and may not be activated or may be limited by local network operators or

network service providers, thus the descriptions herein may not exactly match the product or its accessories

you purchase.

Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications

contained in this manual without prior notice or obligation.

NO WARRANTY

THE CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE

LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS

MANUAL.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI

TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR

CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR

ANTICIPATED SAVINGS.

Import and Export Regulations

Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary

governmental permits and licenses in order to export, re-export or import the product mentioned in this

manual including the software and technical data therein.

HUAWEI ME906J LTE M.2 Module

Acceptance Inspection Guide

About This Document

Issue 01 (2013-05-22)

Huawei Proprietary and Confidential

About This Document

Revision History

Document

Version

Date

Chapter

Description

2013-05-22

Creation

HUAWEI ME906J LTE M.2 Module

Acceptance Inspection Guide

Contents

Issue 01 (2013-05-22)

Huawei Proprietary and Confidential

Contents

1 Introduction....................................................................................................................................5

1.1 Purpose............................................................................................................................................ 5

1.2 Scope ............................................................................................................................................... 5

2 Acceptance Inspection..................................................................................................................6

2.1 Packaging Modes and Appearance ................................................................................................. 6

2.2 Label Inspection............................................................................................................................... 8

2.3 Performance Inspection ................................................................................................................... 9

2.4 Repack the Module after Inspection............................................................................................... 12

HUAWEI ME906J LTE M.2 Module

Acceptance Inspection Guide

Introduction

Issue 01 (2013-05-22)

Huawei Proprietary and Confidential

1 Introduction

1.1 Purpose

This document describes the methods of inspecting Huawei's shipments of ME906J

module. Customers can refer to this document when formulating inspection guides

for accepting Huawei's ME906J.

1.2 Scope

This guide is applicable to the acceptance inspection of Huawei's ME906J. The

inspection methods provided in this guide are recommendations, which can be

modified by customers if necessary.

HUAWEI ME906J LTE M.2 Module

Acceptance Inspection Guide

Acceptance Inspection

Issue 01 (2013-05-22)

Huawei Proprietary and Confidential

2 Acceptance Inspection

2.1 Packaging Modes and Appearance

The first-layer packages for the ME906J are large cartons, the second-layer

packages are trays, as shown in the following figures.

Figure 2-1 Large carton packaging

Delivery Label

Carton ID

Weight Label

Ecolabel

HUAWEI ME906J LTE M.2 Module

Acceptance Inspection Guide

Acceptance Inspection

Issue 01 (2013-05-22)

Huawei Proprietary and Confidential

Check whether the package has serious damage and has been opened.

Check whether the number of Carton ID labels attached on the large carton is consistent

with the number of trays in the large carton.

Figure 2-2 The tray

Icon Direction

Paste Datum

HUAWEI ME906J LTE M.2 Module

Acceptance Inspection Guide

Acceptance Inspection

Issue 01 (2013-05-22)

Huawei Proprietary and Confidential

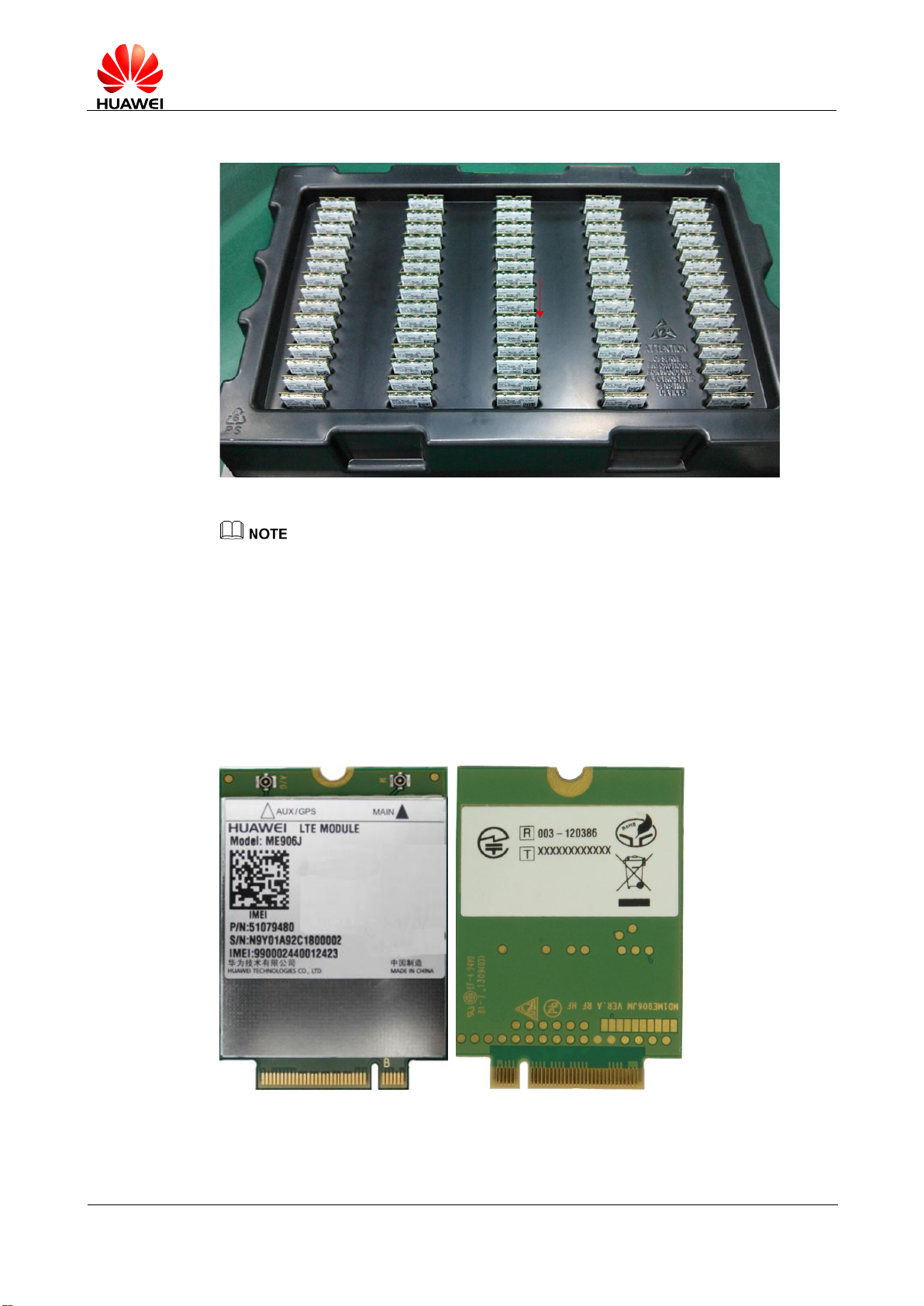

Figure 2-3 The layout inside the tray

Insert

Direction

Check whether the packaging modes are consistent with those shown in the previous

figures.

The ME906J modules are packed in trays. Check the trays for damage.

2.2 Label Inspection

Figure 2-4 ME906J label

Top Label Bottom Label

HUAWEI ME906J LTE M.2 Module

Acceptance Inspection Guide

Acceptance Inspection

Issue 01 (2013-05-22)

Huawei Proprietary and Confidential

Check whether the information on the label of an ME906J is consistent with the

corresponding label shown in Figure 2-4 . There are two kinds of labels for ME906J and

you can find one that is corresponding to the label shown in Figure 2-4 . The label shown in

Figure 2-4 are of the general version. If the label is customized, see the approval sheet.

Use a 2D barcode scanner to read the 2D barcode and check whether the number read

from the barcode is consistent with the IMEI number printed on the label.

2.3 Performance Inspection

Testing software: HyperTerminal

Testing tools: USB cable, PCB for testing modules, PC

The following is the procedure:

Step 1 Use serial port or the USB cable to connect the testing PCB to the PC.

Step 2 Open Run and input the path C:\Program Files\Windows NT, and hypertrm.exe

will be displayed as shown in the following figure. Double click hypertrm.exe to run

HyperTerminal.

Step 3 Open Run and input hypertrm to enter Connection Description. Input ME906J in

Name column and select the read telephone icon in Icon column as shown in the

following figure.

HUAWEI ME906J LTE M.2 Module

Acceptance Inspection Guide

Acceptance Inspection

Issue 01 (2013-05-22)

Huawei Proprietary and Confidential

Step 4 Select the correct serial port (such as COM35) in Connect using column and click

OK as shown in the following figure.

Step 5 Select 115200 in Bits per second column, and then click Apply and OK as shown in

the following figure.
