HUAWEI E1615 HSDPA USB

Stick

Quick Start

No part of this document may be reproduced or transmitted in any form or by any

means without prior written consent of Huawei Technologies Co., Ltd.

The product described in this manual may include copyrighted software of Huawei

Technologies Co., Ltd and possible licensors. Customers shall not in any manner

reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse

engineer, lease, assign, or sublicense the said software, unless such restrictions

are prohibited by applicable laws or such actions are approved by respective

Trademarks and Permissions

, HUAWEI, and

are trademarks or registered trademarks of Huawei

Technologies Co., Ltd.

Other trademarks, product, service and company names mentioned are the

property of their respective owners.

Notice

Some features of the product and its accessories described herein rely on the

software installed, capacities and settings of local network, and may not be

activated or may be limited by local network operators or network service

providers, thus the descriptions herein may not exactly match the product or its

accessories you purchase.

Huawei Technologies Co., Ltd reserves the right to change or modify any

information or specifications contained in this manual without prior notice or

obligation.

NO WARRANTY

THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED

BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR

IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN

RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL

HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL,

INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS,

REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS.

Import and Export Regulations

Customers shall comply with all applicable export or import laws and regulations

and will obtain all necessary governmental permits and licenses in order to export,

re-export or import the product mentioned in this manual including the software

and technical data therein.

Table of Contents

What Is in Your Package ......................................................................... 1

Getting to Know Your USB Stick............................................................... 2

Preparation........................................................................................... 4

Installation/Removal Guide...................................................................... 5

Safety Information................................................................................. 8

Thank you for choosing Huawei HSDPA USB Stick.

With the USB Stick, you can access the Internet

through wireless network at a high speed.

Note:

This manual describes the appearance, installation and removal of the USB Stick.

For the operation of the management program, refer to the User Manual.

What Is in Your Package

The package of your USB Stick contains the following items:

One USB Stick

One Quick Start

One USB cable

Getting to Know Your USB Stick

The following figure shows the appearance of the USB Stick. It is only for your

reference. The actual product may differ.

nUSB Interface

It connects the USB Stick to a computer.

oIndicator

It indicates the status of the USB Stick.

Color Status Meaning

Green Blinking (on for 100ms and The USB Stick is powered on.

off for 100ms; then on for

100ms and off for

2700ms)

Green Blinking (on for 100ms and

off for 2900ms) The USB Stick is registered to a GPRS

(GSM/GPRS/EDGE) network.

Blue Blinking (on for 100ms and

off for 2900ms) The USB Stick is registered to a UMTS

(WCDMA/HSDPA) network.

Green On The USB Stick is connected to a GPRS

network.

Blue On The USB Stick is connected to a WCDMA

network.

Cyan On The USB Stick is connected to a HSDPA

network.

- Off The USB Stick is removed.

pSIM/USIM Card Slot

It is where you insert the subscriber identity module/UMTS subscriber identity

module (SIM/USIM) card.

Preparation

Requirements for the Computer

To use the USB Stick, the computer must meet the following requirements:

USB Type A Receptacle, Compatible with USB 2. 0 High Speeds.

Windows 2000 SP4, Windows XP SP2, Windows Vista.

Your computer’s hardware system should meet or exceed the recommended

system requirements for the installed version of OS.

Resolution for the display: 800 × 600 or above.

Getting Your USB Stick Ready

1. Remove the back cover of the USB Stick.

2. Insert the USIM/SIM card into the card slots. Make sure that the cards are

properly inserted.

3. Install the back cover of the USB Stick.

Installation/Removal Guide

On different operating systems (OSs), the installation and removal procedures

may differ. Follow the system prompts during operation.

Connecting the USB Stick with a Computer

Note:

First, power on the computer. Then connect the USB Stick with the computer.

Otherwise, the USB Stick cannot be installed as normal.

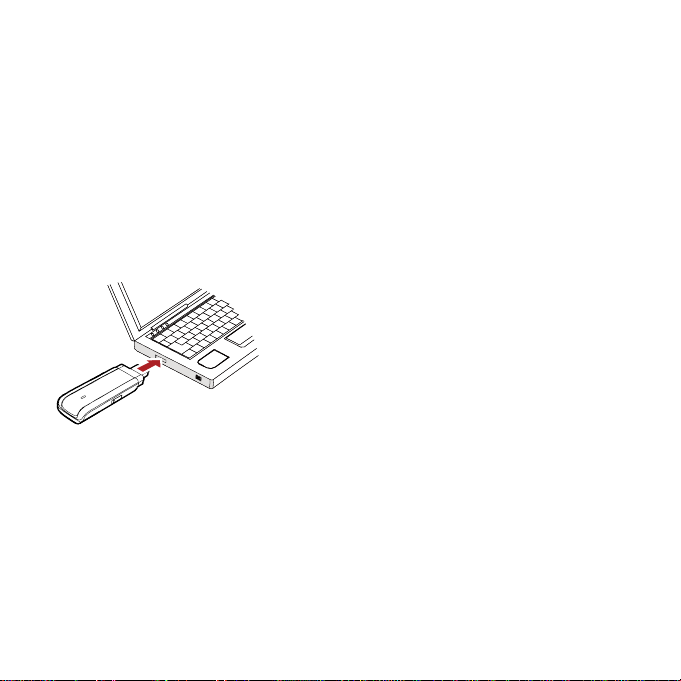

1. Plug the USB Stick into the USB interface of the laptop or desktop computer.

2. You can connect the USB Stick to a laptop or desktop computer using the USB

cable for better signals.
