Huawei HG630B Manuel utilisateur

SPARK

HOME MODEM

Ultra Broadband

ready

Equipment Check 2

Getting Started 3

Setting Up Fibre Broadband 4

Setting Up VDSL2 Broadband 5

Setting Up ADSL Broadband 6

Connect Your Computer 7

Connect To Power 7

Connect To Broadband 8

Connect To Wi-Fi (Wireless Networking) 9

Connect To Wi-Fi Using WPS Enabled Devices (Optional) 10

Access Free Premium Services 11

Securing Your Gateway 12

Factory Reset 13

Advanced Settings 14

Problems? 14

Important Tips 15

CONTENTS

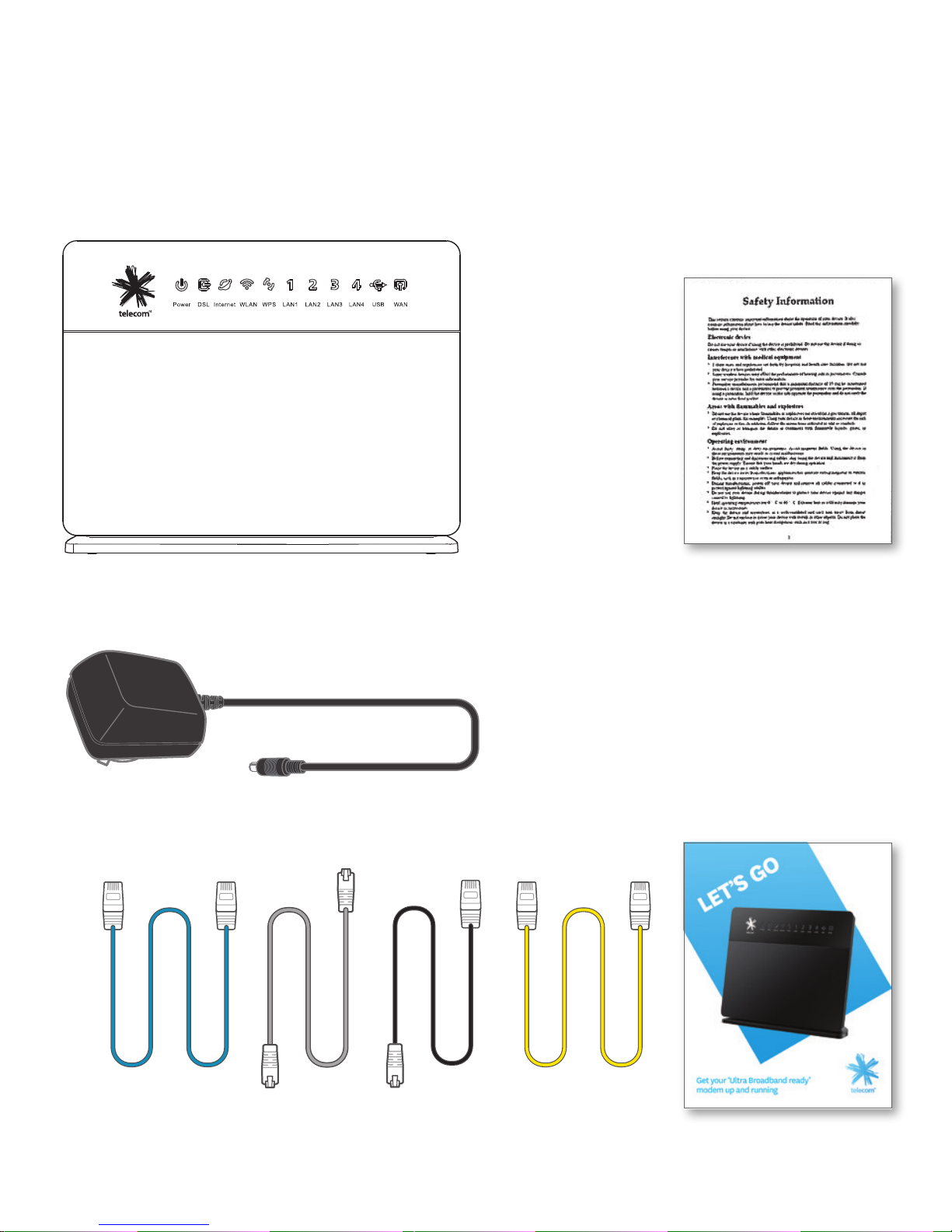

1 x Huawei HG630B Gateway

1 x ADSL

Cable (grey)

1 x VDSL2

Cable (black)

1 x LAN Ethernet

Cable (Yellow)

1 x Fibre Ethernet

Cable (blue)

1 x Power Supply

1 x User Guide

1 x Safety Information

Let’s check everything is here. You should have:

1. EQUIPMENT CHECK

To set up your internet connection, you’ll initially need to use a computer

(Windows or Mac) with an Ethernet port and web browser, and connected by

the yellow Ethernet cable to a LAN port in the Gateway. Your computer needs

to be within reach of the phone socket for ADSL or VDSL broadband services,

or the optical network termination point for ﬁbre broadband services.

Once you’ve established your internet connection, you’ll then be able to set

up a wireless WiFi (wireless) network and connect wirelessly.

2.1 BROADBAND SERVICE AUTO CONFIGURATION

The HG630b Gateway automatically conﬁgures itself to the active connection type it

discovers – ADSL, VDSL2, Fibre or via USB Mobile Broadband T-Stick.*

Should you change connection type at any time, simply reboot your gateway

and it will connect to the new service without altering your gateway settings.

The HG630b supports a range of Spark USB mobile broadband T-Sticks. By using

a mobile broadband connection through this gateway, you will incur charges on your

mobile broadband plan not covered by your home or ﬁxed line broadband plan.

A list of Spark T-Sticks supported by the HG630b can be found at

www.spark.co.nz/help

2. GETTING STARTED

If you have an ADSL or VDSL broadband connection, skip this step.

To receive a ﬁbre broadband service, your premises must have a ﬁbre cable connection.

To set up your ﬁbre broadband connection you must use a computer with an

ethernet port and a web browser. Due to the length of the cables supplied, you must

set up close to the ﬁbre optical network termination (or ONT) point. Once your ﬁbre

broadband is working, you can unplug the ethernet cable and use the Gateway’s

wireless (Wi-Fi) network.

Connect one end of the blue tipped Fibre Ethernet Cable into the blue WAN port

in the Gateway and the other end into the port labelled GE1 in the Fibre ONT

(Chorus Fibre ONT illustrated).

When complete, skip to step 6.

Fibre Company ONT

Fibre

Ethernet Cable

3. SETTING UP FIBRE BROADBAND

GE2POTS1 POTS2 RESET GE1 GE3 GE4 POWER

If you have an ADSL or ﬁbre broadband connection, skip this step.

To receive a VDSL2 broadband service you must have a VDSL Splitter installed by a

technician as part of your connection agreement

To set up your VDSL2 broadband connection you must use a computer with an

ethernet port and a web browser. Due to the length of the cables supplied, you must

set up close to the VDSL2 connection point. Once broadband is working you can

unplug the ethernet cable and use the Gateway’s wireless (Wi-Fi) network.

Connect the VDSL2 cable to the DSL port on the Gateway and the VDSL2

connection point.

Note: the small connector (RJ11) should go into the DSL port in the Gateway

and the large connector (RJ45) should go into the VDSL2 connection point.

When complete skip to step 6.

Dedicated VDSL2 connection point (RJ45)

VDSL2 cable

Large connector (RJ45)

Small connector (RJ11)

4. SETTING UP VDSL2 BROADBAND

If you have a VDSL or ﬁbre broadband connection, skip this step.

ADSL ﬁlters are required for every phone socket in use, including phone lines, faxes

or digital TV decoders. Filters remove interference on your phone lines and improve

your broadband service.

If you use 4 or more phone sockets in your home, have a monitored security or

medical alarm, Spark strongly recommend you have an ADSL Splitter installed by a

technician.

Call Spark on 0800 22 55 98 to arrange installation or to order more ADSL filters.

a. Connect the ADSL ﬁlter to the phone socket.

b. If you use a telephone, fax machine or TV decoder etc. at the same phone socket,

connect that device into the ADSL ﬁlter socket marked PHONE.

c. Connect the ADSL cable into the ADSL ﬁlter socket marked ADSL.

d. Connect the other end of the ADSL cable into the Gateway port marked DSL.

5. SETTING UP ADSL BROADBAND

a. Connect the yellow Ethernet cable into LAN port number 1 (LAN1) in the

back of the Gateway.

b. Connect the other end of the ethernet cable into the ethernet port on

your computer.

Look for this symbol on your computer if you are not sure.

a. Plug in the power supply to

the electrical power socket.

Plug the other end of the

power cable into the Power

socket in the Gateway.

b. Ensure the power is turned

on at the wall, and push in the

ON/OFF button on the back of

the Gateway to turn the Gateway on.

6. CONNECT YOUR COMPUTER

7. CONNECT TO POWER

On/Oﬀ

Please wait up to 5 minutes for the Gateway to establish a broadband connection.

Your Gateway lights will tell you when the connection is working correctly.

If the Power light is oﬀ – check Step 7.

For ADSL and VDSL2 connections, the lights should be as follows:

The Power and DSL lights should be solid GREEN and not blinking.

The Internet and LAN1 lights should be GREEN and blinking.

For a Fibre connection, the lights should be as follows:

The Power and WAN lights should be solid GREEN and not blinking.

The Internet and LAN1 lights should be GREEN and blinking.

When the Gateway lights are correct, open a web browser on your computer

such as Internet Explorer, Safari, Firefox or Chrome. If your connection is working

you will see a valid web page and be able to surf the internet.

If not, restart your computer, open an internet browser and try again.

If after 5 minutes the DSL light is oﬀ or ﬂashing:

yCheck Step 3 if you have a ﬁbre connection

yCheck Step 4 if you have a VDSL2 connection

yCheck Step 5 if you have an ADSL connection. If the DSL light remains oﬀ or

ﬂashing, you may have a faulty phone socket. Try connecting using another

phone socket.

If the LAN1 light is oﬀ – check Step 6. Ensure the ethernet cable is correctly

connected to the ethernet port of your computer, and a LAN port on your Gateway.

If the DSL light (for ADSL or VDSL2) or WAN light (for ﬁbre) remains oﬀ or ﬂashing,

or if you continue to experience problems, call our Broadband Helpdesk

on 0800 22 55 98.

8.1 NEW SPARK ACCOUNTS

If you are an existing Spark customer skip this step.

When you are successfully connected to the Internet, you should activate your

Spark broadband account. In the browser address bar type

www.spark.co.nz/broadbandsetup press enter and follow the online activation steps.

8. CONNECT TO BROADBAND
