Huawei HG532f Manuel utilisateur

HG532f Home Gateway

User Guide

HUAWEI TECHNOLOGIES CO., LTD.

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Ports and Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Selecting an Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Connecting Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Powering On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setting Network Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Setting the Computer IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Logging In to the Web Management Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Configuring a Wireless Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Setting Dial-Up Connection Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Wireless Connection Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Setting Up a Wireless Connection Using the WPS Button . . . . . . . . . . . . . . . . . . . 8

Manually Setting Up a Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Network Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Changing Your WLAN Name and Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Filtering Out Inappropriate Websites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Controlling Computer Internet Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

USB Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

USB Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting a USB Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Sharing a USB Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Maintenance Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Enabling and Disabling the WLAN on the HG532f . . . . . . . . . . . . . . . . . . . . . . . . 15

Changing the Web Management Page User Name and Password . . . . . . . . . . . 15

Restoring Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Reference Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Enabling Wireless Configuration on Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Checking the Computer MAC Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

What Can I Do If I Cannot Open the Web Management Page? . . . . . . . . . . . . . . 18

What Can I Do If the HG532f Cannot Access the Internet through a Wireless Network

Adapter Sometimes or If the WLAN Connection Is Unsteady?. . . . . . . . . . . . . . . 18

What can I do if I cannot access the Internet? . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

I Often Need to Restart the HG532f to Display Web Pages. What Can I Do? . . . 20

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Default Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

For More Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Legal Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

1 Product Overview

Ports and Buttons

No. Item Description

1ADSL Connects to a DSL filter or phone socket.

2LAN1 ～LAN4 Connects to Ethernet devices, such as computers, set-top boxes

(STBs), and switches.

3USB

Connects to a USB device.

If you connect a USB device to the HG532f, verify that the

input voltage and current of the USB device does not

exceed 5 V/1 A. Otherwise, the HG532f may malfunction.

4Reset

Restores the HG532f to its default settings after you press and

hold this button for 6 seconds or more while the HG532f is

powered on.

A reset will result in all custom data and settings being lost.

Use with caution.

5On/Off Powers the HG532f on or off.

6Power Connects to a power adapter.

7WPS Starts Wi-Fi protected setup (WPS) negotiation.

8WLAN Enables or disables the WLAN function.

ADSL LAN4 LAN3 LAN2 LAN1 Reset On/Off Power

USB

WPS WLAN

12 654

Indicators

Indicator Status Description

Power

Steady green The HG532f is powered on.

Off The HG532f is powered off.

Internet

Steady green The HG532f is connected to the Internet in router

mode, but no data is being transmitted.

Blinking green The HG532f is connected to the Internet in router

mode, and data is being transmitted.

Off

> The HG532f is in router mode, but not connected to

the Internet.

> The HG532f is in bridge mode.

ADSL

Steady green A digital subscriber line (DSL) connection has been

set up and activated.

Blinking green A DSL connection is being activated.

Off No DSL connection has been set up, or the DSL

connection is faulty.

WLAN

Steady green The HG532f has WLAN enabled, but is not

transmitting data.

Blinking green The HG532f has WLAN enabled, and data is being

transmitted.

Off WLAN is disabled.

WPS

Steady green

The HG532f is connected to a wireless client, such as

a computer with a wireless network adapter, over the

WLAN using the Wi-Fi Protected Setup (WPS)

function.

Blinking green The HG532f is attempting to connect to a wireless

client over the WLAN using the WPS function.

Off WPS is disabled.

LAN1 ～LAN4

Steady green

The LAN port is connected to an Ethernet device

(such as a computer) with a network cable, but no

data is being transmitted.

Blinking green The LAN port is connected to an Ethernet device with

a network cable, and data is being transmitted.

Off The LAN port is not connected to any Ethernet device.

USB

Steady green The HG532f is connected to a USB device, but no

data is being transmitted.

Blinking green The HG532f is connected to a USB device, and data is

being transmitted.

Off The HG532f is connected to a USB device, and data is

being transmitted.

Indicator Status Description

2 Hardware Installation

Selecting an Installation Location

Place the HG532f on a well-ventilated even surface without exposure to direct sunlight. For the best

possible performance, take note of the following:

> Make sure there are no obstacles, such as concrete or wooden walls, between the computer

and HG532f.

> Ensure that the computer and HG532f are far from electric appliances that generate strong

magnetic or electric fields, such as microwave ovens.

Connecting Cables

If you have subscribed to digital subscriber line (DSL) broadband, you can connect the HG532f to a

telephone port for Internet access.

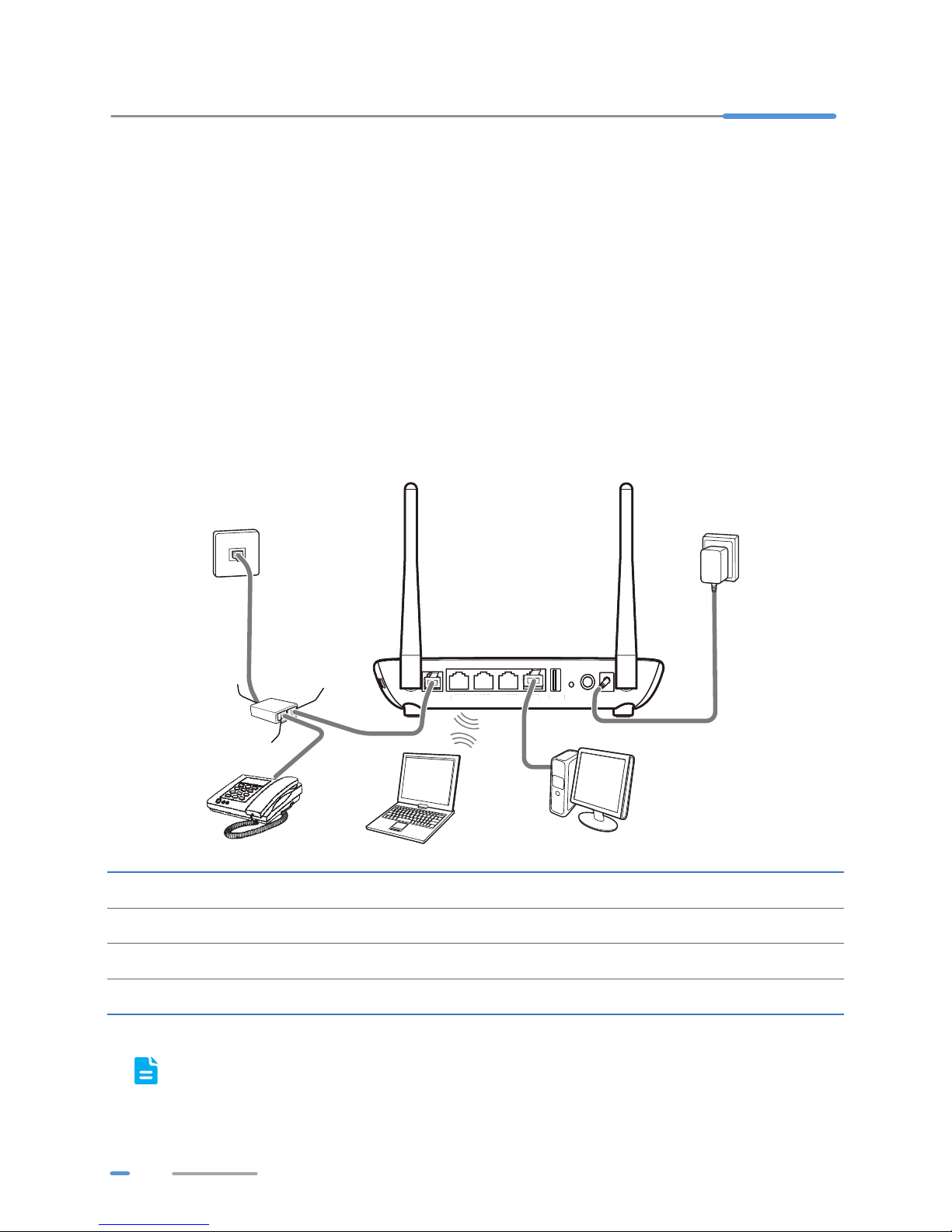

Connect your devices in the sequence indicated in the following figure.

When configuring the HG532f for the first time, use an Ethernet cable to connect the HG532f

to a computer.

1Telephone wall jack 2Splitter 3Telephone

4HG532f 5Desktop computer 6Power adapter

7Laptop computer

aMODEM port bPHONE port cLINE port

ADSL LAN4 LAN3 LAN2 LAN1 Reset On/Off Power

USB

LAN

eset On/Off

owe

Powering On

To power on the HG532f, press its Power button.

After the HG532f is powered on, the HG532f indicator turns on. The following table lists how the

indicators behave when the HG532f is operating correctly. If the indicators do not behave as expected,

ensure that everything is plugged in correctly.

Indicator Expected State

Power Steady on

ADSL

Steady on or blinking

The blinking may last from 40 seconds to 3 minutes. When the indicator

stops blinking and remains on, the HG532f is working correctly.

LAN Steady on or blinking (indicator of the connected LAN port)

ADSL LAN4 LAN3 LAN2 LAN1 Reset On/Off Power

USB

Power

3 Setting Network Parameters

Setting the Computer IP Address

Before logging in to the HG532f web management page, set the IP address of the computer that will

be used for the login.

On Windows 7

1. Choose start > Control Panel > Network and Internet > Network and Sharing Center.

2. Choose Change adapter settings. Right-click Local Area Connection and choose

Properties.

3. Double-click Internet Protocol Version 4 (TCP/IPv4).

4. Select Obtain an IP address automatically and Obtain DNS server address

automatically. Click OK.

On Windows XP

1. Choose start > Control Panel > Network and Internet Connections.

2. Click Network Connections. Right-click Local Area Connection and choose Properties

from the shortcut menu.

3. Double-click Internet Protocol (TCP/IP).

4. Select Obtain an IP address automatically and Obtain DNS server address

automatically. Click OK.

Logging In to the Web Management Page

The HG532f provides an intuitive web management page where you can view or set the HG532f

parameters.

Before you log in to the HG532f web management page, ensure that the computer used for the login is

connected to the HG532f and has been configured to automatically obtain an IP address or assigned

with a static IP address.

1. Open a browser. In the address box, enter 192.168.1.1. Press Enter.

2. Enter the login user name (user by default) and password (user by default). Click Login.

To protect against unauthorized access, change the user name and password after the first

Configuring a Wireless Account

The HG532f supports configuration wizard page. You can quickly configure the wireless parameters

through the configuration wizard page.

1. Log in to the web management page.

2. Enter the SSID (WLAN name) and key and click Next.

To obtain the default SSID and key, check the label on the rear panel. To better secure your

WLAN, promptly change the SSID and key.

Setting Dial-Up Connection Parameters

Before setting dial-up connection parameters, verify that the HG532f is correctly connected to your

computer and you have the dial-up connection account name and password provided by your Internet

service provider (ISP). This section demonstrates how to set up a Point-to-Point Protocol over Ethernet

(PPPoE) connection on Windows.

On Windows 7

1. Choose start > Control Panel > Network and Internet > Network and Sharing Center.

2. Under Change your networking settings, click Set up a new connection or network.

3. In the Set Up a Connection a Network window, select Connect to the Internet and click

Next.

4. Click Broadband (PPPoE).

5. In User name and Password, enter the dial-up connection account name and password

provided by your ISP. In Connection name, name the dial-up connection. Select or deselect

Allow other people to use this connection. Then click Connect.

6. Return to the Network and Sharing Center page. Click Change adapter settings. Right-

click the icon for the dial-up connection you just set up and choose Create Shortcut from the

shortcut menu. In the displayed dialog box, click Yes.

On Windows XP

1. Choose start > Control Panel > Network and Internet Connections > Network

Connections.

2. Under Network Tasks, click Create a New Connection.

3. In the Network Connection Wizard dialog box, click Next.

4. Select Connect to the Internet and click Next.

5. Select Set up my connection manually and click Next.

6. Select Connect using a broadband connection that requires a user name and

password and click Next.

7. In ISP Name, name the dial-up connection. Click Next.

8. Select Anyone's use or My use only and click Next.

9. Enter the dial-up connection account name and password provided by your ISP and click

Next.

10. Select Add a shortcut to this connection to my desktop and click Finish.

After you successfully set up a PPPoE connection, a dial-up connection icon is displayed on your

computer desktop.

To connect to the Internet, double-click the dial-up connection icon. In the displayed dialog box, click

Connect.

Table des matières

Autres manuels Huawei Porte

Huawei

Huawei B560 Manuel utilisateur

Huawei

Huawei HG523 Manuel utilisateur

Huawei

Huawei HG256s Manuel utilisateur

Huawei

Huawei HG659 Manuel utilisateur

Huawei

Huawei DN8245V Manuel utilisateur

Huawei

Huawei HG658c Manuel utilisateur

Huawei

Huawei ME60 Series Mode d’emploi

Huawei

Huawei EchoLife HG520s Manuel utilisateur

Huawei

Huawei eSpace IAD208E(M) Manuel utilisateur

Huawei

Huawei B2201H-201 Caractéristiques techniques

Huawei

Huawei B260 Caractéristiques techniques

Huawei

Huawei EchoLife HG521 Manuel utilisateur

Huawei

Huawei EchoLife HG556a Manuel

Huawei

Huawei U-SYS IAD101H Manuel utilisateur

Huawei

Huawei LTE CPE B5328-155 Caractéristiques techniques

Huawei

Huawei DAU eA680 Manuel utilisateur

Huawei

Huawei eA660 Series Caractéristiques techniques

Huawei

Huawei Sunrise Internet Box 5G Manuel utilisateur

Huawei

Huawei EchoLife HG556 Manuel utilisateur

Huawei

Huawei EchoLife HG532 Manuel utilisateur

Huawei

Huawei HG655d Manuel utilisateur

Huawei

Huawei eA380 Manuel utilisateur

Huawei

Huawei ePico3801 Manuel utilisateur

Huawei

Huawei eSpace EGW1520 Manuel utilisateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur

RTA

RTA 460MCBC-N2E Fiche technique
