Huawei EA660 Series Caractéristiques techniques

eWBB2.1 CPE eA660 Series

Product Description

Issue

Date

2012-9-30

HUAWEI TECHNOLOGIES CO., LTD.

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 2 of 19

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address:

Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website:

http://www.huawei.com

Email:

[email protected]

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 3 of 19

Contents

About This Document.....................................................................................................................4

1 Product Overview .........................................................................................................................5

2 Application Scenarios ..................................................................................................................7

3 Technical Specifications ............................................................................................................10

3.1 Hardware........................................................................................................................................................10

3.2 Antenna .......................................................................................................................................................... 11

3.3 Software ......................................................................................................................................................... 11

3.4 User Interfaces ...............................................................................................................................................13

4 Services and Applications .........................................................................................................15

5 Adopted Standards .....................................................................................................................16

6 Packing List ..................................................................................................................................17

7 Acronyms and Abbreviations...................................................................................................18

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 4 of 19

About This Document

Overview

This document describes the network position, product architecture and characteristics, and

related technical specifications of the eA660.

Intended Audience

This document is intended for:

Huawei technical support

System engineers

Network planning engineers

Change History

Updates between document issues are cumulative. Therefore, the latest document issue

contains all updates made in previous issues.

Issue 01 (2012-09-30)

This is the first commercial release.

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 5 of 19

1 Product Overview

Introduction

The Huawei eA660 is a Long Term Evolution (LTE) customer premises equipment (CPE).As

a wireless gateway, the eA660 can be deployed outdoors to provide services such as data

collection and video surveillance.

The eA660 Series CPE (eA660 for short) supports LTE Release 8. The eA660 provides the

following functions:

Data services

Security services

Local maintenance and management

Data routing

Product Features

The eA660 is developed based on the Software Development Platform (SDP). It supports LTE

and quick customization. The eA660's main features are as follows:

Compatible with 1.8 GHz, 2.3 GHz and 5.8 GHz LTE Time-Division Duplex (TDD)

networks; supports customization of different frequency bands

High-speed data services

Dynamic Host Configuration Protocol (DHCP) and Network Address Translation (NAT)

that provide high-speed routing service

Firewall functions

Web-based configuration utility that has an intuitive user interface

Device management that supports TR-069

Intuitive LED indicators, for easy identification of the device status

Built-in high-gain antennas that improve product performance and make the device easy

to carry; also compatible with external antennas

Surge protection in outdoor environments

Anti-shock capabilities that meet the IEC61373 (railway) and MIL-STD-810F (USA

military) standards

Shell protection that meets the IP67 standard

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 6 of 19

Appearance

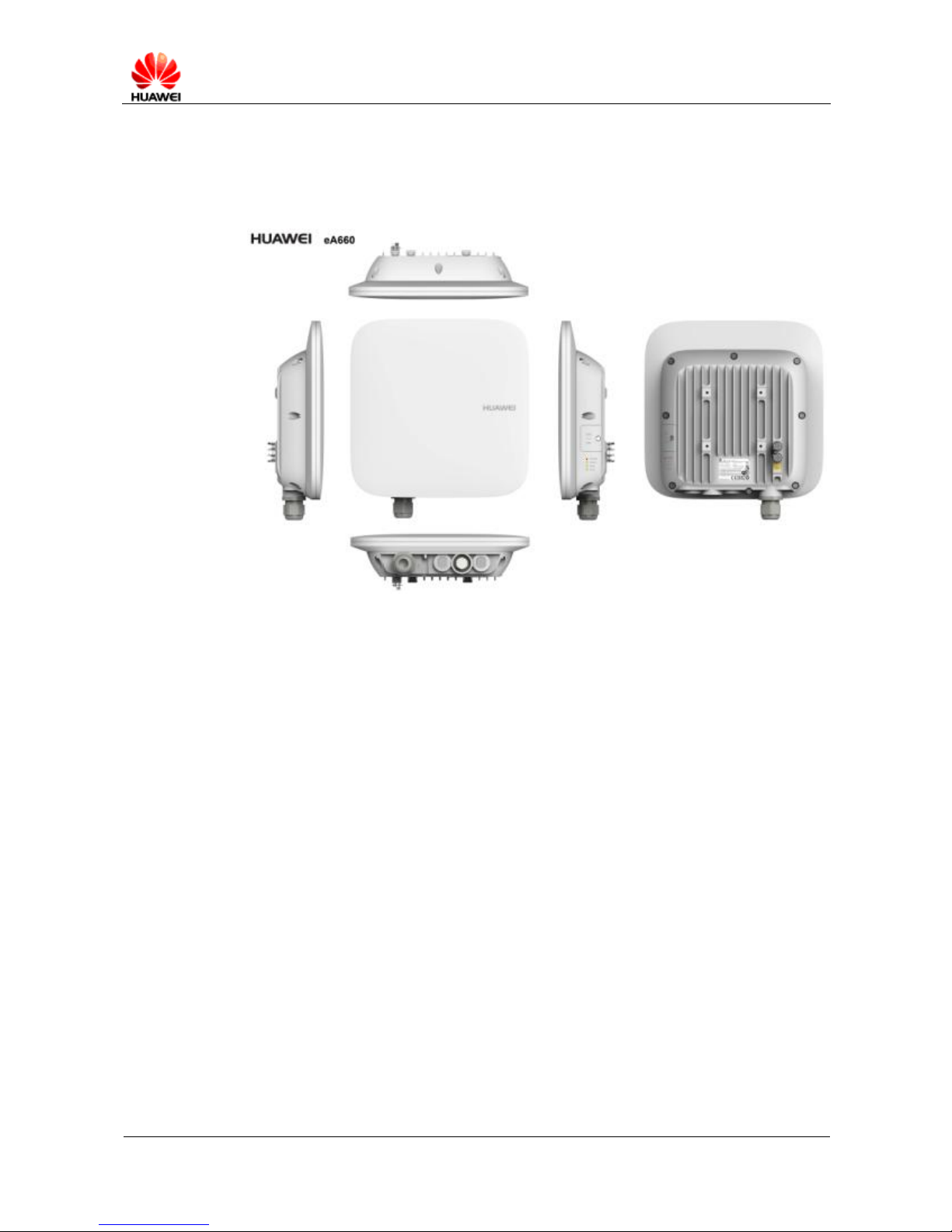

Figure 1-1 illustrates the eA660's appearance.

Figure 1-1 Appearance of eA660

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 7 of 19

2 Application Scenarios

The eA660 provides wireless broadband and wired Ethernet data services.

The eA660 is deployed outdoors and provides wireless gateway services. The eA660 can be

deployed independently or used in conjunction with the eA100, which is deployed indoors

and connected to eA660 using a network cable, providing Wi-Fi and other Internet services.

Figure 2-1 shows an application scenario where eA660 is used with the eA100.

For details about the eA100, see eWBB2.1 CPE eA100 Series Product Description.

Figure 2-1 The eA660 deployed with the eA100

Figure 2-2 shows an application scenario where eA660 is used in industrial private networks.

The eA660 provides a variety of data services, such as LTE-TDD wireless routing and

converting LTE wireless data into wired Ethernet data, and vice versa.

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 8 of 19

Figure 2-2 The eA660 deployed in industrial private networks

1. The power adapter is provided to supply power to the eA660 or devices such as a video

camera.

Figure 2-3 shows an application scenario where eA660 being connected to a video

camera.

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 9 of 19

Figure 2-3 The eA660 connected to a video camera.

2. The eA660 is connected to other devices using the network cable. A single device, such

as a camera or a Remote Terminal Unit (RTU), can connect to the eA660 using the

power adapter. Multiple devices can connect to the eA660 simultaneously using a hub or

switch.

Figure 2-4 shows an application scenario where eA660 being connected to multiple

devices.

Figure 2-4 The eA660 connected to multiple devices

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 10 of 19

3 Technical Specifications

3.1 Hardware

Table 3-1 describes the technical specifications of eA660.

Table 3-1 Technical specifications of eA660
