Replacement Procedure: DS2405 Disk Drive, 18GB-36GB-72GB

You can add or replace disks to increase storage capacity or eliminate faults. (See Chapter 4 of the

HP StorageWorks Disk System 2405 User’s Guide for troubleshooting procedures.)

Disks must be Fibre Channel (FC) and 3.5 inches wide but can vary in capacity.

For current information about supported disks, consult an HP sales representative.

You do not need to turn off the disk system to replace a disk or filler.

Caution Do not remove hot-pluggable components until you have the replacement parts and are ready to

install them. An empty slot will cause uneven cooling and eventual overheating.

Preparation (HP-UX 11.XX)

Removing or replacing a disk has consequences for the file systems and logical volumes located on the disk.

Before removing or replacing a disk, complete the appropriate system administration for your environment

and configuration.

Instructions for determining physical volume status and reducing and recreating mirrored extents follow. For

additional information, refer to your HP-UX guide, How HP-UX Works: Concepts for the System

Administrator.

The LVM commands in the following instructions assume the following:

??All of the extents of the disk in use belong to mirrored logical volumes created with the strict (-s)

option.

??The replacement disk is of the same or greater capacity as the disk being replaced.

The correct set of instructions depends on whether the mirrored volume is active and attached, or

unattached.

First, follow the instructions to determine the volume status; then follow the instructions to replace the volume

depending on whether the volume is attached or unattached.

Shortcuts:

To Determine If a Volume Group or Physical Volume Group is Active

To Determine If the Physical Volume is Attached

To Replace Attached Physical Volumes

To Replace Unattached Physical Volumes

Disk Replacement Procedure

All manuals and user guides at all-guides.com

all-guides.com

To Determine If a Volume Group or Physical Volume Group is Active

At the host console, enter:

# vgdisplay <VG name>

For example: #vgdisplay /dev/vg00

If the volume group is not active, the host will display:

# vgdisplay: volume group not activated.

# vgdisplay: cannot display volume group /dev/vg00

Note The following messages will appear if the disk is defective:

VGDISPLAY: WARNING: COULDN’T QUERY PHYSICAL VOLUME”/dev/dsk/c2t4d0”

THE SPECIFIED PATH DOES NOT CORRESPOND TO PHYSICAL VOLUME ATTACHED TO THE

VOLUME GROUP

VGDISPLAY: WARNING: COULDN’T QUERY ALL OF THE PHYSICAL VOLUMES

If either of the above messages appears, follow the replacement instructions for

Unattached Physical Volumes.

Otherwise, follow the instructions to determine if the physical volume is attached.

All manuals and user guides at all-guides.com

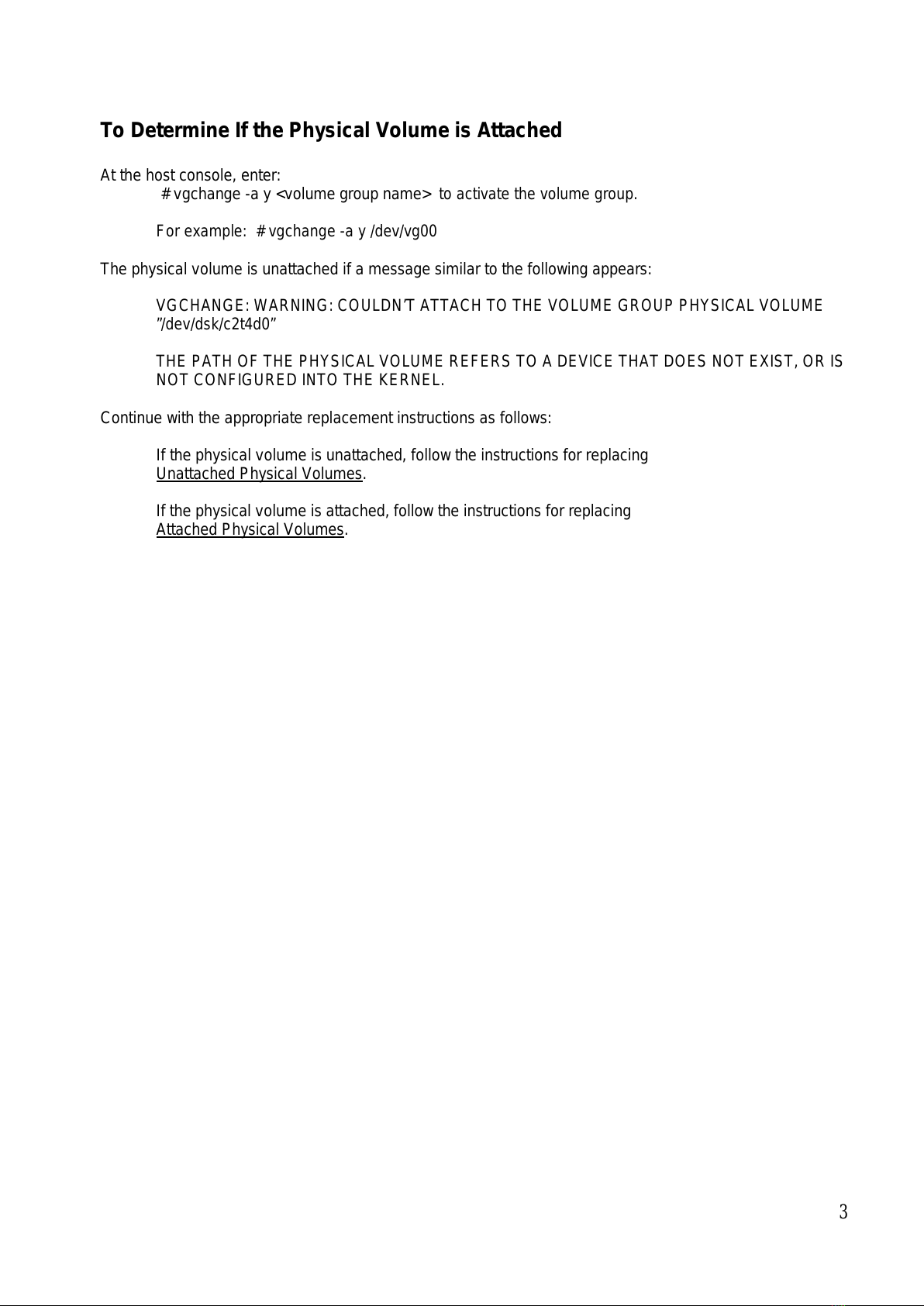

To Determine If the Physical Volume is Attached

At the host console, enter:

# vgchange -a y <volume group name> to activate the volume group.

For example: # vgchange -a y /dev/vg00

The physical volume is unattached if a message similar to the following appears:

VGCHANGE: WARNING: COULDN’T ATTACH TO THE VOLUME GROUP PHYSICAL VOLUME

”/dev/dsk/c2t4d0”

THE PATH OF THE PHYSICAL VOLUME REFERS TO A DEVICE THAT DOES NOT EXIST, OR IS

NOT CONFIGURED INTO THE KERNEL.

Continue with the appropriate replacement instructions as follows:

If the physical volume is unattached, follow the instructions for replacing

Unattached Physical Volumes.

If the physical volume is attached, follow the instructions for replacing

Attached Physical Volumes.

All manuals and user guides at all-guides.com

To Replace Attached Physical Volumes

Use the following commands to reduce any logical volumes that have mirror copies on the faulty disk and to

recreate the mirror extents once the disk has been replaced. Commands to recover from a host failure are

included with most steps.

Note The way that mirrors span several disks may not be duplicated exactly. For cases where the original

mirror layout must be preserved, consider deactivating the volume group with the vgchange command and

using the procedure for replacing unattached physical volumes.

Step 1

Enter the following command to reduce the mirror:

# lvreduce -m <mirror_copies> -A n <LV name> <physical volume path>

For example, to reduce a two-way mirror:

#lvreduce -m 0 -A n /dev/vg00/lvol4 /dev/dsk/c2t4d0

For a three-way mirror:

# lvreduce -m 1 -A n /dev/vg00/lvol5 /dev/dsk/c2t4d0

If the host fails during this step, execute an lvdisplay command to determine if the lvreduce command

succeeded. If the command did not succeed, execute the command again. Perform any other lvreduce

commands that were not executed before the system failed. Then proceed.

Note An important effect of the lvreduce command is that the LVM configuration backup file used by the

vgcfgrestore command is updated. If this replacement procedure is being performed now on another host

system and there is no need to execute any lvreduce commands, then the configuration file is not updated.

The LVM configuration is correct on the physical volumes, however, so the configuration file can be updated

with the vgcfbackup command.

Step 2

Physically replace the disk.

Note The procedure is detailed below in the Disk Replacement Procedure section, as well as on the Disk

Replacement Sheet provided with the replacement drive.

Step 3

Execute IOSCAN to verify that the new disk drive is accessible and a proper replacement.

Step 4

Enter the following command to restore the LVM configuration/headers to the replaced disks from the backup

of the LVM configuration:

# vgcfgrestore -n <volume group name> <physical volume path>

For example: # vgcfgrestore -n /dev/vg00 /dev/rdsk/c2t4d0

All manuals and user guides at all-guides.com

If the host fails, repeat the step to ensure all configuration data is written to the new disk.

Note If this replacement procedure is being performed now on another host system and there is no need to

execute any lvreduce commands, then the configuration file can be updated with thevgcfbackup command.

Step 5

Enter the following command to attach the replaced disk to the active volume group:

# vgchange -a y <volume group name>

For example: # vgchange -a y /dev/vg00

Step 6

Enter the lvextend command to transfer the mirrors onto the replaced disk. It will take time to copy all of the

original data to the mirrored extents. The logical volumes are accessible to users’ applications for two-way

mirroring during this command.

# lvextend -m <mirror_copies> <LV name> physical volume path

For example, for two-way mirroring:

# lvextend -m 1 /dev/vg00/lvol4 /dev/dsk/c2t4d0

For three-way mirroring:

# lvextend -m 2 /dev/vg00/lvol5 /dev/dsk/c2t4d0

If the host fails during this step, execute an lvdisplay command to determine if the lvextend command was

successful. If the command did not successfully execute, reissue the command. Perform any other lvextend

commands that were not executed before the system failed.

At this point, the system should be fully functioning.

Procedure Completed!

Congratulations!

All manuals and user guides at all-guides.com

To Replace Unattached Physical Volumes

Follow these instructions if the volume group is not active or if the physical volume

is unattached.

Step 1

Physically replace the disk.

Note The procedure is detailed below in the Disk Replacement Procedure section, as well as on the Disk

Replacement Sheet provided with the replacement drive.

Step 2

Execute IOSCAN to verify that the new disk drive is accessible and a proper replacement.

Step 3

Enter the following command to restore the LVM configuration/headers to the replaced disks from the backup

of the LVM configuration:

# vgcfgrestore -n <volume group name> character device file

For example: # vgcfgrestore -n /dev/vg00 /dev/rdsk/c2t4d0

If the host fails, repeat the step to ensure that all configuration data is written to the new disk.

Step 4

Enter the following command to attach the replaced disk to the active volume group:

# vgchange -a y <volume group name>

For example: # vgchange -a y /dev/vg00

If necessary:

Enter the lvextend command to transfer the mirrors onto the replaced disk. It will take time to copy all of the

original data to the mirrored extents. The logical volumes are accessible to users’ applications for two-way

mirroring during this command.

# lvextend -m <mirror_copies> <LV name> physical volume path

For example, for two-way mirroring:

# lvextend -m 1 /dev/vg00/lvol4 /dev/dsk/c2t4d0

For three-way mirroring:

# lvextend -m 2 /dev/vg00/lvol5 /dev/dsk/c2t4d0

All manuals and user guides at all-guides.com

all-guides.com

If the host fails during this step, execute an lvdisplay command to determine if the lvextend command was

successful. If the command did not successfully execute, reissue the command. Perform any other lvextend

commands that were not executed before the system failed.

At this point, the system should be fully functioning.

Procedure Completed!

Congratulations!

All manuals and user guides at all-guides.com

Follow these instructions for NT systems.

Physically replace the disk.

Note The procedure is detailed below in the Disk Replacement Procedure section, as well as on the Disk

Replacement Sheet provided with the replacement drive.

Step 1

After installing the disk module, execute the Disk Administrator utility to

configure the new disk module.

Step 2

To execute select Start -> Programs -> Administrative Tools -> Disk

Administrator.

Step 3

The new drive detection wizard will detect the new devices and will write a

signature to each device. Choose yes at the prompts questioning these actions.

Step 4

From the list of drives, choose the first unconfigured drive by right clicking

on the free space. Choose create to create a new volume, then choose to use the entire available disk

space.

Step 5

Then right-click on the unformatted volumes and select commit changes now

and press OK to the update emergency repair disk notice.

Step 6

Right-click once again and choose format. Select to format using NTFS and give the volume a name.

Choose quick format and press OK to continue.

Step 7

Once formatted, repeat the process for each of the remaining drives.

At this point, the system should be fully functioning.

Procedure Completed!

Congratulations!

All manuals and user guides at all-guides.com

Disk Replacement Procedure

Disks must be Fibre Channel (FC) and 3.5 inches wide but can vary in capacity.

For current information about supported disks, consult an HP sales representative.

You do not need to turn off the array to replace a disk or filler.

Caution Do not remove hot-pluggable components until you have the

replacement parts and are ready to install them. An empty slot will cause

uneven cooling and eventual overheating.

Caution Parts can be damaged by electrostatic discharge. Please ensure

that ESD measures are in place.

Step 1

Open the Disk Replacement Kit and inspect the contents per the first step of the Disk Replacement Sheet

included with the replacement drive.

Step 2

Caution Touching exposed electrical circuitry on the disk can damage the disk. Be sure you are grounded

and be careful not to touch exposed circuits.

Disk modules are fragile and ESD sensitive. Dropping one end of the disk just two inches is enough to cause

permanent damage. In addition, static electricity can damage the disc. Grasp disks only by their handles (A

in Figure 1) and carriers (D), and follow strict ESD procedures.

Figure 1: Disk Module Installation

A extraction handle

C LEDs

B cam latch D carrier

All manuals and user guides at all-guides.com

Step 3

Push down release tab (B in Figure 1), pull up the lever (A) on disk to be replaced.

Step 4

Caution Wait 15 seconds for the disk to spin down. There is a danger of damage to the disk if it is dropped

due to gyroscopic effects. Wait for a spinning disk to stop spinning prior to removing it from the product.

Step 5

Pull the disk to be replaced from the slot.

Step 6

Caution DO NOT leave the disk slot empty for more than 5 minutes, as proper cooling/airflow depends on

all slots being full.

Step 7

Verify that the disk module extraction handle (A in Figure 1) is open . Place your thumb behind the

extraction handle and with your finger, push the latch tab (B) toward your thumb.

Note It is important that the new disk is of the same capacity (in GB) or larger than the disk being replaced.

Step 8

Push the replacement disk module, capacity label up, into the empty slot.

Step 9

Push down the lever (A in Figure 1) on the disk. It will click into place.

Step 10

Monitor the LED,

Note The LED should be on while the disk spins up and then turn off. The LED will blink with I/O activity to

the disk. If you observe different results, further Troubleshooting may need to be carried out. (See Chapter

4 of the HP StorageWorks Disk System 2405 User’s Guide for troubleshooting procedures.)

Procedure Completed!

Congratulations!

All manuals and user guides at all-guides.com

Table des matières

Autres manuels HP Stockage

HP P6080-63001 - Maxtor DiamondMax Plus 40 GB Hard... Manuel utilisateur

HP Storevirtual 4000 Manuel utilisateur

HP StorageWorks MSA500 G2 Manuel utilisateur

HP AH164A - StorageWorks 1/8 G2 Tape Autoloader Ultrium... Instructions d'installation et d'utilisation

HP StorageWorks 4000/6000/8000 - Enterprise Virtual... Mode d’emploi

HP Surestore 6164 - Switch Manuel utilisateur

HP Cisco MDS 9020 - Fabric Switch Manuel utilisateur

HP D2D Manuel utilisateur

HP StorageWorks 8000 - NAS Guide d'installation

HP StorageWorks 8B - FC Entry Switch Manuel utilisateur

HP 6400/8400 Mode d’emploi

HP ProLiant SB460c - SAN Gateway Storage Server Mode d’emploi

HP StoreOnce 4900 Backup Mode d’emploi

HP StorageWorks EML E Series Manuel utilisateur

HP StorageWorks 8B - FC Entry Switch Manuel utilisateur

HP Xw4550 - Workstation - 2 GB RAM Manuel utilisateur

HP C4405A - Colorado 14GB Tape Drive Manuel utilisateur

HP mv2040 Manuel utilisateur

HP StorageWorks 8000 - NAS Manuel utilisateur

HP AD510A - StorageWorks Modular Smart Array 1500 cs 2U Fibre Channel SAN Attach Controller Shelf Hard... Manuel utilisateur

HP StoreOnce B6000 Manuel utilisateur

HP D2D Manuel utilisateur

HP 600 Series Manuel

HP 3PAR StoreServ 7200 2-node Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur

Dell

Dell PowerVault MD3600f Series Manuel utilisateur

CFI

CFI TERA STOR SATA RAID IV Manuel utilisateur
