HP StorageWorks 3000 - RAID Array Guide rapide

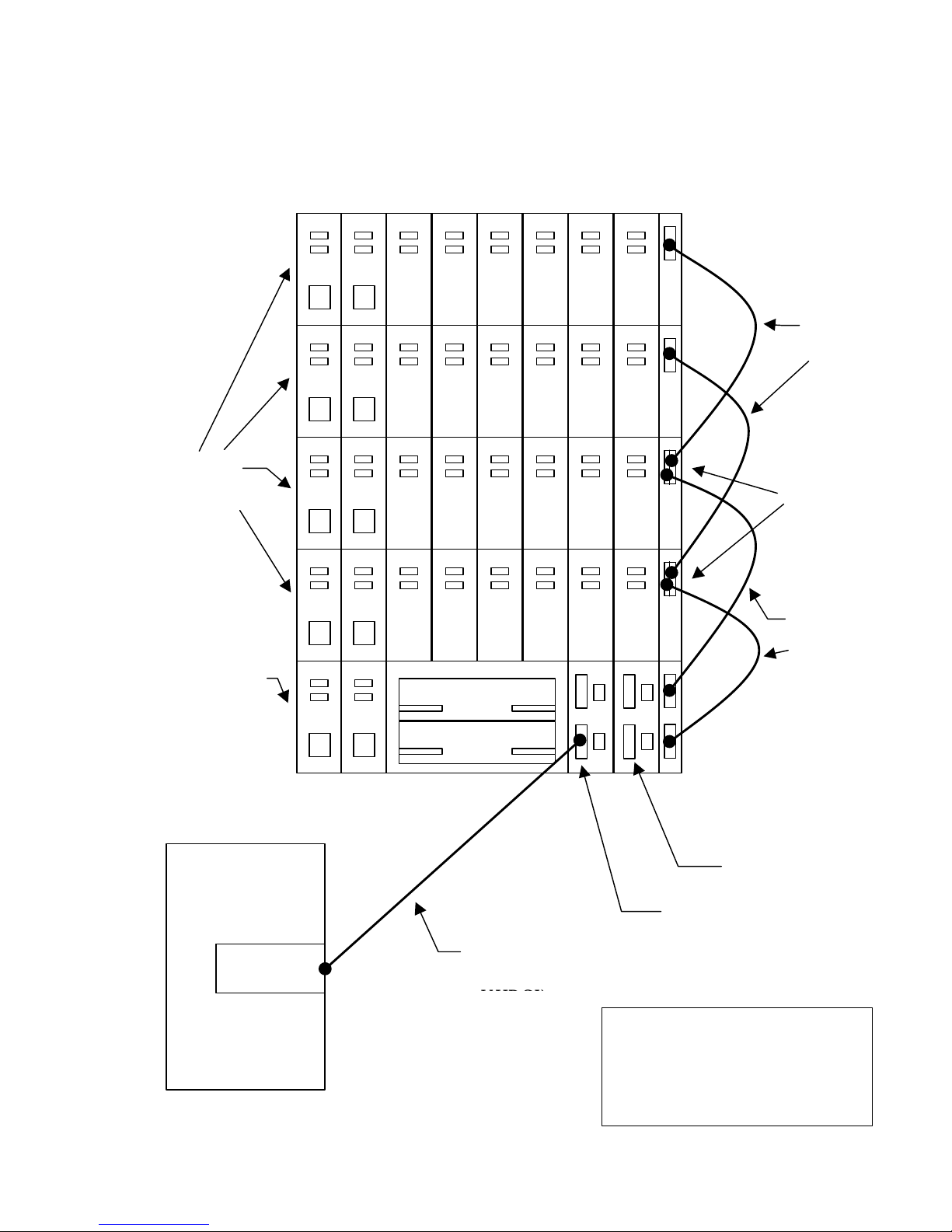

RA3000 Alpha Server Configurations

Standalone Single Adapter Configuration

Rear view of RA3000 Rear view of RA3000

Controller Pedestal (DS-SWXRA-GA) Expansion Pedestal (DS-SWXRA-GD)

Host 0

Host 1

Device 1

Host bus

Adapter

Server

Or Cluster

Single adapter Configuration

•8 LUNs available to host

•Single bus

•14 disk drives maximum

•Redundant, dual HSZ22 controllers add

Active/Passive failover mode.

BN37A-01

(Standard with

DS-SWXRA-GD)

Device 1 In

Up to BN38C-20

(68HD to VHDCI)

standard

RA3000 Alpha Server Configurations

Standalone Dual Host Adapter Configuration

Rear view of RA3000 Rear view of RA3000

Controller Pedestal (DS-SWXRA-GA) Expansion Pedestal (DS-SWXRA-GD)

Host 0

Host 1

Device 1

Adapter

Server or

Cluster

Dual Adapter Configuration

•16 Luns available to host

•14 disk drives max

•Higher Bandwidth Performance

•Redundant, dual HSZ22 controllers adds

Active/Active or Active/Passive failover

modes.

Adapter

BN37A-01

(Standard with

DS-SWXRA-GD)

Up to BN38C-20

(68HD to VHDCI)

Device 1 In

RA3000 Alpha Server Configurations

Standalone Single Adapter Mid-bus Configuration

Rear view of RA3000 Rear view of RA3000

Controller Pedestal (DS-SWXRA-GA) Expansion Pedestal (DS-SWXRA-GD)

Host 0

Host 1

Device 1

Adapter

Single Adapter Mid-Bus Configuration

•16 Luns available to host

•Single adapter mid-bus (terminators removed)

•14 disk drives max

•Redundant, dual HSZ22 controllers adds

Active/Active or Active/Passive failover modes.

BN37A-01

(Standard with

DS-SWXRA-GD)

Device 1 In

BN21W-0B

“Y” Cable

Up to BN38C-10

(68HD to VHDCI)

RA3000 Alpha Server Configurations

Dual Host Non-Cluster Configuration

Rear view of RA3000 Rear view of RA3000

Controller Pedestal (DS-SWXRA-GA) Expansion Pedestal (DS-SWXRA-GD)

Server or

Cluster

Host 0

Host 1

Device 1

Server or

Cluster

adapter Dual Host (Non-Cluster) Configuration

•8 LUNs available to each host

•14 disk drives max

•Redundant dual HSZ22 controllers

adds Active/Active or Active/Standby

failover modes

Server or

Cluster

Adapter

BN37A-01

Device 1 In

Up to BN38C-20

(68HD to VHDCI)

RA3000 Alpha Server Configurations

Dual Host Cluster Configuration

Rear view of RA3000 Rear view of RA3000

Controller Pedestal (DS-SWXRA-GA) Expansion Pedestal (DS-SWXRA-GD)

Host 0

Host 1

Device 1

Adapter

Server

Dual Host Cluster Configuration

•16 Luns available to each host

•14 disk drives max

•Redundant, dual HSZ22

controllers adds Active/Active or

Adapter

Server

BN37A-01

Device 1 In

Up to BN38C-

(68HD to

Up to BN37A-25

(VHDCI to

VHDCI)

DWZZH-

RA3000 Alpha Server Configurations

Standalone Single Adapter Configuration

Adapter

Server or

Cluster

Host 1 In

Host 0 In

Single Adapter Configuration

•8 Luns available to host

•24 disk drives max

•Redundant, dual HSZ22

controllers adds

Up to BN38C-20

(68HD to

VHDCI)

BN37A-0E

H8861-AA

Tri-Link

Controller 0

Controller 1

DS-SWXRA-GN

6 slot expansion

shelf

DS-SWXRA-GH / GK

Rackmount “M-shelf”

Controller Shelf

BN37A-0E

RA3000 Alpha Server Configurations

Standalone Single Adapter Configuration

Adapter

Server or

Cluster

Host 1 In

Host 0 In

Host 0 Out

Host 1 Out

Single KZPBA-CB Configuration

•16 Luns available to host

•24 disk drives max

•Redundant, dual HSZ22

controllers adds Active/Active or

Up to BN38C-20

(68HD to VHDCI)

BN37A-

H8861-AA

Tri-Link

Controller 0

Controller 1

DS-SWXRA-GN

6 slot expansion

shelf

DS-SWXRA-GH

Rackmount “M-

shelf” Controller

BN37A-0E

RA3000 Alpha Server Configurations

Standalone Dual Adapter Configuration

Adapter

Server or

Cluster

Adapter

Host 1 In

Host 0 In

H8861-AA

Tri-Link

BN37A-0E

Upto BN38C-20

(68HD to

Dual KZPBA-CB Configuration

•16 Luns available to host

•24 disk drives max

•Higher bandwidth performance

•Redundant, dual HSZ22 controllers

adds Active/Active or

Controller 0

Controller 1

BN37A-0E

DS-SWXRA-GN

6 slot expansion

shelf

DS-SWXRA-GH

Rackmount “M-

shelf” Controller

RA3000 Alpha Server Configurations

Dual-Host (Non-Cluster) Configuration

Adapter

Server Host 1 In

Host 0 In

H8861-AA

Tri-Link

BN37-0E

Upto BN38C-20

(68HD to

Dual-Host (Non-Cluster)

Configuration

•8 LUNs available to each host

•24 disk drives max

•Redundant, dual HSZ22

controllers adds Active/Active or

Active/Passive failover modes.

Controller 0

Controller 1

Adapter

Server

DS-SWXRA-GH

Rackmount “M-

shelf” Controller

BN37-0E

DS-SWXRA-GN

6 slot expansion

shelf

RA3000 Alpha Server Configurations

3 Host Single Bus Cluster Configuration

Tru64 Cluster or Open VMS cluster

Adapter

Server

Adpater

Server

Adapter

Server

DWZZH-05

Host In

Host Out

Host In

H8861-AA

Tri-Link

BN37A-0E

Upto BN38C-20

(68HD to VHDCI)

Upto BN37A-20

KZPBA-CB Cluster Configuration

•16 Luns available to each host

•24 disk drives max

•Redundant dual HSZ22 controllers adds Active/Active or Active/Passive

failover

Controller 0

Controller 1

BN37A-

DS-SWXRA-GN

6 slot expansion

shelf

DS-SWXRA-GH

Rackmount “M-

shelf” Controller
