HP BT861AA Manuel utilisateur
Single Monitor Arm
Single Monitor Arm Clamp
Models
HP Single Monitor Arm
BT861AA
Introduction
The HP Single Monitor Arm is the perfect desk accessory for your work life. Sleek and streamlined, the HP Single Monitor Arm is
designed to complement the way you work.
The HP Single Monitor Arm comes with a sturdy base and clamp, which attaches to the edge of your desk or worktable. It includes
convenient cable management to route cables under the arm and out of the way, and to help reduce cable clutter on your workspace. It
also provides a range of display adjustments including 13 inches of lift, 75 degrees of tilt, and 360 degrees of pan and rotation, so you
can adjust the height and angle of your monitor. Connect the monitor to your laptop or desktop PC, and stay comfortable and
productive throughout the day.
HP provides a portfolio of professional-grade accessories to help you achieve your business goals, increase productivity and lower
your costs. All HP accessories go through rigorous testing and are certified to work seamlessly with your HP Desktop, Notebook, or All-
in-One PC. They are backed up by HP's world-class support.
Key Benefits
Space saving design frees up valuable desk space
Supports up to one 24" diagonal display
Flexible arm adjusts to your size, posture and work preference
Locate the arm wherever it is most convenient for you on a desk, and secure then it with the adjustable clamp
QuickSpecs
HP Single Monitor Arm
Overview
DA - 13710 Worldwide — Version 13 — August 17, 2013
Page 1
Compatibility
Compatible with the following All-in-One Business PCs:
HP ProDesk 800 G1 All-in-One*
HP ProOne 600 G1 All-in-One*
HP Compaq 8300 Pro All-in-One*
HP Compaq 6300 Pro All-in-One*
*Touch models not supported
NOTE:
Not all models are available in all regions.
Compatible Monitors
ProDisplayMonitors
HP Compaq LE1711 17-inch LCD Monitor
EM886A
HP Compaq LE1901wl 19-inch LED Backlit LCD Monitor
XL877AA
HP Compaq LE1911 17-inch LCD Monitor
EM887A
HP Compaq LE2202x
LL649A
HP ProDisplay P221 21.5-inch LED Backlit Monitor
C9E49AA
EliteDisplay Monitors
HP Compaq LA2205wg 22-inch Widescreen LCD Monitor
NM274A
HP Compaq LA1751g 17-inch LCD Monitor
EM889A
HP Compaq LA2006x
XN374A
HP Compaq LA2206x
XN376A
HP Compaq LA2306x
XN375A
HP Compaq LA2405x
A9P21AA
HP EliteDisplay E231 23-inch LED Backlit Monitor
C9V75AA
Performance Monitors
HP ZR2240w 21.5-inch LED Backlit IPS Monitor
XW475A4,
XW475A8
HP ZR2440w 24-inch LED Backlit IPS Monitor
XW477A4,
XW477A8
HP Z22i 21.5-inch IPS Display
D7Q14A4,
D7Q14A8,
D7Q14AS,
D7Q14AT
HP ZR2330w 23-inch IPS LED Backlit Monitor
C6Y18A4,
C6Y18A8,
C6Y18AS,
C6Y18AT
HP Z23i 23-inch IPS Display
D7Q13A4,
D7Q34A8,
D7Q13AS,
D7Q13AT
QuickSpecs
HP Single Monitor Arm
Overview
DA - 13710 Worldwide — Version 13 — August 17, 2013
Page 2
Specialty Monitors
HP Compaq L2311c
A1W80AA
HP L2401x 24-inch LED Backlit Monitor
B6R21AA
HP Compaq LA2206xc 21.5-inch Webcam LCD Monitor
LW490AA
HP Compaq L2311c
A1W80AA
Touch Series Monitors
HP Compaq L2206tm
B0L55AA
Service and Support
One-year limited warranty. Additional support is available 24 hours a day, seven days a week by phone as
well as online support forms.
NOTE:
Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
Technical Specifications
HP Single Monitor Arm
Basic Product
Specifications
Assumed Display Size
Supports displays up to 24 in (60.96 cm)
Assumed Weight of
Display
Supports displays weighing 7–20 lbs (3.1–9.1 kg)
* Monitor depth greater than 2 in (5 cm) may
diminish capacity.
VESA Configuration
MIS-D Mounting Standards: VESA FDMI, MIS-D,
75/100, C (hole pattern = 100 x 100 mm & 75 x 75
mm)
Desk Mounting
Configuration
Desk Clamp attaches to surface edge 0.4 in to 2.4
in (10 to 60 mm) thick; Grommet Mount attaches
through surface holes 0.31 in to 2 in (8 to 50 mm)
wide and up to 3 in(76 mm) thick
Add-Ons – Soundbar, Non-
Standard Cables, etc.
None assumed
Product Features
Tilt Adjustment Range
75° Total Range (+70° rear / -5° front)
Height Adjustment Range
13 inches (330mm)
Landscape to Portrait
360° P/L
Landscape to Portrait
Detent
None
Side to Side Pan
Pans at pole 360°; pans at extension 360°; pans at monitor 180°
Arm Extension
Extends/retracts LCD up to 25.6 in (650 mm)
Quick Release Mechanism
None
Tilt Lock Feature
None
Cable Management
Feature
Cable management feature included underneath the lift arm and extension
arm
Weight Adjustment
Feature
End user weight adjustment feature included
Product Finish
HP Black
Safety, Testing and
Environmental
Product Storage and
Transportation
–4° to +140° F (–20° to +60° C)
QuickSpecs
HP Single Monitor Arm
Overview
DA - 13710 Worldwide — Version 13 — August 17, 2013
Page 3
Specifications
Temperature
Operating Temperature
32° to 104° F (0° to 40° C)
Safety Considerations
Engineered to meet Ergotron's workmanship
standard for safety.
Regulatory/Usability/
Environmental
Requirements
RoHS – Standard
Product Testing
Procedure & Design
Standard
The product testing procedure & design standard
will be determined, documented and monitored
by Ergotron.
Operating Life
NA
Manuals and Accessories
Install guides and
warranty info
requirements
None
Accessory Kits
Includes desk clamp and grommet mount
accessory kits
© Copyright 2013 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
QuickSpecs
HP Single Monitor Arm
Overview
DA - 13710 Worldwide — Version 13 — August 17, 2013
Page 4
Table des matières
Autres manuels HP Support et étagère
HP
HP 6400/8400 Manuel utilisateur
HP
HP 245161-B22 - 10642 42U Rack Shock Pallet Instructions d'utilisation
HP
HP Integrated Work Center Stand Instructions d'utilisation
HP
HP D7171A - NetServer - LPr Manuel utilisateur
HP

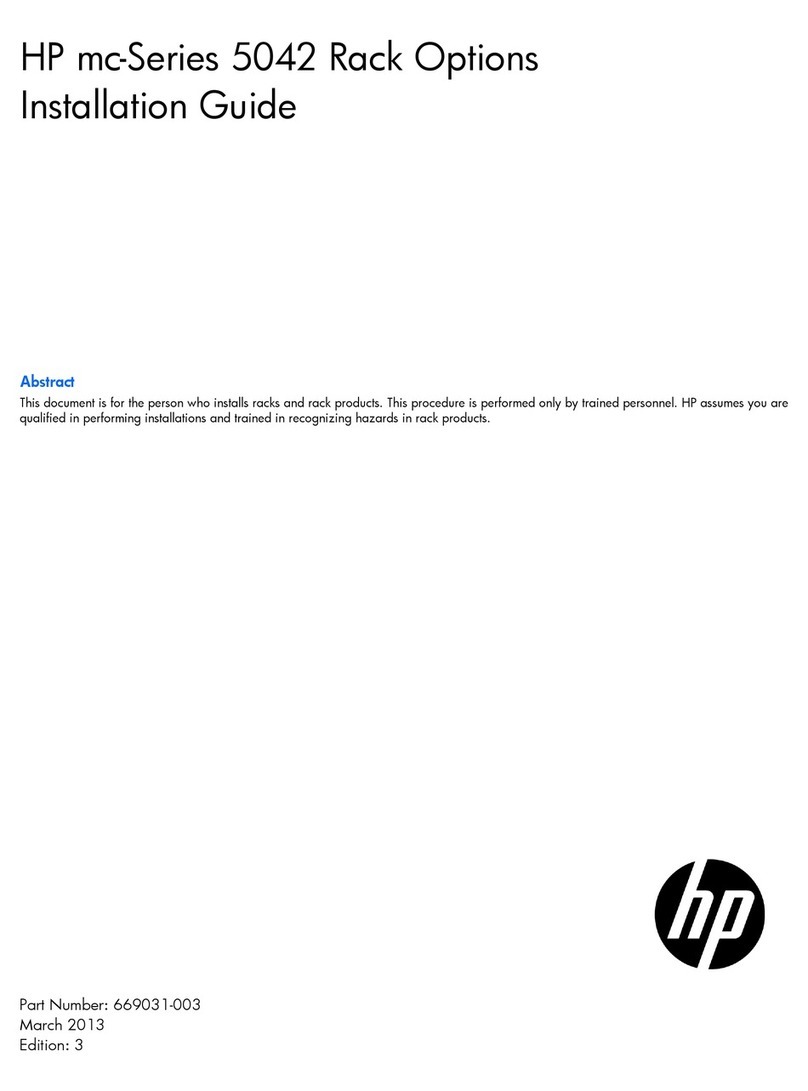

HP MCS 5042 Manuel utilisateur
