HP 355 Manuel utilisateur

HP 355/365 Cloud-Managed

Access Point Wall Mount Kit

Installation Guide

Contents

English 3

Français 11

Português do Brasil 19

Русский 27

Украинский 35

HP 355/365 AP Wall Mount Kit | Installation Guide 2

HP 355/365 AP Wall Mount Kit | Installation Guide 3

Package contents

lMounting bracket

l2 Ethernet cable adapters

lT8 Torx security screw

lPaper template for screw holes

This mounting kit supports multiple AP models. Your AP might look different

than the AP shown in this document.

Installation

Complete the following steps to install your access point using the HP 355/365 AP Wall

Mount Kit.

HP 355/365 Cloud-Managed Access Point Wall Mount Kit (JL019A)

Installation Guide

4 HP 355/365 AP Wall Mount Kit | Installation Guide

Ethernet cable routing options

There are three options for routing the Ethernet cable, depending on the placement of

your AP in relation to the source of the Ethernet cable.

Installing an Ethernet cable from below the AP

1. Route the Ethernet cable through the channel in the rear of the mounting bracket.

See Figure 1.

2. Loop the Ethernet cable over the top of the mounting bracket, and direct the cable

through the opening that leads to the AP Ethernet ports.

3. If required, route the power cable through the bottom right of the mounting bracket.

4. Install the mounting bracket as described in Installing the mounting bracket on page 7.

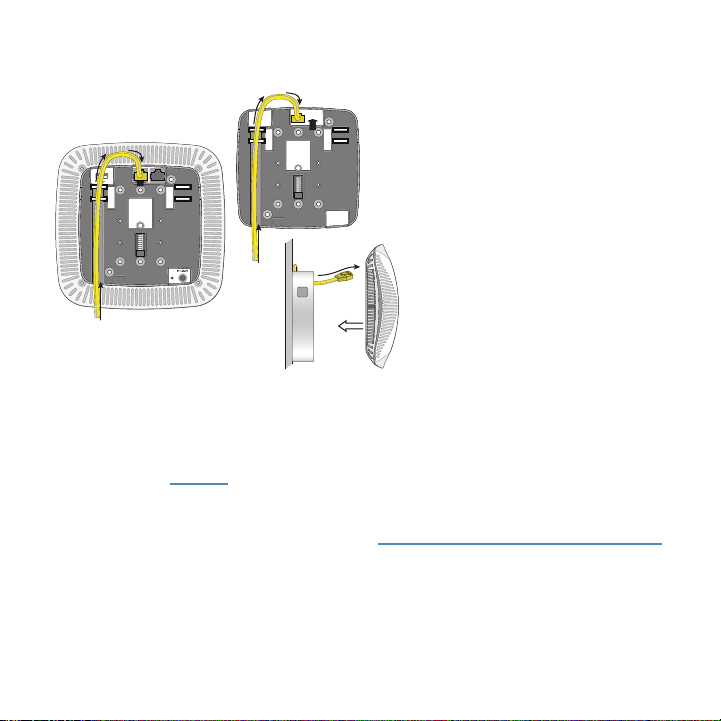

Figure 1: Installing an Ethernet cable from below the AP

Installing an Ethernet cable from behind the AP

1. Route the Ethernet cable through the large opening in the center of the mounting

bracket. See Figure 2.

2. If required, route the power cable through the bottom right of the mounting bracket.

3. Install the mounting bracket as described in Installing the mounting bracket on page 7.

HP 355/365 AP Wall Mount Kit | Installation Guide 5

6 HP 355/365 AP Wall Mount Kit | Installation Guide

Figure 2: Installing an Ethernet cable from behind the AP

Using the Ethernet cable adapter

1. Attach the Ethernet cable adapter(s) to the mounting bracket as shown in Figure 3.

The adapter is secured when it clicks into place.

2. If required, route the power cable through the bottom right of the mounting bracket.

3. Install the mounting bracket as described in Installing the mounting bracket on page 7.

Figure 3: Using the Ethernet cable adapter

Installing the mounting bracket

1. Hold the paper template included with this mount kit against the wall where you want

to install the mounting bracket, and mark the location of the screw holes.

2. Install wall anchors if necessary. Wall anchors are not included in this kit.

3. Align the screw holes in the mounting bracket with the previously installed anchors or

marked screw points. See Figure 4. Ensure that no Ethernet cables are obstructing

the screw holes.

HP 355/365 AP Wall Mount Kit | Installation Guide 7

8 HP 355/365 AP Wall Mount Kit | Installation Guide

Figure 4: Attaching the mounting bracket to a wall

4. Use screws to secure the mounting bracket. Screws are not included in this kit.

5. Attach any necessary cables to the AP.

6. If using the Ethernet cable adapter, connect the Ethernet cable through the opening

on the side of the mounting bracket.

To disconnect the Ethernet cable from the adapter after the installation is

complete, you must remove the AP from the bracket to access the RJ45

locking tab.

7. Push the metal slider located on the bottom of the mounting bracket up to allow the AP

to connect.

8. While still pushing the metal slider, align the mounting posts on the bracket with the

mounting holes on the AP. See Figure 5.

Figure 5: Attaching the AP to the mounting bracket

9. Install the T8 Torx security screw into the screw hole on the bottom of the mounting

bracket to complete the installation.

HP 355/365 AP Wall Mount Kit | Installation Guide 9

10 HP 355/365 AP Wall Mount Kit | Installation Guide

Figure 6: Completed installation

© Copyright 2014 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice. The only warranties for HP products and services are

set forth in the express warranty statements accompanying such products and services. Nothing herein should be

construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions

contained herein.
